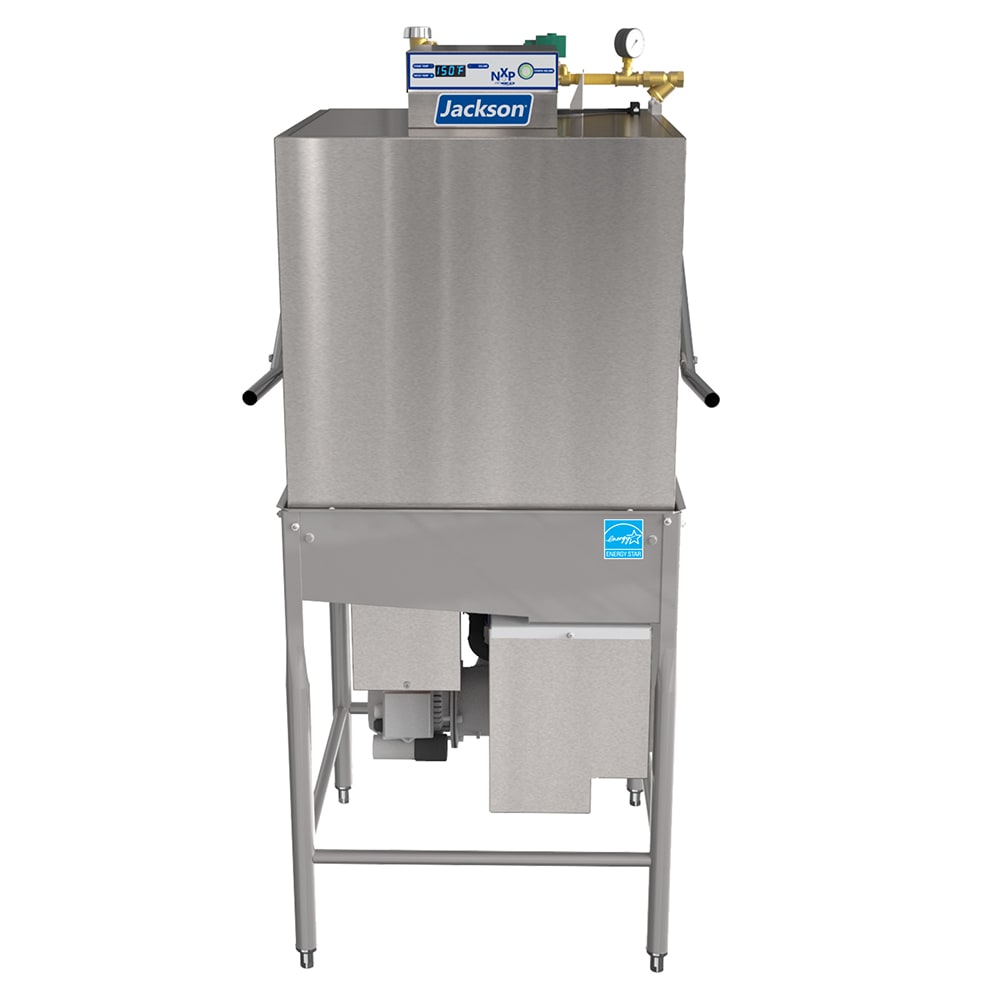

Jackson NXP-HTD High Temp Door Type Dishwasher w/ 58 Racks/hr Capacity, Built-in Booster, 230v/3ph

The Jackson NXP-HTD high-temperature, door-type dishwasher uses a built-in booster to keep wash and rise temperatures hot. Designed to wash a load of dishes in 57 seconds, it can clean 63 racks per hour using 0.89 gallons of water per rack. Dishes are cleaned with stainless steel nozzles and rinsed by the Sani-Sure™ final rinse system. A delime cycle keeps the unit fresh for long-term use, and its upper and lower wash and rise arms are interchangeable. Users can oversee operations via the top-mounted controls, which display a digital temperature reading. If temperatures get too high or water levels drop, the controls alert the operator.

The Jackson NXP-HTD commercial door-type dishwasher is constructed of durable stainless steel to endure daily use. It has a 17¹⁄₄-inch vertical clearance; closing its door kickstarts cleaning. If the machine becomes idle, its vent fan shuts off to reduce energy consumption. Supported on 6-inch adjustable bullet feet, the unit's design accounts for unlevel surfaces.

Product Details

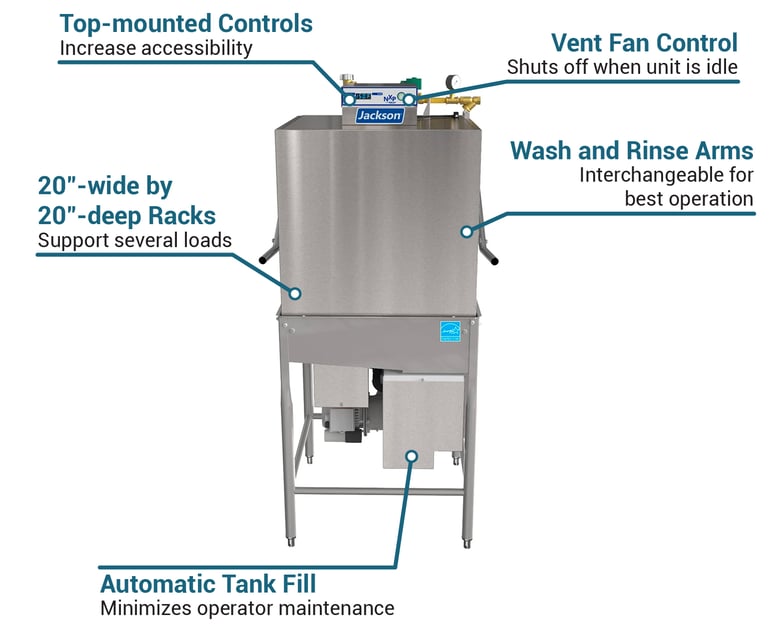

• Door-type design
• Uses 0.89 gal. of water per rack
• Cleans 63 racks per hour
• Cycle: 57 seconds
• Built-in rise booster heater
• Tank fills automatically
• Door-actuated start
• Stainless steel nozzles
• Sani-Sure rinse
• Delime cycle
• Interchangeable upper and lower wash/rinse arms
• High-limit thermostat and low water protection
• Vent fan control
• Top-mounted controls
• Digital temperature display
• Stainless steel wash pump motor
• Electric wash tank heater
• Detergent/rinse additive signal connection fuse box
• Stainless steel construction
• 6-in. adjustable bullet legs
• Scrap basket included
• 17¹⁄₄-in. vertical chamber clearance
• Minimum rear wall clearance: 4 in.
• Corner installation wall clearance: 4 in.
• Standard table height: 34¹⁄₄ in.
• Operating wash temperature: 150 degrees F
• Operating rinse temperature: 180 degrees F
• Ideal inlet water temperature: 110 degrees F

Dimensions & Utilities

• 30⁵⁄₈ in. W x 25¹⁄₄ in. D x 64 in. H
• 49.8 A, 1 HP
• 230 V/60 Hz/3 ph
• Waterline size: ¹⁄₂ in.
• Drain line size: 1¹⁄₂ in.

Product Features

*Free shipping on Jackson NXP-HTD within the 48 contiguous states.

From The Manufacturer

Dishwasher, door type, high temperature electric tank heat, built-in 70°F booster with Sani-Sure™, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.89 gallons per rack), automatic tank fill, door-actuated start, digital temperature display, delime cycle, 17-1/4” vertical chamber clearance, interchangeable upper & lower wash/rinse arms, vent fan control, hi-limit thermostat, low water protection, detergent/rinse additive signal connection fuse box, 1 HP stainless steel wash pump motor, stainless steel exterior, adjustable bullet feet, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
