Jackson NXP-HTD High Temp Door Type Dishwasher w/ 58 Racks/hr Capacity, Built-in Booster, 208v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$10,445.00 /Each
Call for details!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 1 Phase |
| 230V, 3 Phase |

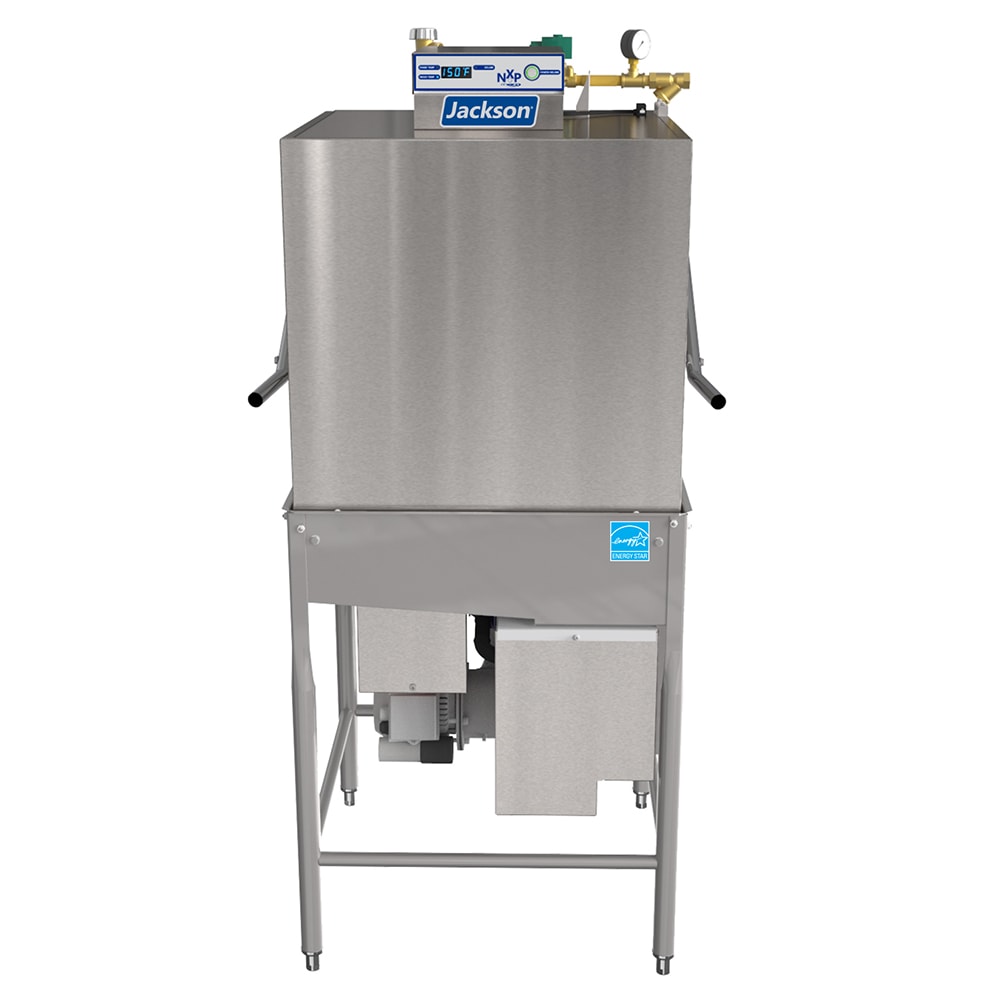

Jackson NXP-HTD Description
The Jackson NXP-HTD high-temp, door-type dishwasher includes a built-in booster heater to keep water temperatures high for proper dish sanitation. Able to wash 63 racks of dishes hourly, it has a 57-second single automatic cycle, and it only uses 0.89 gallons of water per rack, or 56.1 gallons of water per hour. Top-mounted controls prevent users from stooping, and its pull-down door design permits loading and unloading dishes while standing. Constructed of stainless steel, it's equipped to endure common wear from loading, unloading, and dish organization. It's propped up on bullet feet that adjust to accommodate uneven surfaces. In total, it measures 30 5⁄8 inches wide by 39 inches deep by 64 inches high.
Stainless steel nozzles spray dishes inside the Jackson NXP-HTD commercial door-type dishwasher for desired results. Its upper and lower wash and rinse arms are interchangeable for prime operation over time. The booster heater includes a Sani-Sure™ final rinse system to remove any leftover particles. Its water tank automatically fills, reducing operator maintenance, and users are notified of high temperatures or low water levels. When the unit is idle, the vent fans turn off automatically to conserve power.

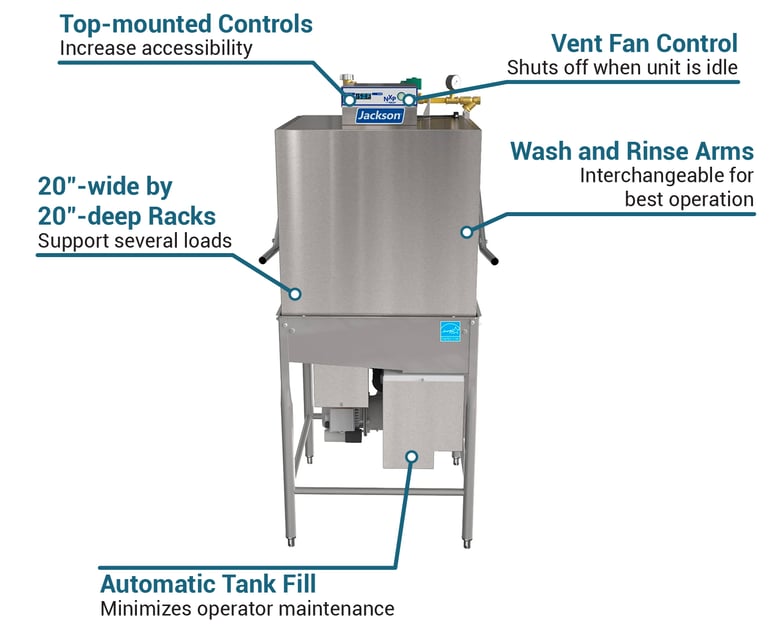

- Door-type design
- Cleans 63 racks per hour
- Uses 0.89 gal. of water per cycle
- 57-second cycle
- Standard, 20-in.-wide by 20-in.-deep racks
- Built-in rise booster heater
- Door-actuated start
- Automatic tank fill
- Top-mounted controls
- Stainless steel construction supports rigorous use
- Stainless steel nozzles
- Interchangeable upper and lower wash and rise arms
- Sani-Sure final rinse system
- Delime cycle
- Idle vent fan shut-off
- High-limit thermostat and low water protection
- Digital temperature display
- Scrap basket
- Adjustable bullet feet
- 17 1⁄4-in. vertical chamber clearance
- Minimum rear wall clearance: 4 in.
- Minimum corner installation wall clearance: 4 in.
- Inlet water temperature: 110 degrees F
- Ideal minimum water operating temperature: 150 degrees F
- Ideal minimum rinse operating temperature: 180 degrees F
- 30 5⁄8 in. W x 29 in. D x 64 in. H
- 75.2 A, 10.5 kW, 1 HP
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson NXP-HTD within the 48 contiguous states.
From The Manufacturer
Dishwasher, door type, high temperature electric tank heat, built-in 70°F booster with Sani-Sure™, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.89 gallons per rack), automatic tank fill, door-actuated start, digital temperature display, delime cycle, 17-1/4” vertical chamber clearance, interchangeable upper & lower wash/rinse arms, vent fan control, hi-limit thermostat, low water protection, detergent/rinse additive signal connection fuse box, 1 HP stainless steel wash pump motor, stainless steel exterior, adjustable bullet feet, cETLus, ETL-Sanitation, ENERGY STAR®
Watch a video about this product
Jackson NXP-HTD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.25 |
| Control Location | Top |
| Depth (in) | 29 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 58 |
| Rating | Good |
| Special Features | Built In Booster & Corner Convertible |
| Type | High Temp |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30.63 |
| Weight | 263.00 |
