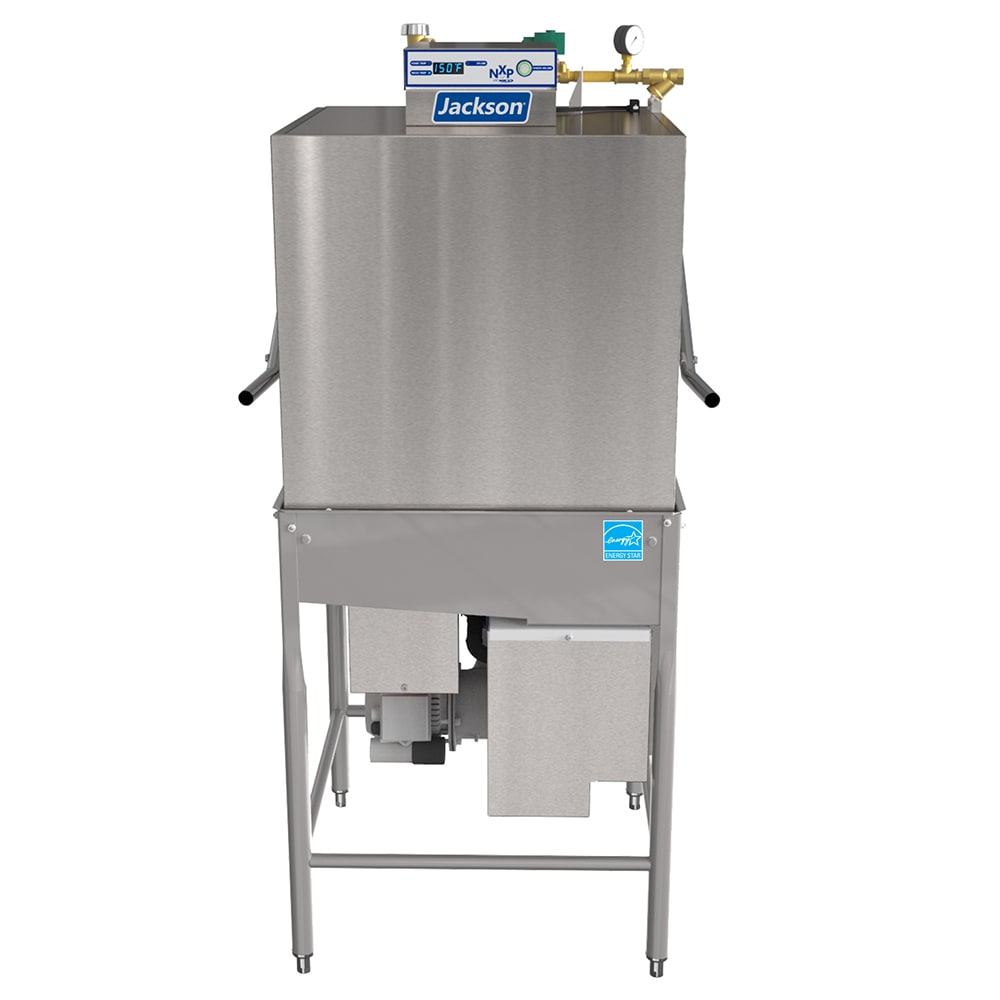

Jackson NXP-HTD High Temp Door Type Dishwasher w/ 58 Racks/hr Capacity, Built-in Booster, 230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$10,445.00 /Each
Call for details!
Selected Voltage: 230V, 1 Phase
| 230V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 3 Phase |
Jackson NXP-HTD Description
With its lift-up and pull-down door, users can load and unload the Jackson NXP-HTD high-temp dishwasher efficiently. Built with a booster heater to ensure proper heating, its stainless steel nozzles deep clean dirty dishes. Its wash and rinse arms are interchangeable to maintain good results, and the Sani-Sure™ final rinse system washes off soap prior to a cycle's end. Overall, the unit uses 0.89 gallons of water per rack and can clean 63 racks per hour, as each cycle is 57 seconds long.
The Jackson NXP-HTD commercial dishwasher is constructed of stainless steel to endure common wear from consistent loading and unloading of its 20-inch-wide by 20-inch-deep racks. Its controls are mounted on top of the unit for easy access, and it has a digital temperature display for consistent management. The water tank automatically fills to avoid operator maintenance and its vent fan shuts off when the machine is idle. Supported 6 inches above the ground by adjustable bullet feet, its overall dimensions are 30 5⁄8 inches wide, 29 inches deep, and 64 inches high.
- Cycle time: 57 seconds
- Cleans 63 racks per hour
- Uses 0.89 gal. of water per rack
- Built-in booster heater: 70 degrees F
- Automatic tank fill
- Door-actuated start
- Stainless steel cleaning nozzles
- Interchangeable upper and lower wash and rinse arms
- Sani-Sure rinse system
- Delime cycle
- Top-mounted controls
- Digital temperature display
- High-limit thermostat and low water protection
- Vent fan control
- Wash pump motor
- Detergent/rise additive signal connection fuse box
- Scrap basket
- 6-in. adjustable bullet feet
- 17 1⁄4-in. vertical chamber clearance
- Minimum rear wall clearance: 4 in.
- Corner installation wall clearance: 4 in.
- Standard table height: 34 1⁄4 in.
- Operating wash temperature: 150 degrees F
- Operating rinse temperature: 180 degrees F
- Ideal inlet water temperature: 110 degrees F
- 30 5⁄8 in. W x 25 1⁄4 in. D x 64 in. H
- 82.7 A, 1 HP
- 230 V/60 Hz/1 ph
- Waterline: 1⁄2 in.
- Drain line: 1 1⁄2 in.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson NXP-HTD within the 48 contiguous states.
From The Manufacturer
Dishwasher, door type, high temperature electric tank heat, built-in 70°F booster with Sani-Sure™, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.89 gallons per rack), automatic tank fill, door-actuated start, digital temperature display, delime cycle, 17-1/4” vertical chamber clearance, interchangeable upper & lower wash/rinse arms, vent fan control, hi-limit thermostat, low water protection, detergent/rinse additive signal connection fuse box, 1 HP stainless steel wash pump motor, stainless steel exterior, adjustable bullet feet, cETLus, ETL-Sanitation, ENERGY STAR®
Watch a video about this product
Jackson NXP-HTD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.25 |
| Control Location | Top |
| Depth (in) | 29 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 58 |
| Rating | Good |
| Special Features | Built In Booster & Corner Convertible |
| Type | High Temp |
| Voltage | 230 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30.63 |
| Weight | 263.00 |
