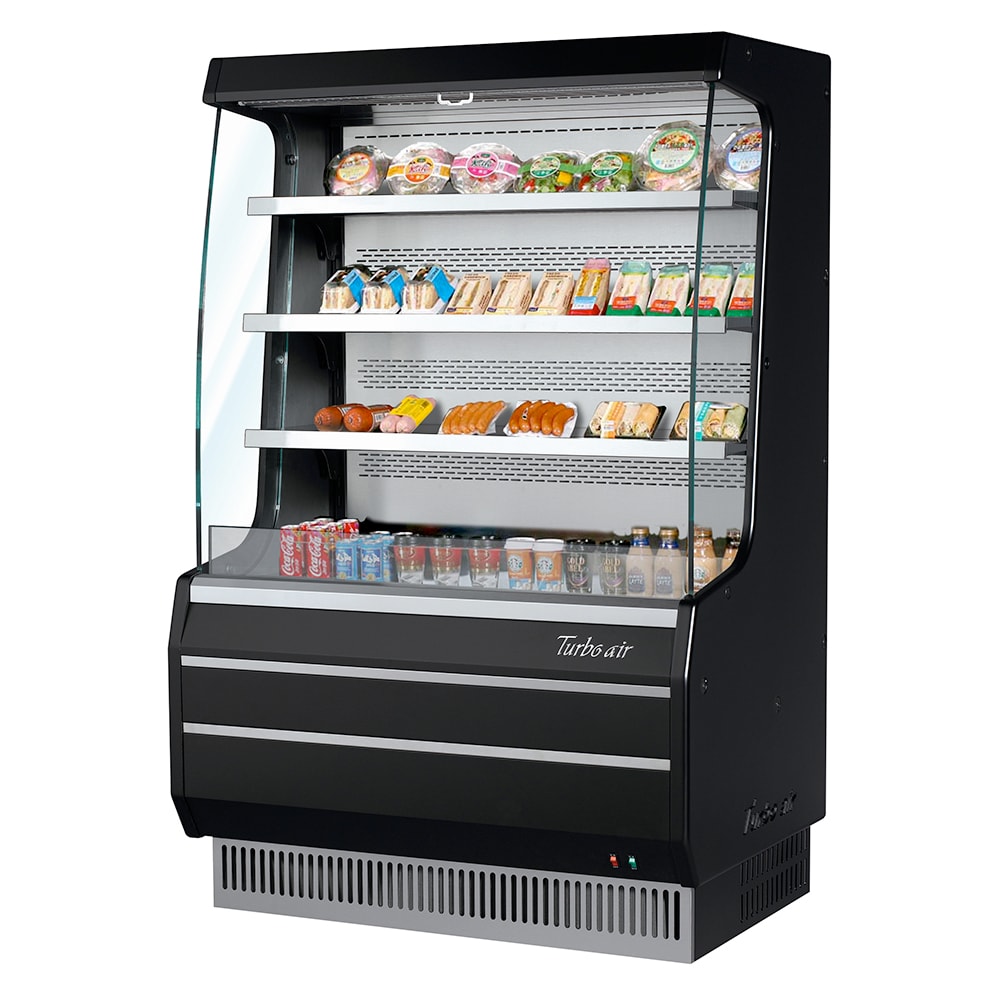

Turbo Air TOM-40MB-N 39" Vertical Open Air Cooler w/ (4) Levels, 115v

The Turbo Air TOM-40MB-N open display case makes it convenient to grab product with its open design. An air curtain is created over product to keep it within the safe zone, and temperatures are maintained by R290 hydrocarbon refrigerant. All the components of the refrigeration system are built together to make it easy to service. A self-cleaning device on the condenser removes built-up dirt and debris to prevent the system from overheating.

The cabinet comes in black to match almost any establishment's theme. Constructed of stainless steel, the three shelves resist corrosion and are easily cleaned. Cold air is kept inside the cabinet with polyurethane insulation, and LED lights illuminate the interior. A back guard is built into the Turbo Air TOM-40MB-N open air cooler to keep items from touching the back wall and blocking air flow. The back and top are perforated to help with air flow.

Product Details

• Front shield and side walls are made of glass for visibility from different angles
• 3 stainless steel shelves are easy to clean
• Back guard keeps product from touching the back wall so air can flow properly
• Back wall and top are perforated to improve the flow of air
• Night curtain is designed to take pressure off the air curtain during closed hours
• High-density polyurethane insulation keeps cold air in the cabinet
• Air is taken in at the front and released in the rear
• Black exterior matches almost any theme
• LED interior lights shine on product for visibility
• Ideal ambient temperature: 75 degrees F
• Ideal relative humidity: 55 percent
• Should not be installed near HVAC vents, doorways, or fans that will disrupt the air curtain
• Runs most efficiently when filled with product

Product Features

Self-contained Refrigeration System

• Condenser automatically cleans dirt and debris off itself every day to prevent overheating
• Coated evaporator is corrosion resistant
• Refrigeration system is self-contained, so all the components are built together
• Digital thermometer is solar powered
• Electronic thermostat is digital and has a defrost control
• Environmentally friendly R290 hydrocarbon refrigerant keeps temperatures cool

Dimensions & Utilities

• Top shelf: 32³⁄₄ in. W x 10³⁄₄ in. D
• Middle and lower shelves: 35³⁄₄ in. W x 12 in. D
• Interior: 36¹⁄₂ in. W x 15 in. D x 33⁷⁄₈ in. H
• Overall: 39 in. W x 28 in. D x 60¹⁄₂ in. H
• 15.5 A, (2) ³⁄₄ HP
• 115 V/60 Hz/1 ph, NEMA 5-20P plug

From The Manufacturer

Vertical Open Display Merchandiser, mid-height, 8.3 cu. ft. capacity, 39" W x 28" D x 60 1/2" H, self-cleaning condenser device, open front, tempered glass front shield & side walls, self-contained, plug-in installation, front air intake & rear air discharge, (3) adjustable stainless steel shelves in 1" increments, LED lights, hot gas condensate system, energy saving night curtain standard, 300 stainless steel interior, black exterior, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 115v/60/1-ph, 15.5 amps, NEMA 5-20P, CSA-Sanitation, cCSAus

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

2-year Parts & Labor; 5-year Limited Compressor Parts

Turbo Air TOM-40MB-N Specifications

Documents

Spec Sheet

Warranty

Manual

Certifications
