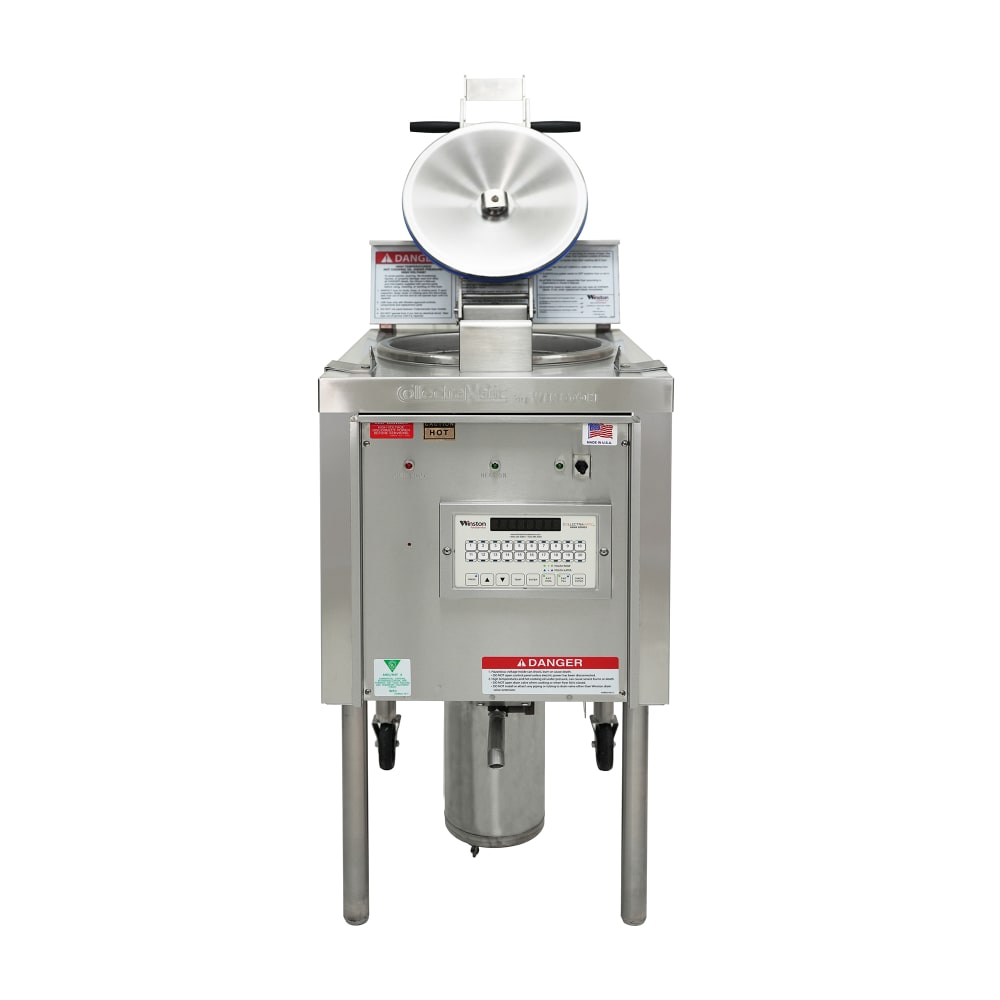

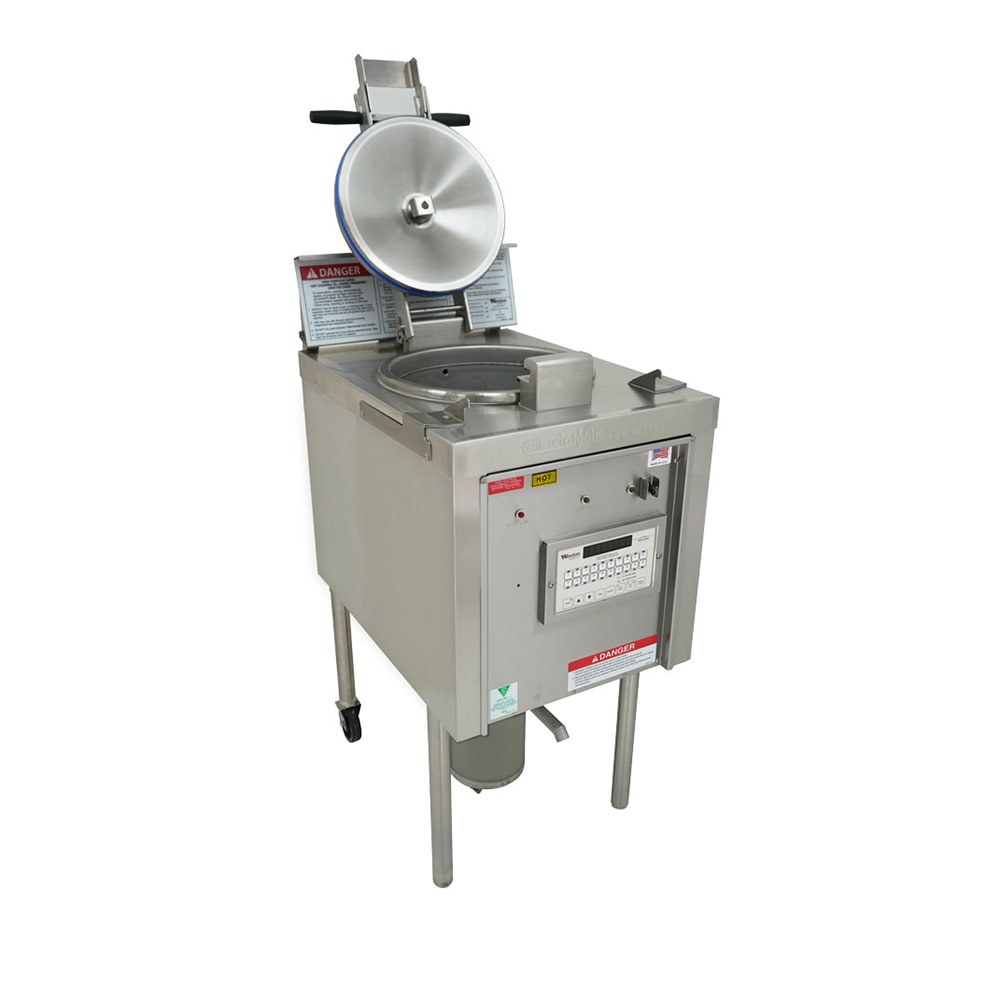

Winston LP56 75 lb Electric Pressure Chicken Fryer - 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 081-LP562403 • MPN: LP56 2403

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $7,400.00

Selected Voltage: 240V, 3 Phase

Image may not depict product color, inclusions or accessories.

Winston LP56 Description


Part of the Collectramatic series, the Winston LP56 2403 low-pressure fryer features accurate microprocessor controls that offer precision temperature control without the need to ever be calibrated. Eight channels on the fryer's control panel can be programmed with specific cooking time and temperature to recall the cooking procedures for your most popular menu items. This control setup is convenient for users and also guarantees that your products are being cooked consistently batch to batch.

The Winston LP56 2403 fryer has one of the largest cold zones in the industry. That means it's able to trap more sediment to prevent it from burning to protect the quality of your oil. The fryer can go through as many as 30 cook cycles between oil filtrations. This Winston Collectramatic fryer is designed for use with the Quarter Rack system that allows fresh chicken to be taken directly from the fryer and put into a heated holding cabinet quickly.

Product Details

  • Extra-large cold zone traps loose breading and batter sediment, preventing it from burning
  • Can perform as many as 30 cook cycles until the oil needs to be filtered or replaced
  • Able to cook up to 18 lbs. of friend chicken in 10 min.
  • Built for use with Winston's Quarter Rack system, allowing finished chicken to be taken directly from the fryer to the holding cabinet quickly with little operator involvement
  • Constructed of stainless steel for a long life
  • Self-regulating low pressure system uses few moving parts for easy maintenance
  • cULus and UL-Sanitation Listed
  • Overall Dimensions: 20.2 in. W x 30 in. D x 37.8 in. H

Microprocessor Controls for Consistent Results

  • Microprocessor controls provide more precise temperatures than traditional electric controls
  • Controls remain accurate without calibration
  • 8 programmable channels can each be programmed with a temperature and cook time for your most popular menu items
  • Flex-Time allows cook times to be adjusted for different-sized portions

Collectramatic® Pressure Fryer, compact, (6) head (18 lbs. product/75 lbs. cooking oil capacity), processor control with 8 programmable channels, full 1-1/2" insulation, mounted, includes (1) clamshell basket, (2) collector gaskets, (2) lid gaskets, (1) spatula, (1) drain hook, (1) pair gloves, (1) Teflon® brush, (1) long collector, (1) heat plate, & (4) adjustable legs, stainless steel construction, UL, cUL, UL Sanitation, NSF, 240v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Winston LP56 Specifications

PDF Spec Sheet
Manufacturer Winston
Heat Electric
Oil Capacity per Fryer 75 lb
Width (in) 20.2
KW 10.5
Specialty Options Programmable Controls
Warranty 1 year limited warranty
Food Capacity 18 lbs
Hertz 60
Voltage 208
Phase 3
Product Pressure Fryer
Product Type Cooking Equipment
Weight 214.00
Winston LP56 Certifications
  • UL
  • NSF
