Winston LP56 75 lb Electric Pressure Chicken Fryer - 240v/1ph
Selected Voltage: 240V, 1 Phase
208V, 3 Phase |
240V, 1 Phase |
240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Similar Products in Stock Now

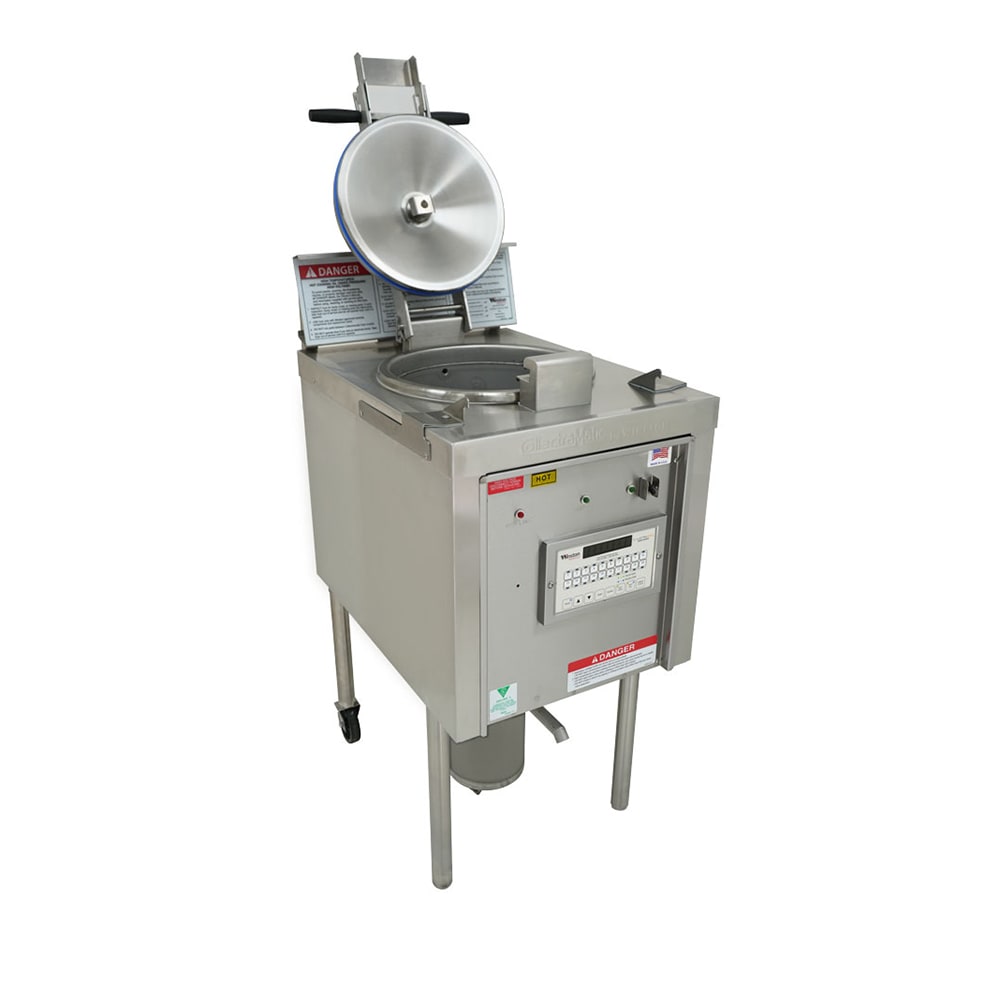

Winston LP56 Description
To withstand high-volume use, the Winston LP56 Collectramatic® electric pressure chicken fryer is made of stainless steel—a durable metal that resists corrosion in humid environments and defends against dents and scratches in bustling kitchens. Its body is lined with a 11⁄2-inch layer of insulation to help prevent user injury, and it's mounted on four adjustable stainless steel legs to account for irregular surfaces. Equipping operators with the necessary tools for performance, this unit includes a clamshell basket, two collector gaskets, two lid gaskets, a spatula, a drain hook, a Teflon® brush, and a long collector.
This Winston LP56 commercial pressure fryer holds as much as 75 pounds of cooking oil and 18 pounds of product. Structured to reduce maintenance frequency, its collector is 13 inches deep, permitting settled product to build up without burning. In fact, as many as 30 cooking cycles can be carried out before the collector needs to be emptied or it needs to be manually filtered. To streamline the frying process, an integrated processor system includes eight channels that can support as many as six temperature settings and several time settings. Frying time can be adjusted for time-specific meals, and the Flex-Time mechanism can cook differently sized products without using as much shortening.
Product Details
- Part of the Collectramatic series
- 6-head structure
- 18-lb. product capacity
- 75-lb. oil capacity
- Processor control with 8 programmable channels
- Flex-Time technology
- Stainless steel construction
- Collector: 13 in. deep
- Quarter rack basket system reduces hands-on requirements from transporting product to holding cabinet
- Supported with adjustable legs
- 11⁄2-in. insulation
- Includes clamshell basket, drain hook, heat plate, Teflon brush, long collector, spatula, 2 collector gaskets, and 2 lid gaskets
- Ventilation required
Dimensions & Utilities
- 201/5 in. W x 30 in. D x 50 in. H
- 43.7 A, 10500 W
- 240 V/60 Hz/1 ph, cord and plug not included
Product Features
From The Manufacturer
Collectramatic® Pressure Fryer, compact, (6) head (18 lbs. product/75 lbs. cooking oil capacity), processor control with 8 programmable channels, full 1-1/2" insulation, mounted, includes (1) clamshell basket, (2) collector gaskets, (2) lid gaskets, (1) spatula, (1) drain hook, (1) Teflon® brush, (1) long collector, (1) heat plate, & (4) adjustable legs, stainless steel construction, UL EPH ANSI/NSF4, cUL, UL-Sanitation
*Image may not depict product color, inclusions or accessories.

Winston LP56 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Winston |
Base | Legs |
Capacity (lbs) | 18 |
Controls | Digital |
Depth (in) | 30 |
Heat | Electric |
Height (in) | 50 |
Hertz | 60 |
kW | 10.5 |
Special Features | Programmable Controls |
Voltage | 240 |
Warranty | 1-year Limited Parts & Labor |
Width (in) | 20.2 |
Oil Capacity/Fryer (lb) | 75 |
Series | Collectramatic® |
Phase | 1 |
Rating | Better |
Product | Pressure Fryers |
Product Type | Cooking Equipment |
Chicken Piece Capacity | 54 |
Certifications | NSF |
Certifications | UL |
Certifications | C-UL |
Weight | 214.00 |
