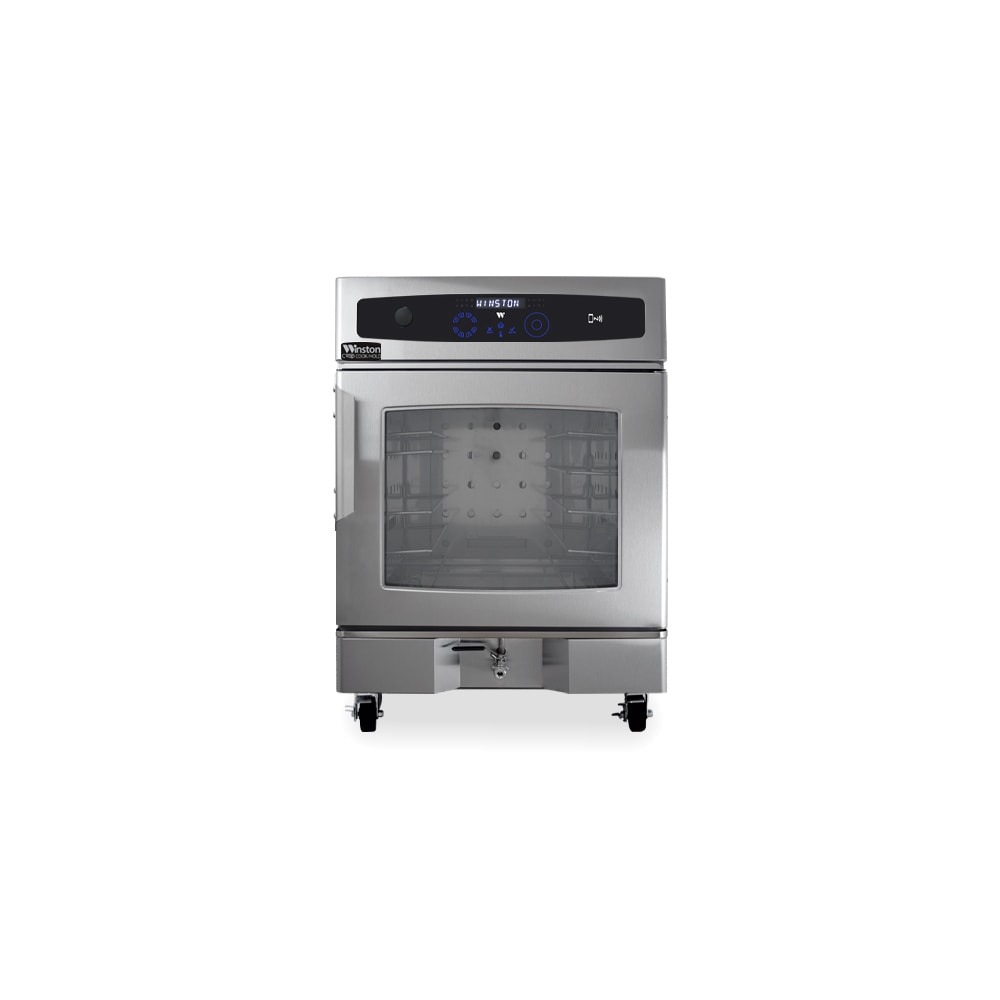

Winston CHV5-05UV Half Size CVap® Cook and Hold Oven - Right Hinge, 208v/1ph

KaTom #: 081-CHV505UV • MPN: CHV5-05UV 208/1 RH
  • 081-CHV505UV Primary Thumbnail Image

Typically ships in 4 - 6 weeks

$8,000.00 /Each

Login or add to cart for the price

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Non Returnable Item

Blake Higgins User Image
Ask a Foodservice Equipment Specialist

Winston CHV5-05UV Description

Installable on a 30-inch countertop, the Winston CHV5-05UV CVap® cook and hold oven measures 27 7⁄10 inches wide by 34 23⁄100 inches deep by 39 11⁄50 inches high. Its half-size design is stackable, enabling it to be stored on top of another unit to organize counterspace. The single compartment's interior accommodates five full-size sheet pans, 10 half-size sheet pans, or 10 hotel pans, and each rack has a 65-pound maximum load capacity, so high-volume products can be cooked in this unit. This oven's stainless steel interior and exterior resist corrosion in humid environments and dents and scratches from operators loading and unloading products. A field-reversible, insulated door offers direct access to product to minimize heat loss.

To hold foods at a safe temperature prior to serving, the Winston CHV5-05 commercial cook and hold oven uses CVAP—control vapor technology. Heated water vapor controls food temperature, and air heat alters food texture to uphold desired results. Operators manage temperature with C-Touch controls, which use thermistor to raise or lower evaporator and air temperatures in increments of 1 degree Fahrenheit. By inserting a USB into the unit's port, cooking cycles' information is downloaded into the HACCP program for users to review as needed. To streamline operation, signature dishes and menu items can be plugged into the eight programmable channels, and these can be updated with USB insertion.

  • Designed for countertop use
  • Stackable
  • Half size
  • Single compartment
  • Interior and exterior constructed of stainless steel
  • Holds (5) 18-in. x 26-in. sheet pans or (10) 13-in. x 18-in. sheet pans or (10) 12-in. x 20-in. hotel pans
  • Rack load limit: 65 lbs.
  • Field-reversible, insulated door with a magnetic handle
  • Side clearances: 2 in.

  • C-Touch controls manage vapor and air temperatures
  • Incremental 1-degree-F temperature changes
  • Processor-controlled thermistors
  • 8 programmable, lockable channels
  • Downloadable HACCP records
  • USB and audio ports
  • Water automatically fills

  • 27 7⁄10 in. W x 34 23⁄100 in. D x 39 11⁄50 in. H
  • 23 A, 4803 W
  • 208 V/60 Hz/1 ph, 84-in. power cord with a NEMA 6-30P plug

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Additional Product Information

From The Manufacturer

CVap® Cook & Hold Oven, right hinge, electric, half-size, one compartment, insulated, convection cooking, accommodates (5) 18" x 26" sheet pans or (10) 13" x 18" sheet pans or (10) 12" x 20" hotel pans, load limit 65 lbs (29.25 kg) per rack, (1) field reversible hinged solid door, magnetic door handle, C-Touch control with processor, HACCP temperature downloads, USB & audio ports, fanless, auto water fill, stainless steel interior & exterior, NSF, CE, UL, cUL, UL-Sanitation

Warranty Icon
1-year Limited Parts & Labor
