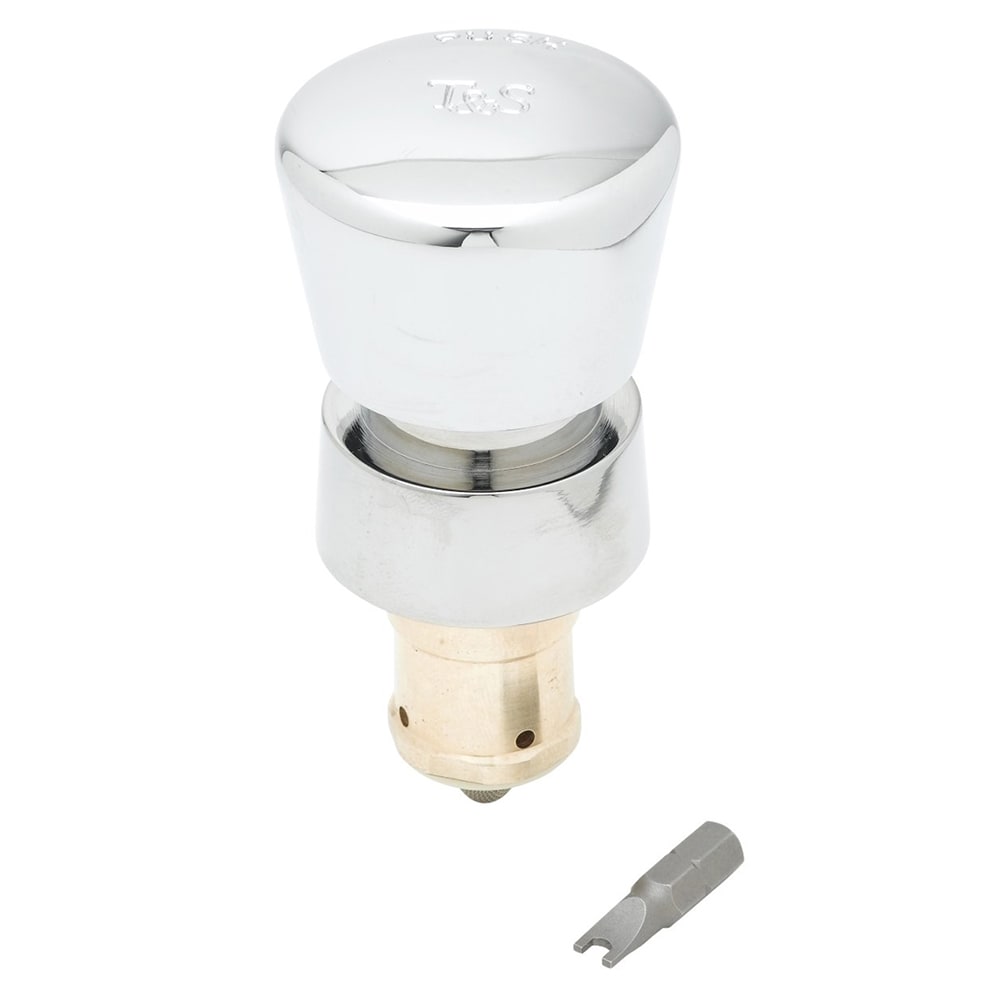

T&S 238AB Self Closing Metering Cartridge w/ Blank Push Button

This T&S 238AB metering cartridge and button assembly comes with a matching blank push-button for complete installation, and its self-closing design automatically regulates water flow to reduce usage. Because the button doesn't indicate temperature, it can be used for either hot or cold faucets. It has a tamper-resistant screw with matching spanner bit that helps prevent vandalism and water damage in the restroom. If installed appropriately, this unit meets ADA requirements for sinks in public restrooms since it has a light-pressure push design and 10-second minimum water flow. The chrome-plated handle wipes down for streamlined cleaning and matches most faucet styles. Made of chrome-plated brass, this metering cartridge is durable and resists cracking, deforming, and corrosion, even with high-volume use.

Product Details

• Blank push-button can be used for hot or cold
• Chrome plating adds a polished look and resists corrosion
• Engraved logo and lettering doesn't fade and resists wear from frequent use
• Self-closing meter design
• Metering adjustment range: 10-30 sec.
• Metering screw can be adjusted with 3⁄32-in. Allen wrench
• Chrome-plated brass cartridge design is sturdy and resistant to cracking and rusting
• Vandal-resistant screw design comes with matching #8 spanner bit
• Filter washer style
• Regulates water use to reduce waste and help prevent flooding
• Can meet ADA requirements if installed appropriately
• Recommended incoming water pressure: 20-125 PSI
• Recommended temperature range: 40-140 degrees F
• Can produce 3 3⁄20 GPM at 60 PSI
• Overall dimensions: 1 3⁄4 in. dia. x 3 5⁄16 in. H (not including filter washer)
