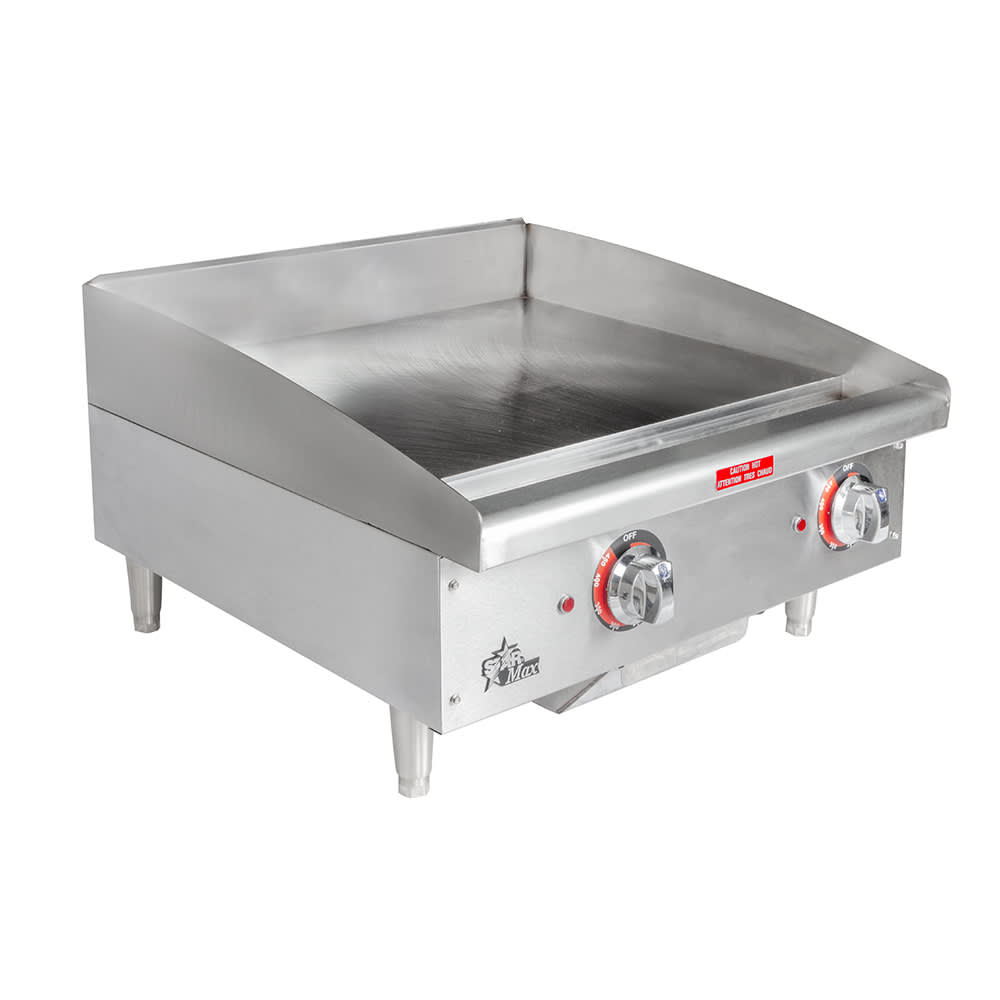

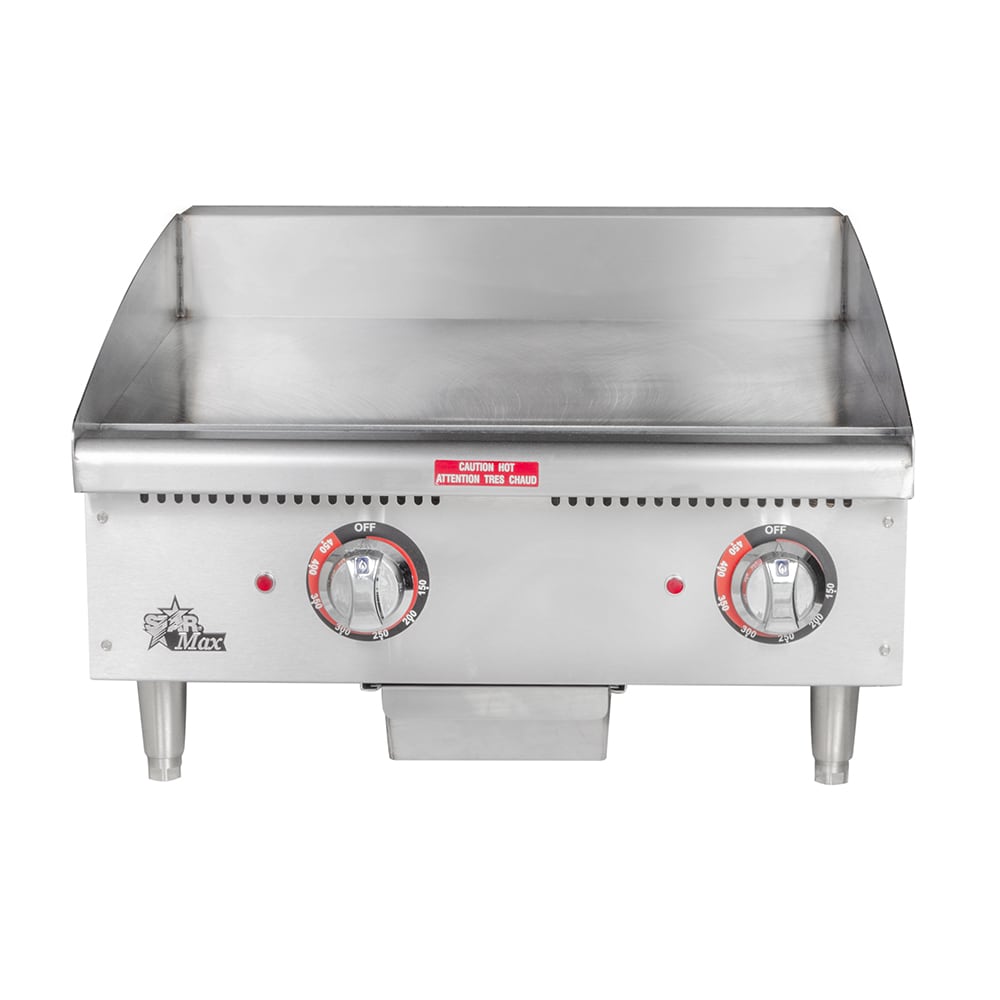

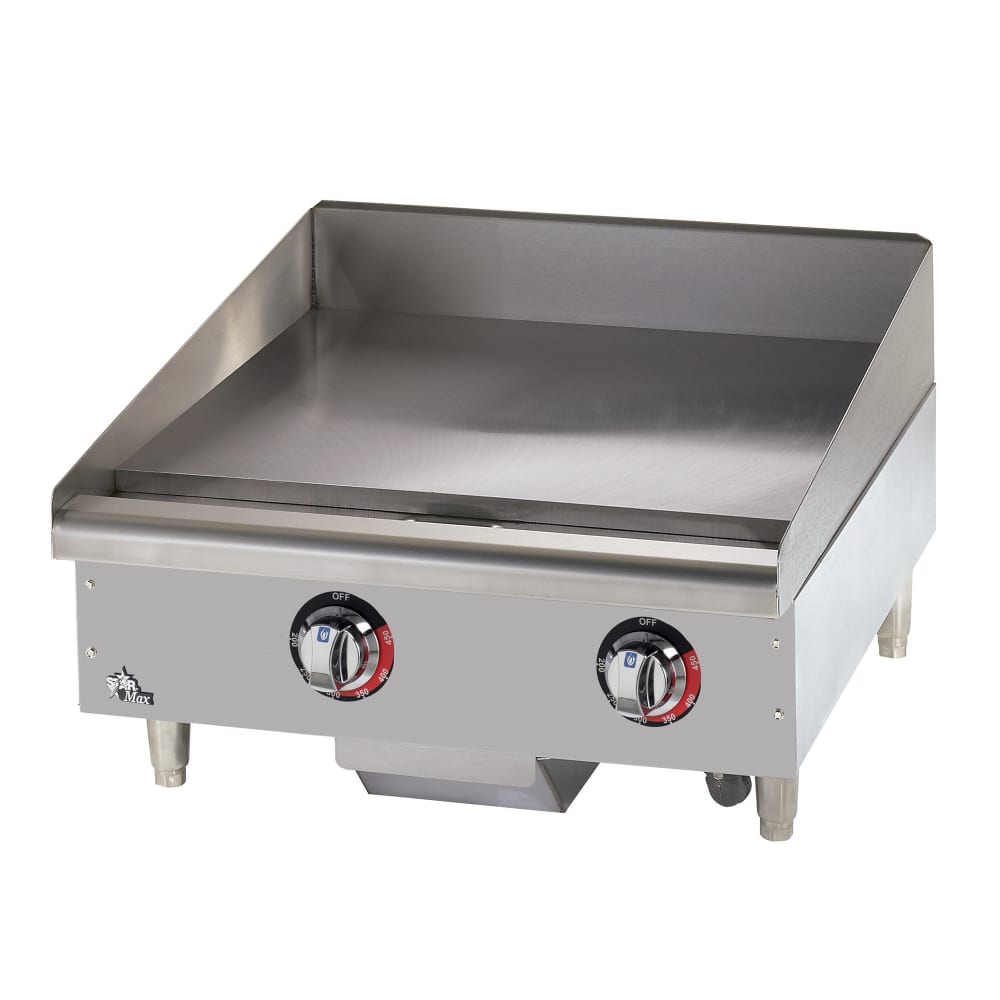

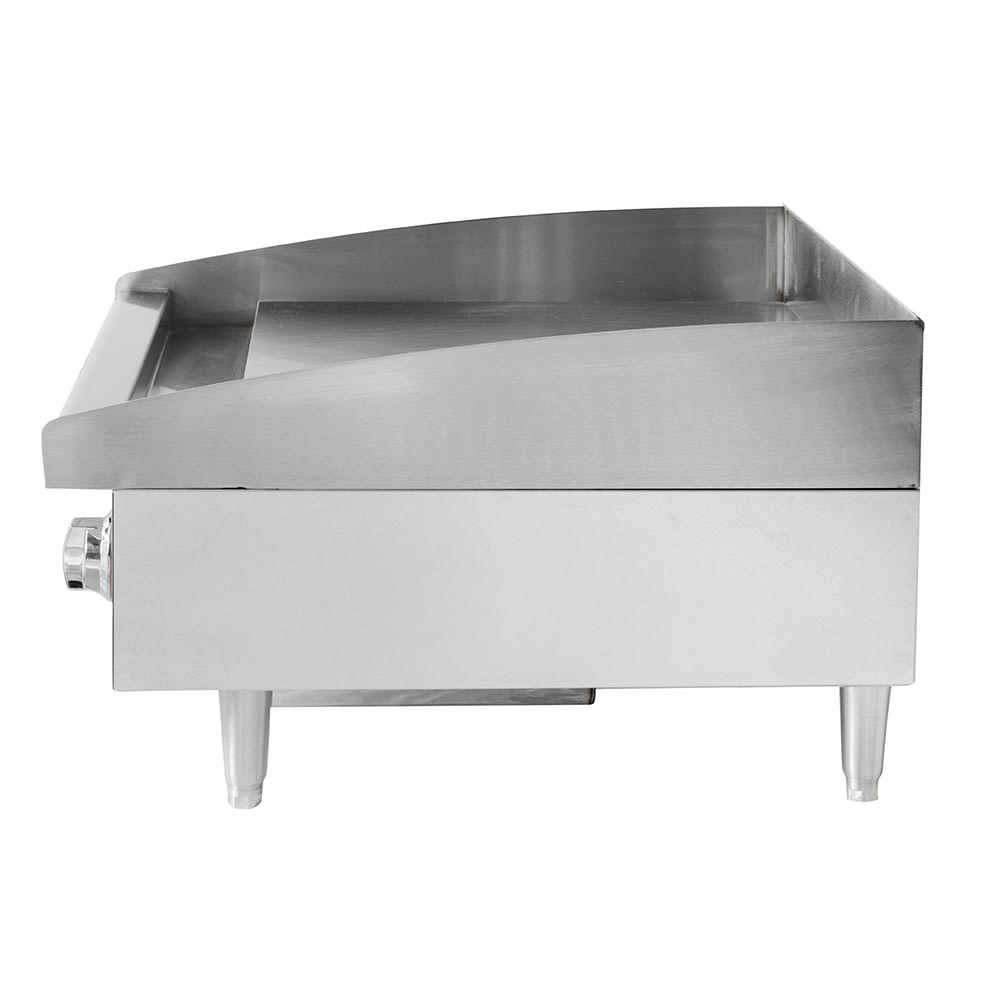

Star 524TGF 24-in Griddle w/ 1-in Steel Plate, Thermostat Controls, 208/240/1

Free Shipping

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $1,217.00

Star 524TGF Description

SKU: 062-524TGF2081

This Star-Max® electric griddle by Star Manufacturing has two 4000 watt heating elements under the cooking surface to provide consistent cooking power, and the double-walled edges of the griddle prevent heat loss. The griddle has stainless steel components throughout its construction, including a six quart grease drawer and bull nose front. With a snap-action thermostat, this electric griddle maintains consistent temperatures between 150 and 450 degrees Fahrenheit.

Product Details

  • Replaces 524TGD
  • Star-Max® Series
  • Temperature range of 150 - 450 degrees F
  • Polished 1-in. steel cooking plate
  • 4000W cooking element every 12-in. W of cooking surface
  • Snap-action thermostat embedded 5/16-in. from the cooking surface
  • Stainless steel construction
  • 2 durable metal control knobs
  • Enclosed bottom and wrap-around, double-walled sides keep heat in the cooking zone
  • Double-wall feature enables griddle to be installed 1-in. from combustible surfaces
  • Cool-to-the-touch stainless steel bull nose protects controls
  • Griddle is enclosed by 4-1/2 in. H splash guard
  • 4.5-qt. grease drawer

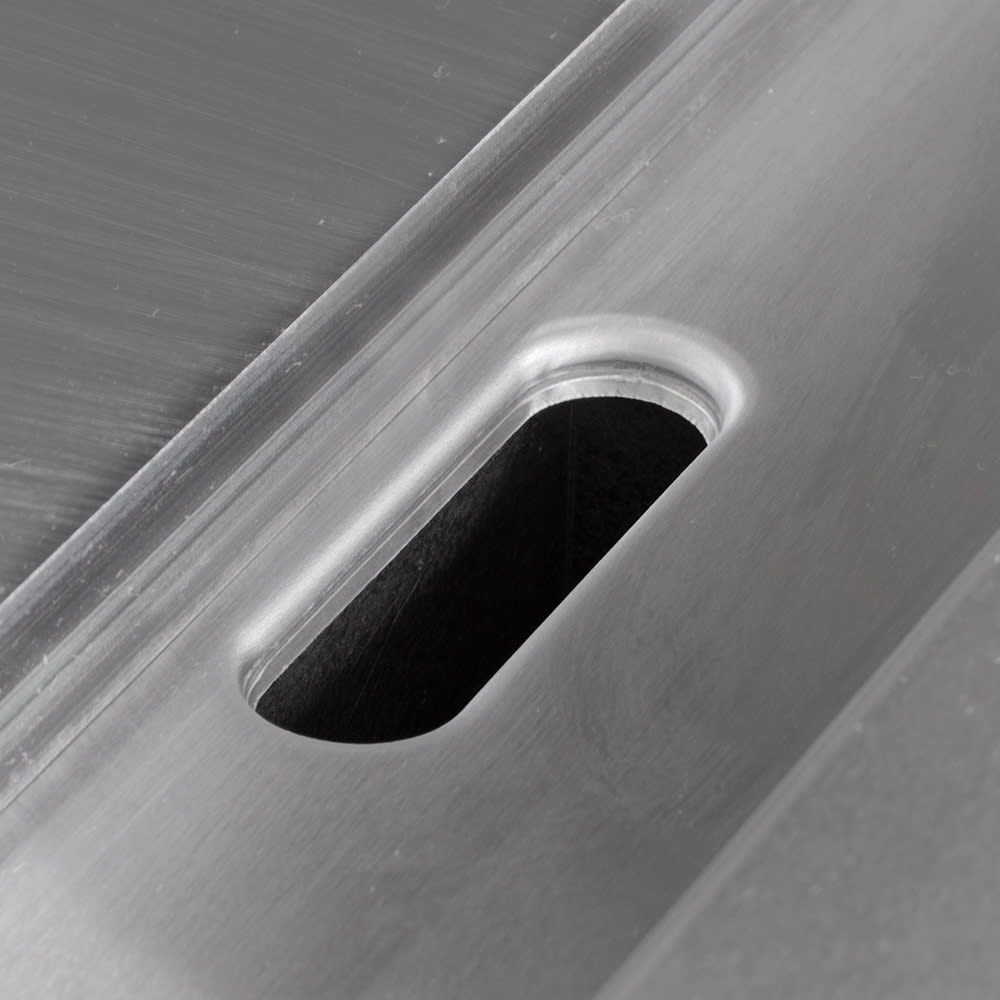

  • Spatula-wide grease trough (3-1/4 in.) with chute
  • (4) 4-in. legs, adjustable by 1-3/8 in.
  • Electrical junction box at back for electrical connections
  • 208/240 V/60 Hz/1-ph, 6008/8000W, 28.9/33.3 A, plug and cord not included
  • Overall Dimensions: 24-in. W x 27-7/8 in. D x 15-1/2 in. H
  • cULus, CSA, and UL-EPH Listed; NSF and ISO 9001:2000 Certified

Precise Temperature Control

  • Thick polished steel cooking surface retains heat, and cooking elements fitted under every 12-in. of cooking area provide even cooking to food items
  • Double-wall construction around sides and back and an enclosed bottom prevent heat loss
  • Snap action thermostat responds quickly to temperature changes and provides fast recovery

Heavy-Duty Construction

  • Stainless steel front, bull nose, splash guard, and grease drawer are easy to clean and resist scratches
  • Adjustable legs are nickel-plated and die-cast, providing heavy-duty support while the griddle is in use
  • Incoloy sheath heating elements have strength at high temperatures and corrosion resistance

Star-Max Heavy Duty Griddle, countertop, electric, 24"L, 27-7/8"D, 15-1/2"H, 1" steel griddle plate, throttling thermostat every 12", heavy duty knobs, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 208/60/1

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star 524TGF Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 524TGD
Controls Thermostat
Cooking Surface Steel
Griddle Plate 1"
Heat Electric
Voltage 208/240/1
Voltage 208/60/1
Width (in) 24
Warranty 2 year
Weight 175.00
