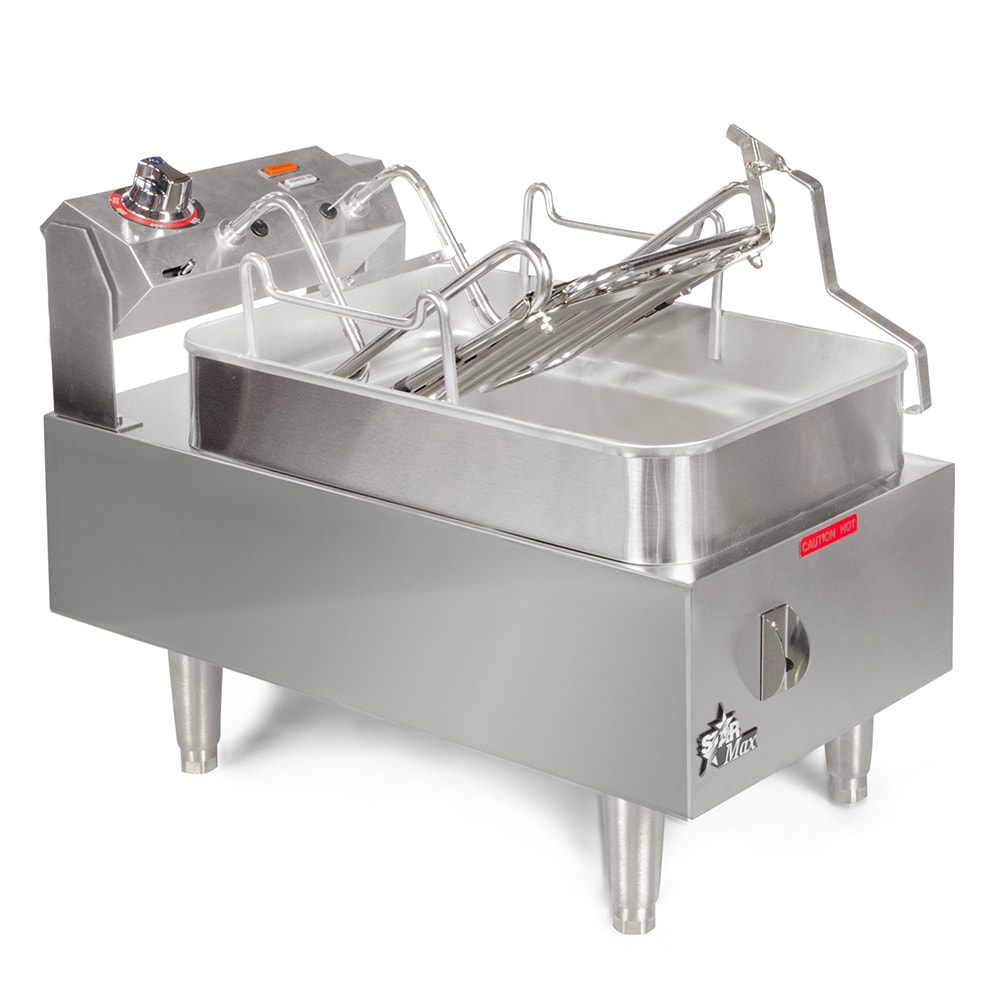

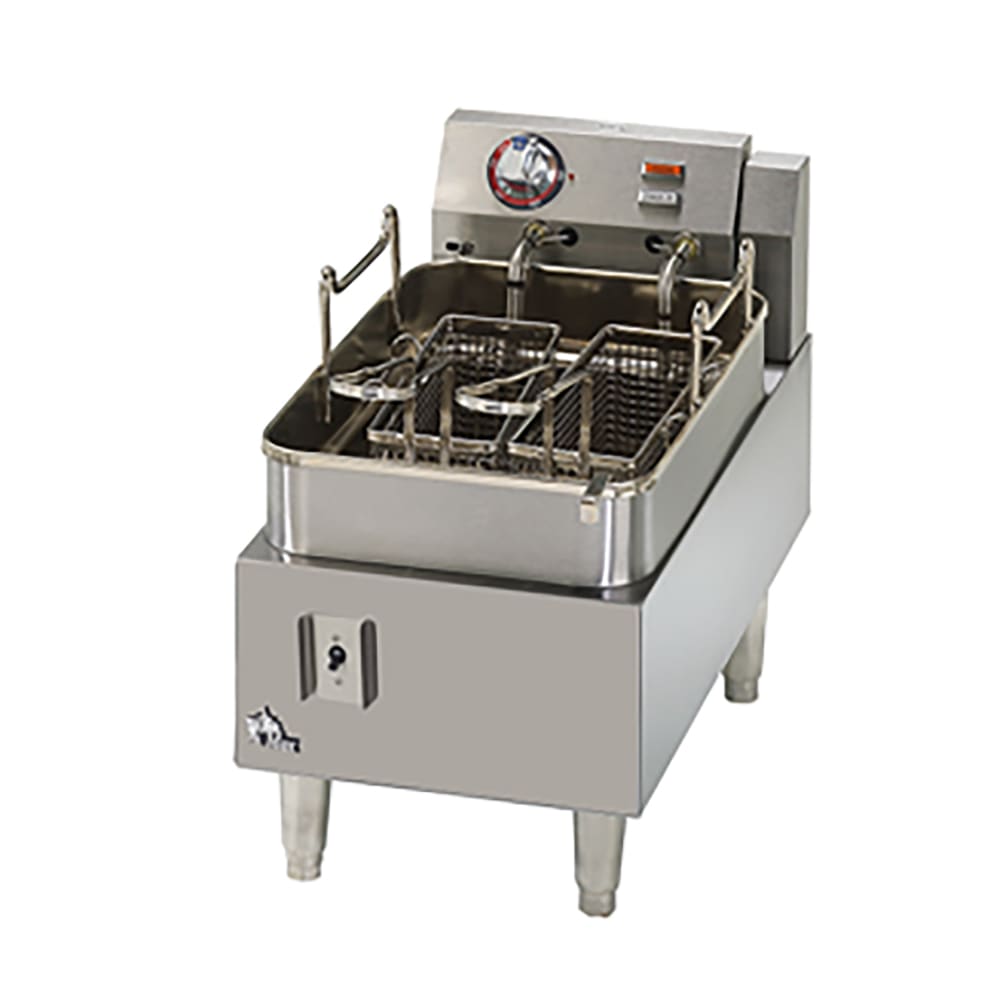

Star 515F Countertop Electric Fryer - (1) 15 lb Vat, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-515F • MPN: 515F (B)

Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Web Price: $1,072.00

Image may not depict product color, inclusions or accessories.

Star 515F Description


The Star-Max® electric fryer has a 15 pound fat capacity and can fry up to 32 pounds of French fries in one hour. It is constructed of corrosion-resistant stainless steel and its two baskets and kettle are nickel-plated for added durability. The fryer has a temperature interval of 200 to 375 degrees Fahrenheit and includes a snap-action thermostat for responsive control and quick heat recovery after food is added.

Product Details

  • Star-Max® Series
  • Replaces 515D
  • 15-lb. fat capacity
  • Fries up to 32-lb. of French fries per hr.
  • Temperature interval of 200 - 375 degrees F

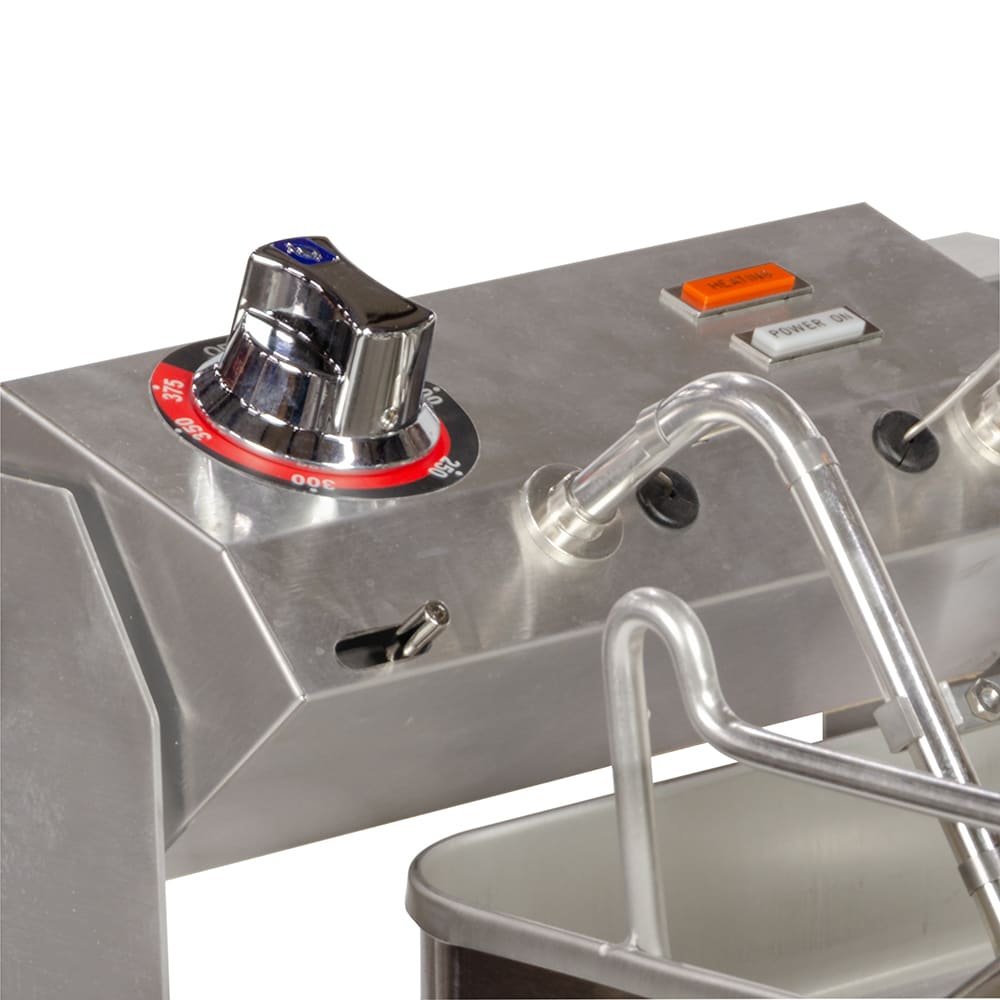

  • Metal knob withstands repeated adjustment
  • Safety thermostat shuts fryer off when temperatures exceed 450 degrees F
  • Front on/off button for easy operation
  • 1 piece nickel-plated steel kettle lifts out for easy cleaning and straining
  • Tubular immersion-type tubular heating element evenly distributes heat throughout oil
  • Snap-action thermostat provides tight temperature tolerance level to keep oil at the desired temperature
  • Indicator lights indicate when fryer is heating and when it has reached desired temperature
  • Includes 2 nickel-plated steel mesh hanging baskets which provide consistent flow of oil around food
  • Stainless steel cabinet resists corrosion and is easy to clean
  • (4) heavy-duty 4-in. legs included
  • 208-240 V/60 Hz/1-ph, 4319/5750W, 20.8/24 A, 6-ft. cord and NEMA 6-30P plug
  • Overall Dimensions: 10-1/2 in. W x 12-1/2 in. D x 4-3/4 in. H
  • cULus and UL-EPH Listed; ISO 9001:2000, ANSI, and NSF Certified

Sturdy Construction and Reliable Performance

  • Steel baskets and kettle are nickel-plated for added durability
  • Immersion-type tubular heating element provides uniform temperatures and mesh basket allows oil to flow freely for evenly cooked food
  • Snap-action thermostat continuously monitors and adjusts oil temperature and will shut the unit off if temperatures reach an unsafe level to protect operator and avoid damaging the equipment

Star-Max® Fryer, electric, countertop, 15 lb. capacity, single stainless steel frypot, twin baskets, snap action thermostat with hi-limit safety, separate on/off switch, heavy duty knobs, stainless steel exterior, 4" legs, cULus, UL EPH, 208v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Star 515F Specifications

PDF Spec Sheet
Manufacturer Star
Heat Electric
Type Countertop
Oil Capacity per Fryer 15 lb
Number of Fry Pots 1
Frypot Style Open Pot
Food Type Frozen
Warranty 2 year parts & labor
Also Known As 515D
Hertz 60
Voltage 208
Phase 1
Weight 47.00
Star 515F Certifications
  • UL
  • NSF
