Founded in 1921, Star Manufacturing is known for its hot dog machines, fryers, popcorn makers, and toasters. It also creates a variety of heavy cooking equipment for every kind of operation. A Middleby company, Star is based out of its Tennessee factory.
Star 5136CF 36" Electric Charbroiler w/ Cast Iron Grates, 240v/1-3ph
Free Shipping Item
$6,034.00 /Each
Web price, call us!
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Star 5136CF Description

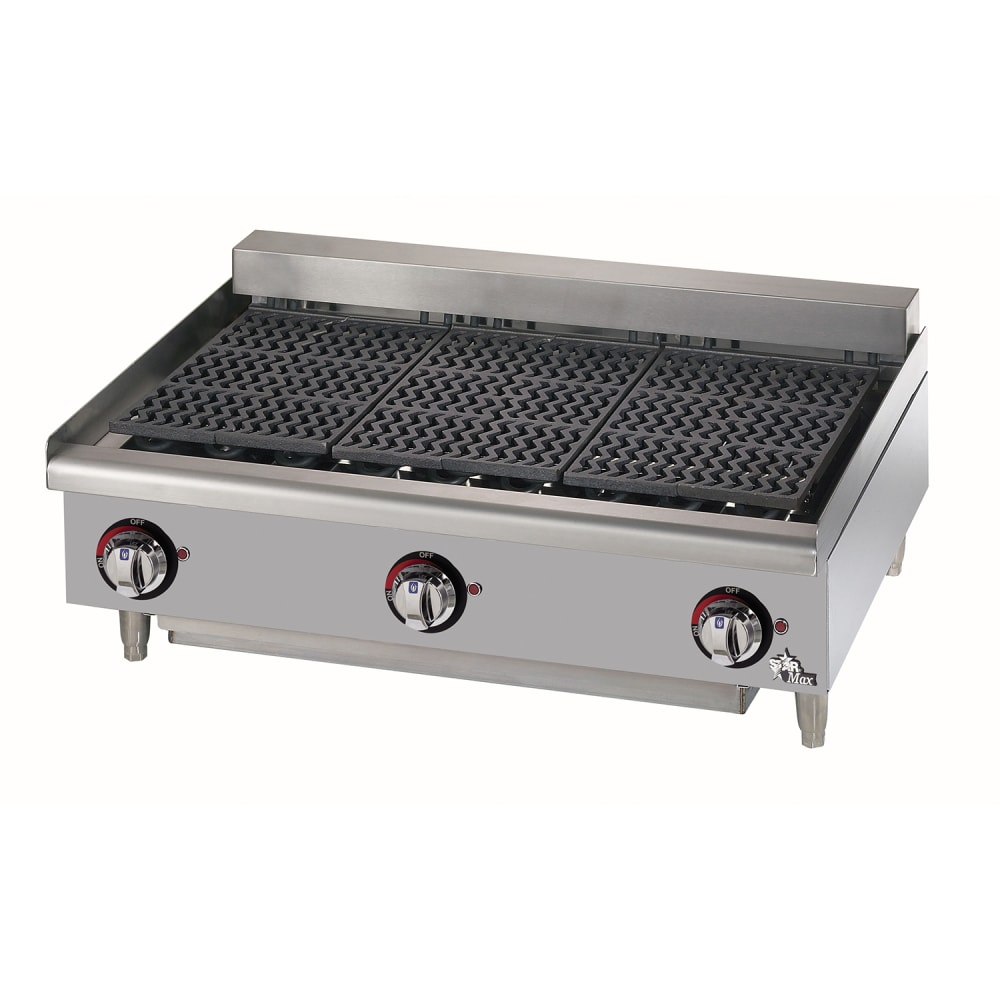

Ideal for cooking multiple products simultaneously, this Star 5136CF Star-Max® electric charbroiler is separated into three 12-inch cooking sections with correlating temperature adjustment knobs. Six incoloy™ sheath-type heating elements can cook meat and vegetables quickly to accommodate high-traffic restaurants. To achieve uniform cooking results, heat radiates directly from the elements and is conducted through the cast iron grates for even heat distribution. Water can be added to the 9-quart stainless steel water pan to mix with grease that runs off cooked product, simplifying cleanup. The grates can be removed for cleaning, while the heating element assembly can be locked in an upright position, so operators can wipe it clean safely.
This Star 5136CF heavy-duty charbroiler measures 36 inches wide by 253/5 inches deep by 141/4 inches high for countertop applications. For flexible placement, this unit is electric, so it doesn't require a fuel line, unlike gas charbroilers. A 23/4-inch-tall stainless steel splash guard protects nearby surfaces from grease splatter during charbroiling, while its stainless steel bull-nose front protects the metal knobs from accidental adjustment in case an employee bumps into the knobs. This surface also remains cool to the touch to reduce the risk of injury. To withstand humid kitchen environments and repeated use, the unit's top and front are made of corrosion-resistant stainless steel, which can be wiped clean with ease.
Product Details
- Countertop design
- (3) 12-in. cooking sections
- 6 incoloy sheath-type heating elements
- Infinite temperature control for each cooking section
- Removable, 21-in.-deep cast iron grates
- Swing-up heating element assembly
- Welded steel frame with stainless steel top and front
- Aluminized steel sides
- Stainless steel bull-nose front remains cool to the touch
- Chrome metal adjustment knobs
- 23/4-in. stainless steel tapered splash guard
- 4-in. adjustable cast nickel-plated legs
- 13/8-in. hole in rear panel for placing electrical utility
- 9-qt. stainless steel water pan drawer
Product Features
Dimensions & Utilities
- 36 in. W x 253/5 in. D x 141/4 in. H
- 41.3 A, 9,900 W
- 240 V/60 Hz/1-3 ph, field convertible phase
*Free shipping on Star 5136CF within the 48 contiguous states.
From The Manufacturer
Star-Max® Heavy Duty Charbroiler, electric, countertop, 36"W x 26"D, heavy cast iron removable grids, swing-up 3300 watt elements every 12", chrome metal knobs, grease drawer, welded steel frame with stainless steel top, front and grease trough, aluminized steel sides, 4" legs, cULus, UL EPH Classified, Made in USA
*Image may not depict product color, inclusions or accessories.
Resources
2-year Limited Parts & Labor; 1-year Cast Iron Grates, Burners, & Burner Shields
Star 5136CF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Cooking Surface | Cast Iron |
| Depth (in) | 26 |
| Function | Heavy Duty |
| Heat | Electric |
| Height (in) | 14.25 |
| Hertz | 60 |
| Number of Burners | 3 |
| Phase | 1 |
| Product | Charbroilers |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | Star-Max® |
| Type | Charbroiler |
| Voltage | 240 |
| Warranty | 2-year Limited Parts & Labor; 1-year Cast Iron Grates, Burners, & Burner Shields |
| Width (in) | 36 |
| Weight | 186.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
