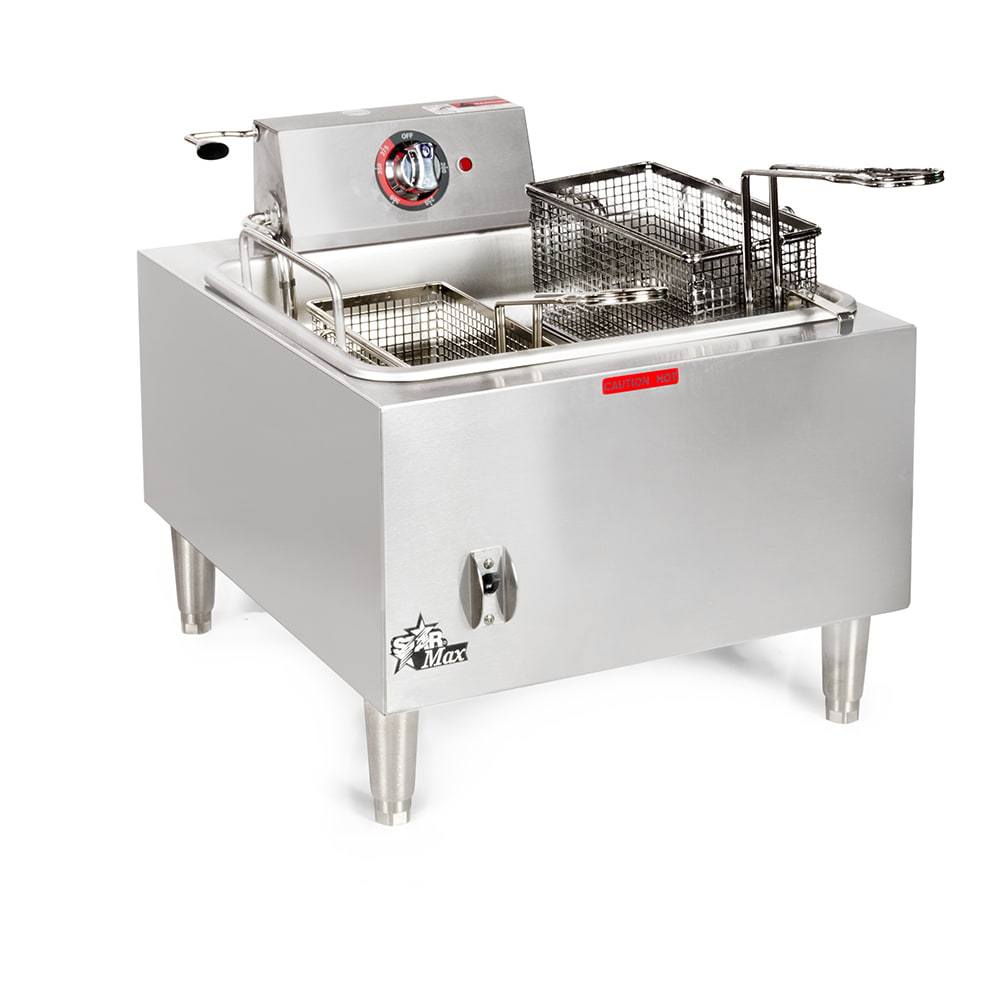

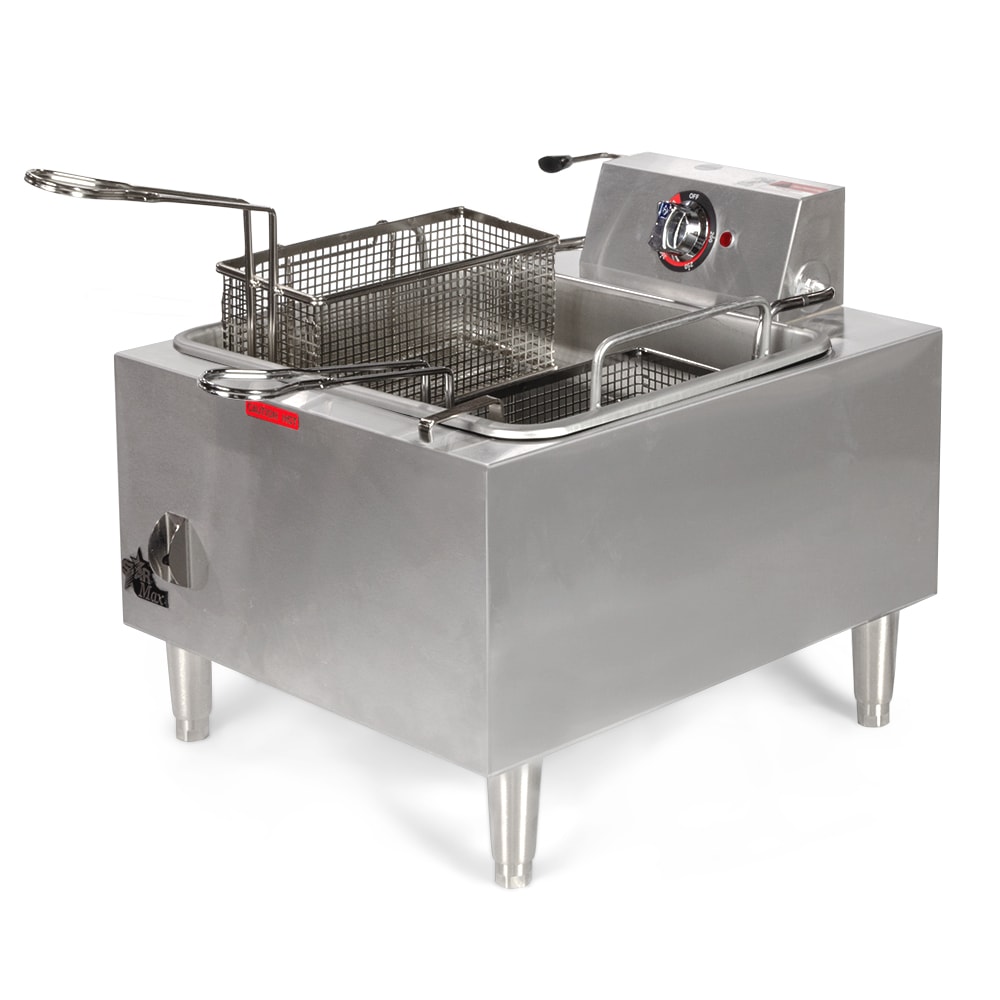

Star Manufacturing 301HLF Countertop Electric Fryer - (1) 15-lb Vat, 208v/1ph

MPN: 301HLF
Free Shipping

Typically ships within 1 - 3 business days

(1 review)Write a Review
Retail Price: $1,892.00
$806.18 / Each

Star Manufacturing 301HLF Description

SKU: 062-301HLF

Star's 15 pound capacity electric fryer includes two mesh baskets for frying and can be heated to a temperature of 375 degrees Fahrenheit. It can fry up to 28 pounds of French fries per hour, and the oil kettle lifts out easily when discarding or changing the oil. A hi-limit safety feature on the thermostat will turn the fryer off if it reaches temperatures that exceed 450 degrees and will require a manual reset. This countertop fryer preheats to 350 degrees in five minutes and has an indicator light to show when the unit is ready to be used.

Product Details

  • Replaces 301HLD
  • Star-Max® Series
  • 15-lb. capacity steel kettle (nickel plated) with fat level line

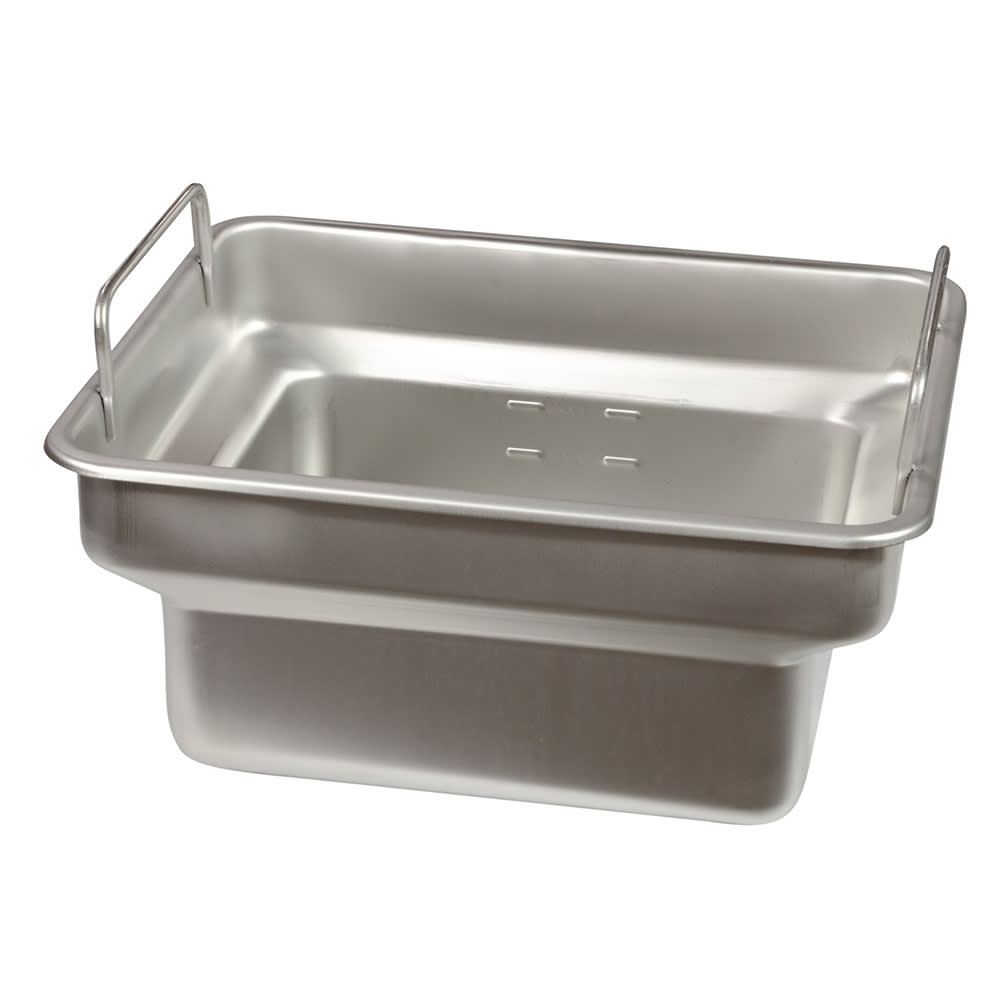

  • Oil kettle can be easily lifted out to remove grease
  • 2 mesh, side-hanging, twin baskets constructed from nickel-plated steel
  • Snap-action thermostat with temperature range from 200 - 375 degrees F
  • 5-min. preheat to 350 degrees F
  • Can fry up to 28-lbs. French fries per hr.
  • Heavy-duty metal knob for thermostat control
  • Immersion heating elements with swing-up design for cleaning
  • Hi-limit safety thermostat
  • Stainless steel cabinet
  • Adjustable legs from 4-in. to 5-3/8 in. H, die-cast and nickel plated

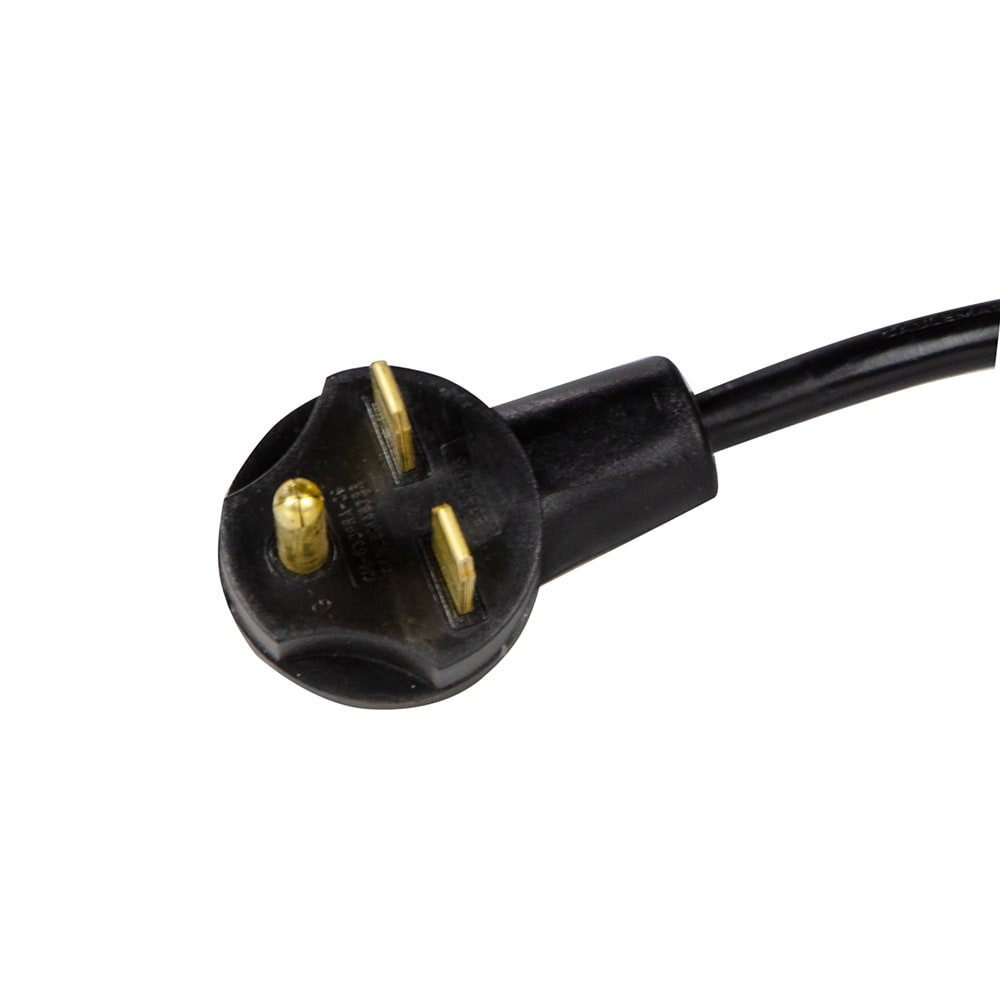

  • 208/240 V/60 Hz/1-ph, 19.9/22.9 A, 4130/5500W, 6-ft. cord NEMA 6-30P plug included
  • Total Unit Dimensions: 18-in. W x 20-in. D x 17-in. H
  • cULus and UL-EPH Listed; ISO 9001:2000 and NSF Certified

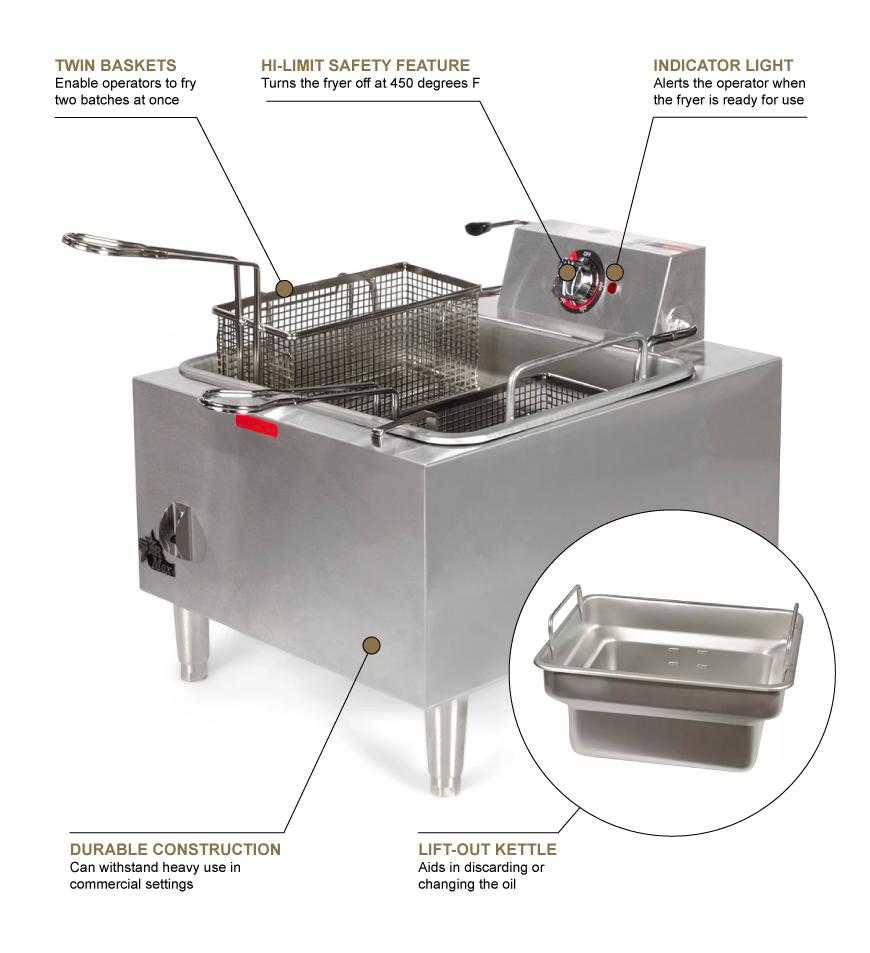

Safe and Easy-To-Use Features

  • Hi-limit thermostat: The fryer will shut off if temperatures exceed 450 degrees F and will need to be manually reset once fat temperatures return to below 400 degrees
  • On/Off 2-pole switch located on the front of the unit controls the power
  • Indicator light shows the operational status of the thermostat, lighting up when heating and turning off once at the correct temperature

QUIK-SHIP Star-Max® Fryer, countertop, electric, 15 lb. fat capacity, single pot, twin baskets, adjustable snap action thermostat, heavy duty knobs, steel pot, vinyl clad trim on stainless steel front, hi-limit safety thermostat, separate on/off switch, tubular type, 2-position, swing-up element, cULus, UL, NSF 4, 208v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star Manufacturing 301HLF Specifications

PDF Spec Sheet
Manufacturer Star Manufacturing
Heat Electric
Type Countertop
BTU per Fryer
Oil Capacity per Fryer 15 lb
Number of Fry Pots 1
Frypot Style Open Pot
Food Type Frozen
Voltage 208/60/1
Gas Type
Warranty 2 year parts & labor
Also Known As 301HLD
Specialty Options Swing-Up Element
Warranty 2 year
Weight 50.00
Star Manufacturing 301HLF Certifications
  • UL
  • NSF

Star Manufacturing 301HLF Customer Reviews

  • 5 out of 5
  • 1 review
  • 5 Stars: (1)
  • 4 Stars: (0)
  • 3 Stars: (0)
  • 2 Stars: (0)
  • 1 Stars: (0)
See all 1 customer reviews
Write A Review

Don said...
"We had this same model for many years. When it finally played out we purchased a new one and we love it. I have already recommended it to many of..."

Star Manufacturing 301HLF Customer Reviews

  • 5 out of 5
  • 1 review
  • 5 Stars: (1)
  • 4 Stars: (0)
  • 3 Stars: (0)
  • 2 Stars: (0)
  • 1 Stars: (0)
  • Works great and reliable

    By on July 1, 2014

    "We had this same model for many years. When it finally played out we purchased a new one and we love it. I have already recommended it to many of my friends."
Write A Review
