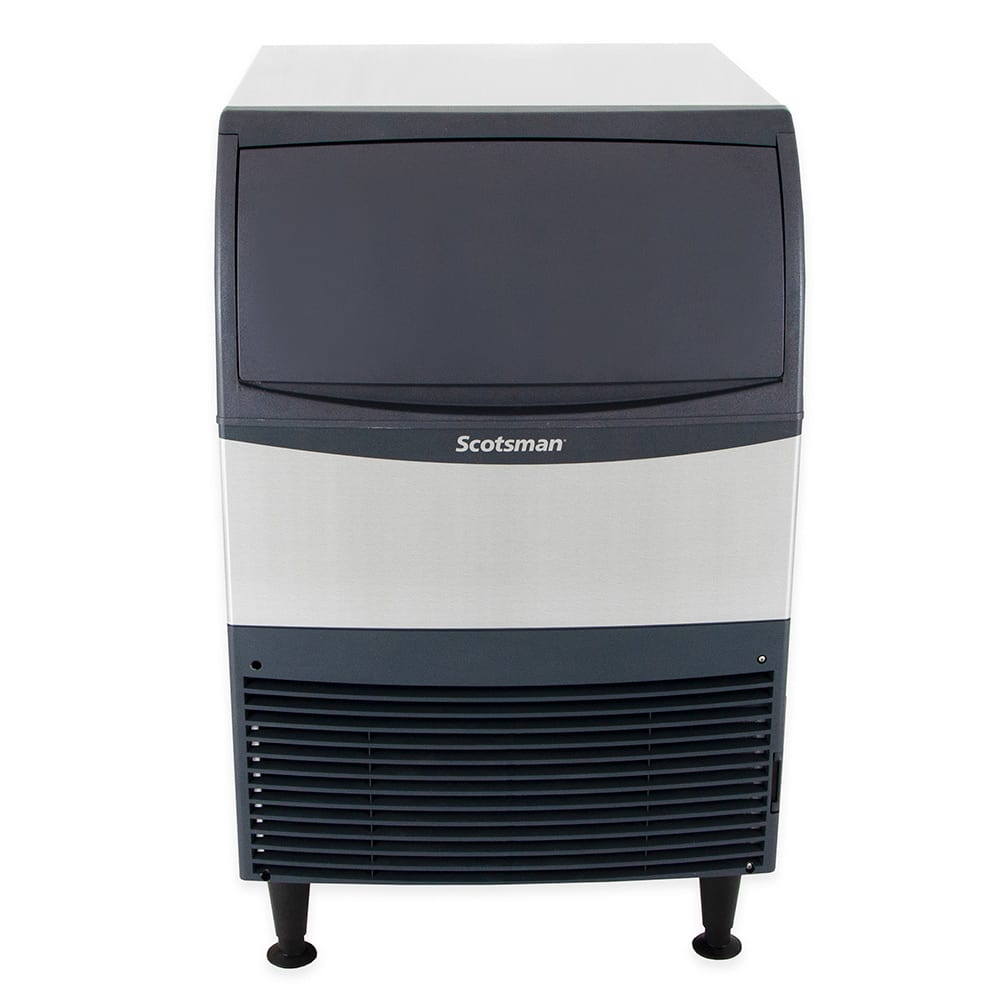

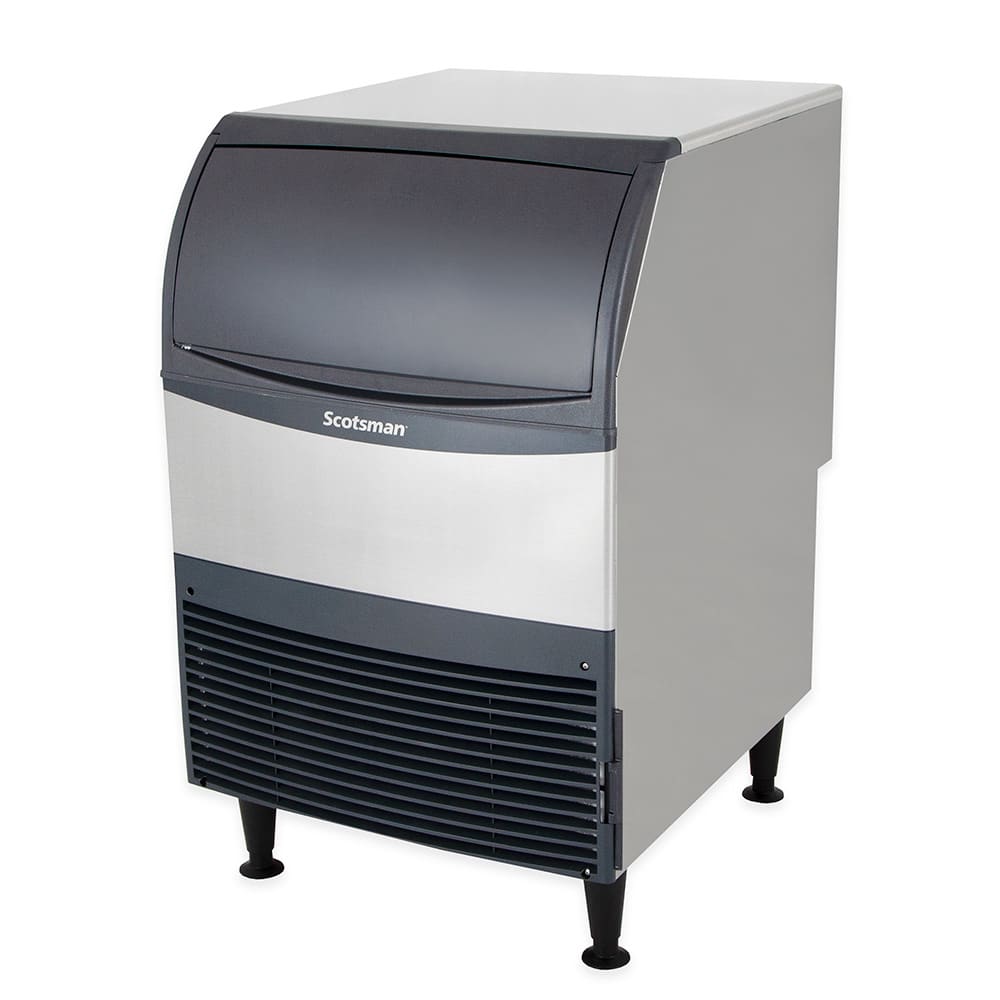

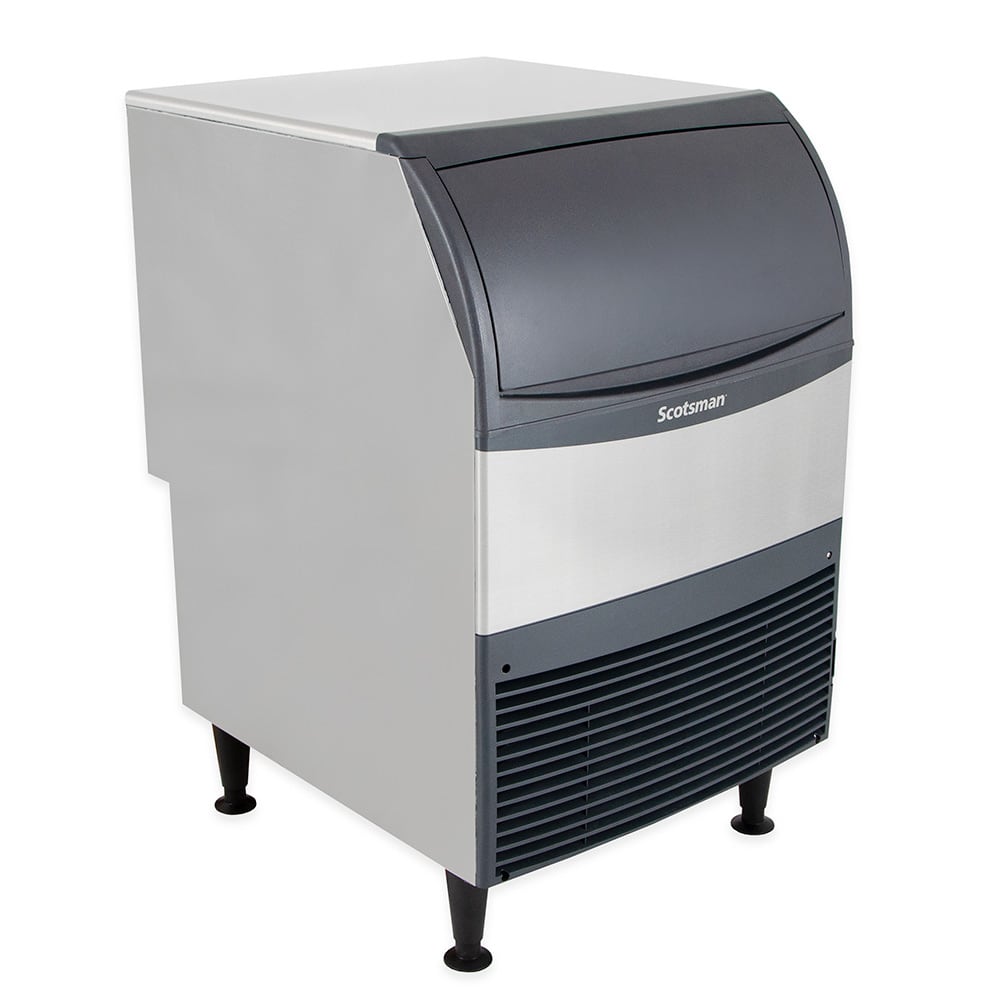

Scotsman UF424AX-1 24"W Flake Undercounter Ice Machine w/ Filter - 440 lbs/day, Air Cooled, Gravity Drain, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $13,936.00
$5,713.00 /Each
Selected Compressor Type: Air Cooled
Scotsman UF424AX-1 Description
The Scotsman UF424AX-1/AP1-P undercounter flake ice machine can produce 400 pounds of ice every 24 hours; this amount depends on ambient air and incoming water temperatures, making less ice with hotter levels. It produces flake ice, which is a great ice type for fruit, vegetable, and seafood displays. Air-cooled units such as this are easier to install than water-cooled or remotely cooled units. The external air filter can be accessed from the front for swift cleaning.
This Scotsman UF424AX-1/AP1-P undercounter flake ice machine has a user-friendly control panel. It comes with a QR code, providing access to service information and warranty history. The 80-pound-capacity bin includes an ice scoop and ice is convenient to access because the bin door slides back. This unit comes standard with the AP1-P water filter.
- 400-lb. maximum daily ice production
- 80-lb. storage bin capacity
- Makes flake ice, great for produce and seafood displays
- Intuitive control panel can be operated smoothly
- Air-cooled condenser

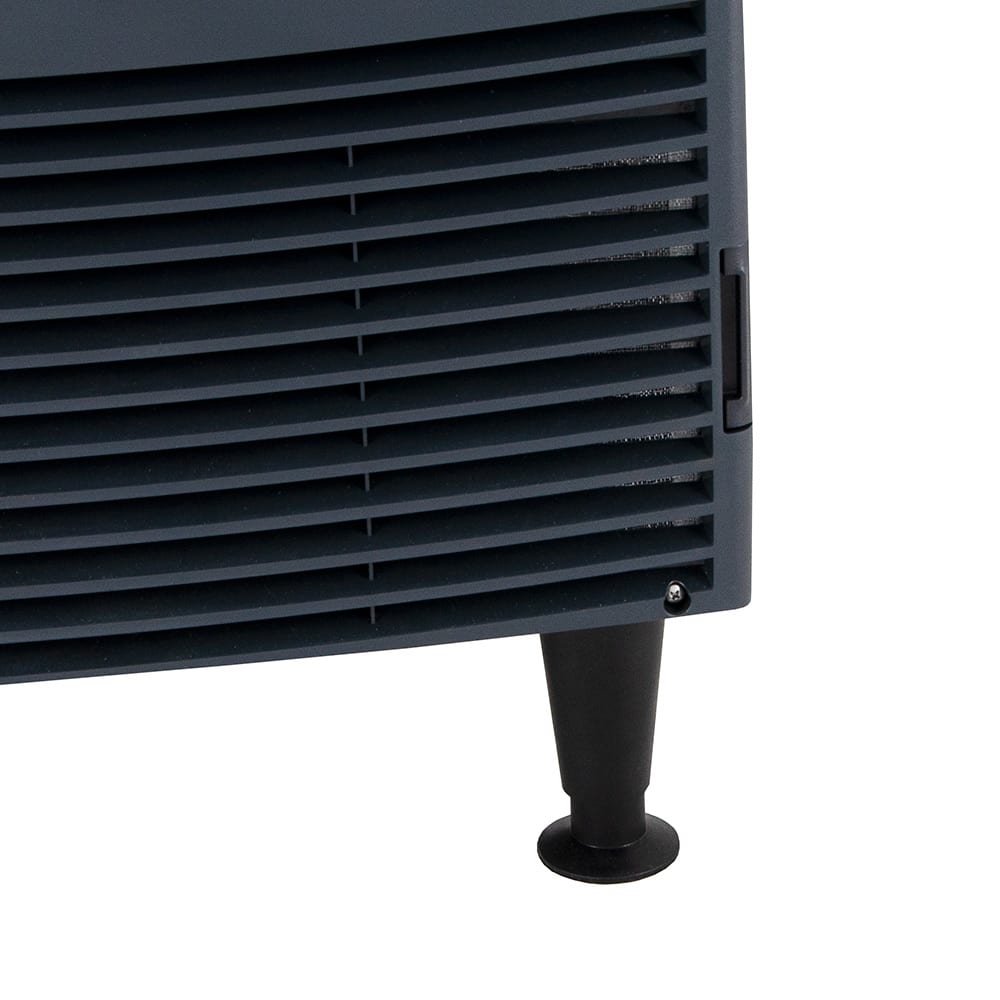

- External, front-accessible air filter
- Stainless steel evaporator
- Uses R290 refrigerant
- AP1-P water filter included
- Reliable, greaseless bearing reduces maintenance needs
- Unique QR code provides access to manuals and warranty history

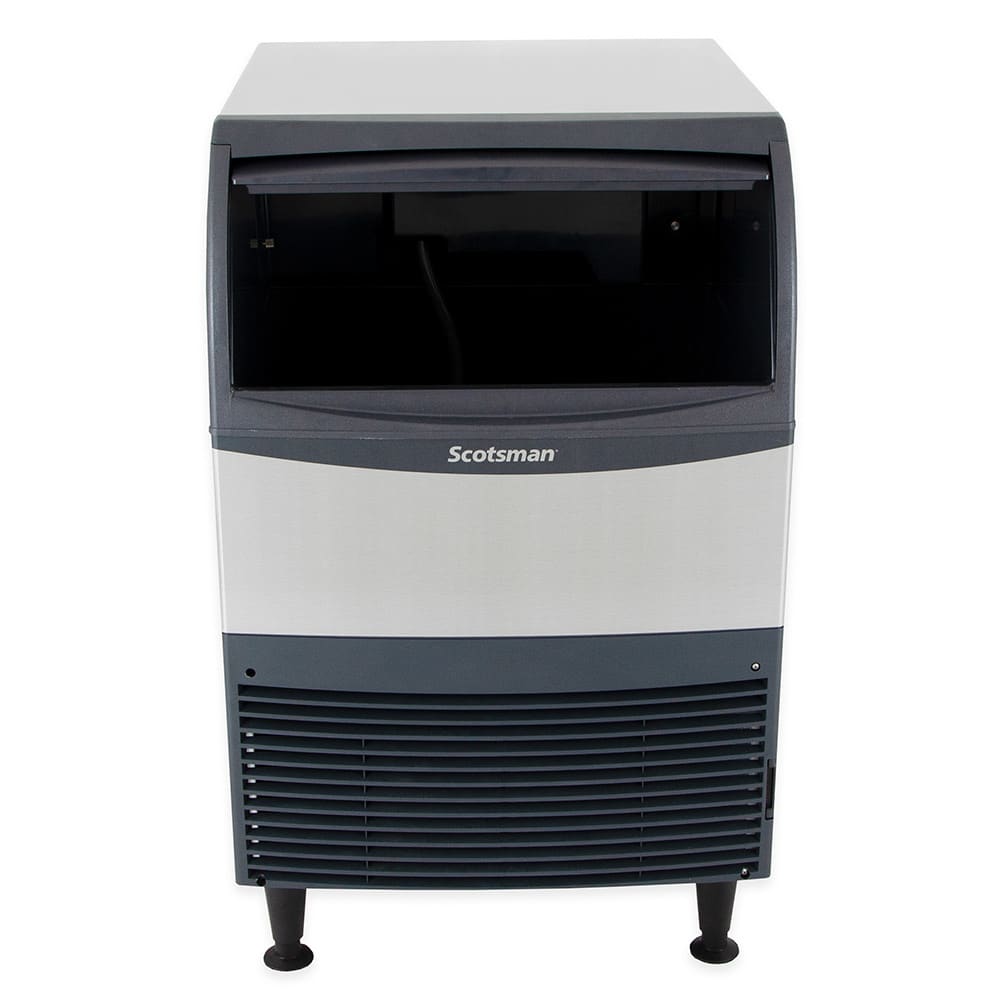

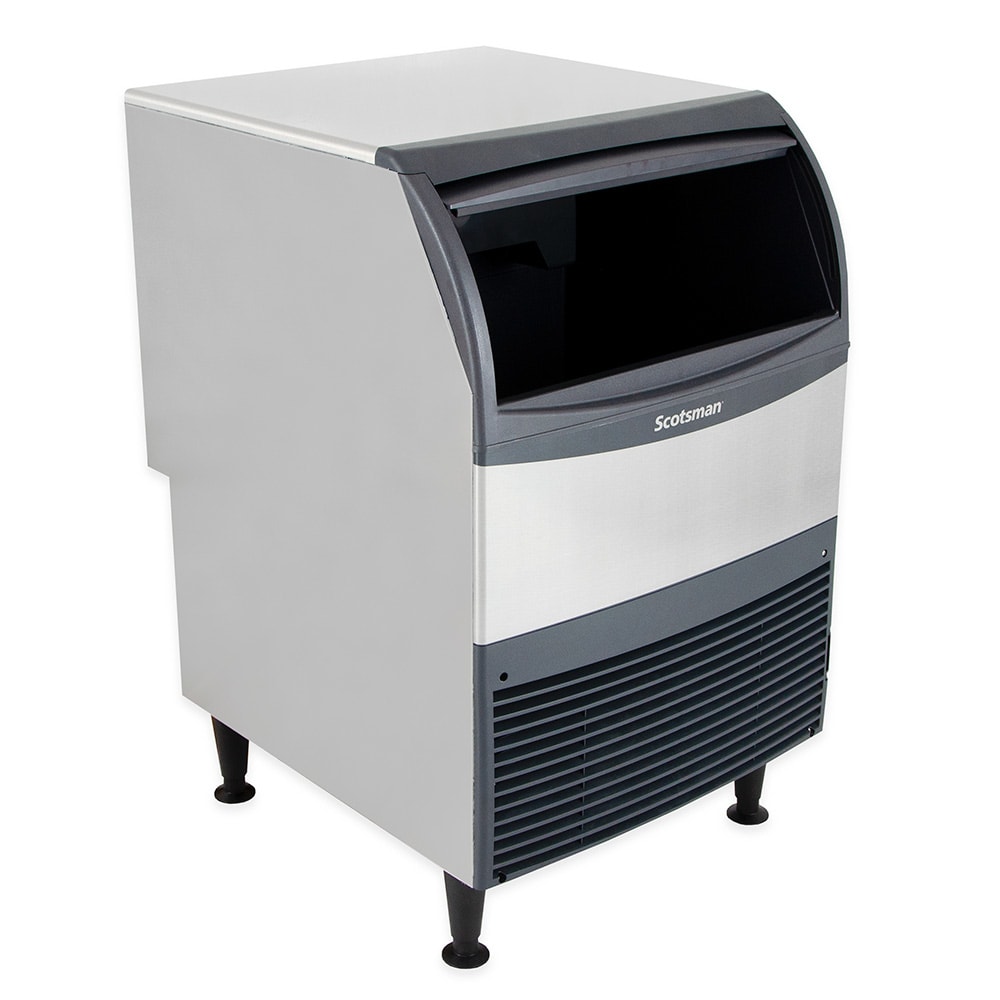

- Slide-back bin door
- Ice scoop is included
- 3,000-BTU heat transfer capacity
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 24 in. W x 28 1⁄2 in. D x 39 in. H
- 4.61 kW
- 115 V/60 Hz/1 ph, cord
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman UF424AX-1 within the 48 contiguous states.
From The Manufacturer

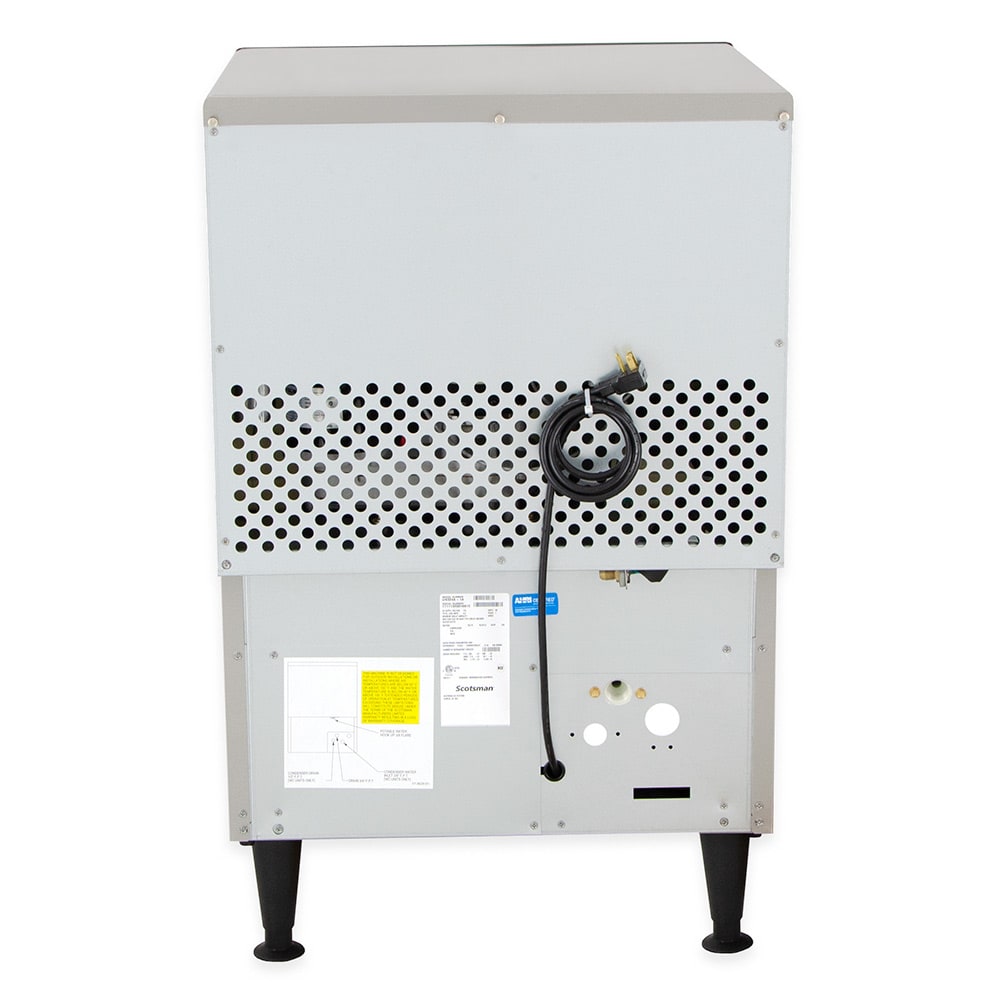

Undercounter Ice Maker With Bin, Flake Style, air cooled, 24" width, self contained condenser, production capacity up to 440 lb production/24 hours at 70°/50° (310 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs,R290 refrigerant, 115v/60/1-ph, includes 5.5' power cord with NEMA 5-15P plug, cULus, NSF, ENERGY STAR®
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman UF424AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 440 |
| Also Known As | UF424A-1 |
| Bin Capacity (lb) | 80 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Flake |
| Includes | AP1-P Filtration |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Essential Ice™ |
| Special Features | Inline Water Filter Included |
| Special Features | Removable Air Filter |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 24 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
- Scotsman AFE424A1A
Compare to Similar Items
| Attributes |
Scotsman UF424AX-1 Scotsman UF424AX-1 24"W Flake Undercounter Ice Machine w/ Filter - 440 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $5,713.00 / Each | $6,305.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Flake | Flake |
| 24 Hr. Production (lb) | 440 | 331 |
| Bin Capacity (lb) | 80 | 80 |
| Width (in) | 24 | 24 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | |
| Rating | Best | Best |
| Special Features | Inline Water Filter Included | |
| Series | Essential Ice™ | F Series |
| Suggested Use | Commercial | Commercial |
| Front Style | Lift Door | |
| Depth (in) | 28.5 | 26 |
| Height (in) | 39 | 39 |
| Design | Standard Height | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 440 lbs. of flake ice every 24 hrs.
Yes, the insulated bin stores 80 lbs. of ice.
It produces flake ice for seafood and produce displays.
The front-facing air filter removes for condenser cleaning access.
Yes. An air-cooled self-contained condenser powers the refrigeration system.
The auger and evaporator are stainless steel.
It uses R290 refrigerant for flake ice production.
The unit uses a gravity drain with 3⁄4-in. FPT connection.
It can produce up to 440 lb. of ice per 24 hours.
Its storage bin holds 80 lb. of ice.
It makes flake ice.
It measures 24 in. W x 28 1/2 in. D x 39 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with an 80-lb. capacity.
Its listed certifications include AHRI, cULus Classified, C-UL US, cULus Listed, NSF, and UL.
Yes, the air filter can be removed for cleaning.
Yes, it includes a water filter.
Yes, it has adjustable feet.
It uses a NEMA 5-15P plug.
It requires a 3/8-in. water line connection.
Yes, it includes a power cord and plug.
