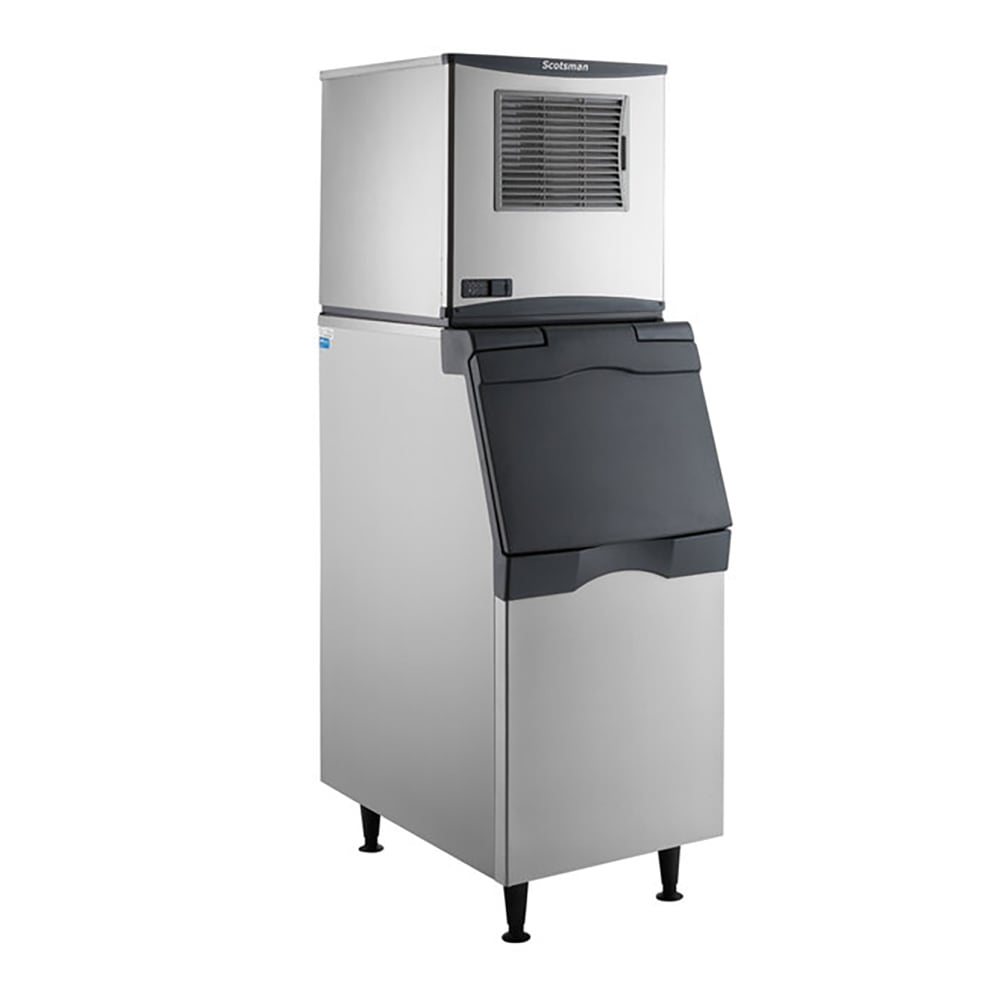

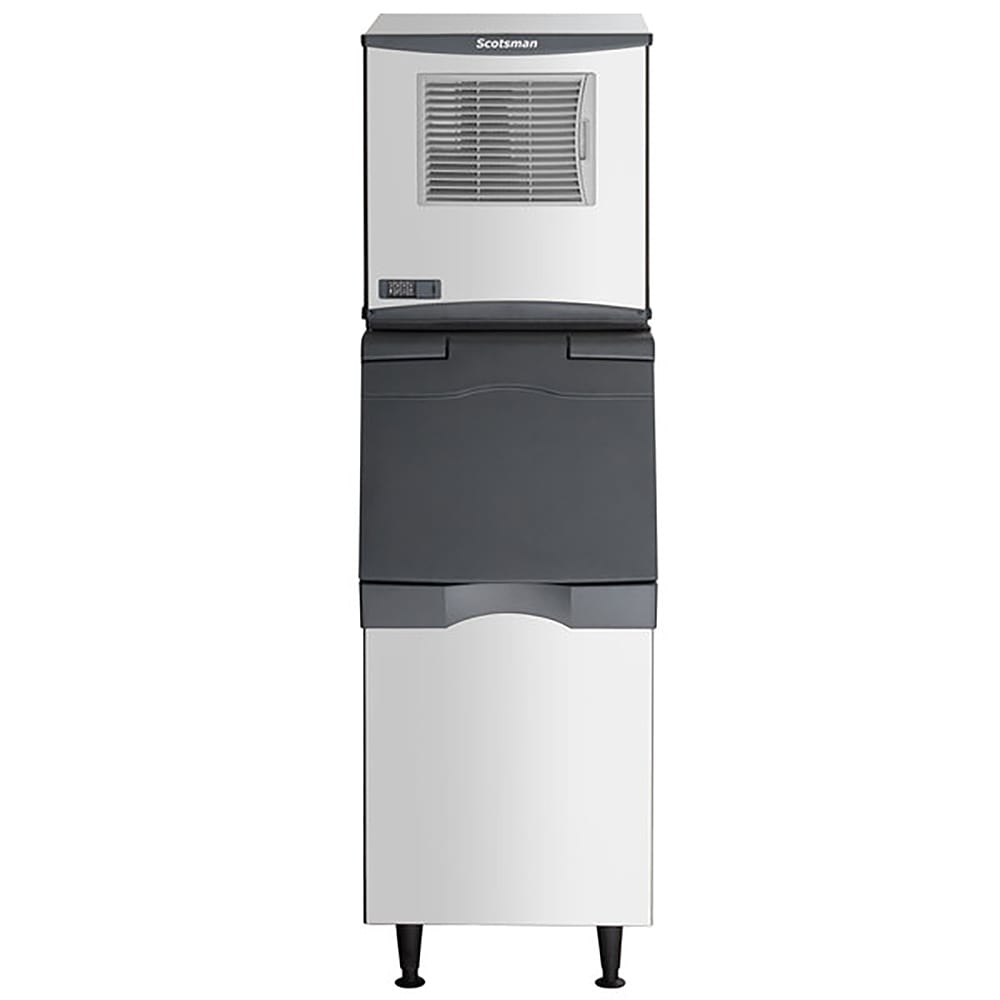

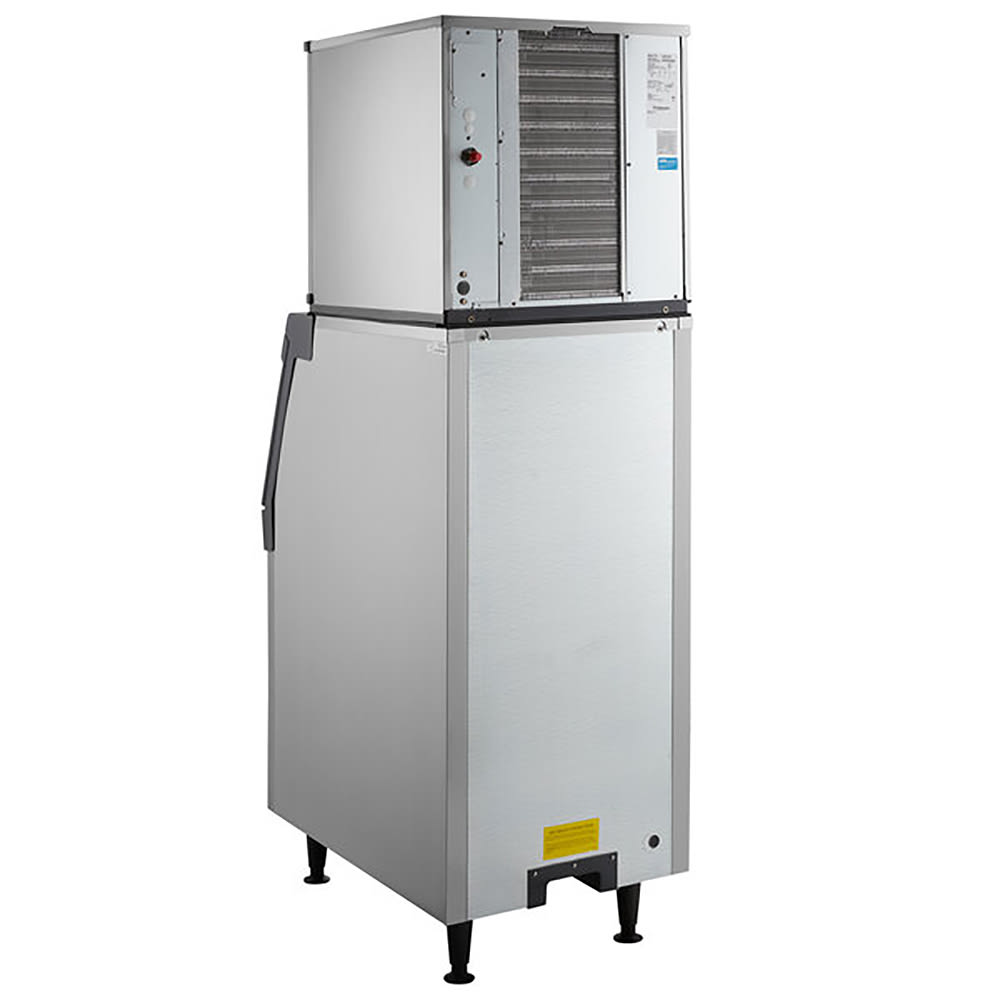

Scotsman NS0422AX-1/B322S 430 lb Prodigy Plus® Nugget Ice Machine w/ Bin & Filter - 370 lb Storage, Air Cooled, Soft Nugget

KaTom #: 044-NS0422A1B322S • MPN: NS0422AX-1/B322S/AP1-P
  • 044-NS0422A1B322S Primary Thumbnail Image
  • 044-NS0422A1B322S Multiple Thumbnail Image #1
  • 044-NS0422A1B322S Multiple Thumbnail Image #2
  • 044-NS0422A1B322S Multiple Thumbnail Image #3
  • 044-NS0422A1B322S Multiple Thumbnail Image #4
  • 044-NS0422A1B322S Multiple Thumbnail Image #5
  • 044-NS0422A1B322S Multiple Thumbnail Image #6
  • 044-NS0422A1B322S Multiple Thumbnail Image #7
  • 044-NS0422A1B322S Multiple Thumbnail Image #8

Typically ships in 2 - 3 weeks

Free Shipping Item

Retail Price: $15,708.00

$6,440.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove
Katie McWhirter User Image
Ask a Foodservice Equipment Specialist

Scotsman NS0422AX-1/B322S Description

When air is 70 degrees Fahrenheit and water is 50 degrees Fahrenheit, the Scotsman NS0422AX-1/B322S/AP1-P Prodigy Plus® ice maker with bin can create 430 pounds of nugget ice in 24 hours. Great for fountain drinks or blended cocktails, nugget ice is also immensely popular among customers for chewing. To account for this high demand, this unit includes a bin that can hold 370 pounds of ice at a time. This unit comes standard with the AP1-P water filter.

The Scotsman NS0422AX-1/B322S/AP1-P Prodigy Plus® ice machine and bin combo is designed for simplified cleaning and reduced maintenance. For longevity, the ice maker features sealed bearings, a stainless steel evaporator, and a stainless steel auger. Because its refrigeration system is also sealed, it minimizes contact with airborne contaminants; between cleanings, its antimicrobial protection guards internal surfaces. If it's underperforming, operators can simply scan the unit-specific QR code to access service manuals, cleaning guides, and warranty history. Its AutoAlert™ system provides illumination and notifies operators when descaling or sanitization is needed.

For installation flexibility, the ice maker is front breathing so it doesn't require side clearances, while the bin features a recessed drain. To simplify ice retrieval, the bin includes a scoop and an integrated scoop holder, and its spring-loaded door smoothly opens and closes. The bin's polyethylene interior lining resists scratches and scuffs from the scoop, while its metallic exterior resists corrosion. Ice can be held for extended periods because this bin utilizes polyurethane foam insulation, which is forced between the exterior and liner under heat and pressure to form a wall-to-wall bond.

Steady Ice Supply
Produces up to 430 lb. in 24 hours
Ice Reserve Capacity
Stores up to 370 lb. between production cycles
Nugget Ice
Chewable texture suits beverages, displays, and healthcare use
Cooling Configuration
Uses an air-cooled condenser that supports consistent ice production
Cleaner Supply
Includes AP1-P filtration to manage incoming water and reduce scale buildup
Sanitary Treatment
AgION™ helps inhibit microbial growth on internal surfaces

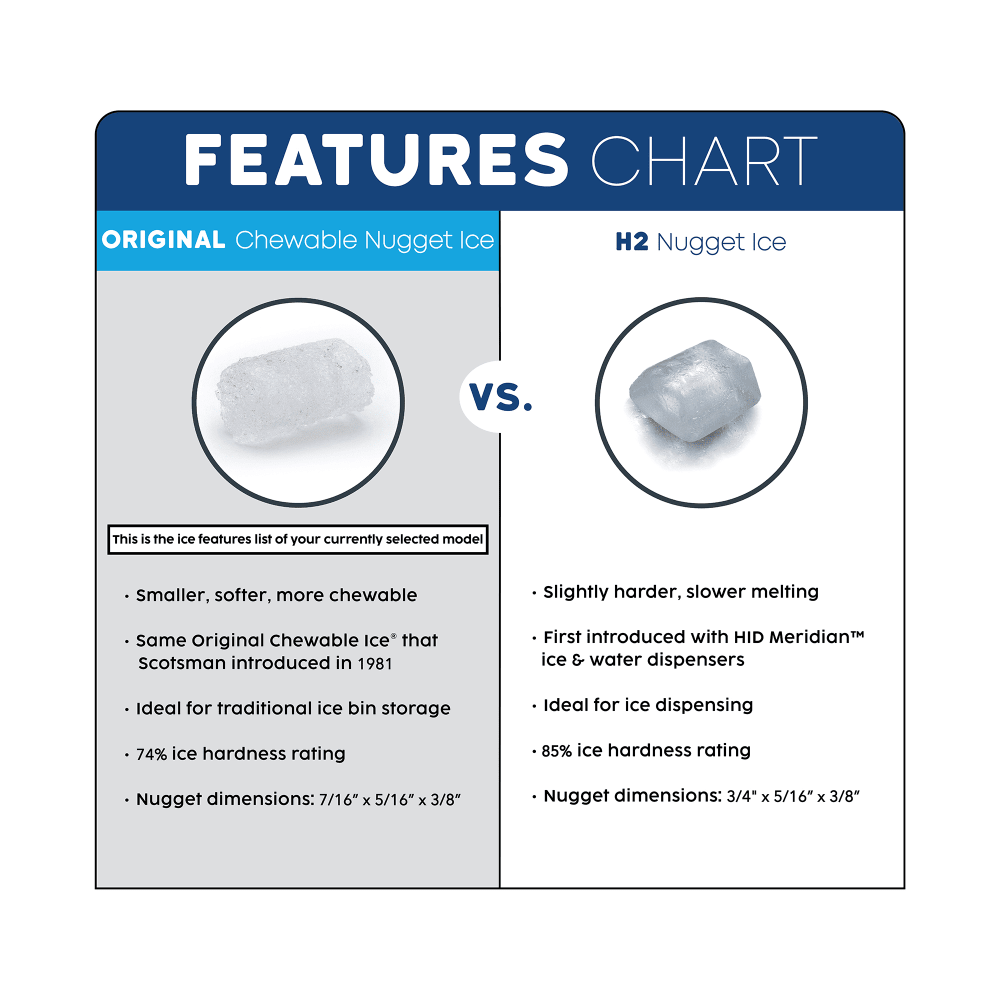

  • Creates Scotsman's Original Chewable Ice®
  • Ice size: 7⁄16 in. L x 5⁄16 in. W x 3⁄8 in. H
  • Production capacity: 430 lb. when air is 70 degrees F and water is 50 degrees F
  • Stainless steel finish
  • Self-contained, air-cooled condenser
  • Sealed bearings reduce maintenance
  • AutoAlert indicator lights notify operator of issues
  • Unit-specific QR code
  • Stainless steel evaporator and auger
  • Removable front-facing air filter
  • Integrated AgION™ antimicrobial protection
  • 1-touch cleaning
  • Sealed, front-breathing refrigeration system
  • Required air temperature: 50-100 degrees F
  • Required water temperature: 40-100 degrees F
  • 3⁄8-in. water inlet
  • R290 refrigerant
  • AP1-P water filter included
  • 5,000 BTU

  • 370-lb. capacity

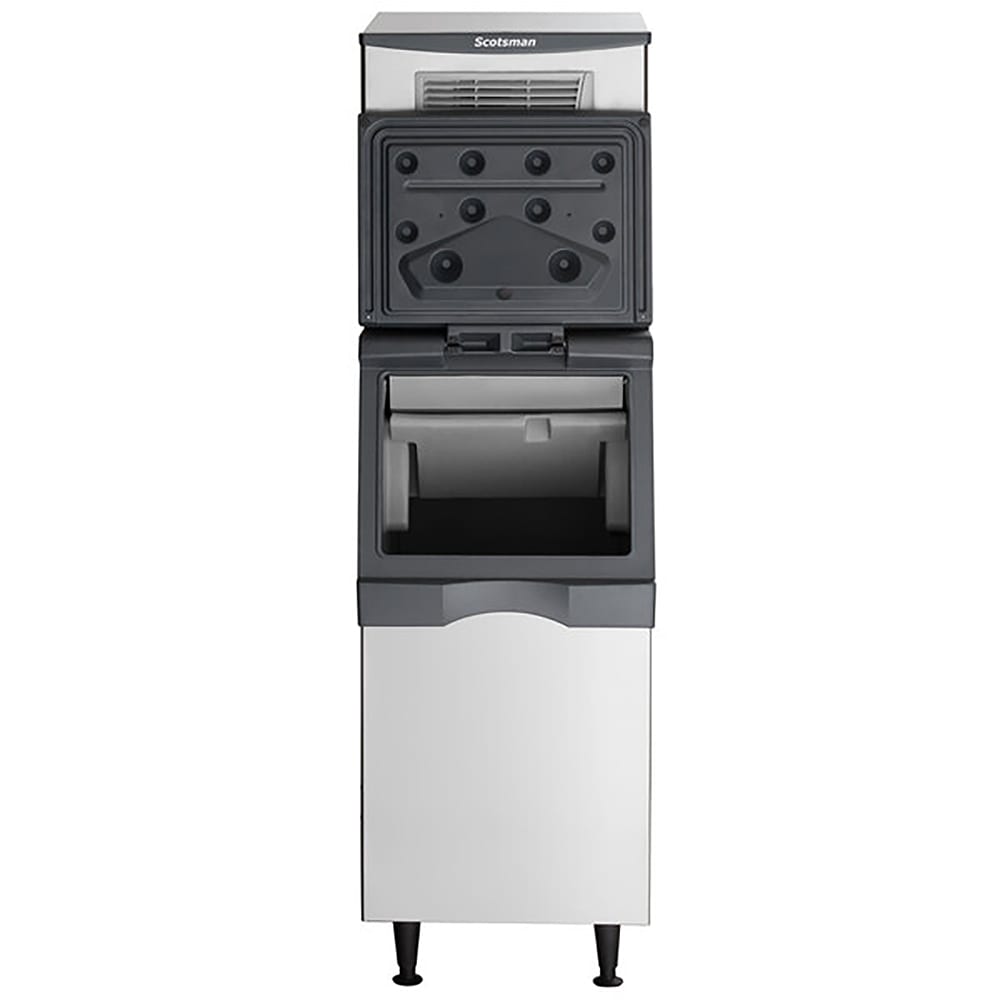

  • Top-hinged, spring-loaded, front-opening door
  • Metallic-finished exterior
  • Baffle can be removed without tools for cleaning
  • Polyurethane insulation
  • Scratch-resistant polyethylene liner
  • Built-in scoop holder
  • Includes scoop
  • Recessed drain fitting
  • Includes 6-in. legs
  • Requires 6-in. rear clearance

  • Bin: 22 in. W x 34 in. D (45 1⁄5 in. D with door open) x 50 in. H
  • Ice maker: 22 in. W x 24 in. D x 23 in. H
  • Overall: 22 in. W x 34 in. D x 73 in. H
  • 115 V/60/1 ph
  • 12.9 A

*Image may not depict product color, inclusions or accessories.

*Free shipping on Scotsman NS0422AX-1/B322S within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 430 lb/24 hours at 70°/50° (327 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, NSF, cULus

Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, 22" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF

AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF

Warranty Icon
Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor
