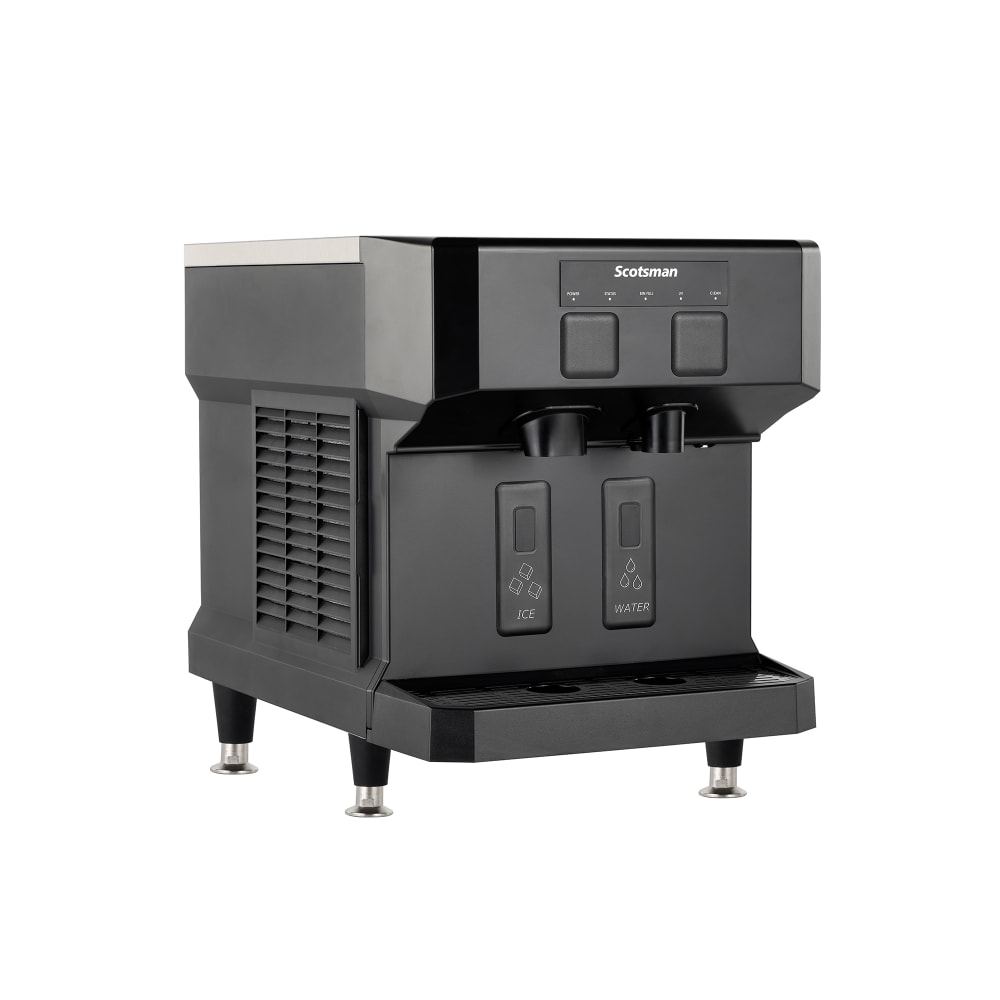

Scotsman HID207AX-1 196 lb Countertop Water & Nugget Ice Dispenser w/ Filter - 7 lb Storage,Touch-Free Dispensing, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $12,771.00
$5,236.00 /Each
Selected Dispenser Type: Sensor
| Sensor |
| Push Button |
Scotsman HID207AX-1 Description
This Scotsman HID207AX-1 ice and water dispenser produces 194 pounds of ice when incoming air is 70 degrees and water temperature is 50 degrees. The dispenser utilizes R290 hydrocarbon refrigerant, coils, and components like the compressor, condenser, and evaporator for ice production. The auger and evaporator are made of durable stainless steel. This unit produces nugget-style ice ideal for soft drinks; sanitary dispensing is provided via the infrared sensor system and illuminated 8 1⁄2-inch dispensing area. A 7-pound ice bin collects extra ice for later use.
Measuring a compact, 16-inch width ideal for countertop use, this Scotsman HID207AX-1 nugget ice and water dispenser is ADA compliant. It features an AutoAlert™ system on its front that displays the unit’s current operational status to users. Its sealed, maintenance-free bearings provide a long lifespan even with frequent, heavy-duty use. The bin, air filter, spouts, and sink are removable for in-depth cleaning. The parts are lined with AgION® antimicrobial protection to inhibit the growth of microbes, bacteria, mold, and algae. This unit also includes the AP1-P water filter
- 194-lb. production in 24 hours
- 7-lb. built-in storage
- Infrared sensors
- Illuminated dispensing area

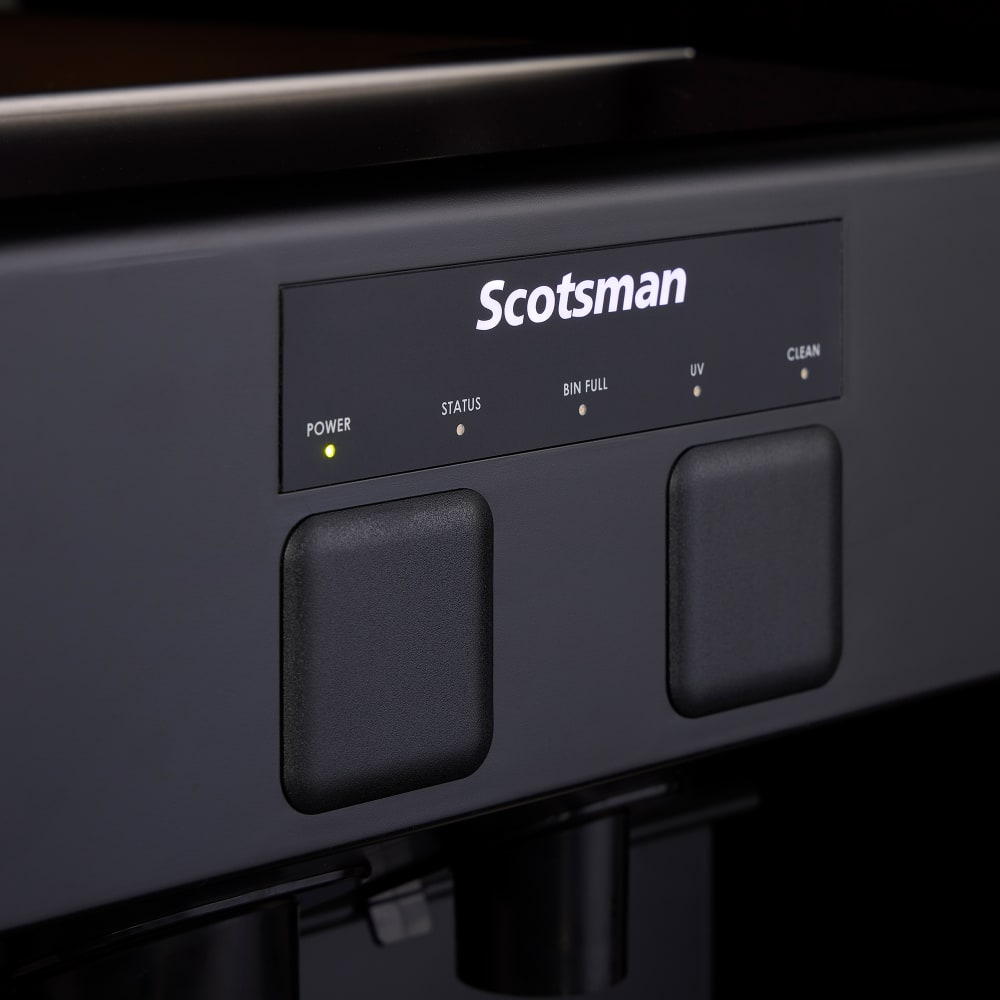

- AutoAlert indicator light system
- Maintenance-free, sealed bearings

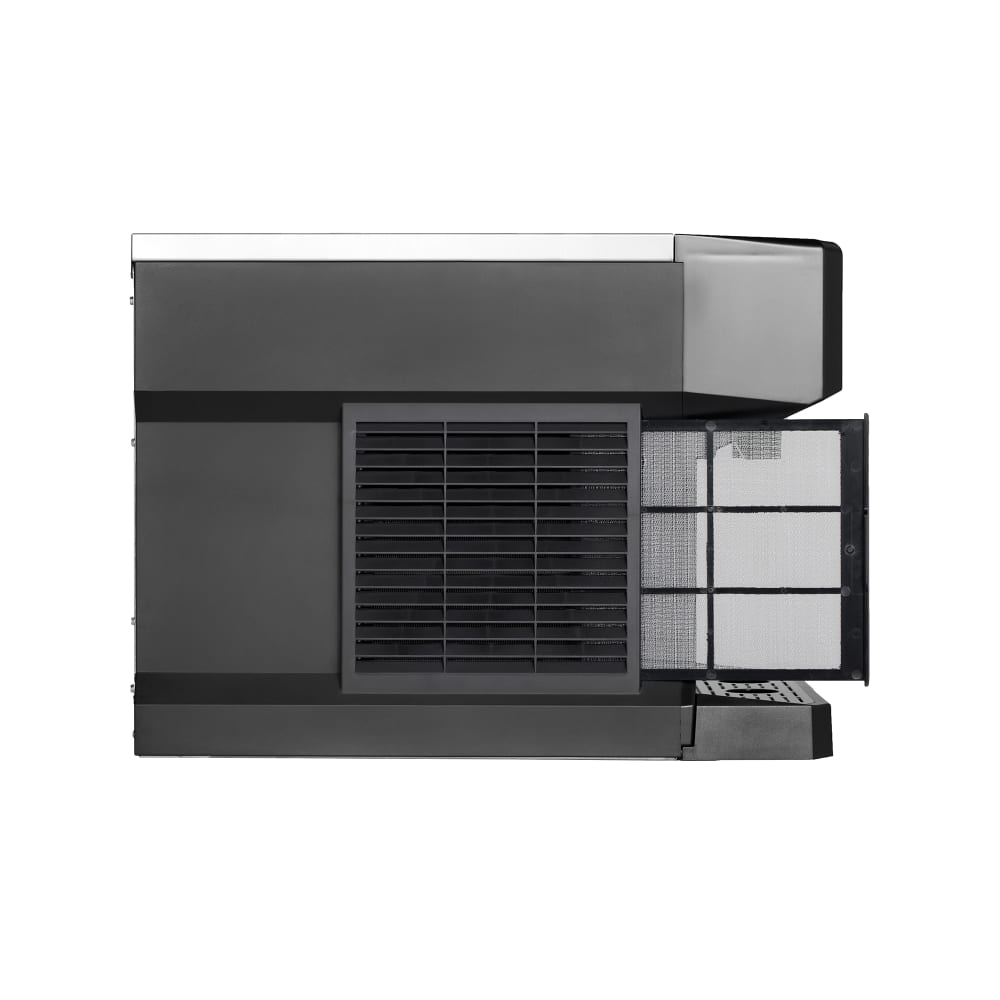

- Bin, air filter, spouts, and sink are removable

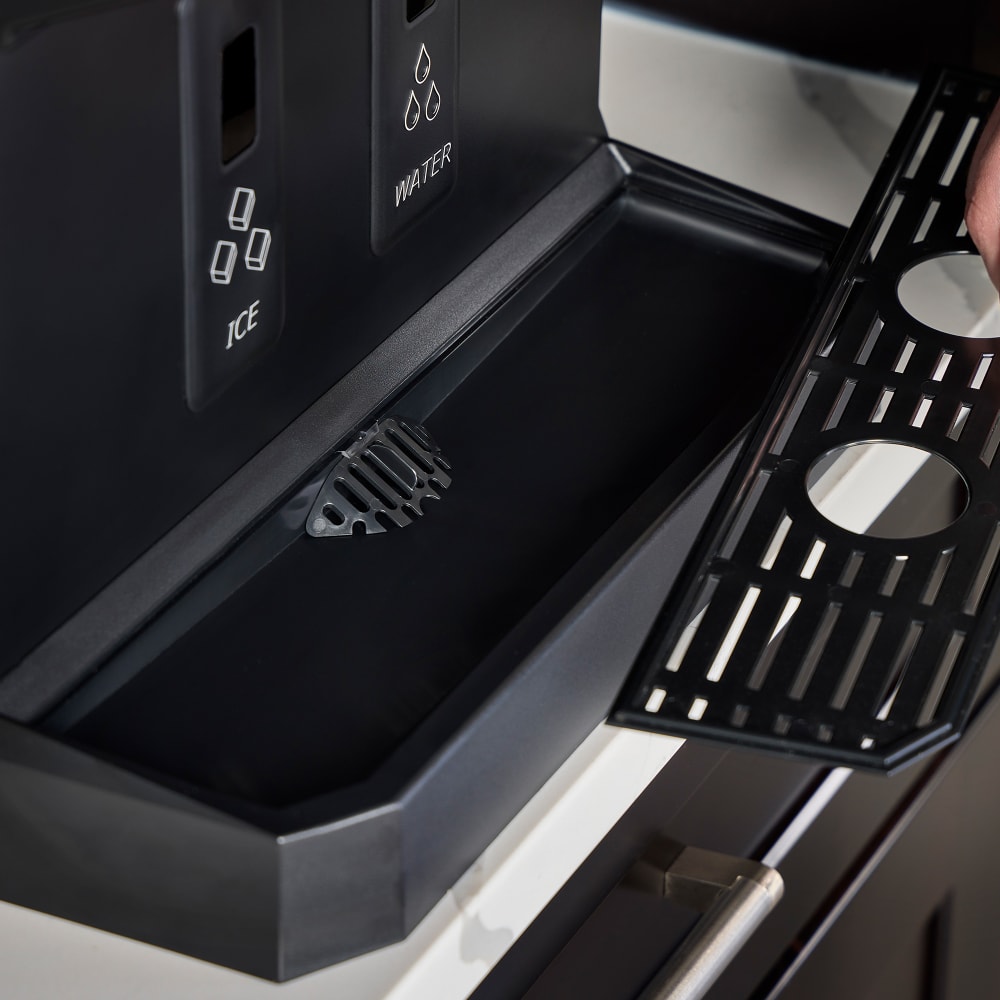

- Sink drain cover

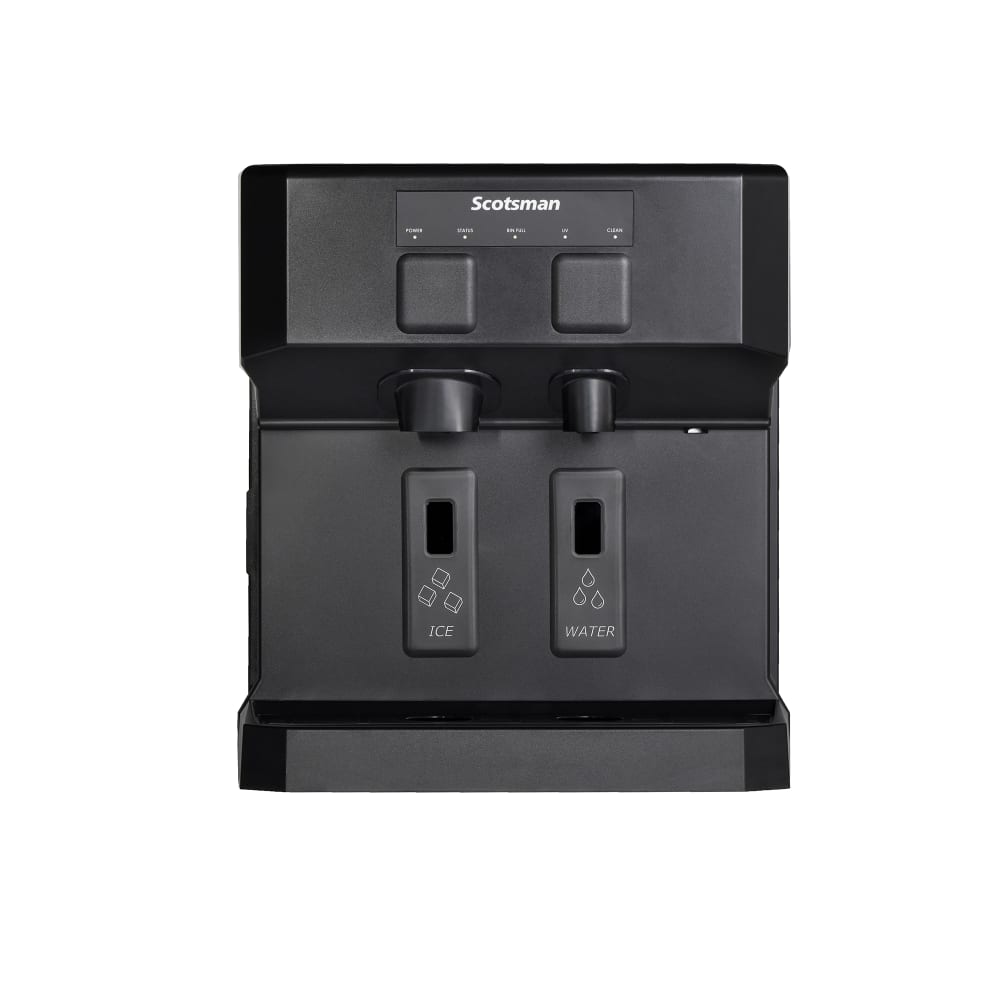

- Provides ice and water dispensing
- SmoothStream™ water dispensing
- Makes nugget-style ice
- AgION antimicrobial protection inhibits bacteria
- Snap-on panels for simple ice-only changeover
- Air-cooled configured compressor
- Condenser
- R-290 hydrocarbon refrigerant
- Operating ambient temperature: 50-100 degrees F
- Operating water temperature: 40-100 degrees F
- Portable water pressures: 20-80 PSIG
- Stainless steel evaporator and auger
- Scotsman AP1-P water filter included
- Dispensing area: 8 1⁄2 in.
- Drain outlet: 3⁄4 in.
- Overall: 16 in. W x 23 2⁄5 in. D x 17 1⁄2 in. H
- 5.8 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman HID207AX-1 within the 48 contiguous states.
From The Manufacturer
Meridian™ Compact Ice & Water Dispenser, Touchfree® infrared dispensing, nugget style, Original Chewable Ice®, air-cooled, production capacity up to 196 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°/70°), 7 lb bin storage capacity, sealed maintenance-free bearing, UV-LED internal sanitation module, AutoAlert™ external indicating lights, removable bin, removable air filter, SmoothStream™ water dispensing, illuminated dispensing, removable spouts and sink, integrated sink drain cover, consolidated 0.75" drain outlet, recessed utility chase, stainless steel evaporator and auger, ADA compliant dispensing area, 8.15" dispensing area, unit specific QR code, included snap-on panels for ice only configuration, AgION® antimicrobial protection, R-290 refrigerant, includes 6’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 5.8 amps, cULus, NSF, AHRI
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman HID207AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 196 |
| Amps | 5.8 |
| Bin Capacity (lb) | 7 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.89 |
| Dispenser Type | Sensor |
| Dispenses | Ice & Water |
| Height (in) | 17.54 |
| Hertz | 60 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Installation Type | Countertop |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Meridian™ |
| Serving Vessel | Cup |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Special Features | The Original Chewable Ice® |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.25 |
| Width (in) | 16.05 |
| Weight | 80.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 196 lbs. of ice each day.
The bin holds 7 lbs. of ice at a time.
The infrared sensor lets users dispense without touching.
The UV system and antimicrobial parts keep the interior clean.
It runs on 115 V/60 Hz/1 ph with a plug.
It uses a 3⁄4-in. drain outlet for drainage.

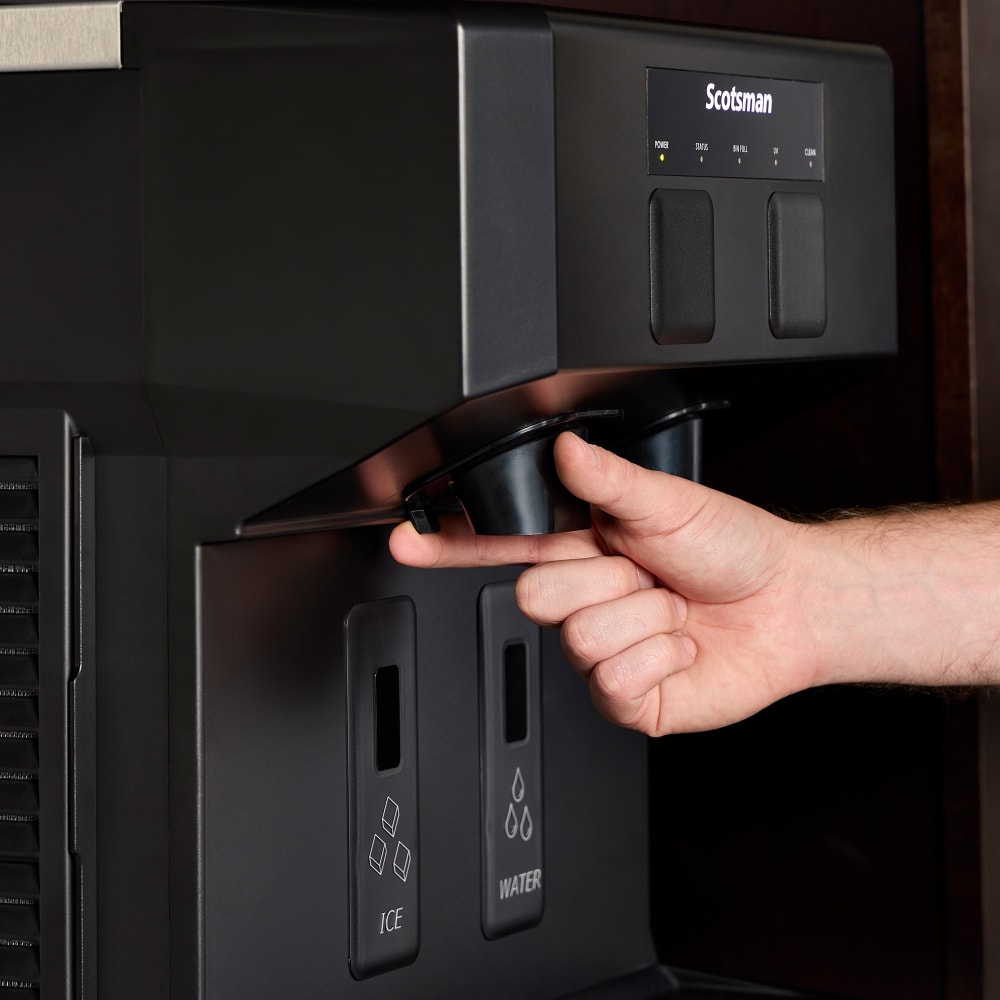

The bin, filter, and spouts remove for cleaning.

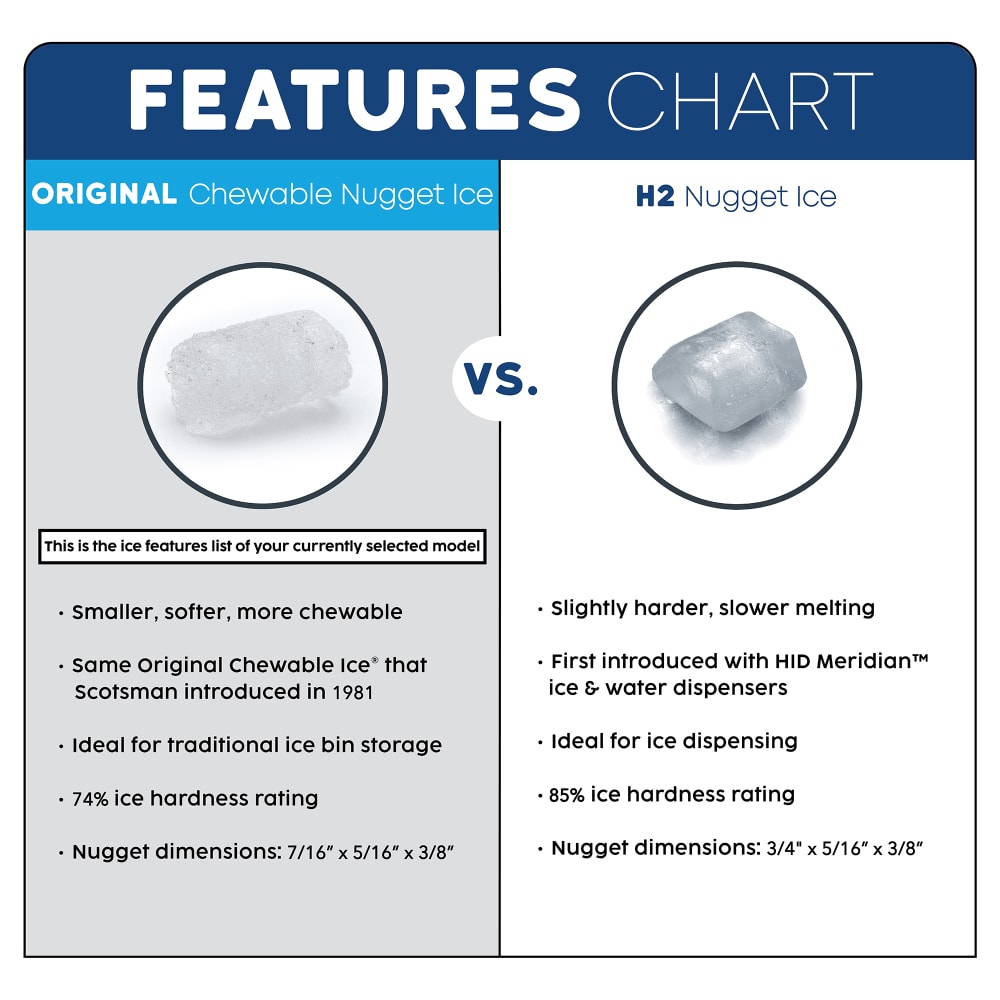

It produces chewable nugget-style ice.
It measures 16 in. wide for compact placement.
The sealed bearings reduce routine service needs.
It produces up to 196 lb. of ice in 24 hours.
It holds 7 lb. of ice.
It dispenses nugget ice.
Yes, it dispenses both ice and water.
Yes, it has an integrated ice maker.
Ice is dispensed by a sensor.

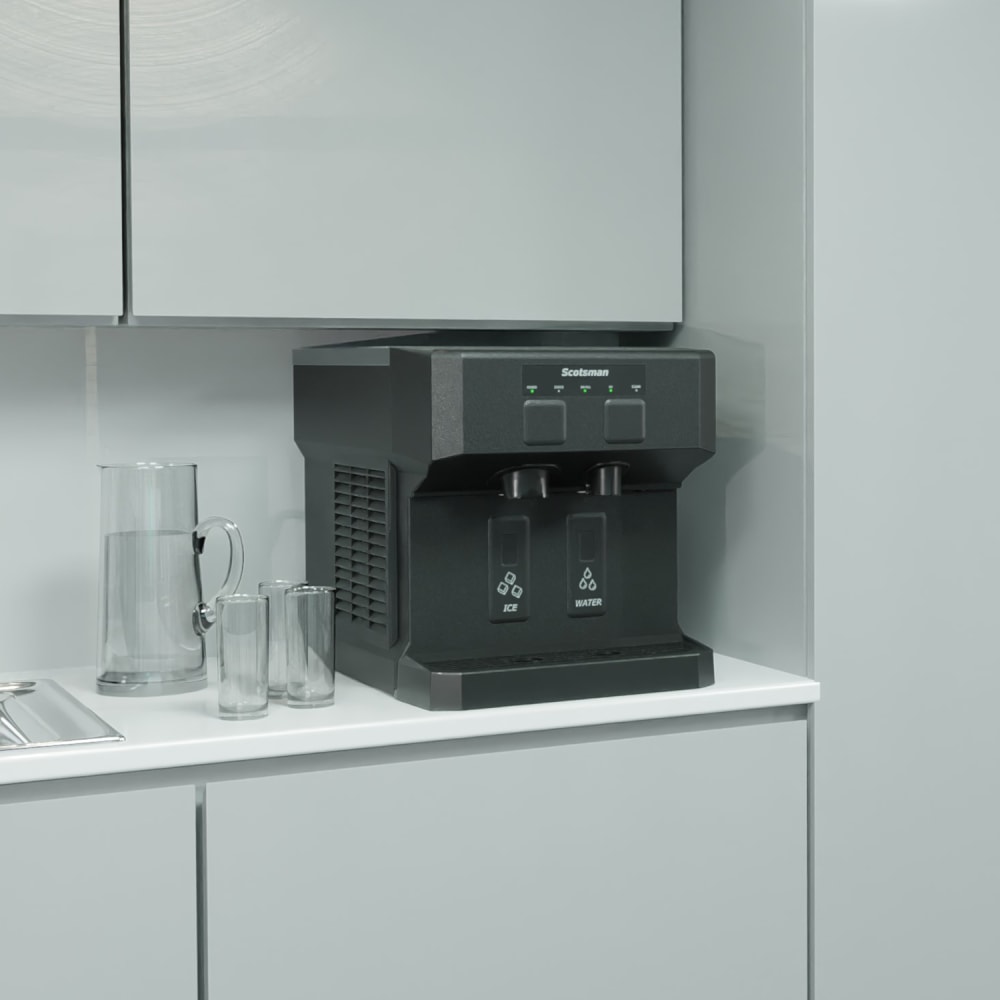

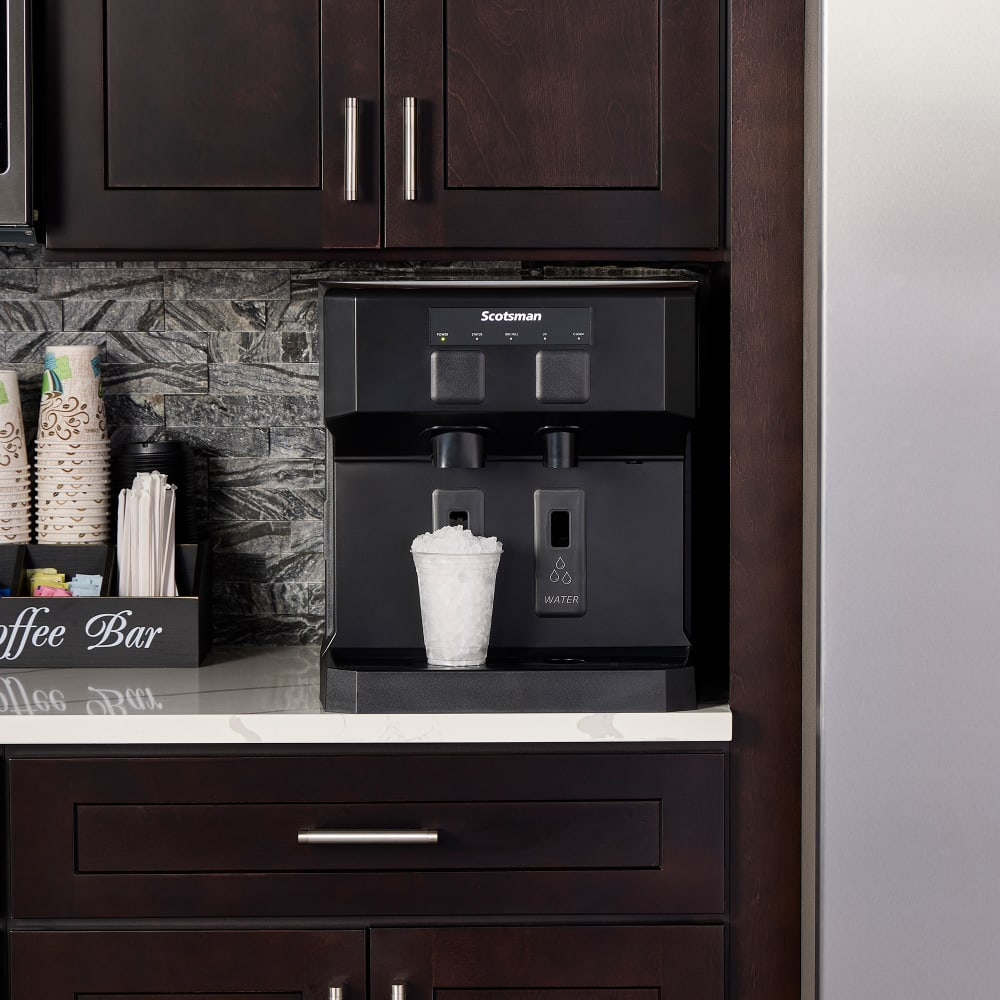

It is designed for countertop installation.
It measures 16 1/16 in. W x 23 7/8 in. D x 17 17/32 in. H.
It requires 115 V electrical service.
It requires 5.8 A.
It requires 1-phase electrical service.
It requires 60 Hz electrical service.
It is designed to dispense into cups.
Its condenser is air-cooled.
Its listed certifications include AHRI, cULus Listed, and NSF.
It requires a 1/4-in. water inlet connection.
Yes, it uses sensor-operated dispensing.
Yes, it includes a water filtration system.
Yes, it has antimicrobial protection.
It uses R290 refrigerant.
It uses a NEMA 5-15P plug.
Yes, it has removable components for cleaning.
Yes, it has a removable air filter.
Yes, it includes a QR code for service information.
Yes, it uses sealed, maintenance-free bearings.
