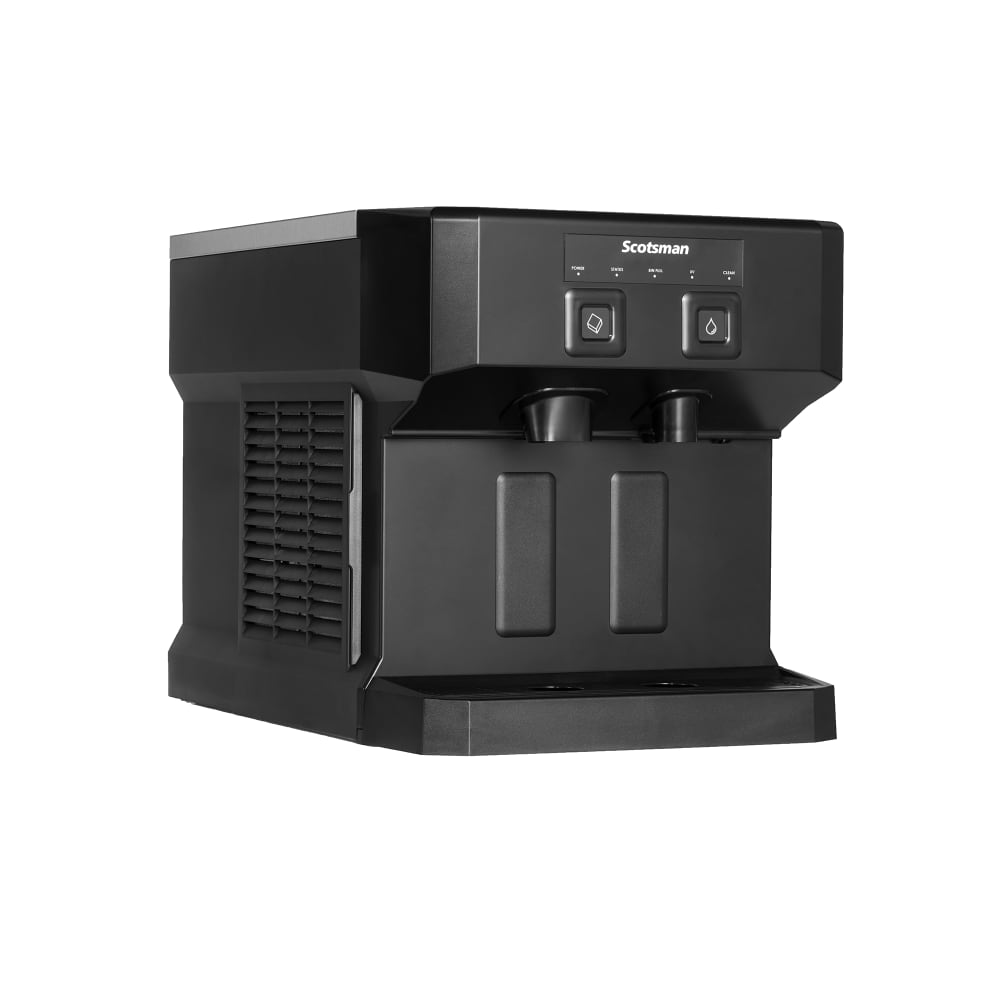

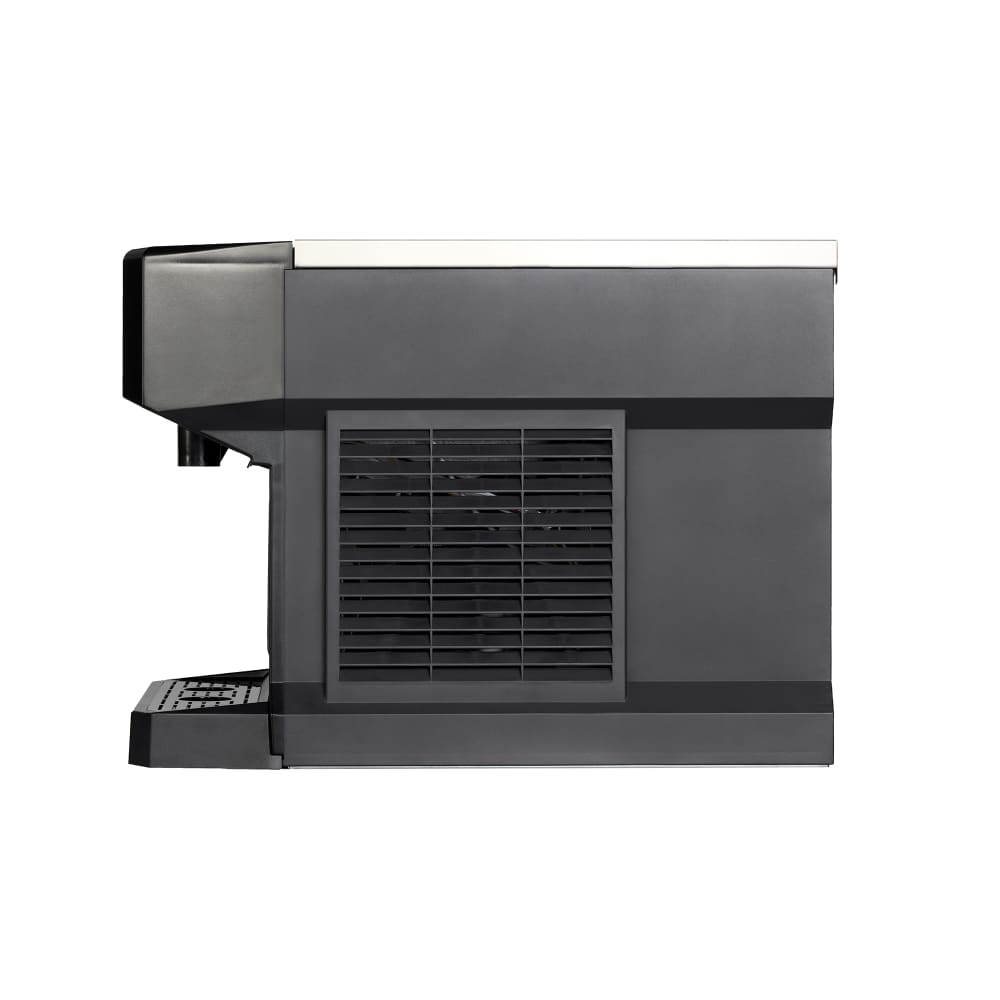

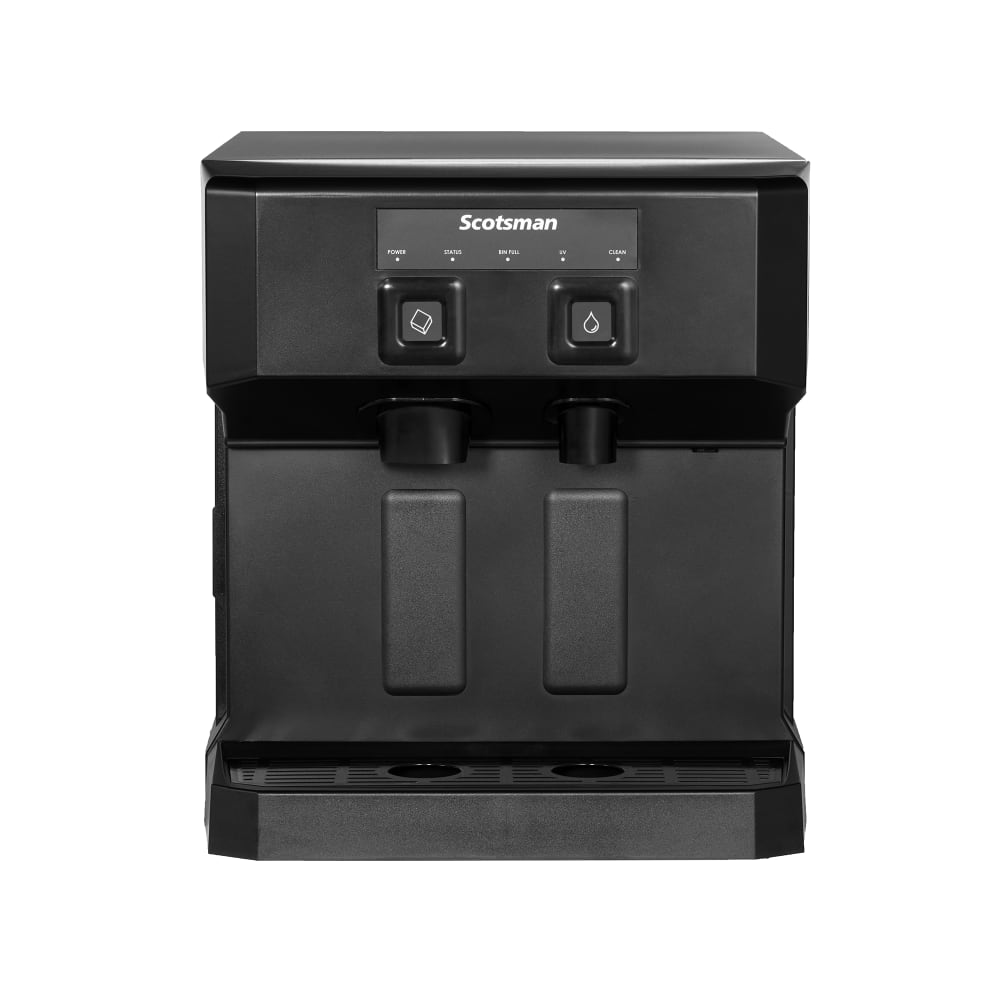

Scotsman HID207ABX-1 196 lb Countertop Water & Nugget Ice Dispenser w/ Filter - 7 lb Storage, Cup Fill, Push-Button
Typically ships in 4 - 8 Business Days
Retail Price: $12,771.00
$5,236.00 /Each
Selected Dispenser Type: Push Button
| Push Button |
| Sensor |
Scotsman HID207ABX-1 Description

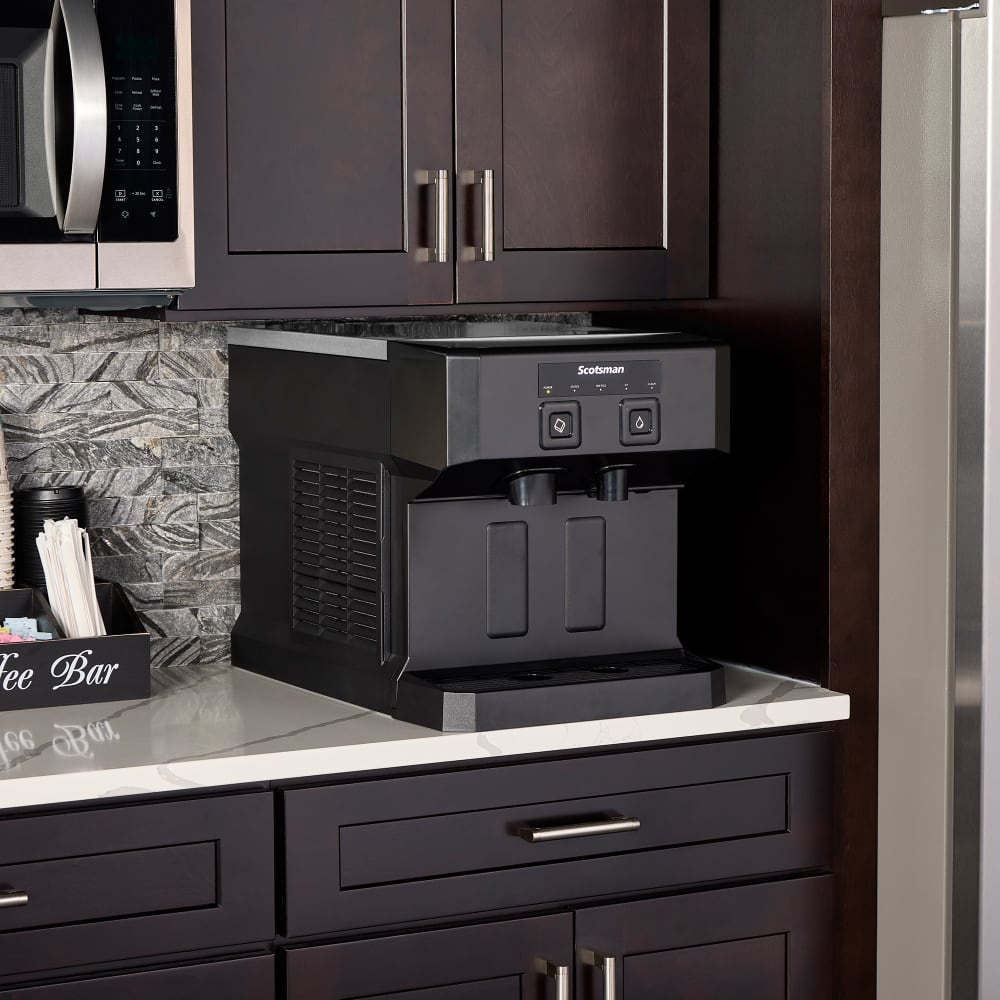

The modern and compact Scotsman HID207ABX-1/AP1-P nugget and water dispenser has a 16-inch width ideal for countertops, enabling users to easily access the dispensing area. Compatible with most cup or mug sizes, this dispensing area measures 8 1⁄2 inches. This unit is built-in with SmoothStream™ water dispensing to minimize splashing. The ice dispensing component can produce 194 pounds of nugget ice in a single day. AgION® antimicrobial protection is integrated into most of the components to inhibit the growth of bacteria and maintain ice quality.
This dispenser uses R290 hydrocarbon refrigerant to cool incoming water for ice production. For ideal operating conditions, this unit requires ambient temperatures to be between 50 and 100 degrees Fahrenheit, water temperatures between 40 and 100 degrees Fahrenheit, and an atmospheric pressure range between 20 and 80 PSIG. The AutoAlert™ indicator lights display the status of the unit.
The produced ice of the Scotsman HID207ABX-1/AP1-P Meridian™ dispenser can be stored in the integrated 7-pound storage compartment. Made for long-term use, this unit is built with sealed, maintenance-free bearings. Integral components like the evaporator and auger are made of high-strength stainless steel. For cleaning purposes, the bin, air filter, spouts, sink, and drain cover are detchable. This machine comes standard with the AP1-P water filter.

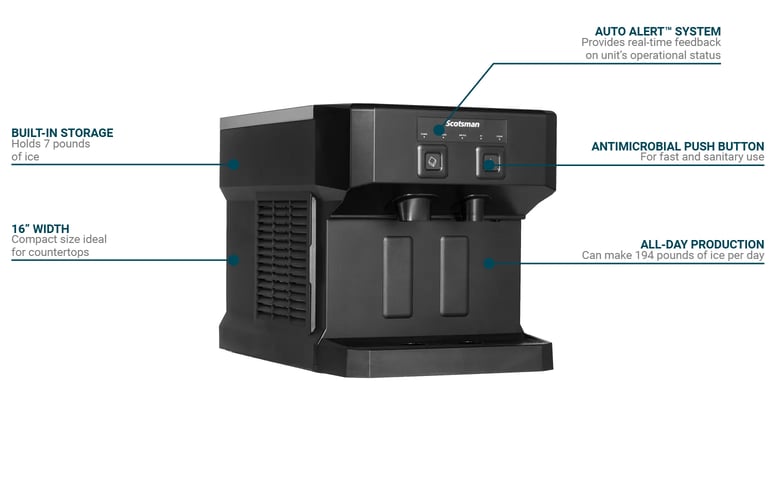

- From the Meridian™ series
- As much as 194-lb. production in 24 hours
- 7-lb. storage
- Push-button dispensing
- AutoAlert indicator lights
- Sealed, maintenance-free bearings
- Removable bin and air filter
- Removable spouts and sink
- Built-in sink drain cover (removable)
- AP1-P water filter included
- Ice and water dispensing

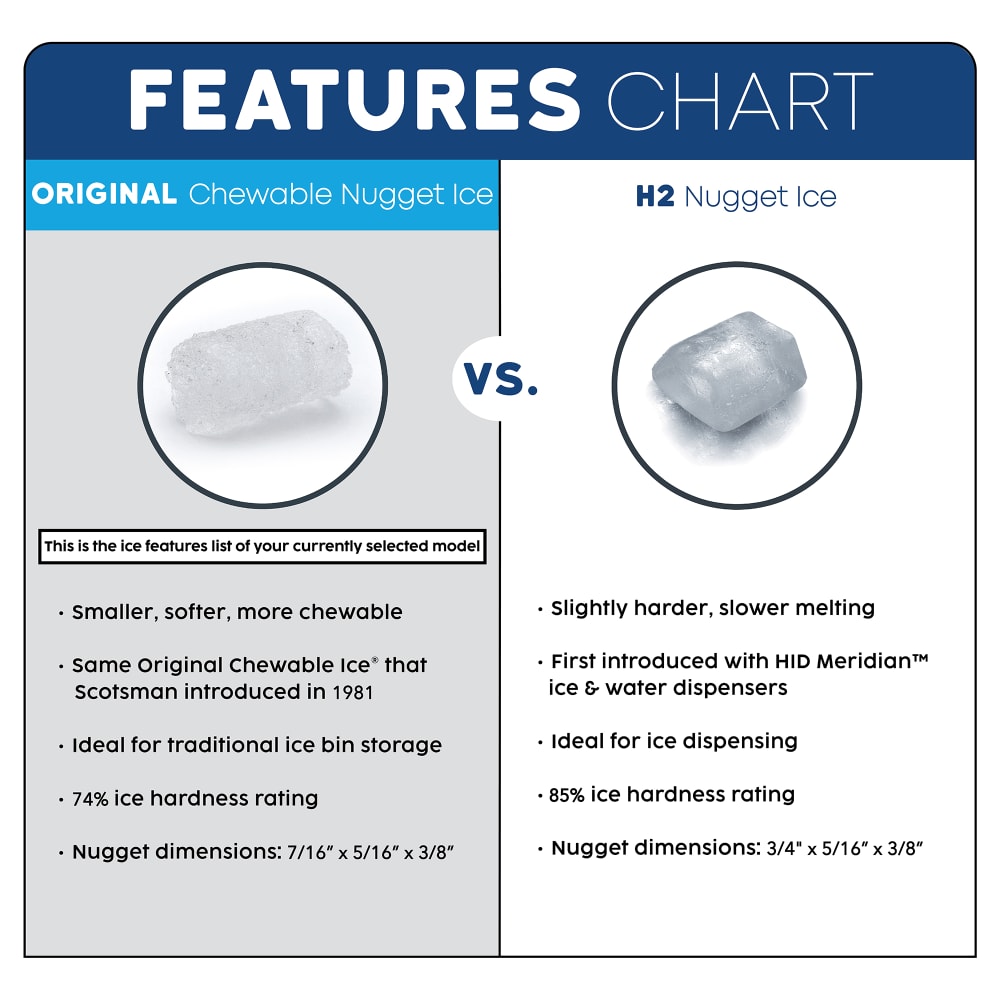

- Makes nugget-style ice
- SmoothStream water dispensing
- AgION antimicrobial protection
- Snap-on panels for simple ice-only transition
- Air-cooled compressor
- Condenser
- Eco-friendly R-290 hydrocarbon refrigerant
- Operating air temperature: 50-100 degrees F
- Operating water temperature: 40-100 degrees F
- Portable water pressures: 20-80 PSIG
- Stainless steel evaporator and auger
- Dispensing area: 8 1⁄2 in.
- Drain outlet: 3⁄4 in.
- Overall: 16 in. W x 23 2⁄5 in. D x 17 1⁄2 in. H
- 5.8 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman HID207ABX-1 within the 48 contiguous states.
From The Manufacturer
Meridian™ Compact Ice & Water Dispenser, antimicrobial push-button dispensing, nugget style, Original Chewable Ice®, air-cooled, production capacity up to 196 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°/70°), 7 lb bin storage capacity, sealed maintenance-free bearing, UV-LED internal sanitation module, AutoAlert™ external indicating lights, removable bin, removable air filter, SmoothStream™ water dispensing, illuminated dispensing, removable spouts and sink, integrated sink drain cover, consolidated 0.75" drain outlet, recessed utility chase, stainless steel evaporator and auger, ADA compliant dispensing area, 8.15" dispensing area, unit specific QR code, included snap-on panels for ice only configuration, AgION® antimicrobial protection, R-290 refrigerant, includes 6’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 5.8 amps, cULus, NSF, AHRI, engineered and assembled in USA
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman HID207ABX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 196 |
| Amps | 5.8 |
| Bin Capacity (lb) | 7 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.89 |
| Dispenser Type | Push Button |
| Dispenses | Ice & Water |
| Height (in) | 17.54 |
| Hertz | 60 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Installation Type | Countertop |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Meridian™ |
| Serving Vessel | Cup |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Special Features | The Original Chewable Ice® |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.25 |
| Width (in) | 16.05 |
| Weight | 80.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 196 lbs. of nugget ice daily.
The storage bin holds 7 lbs. of ice.
Yes, the UV-LED module treats water and ice internally.
The AgION® antimicrobial protects internal contact surfaces.
The push-button controls activate ice and water dispensing.
Yes, the SmoothStream™ flow reduces splashing at the outlet.
The removable bin, spouts, and air filter support cleaning.
The unit needs 6-in. clearance on the sides and back.

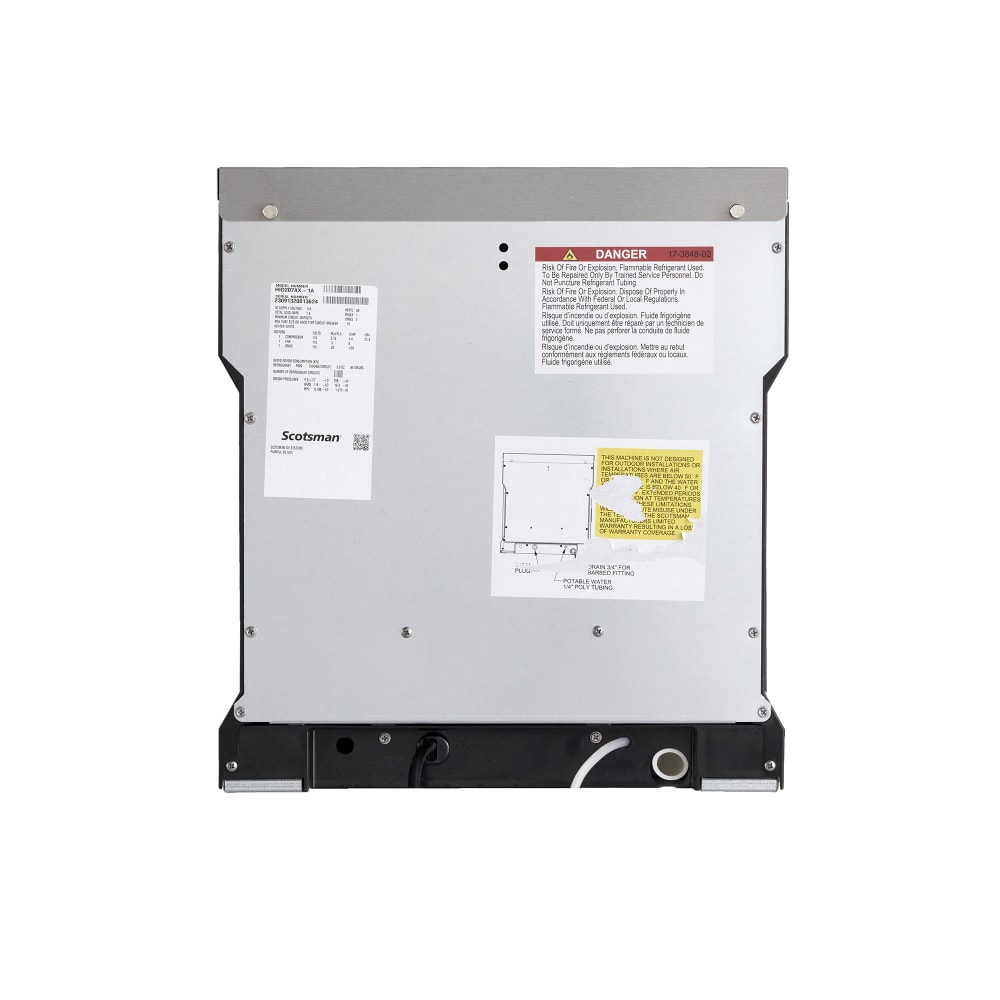

It uses a 1⁄4-in. inlet and 3⁄4-in. drain.
It uses 115 V/60 Hz/1 ph with NEMA 5-15P plug.
It produces up to 196 lb. of ice in 24 hours.
It holds 7 lb. of ice.
It dispenses nugget ice.
Yes, it dispenses both ice and water.
Yes, it has an integrated ice maker.
Ice is dispensed with a push button.
It is designed for countertop installation.
It measures 16 1/16 in. W x 23 7/8 in. D x 17 17/32 in. H.
It requires 115 V electrical service.
It requires 5.8 A.
It requires 1-phase electrical service.
It requires 60 Hz electrical service.
It is designed to dispense into cups.
Its condenser is air-cooled.
Its listed certifications include AHRI, cULus Listed, and NSF.
It requires a 1/4-in. water inlet connection.
Yes, it includes a water filtration system.
Yes, it has antimicrobial protection.
It uses R290 refrigerant.
It uses a NEMA 5-15P plug.
Yes, it has removable components for cleaning.
Yes, it has a removable air filter.
Yes, it includes a QR code for service information.
Yes, it uses sealed, maintenance-free bearings.
