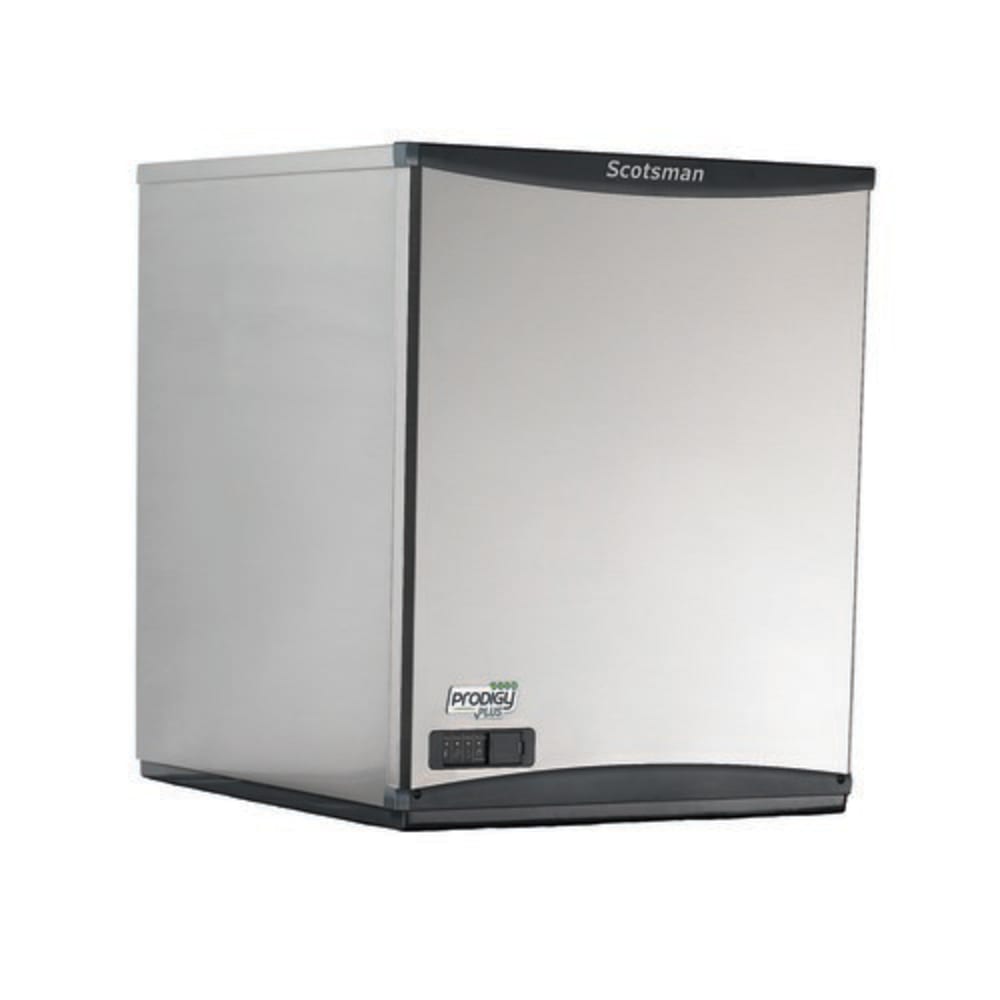

Scotsman FS1222L-1 22" Prodigy Plus® Flake Ice Machine Head - 1180 lb/24 hr, Remote Cooled, 115v/1ph

To facilitate maintenance, the Scotsman FS1222L-1 flake ice machine head has one-touch cleaning capabilities, and it's protected with AgION™ antimicrobial to slow the growth of germs and bacteria. The bearings are sealed to protect them from damage, and they require no maintenance for operation. Using R404A refrigerant, this unit makes anywhere from 1,000 to 1,180 pounds of ice per day depending on operating conditions.

The refrigeration system in the Scotsman FS1222L-1 ice maker is remote-cooled and self-contained. To reduce noise and heat, it has a remote low-side configuration. It also comes with a QR code that is specific to the unit, which can be scanned to reveal warranty information and service manuals. It has a rust-resistant stainless steel finish, and the evaporator and auger are also made of durable stainless steel.

Product Details

• Part of the Prodigy Plus® series
• 1,180-lb. daily ice production capacity
• 1,000-lb. AHRI-certified daily ice production capacity
• Makes flake ice
• Remote-cooled, self-contained refrigeration system
• AutoAlert™ indicating lights

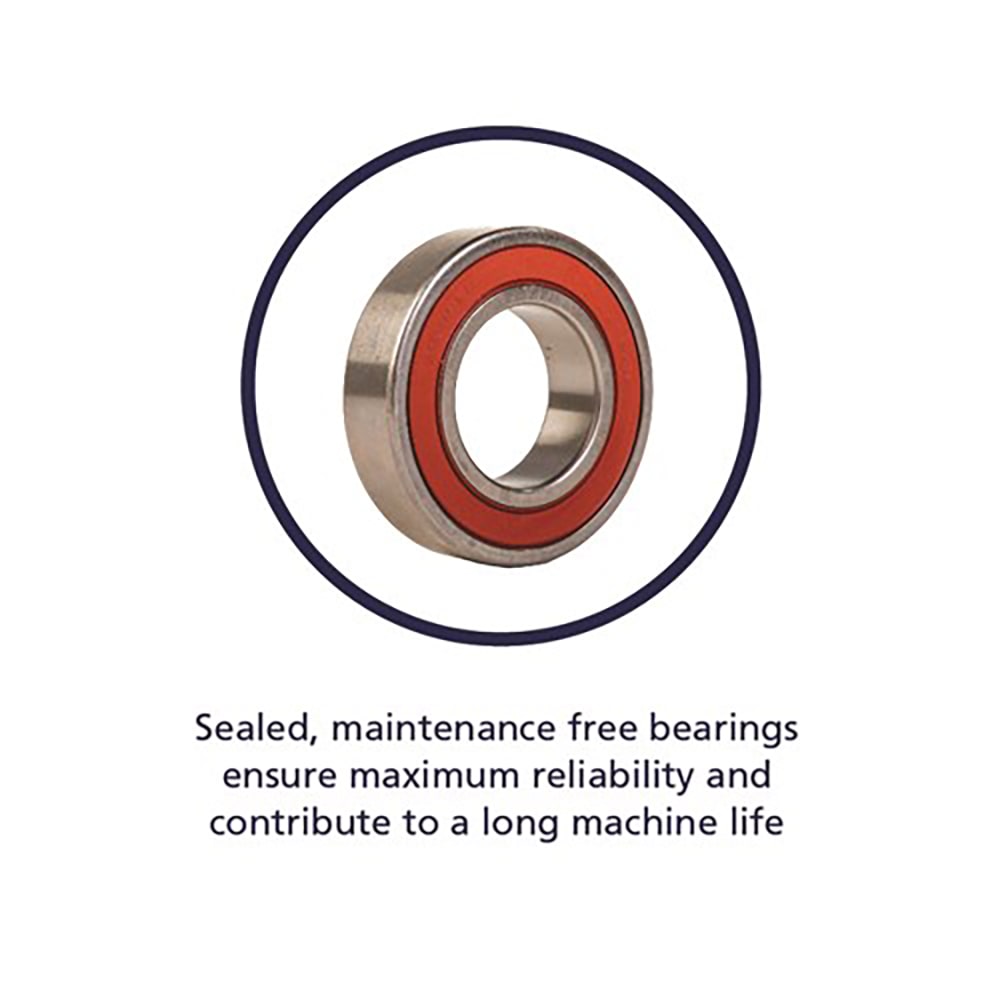

• Maintenance-free, sealed bearings
• Unit-specific QR code provides warranty information
• Stainless steel evaporator and auger
• Durable stainless steel finish
• AgION antimicrobial slows germ growth
• 1-touch cleaning
• R404A refrigerant
• Remote low-side configuration reduces noise and heat
• 6,000-BTU heat transfer capacity
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG

Product Features

Dimensions & Utilities

• 22 in. W x 24 in. D x 27 in. H
• 0.82 kW
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman FS1222L-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, remote low side (compressor & condenser separate), self-contained condenser, production capacity up to 1180 lb/24 hours at 70°/50° (1000 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, heat and noise reduced via remote low side configuration, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman FS1222L-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
