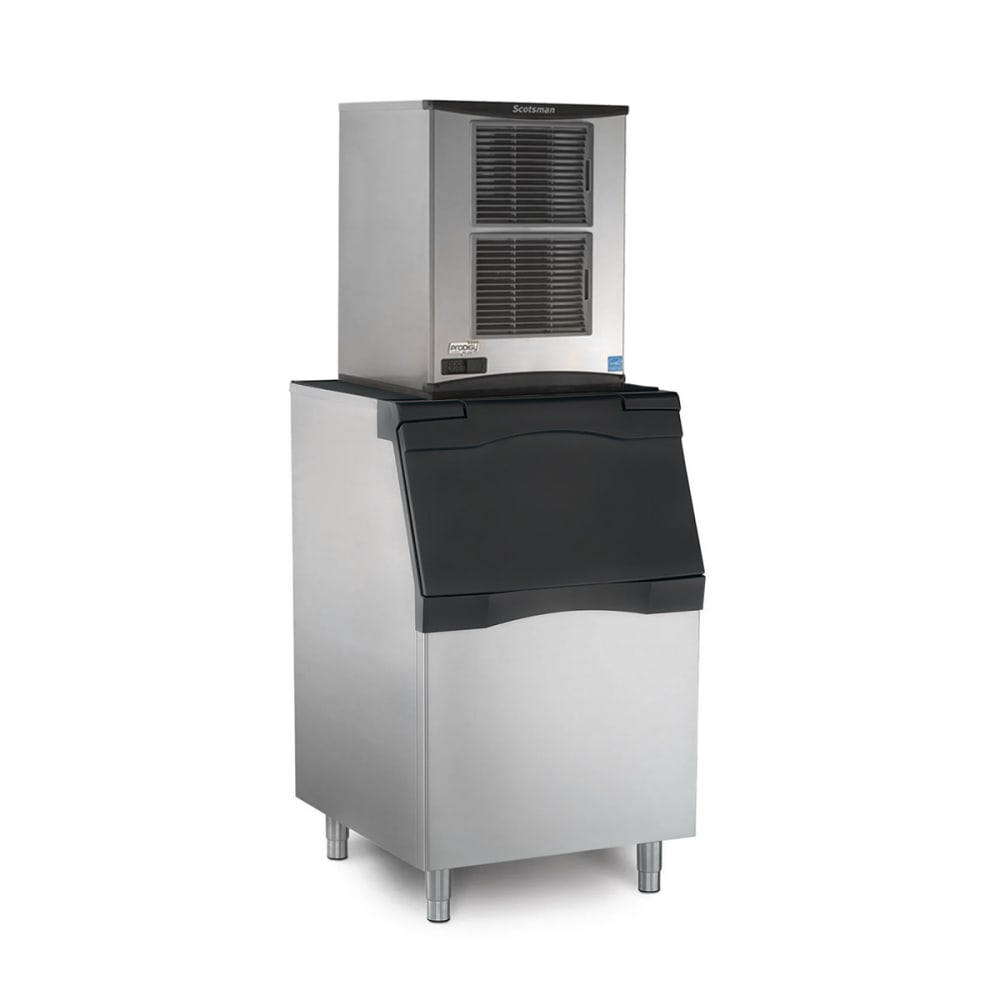

Scotsman FS1222A-32/B530S/KBT27 1100 lb Prodigy Plus® Flake Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 208-230v

Producing as much as 1,100 pounds of flake ice per day in optimal conditions, the Scotsman FS1222A-32 ice machine head is suitable for keeping large seafood and produce displays chilled and for producing high volumes of blended smoothies or slushies. It comes with a Scotsman B530S ice storage bin that's insulated with polyurethane to reduce melting and can hold as much as 536 pounds of prepared ice. For streamlined operation, the bin has a drain built into the bottom, enabling users to drain away water from melting ice quickly, preserving product quality. Opening from the front, the bin's door is top hinged, and it rests on 6-inch legs for ease of access.

The Scotsman FS1222A-32/B530S/KBT27 ice machine head and storage bin combo feature a stainless steel auger and evaporator as well as sealed bearings, ensuring an extended lifespan. The ice maker operates with AutoAlert™ indicator lights to streamline maintenance and has a unit-specific QR code to assist with troubleshooting. Enabling the unit to fit into tight spaces, the head's refrigeration system is front breathing, the air filter is front accessible, and the bin measures 30 inches wide.

Ice Machine Head Details

• Prodigy Plus® series
• Air cooled
• Produces flake ice
• Suitable for grocery stores and seafood shops
• 1,100-lb. maximum daily ice production
• 878-lb. AHRI-certified daily ice production
• Space-saving condenser is self-contained
• Front-breathing refrigeration for flexible installation
• Sealed bearings for durability
• Operation is streamlined with AutoAlert indicator lights
• Treated with AgION™ antimicrobial
• Repairs streamlined with unit-specific QR code
• Front-accessible air filter for simple maintenance
• Evaporator and auger made of stainless steel
• Simple, 1-touch cleaning
• Stainless steel finish
• Operates with R404A refrigerant
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Heat displacement: 10,500 BTU

Product Features

Bin Details

• Comes with KBT27 bin top for use with 22-in. flakers
• Exterior finish is metallic
• Top-hinged door opens from the front
• Storage capacity: 536 lbs.
• Reduced, 30-in. width
• Baffle is removable without tools
• Polyurethane insulation
• Polyethylene liner
• 6-in. legs

Dimensions & Utilities

• Head: 22 in. W x 24 in. D x 27 in. H
• Bin: 30 in. W x 34 in. D x 44 in. H
• 11.9 A
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman FS1222A-32/B530S/KBT27 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, air-cooled, self-contained condenser, production capacity up to 1100 lb/24 hours at 70°/50° (878 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 11.9 amps, NSF, cULus, ENERGY STAR®, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman FS1222A-32/B530S/KBT27 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
