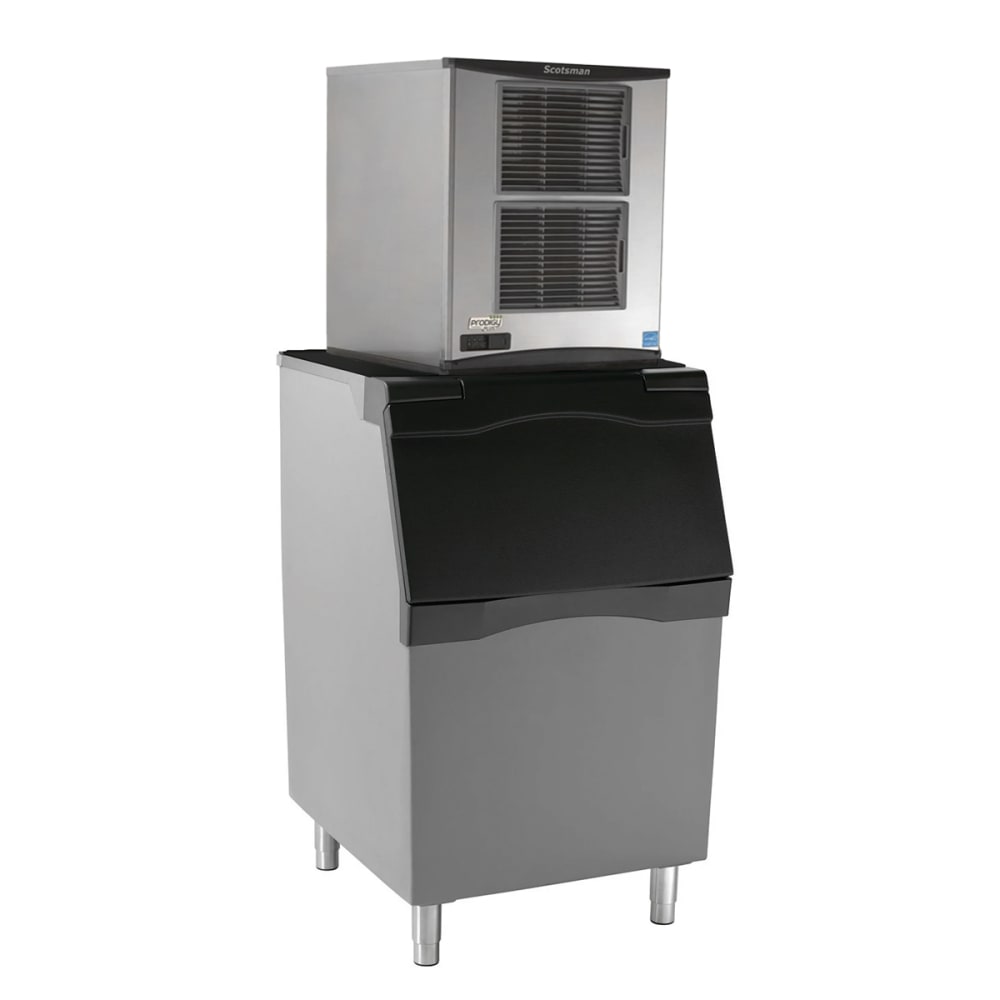

Scotsman FS1222A-32/B530P/KBT27 1100 lb Prodigy Plus® Flake Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 208-230v

The Scotsman FS1222A-32/B530S/KBT27 ice maker head and bin combo includes a Prodigy Plus® ice maker that can produce 1,100 pounds of flake ice daily in ideal conditions and a rotocast plastic bin that can hold 536 pounds of ice once it's prepared. Flake ice is ideal for stocking chilled buffets, grocery store seafood displays, or blending into smoothies and frozen cocktails. To withstand heavy use, the ice machine head has a corrosion-resistant stainless steel exterior and stainless steel evaporator and auger. It has a front-breathing design and front-accessible air filter, enabling this ice machine to be installed without side clearance.

The Scotsman FS1222A-32/B530S/KBT27 ice maker head with bin features 6-inch bin legs to elevate the unit to a comfortable working height. Insulated with polyurethane foam, the bin keeps ice cold for minimal melting, and its polyethylene interior liner streamlines cleaning while resisting scratches from impact with ice scoops. Measuring just 30 inches wide, this storage bin fits in cramped floor plans with little open space. To remove meltwater and preserve ice consistency, the bin has a built-in drain.

Ice Machine Head Details

• Prodigy Plus®
• Air cooled
• Produces flake ice
• Good for chilling seafood and produce displays
• 1,100-lb. maximum daily ice production
• 878-lb. AHRI-certified daily ice production
• Condenser is self-contained to save floor space
• Refrigeration system is front breathing

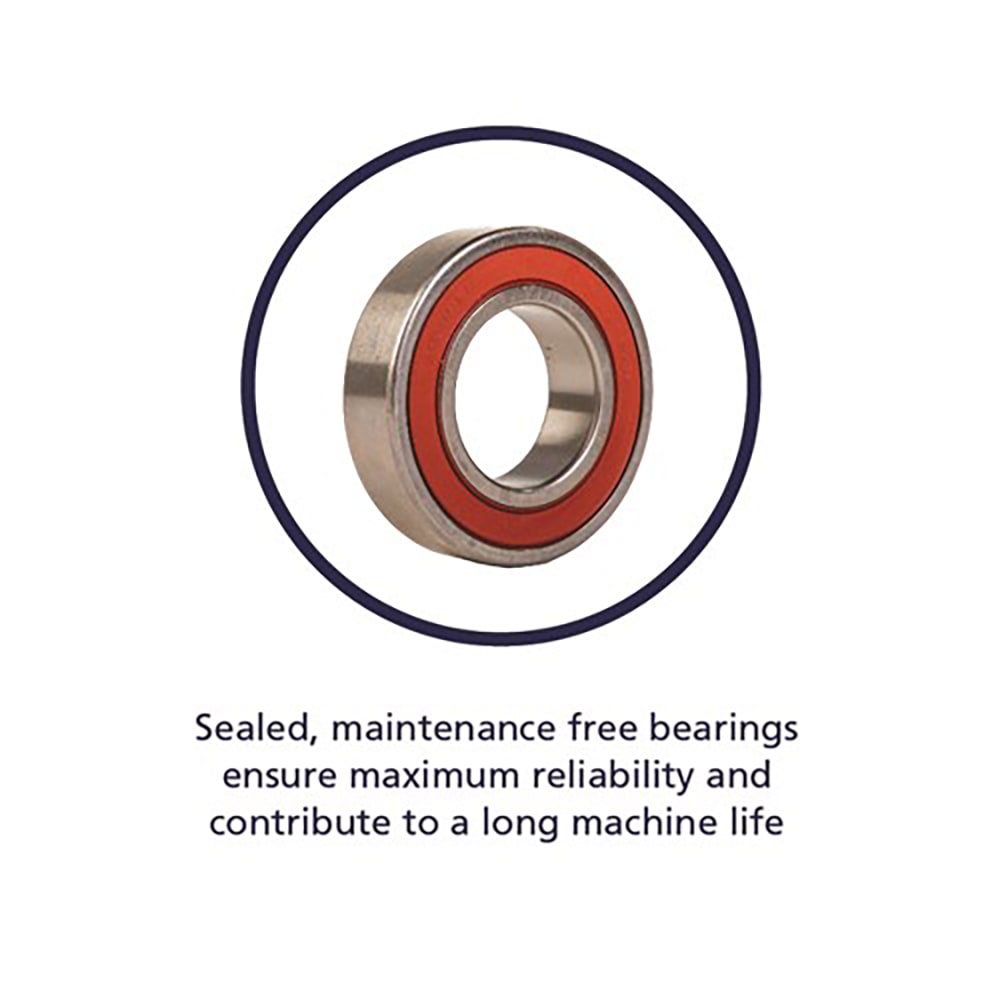

• Bearings are sealed to reduce maintenance needs
• Simple operation with AutoAlert™ indicator lights
• AgION™ antimicrobial enhancement
• Warranty history and owner manual can be accessed with unit-specific QR code
• Air filter removes from the front for improved access
• Stainless steel auger and evaporator for long-term performance
• Simple, 1-touch cleaning
• Stainless steel finish
• Operates with R404A refrigerant
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Heat displacement: 10,500 BTU

Product Features

Bin Details

• Comes with KBT27 bin top for use with 22-in. flakers
• Front-opening door with top hinge
• Storage capacity: 536 lbs.
• Fits in small spaces with 30-in. width
• Exterior formed of durable rotocast plastic
• No tools needed for baffle removal
• Polyurethane insulation
• Interior lined with sanitary polyethylene
• 6-in. legs elevate bin

Dimensions & Utilities

• Head: 22 in. W x 24 in. D x 27 in. H
• Bin: 30 in. W x 34 in. D x 44 in. H
• 11.9 A
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman FS1222A-32/B530P/KBT27 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, air-cooled, self-contained condenser, production capacity up to 1100 lb/24 hours at 70°/50° (878 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 11.9 amps, NSF, cULus, ENERGY STAR®, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman FS1222A-32/B530P/KBT27 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
