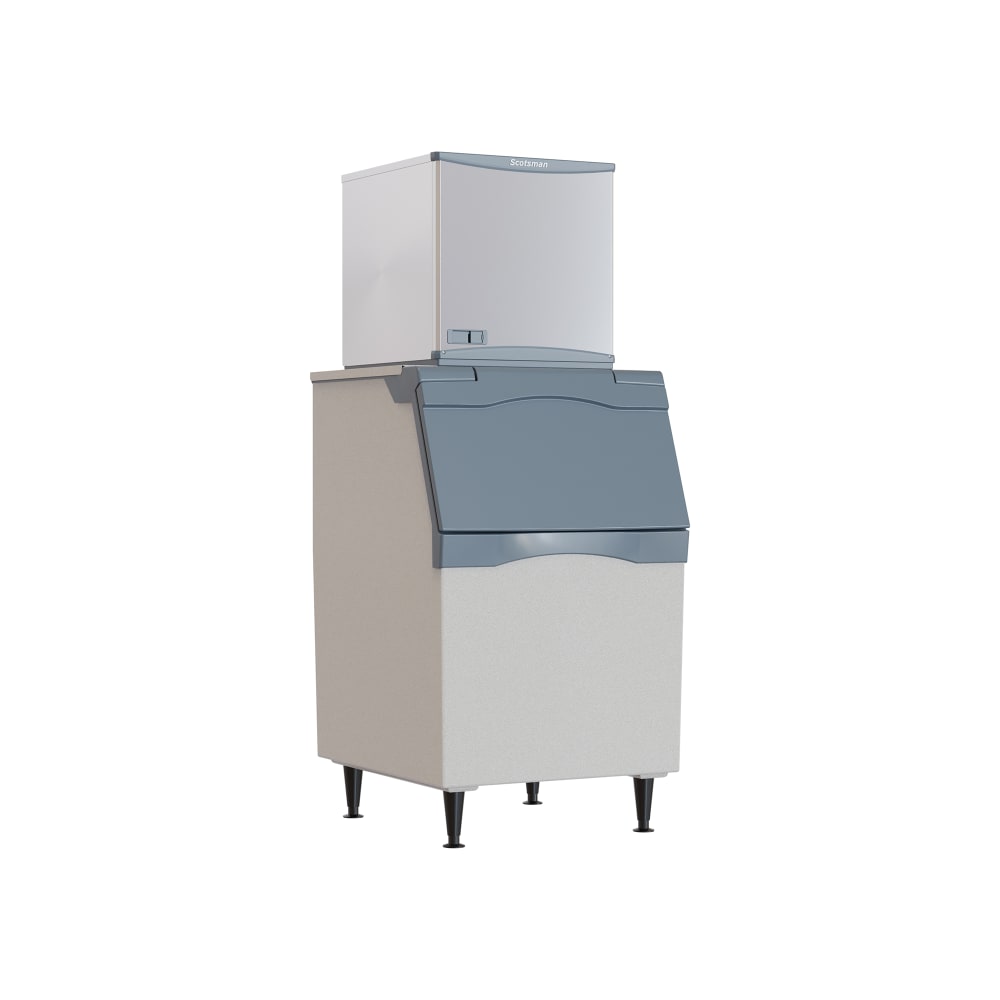

Scotsman FS0522W-1/B530P/KBT27 530 lb Prodigy Plus® Flake Ice Machine w/ Bin - 536 lb Storage, Water Cooled, 115v

With its rotocast plastic exterior, polyethylene liner, and foam insulation, the Scotsman B530P ice bin collects and stores ice from the FS0522W-1 flake ice machine head with minimal melting. It rests on 6-inch legs and has a front-opening door, so users can access stored product. This unit includes a KBT27 bin top for streamlined installation; no tools are required to remove its baffle. Holding as much as 536 pounds of ice, this bin measures just 30 inches wide, so it can be included in compact floor plans.

The Scotsman FS0522W-1/B530P/KBT27 ice machine head and bin combo produces and stores flake ice, suiting it for locations such as grocery stores, healthcare facilities, and smoothie bars. Inside the ice machine, components are treated with AgION™ antimicrobial, preventing the growth of bacteria, mildew, and mold spores between cleanings. For simple maintenance, this unit features one-touch cleaning controls and sealed interior bearings. If an issue occurs, users are notified and informed by the ice machine's indicator lights that it requires attention.

Ice Machine Head Details

• Prodigy Plus®
• Water cooled
• Produces flake ice
• Good for stocking ice in produce and seafood displays
• 530-lb. maximum daily ice production
• 429-lb. AHRI-certified daily ice production
• Sealed refrigeration system is self-contained and front breathing
• No side clearance required
• Bearings are sealed to reduce maintenance
• Maintenance alerts with AutoAlert™ indicator lights
• Treated with AgION antimicrobial protection
• Unit-specific QR code for fast troubleshooting
• Removable air filter is front facing for ease of access
• Corrosion-resistant auger and evaporator made of stainless steel
• 1-touch cleaning reduces employee labor
• Stainless steel finish
• Operates with R404A refrigerant
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Heat displacement: 5,000 BTU

Product Features

Bin Details

• Comes with KBT27 bin top for use with 22-in. flakers
• Top-hinged door is front opening for ease of access
• Storage capacity: 536 lbs.
• 30-in. width fits most floor plans
• Exterior is made of durable rotocast plastic
• Tool-free baffle removal
• Polyurethane insulation
• Polyethylene liner streamlines cleaning
• Mounted on 6-in. legs

Dimensions & Utilities

• Head: 22 in. W x 24 in. D x 23 in. H
• Bin: 30 in. W x 34 in. D x 44 in. H
• 12.1 A, 3.73 kW
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman FS0522W-1/B530P/KBT27 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, water-cooled, self-contained condenser, production capacity up to 530 lb/24 hours at 70°/50° (429 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.1 amps, NSF, cULus, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman FS0522W-1/B530P/KBT27 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
