Scotsman ERC111-1 Remote Refrigeration Condenser Unit for C0522xR & C0530xR, 115v
Retail Price: $3,268.00
$1,339.00 /Each
Scotsman ERC111-1 Description

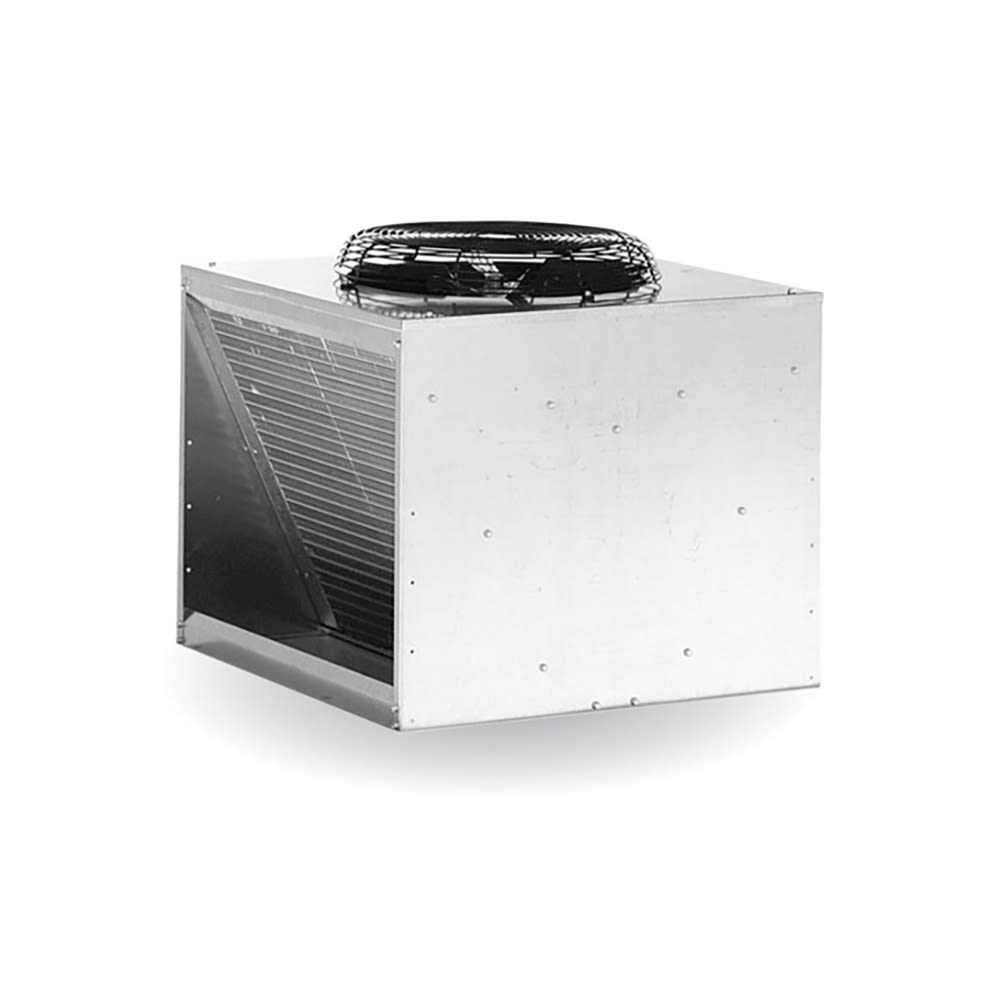

The Scotsman ERC111-1 remote condensing unit maximizes ice production and minimizes air conditioning load by dissipating outside and away from the ice machine head. Its fan motors are protected from thermal overload and have PVC-coated steel guards. Made of galvanized steel, the unit resists corrosion and can be used in temperatures from -20 to 120 degrees Fahrenheit.
Product Details
- Dissipates heat away from the ice maker to maximize production and minimize air conditioning load
- Compatible with a C0522xR or C0530xR ice machine head
- Protects fan motors from thermal overload
- PVC-coated, steel fan guards
- Heavy-duty, galvanized steel is corrosion resistant
- For outdoor use
- Requires ambient air temperature from -20 to 120 degrees F
- 3.4 A
- 115 V/60 Hz/1 ph
- Overall dimensions: 29 1⁄2 in. W x 32 1⁄8 in. D x 39 1⁄4 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman ERC111-1 within the 48 contiguous states.
From The Manufacturer
Condenser Unit, Remote Refrigeration, designed for outdoor installation, temperature range from -20°F to 120°F, galvanized finish, 115v/60/1-ph, 3.4 amps, use with MC0530xR & C0530xR, cULus
Scotsman ERC111-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| Depth (in) | 32.06 |
| For Use With | MC0530xR & C0530xR |
| Height (in) | 39.75 |
| Hertz | 60 |
| Part Type | Compressor |
| Phase | 1 |
| Product | Parts & Accessories |
| Product Type | Ice Makers & Bins |
| Series | ERC |
| Special Features | Remote |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor |
| Width (in) | 39.09 |
| Weight | 95.00 |
