Scotsman MC0630SW-32/B842S/KBT29 633 lb Prodigy ELITE® Half Cube Ice Machine w/ Bin - 778 lb Storage, Water Cooled, 208-230v

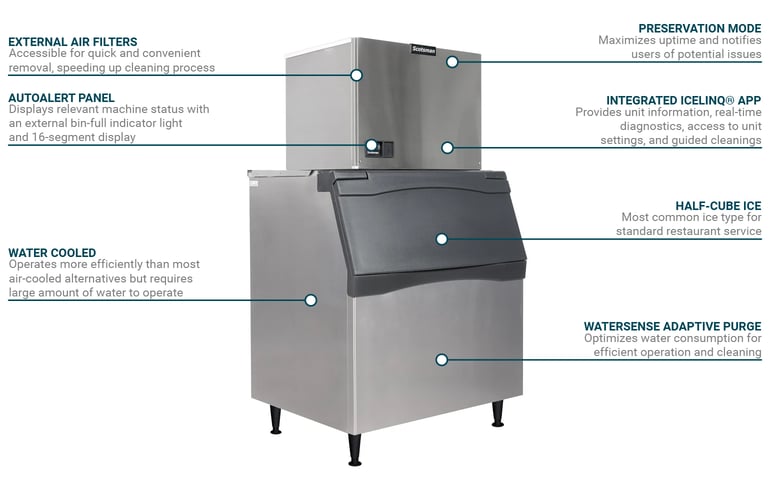

The head of this Scotsman C0630SW-32/B842S Prodigy Plus® commercial ice machine and bin has one-touch cleaning functionality, so users can focus their time and energy elsewhere in the kitchen. A stainless steel finish grants the head resilience, shielding it from rust. It uses WaterSense purge control to clear away scale buildup, improving performance. The air filter is at the front for efficiency. Compatible with Scotsman’s ICELINQ® mobile app, operators can easily access its machine dashboard and control options as well as a step-by-step intuitive cleaning.

For decreased stress on a busy shift, the Scotsman MC0630SW-32/B842S ice machine’s bin’s door can be opened and closed briskly. Polyurethane insulation in the bin ensures ice stays cold and does not melt. The maker includes an ice scoop and a built-in scoop holder that shields the ice batch from germ contamination. Polyethylene safeguards the interior and limits the effect of scoop scraping.

Ice Maker Details

• Part of the Prodigy Plus line
• 633-lb. maximum daily ice production
• 573-lb. AHRI-certified daily ice production
• Stainless steel finish is durable and long lasting
• Generates half cubes

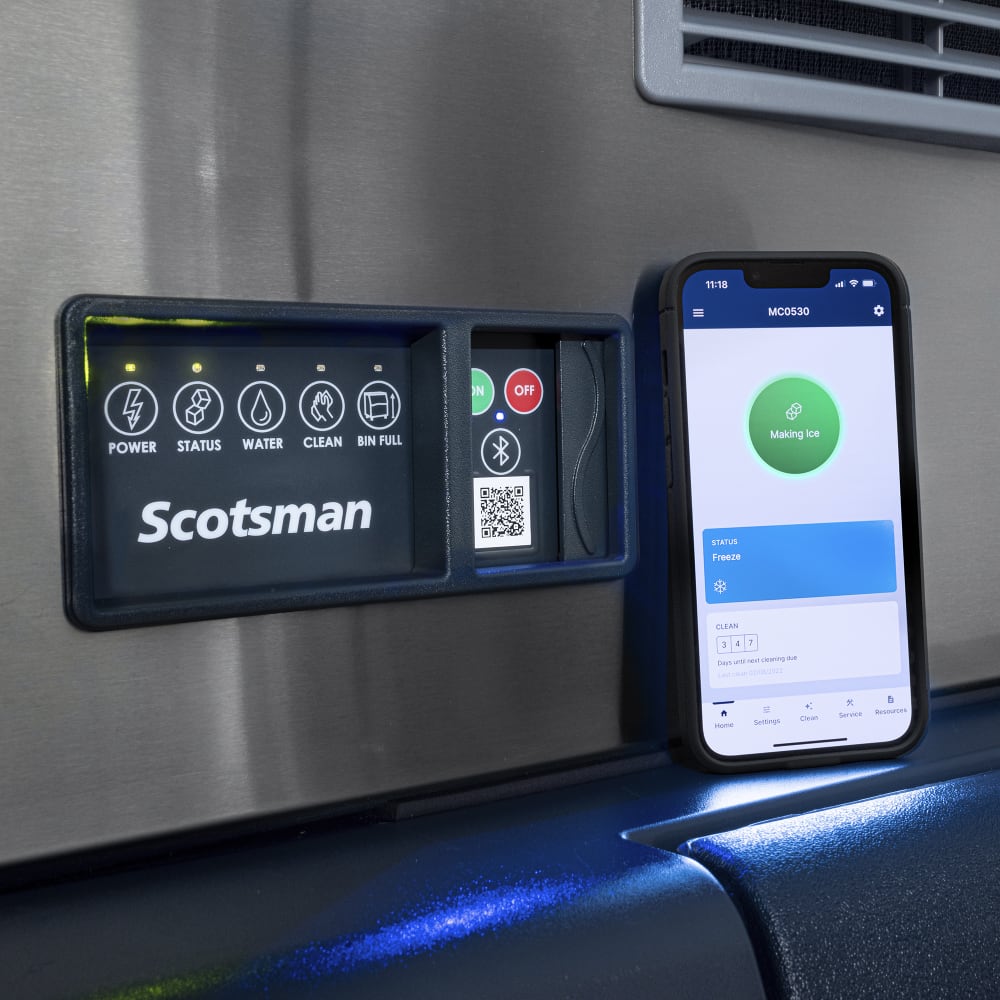

• AutoAlert™ lights up to notify the user
• ICELINQ mobile app compatible
• WaterSense purge control automatically deters scale buildup
• Water-cooled system
• One-touch cleaning
• Antimicrobial protection on the interior surfaces
• R404A refrigerant
• Ideal ambient air temperature: 70-90 degrees F
• Ideal incoming water temperature: 50-70 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 12,700-BTU heat transfer capacity

Ice Bin Details

• 778-lb. application capacity
• Baffle can be removed for servicing
• Polyurethane insulation keeps cold air within the bin
• Includes 6-in. legs
• Includes an ice scoop
• Built-in scoop holder for convenience
• Spring-loaded door
• Polyethylene interior reduces scoop scratching

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24 in. D x 23 in. H
• 9.8 A, 4.10 kW
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 42¹/₂ in. W x 34 in. D x 50 in. H

Product Features

*Free shipping on Scotsman MC0630SW-32/B842S/KBT29 within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 633 lb/24 hours at 70°/50° (573 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 208-230v/60/1-ph, 9.8 amps, cULus, NSF, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 778 lb application capacity, for top-mounted ice maker, 42" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT29) Bin Top Kit, for 30" modular cubers on B842S, BH801 bin

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC0630SW-32/B842S/KBT29 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog
