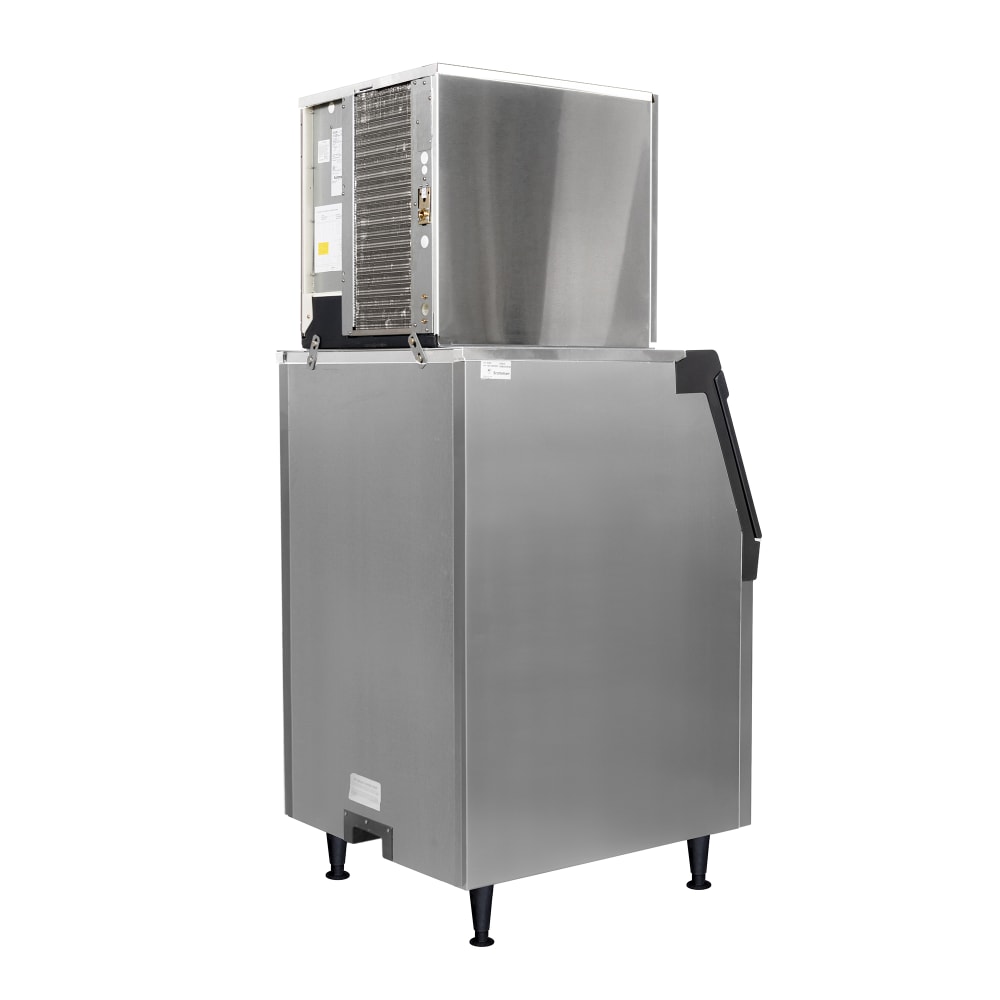

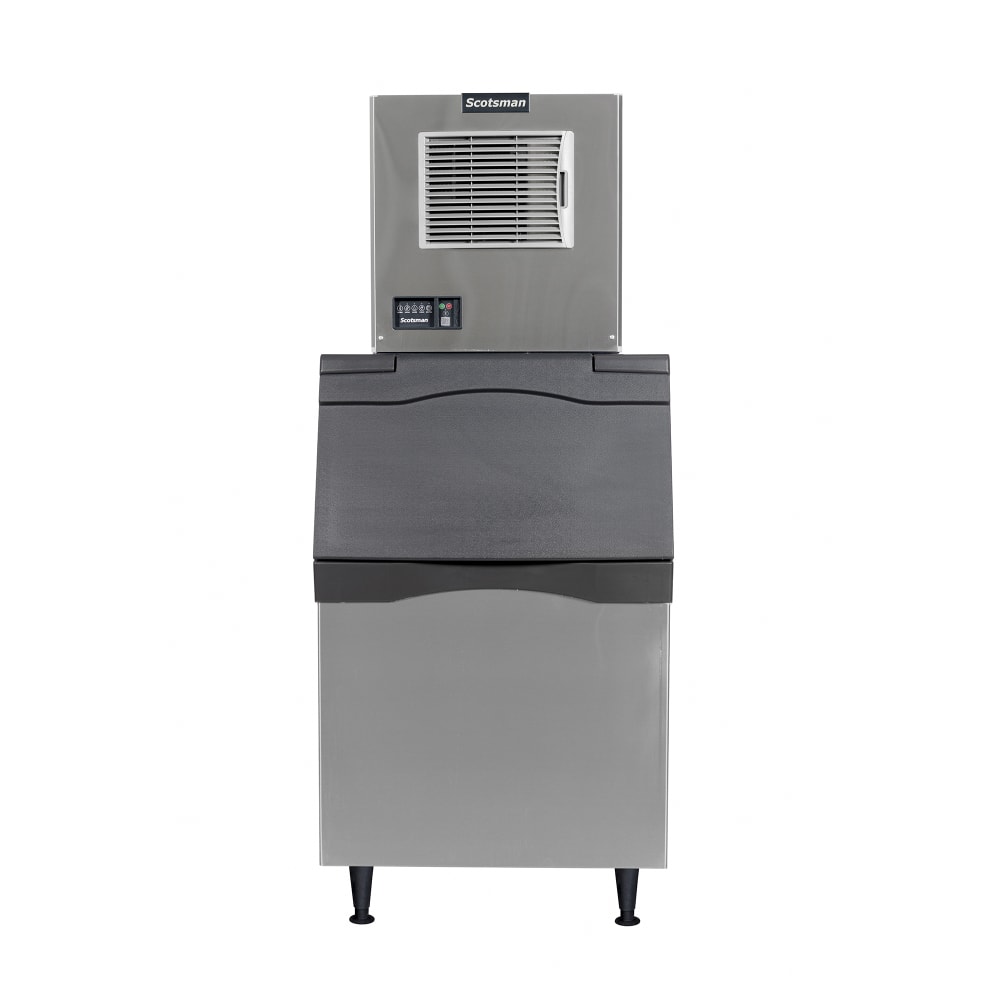

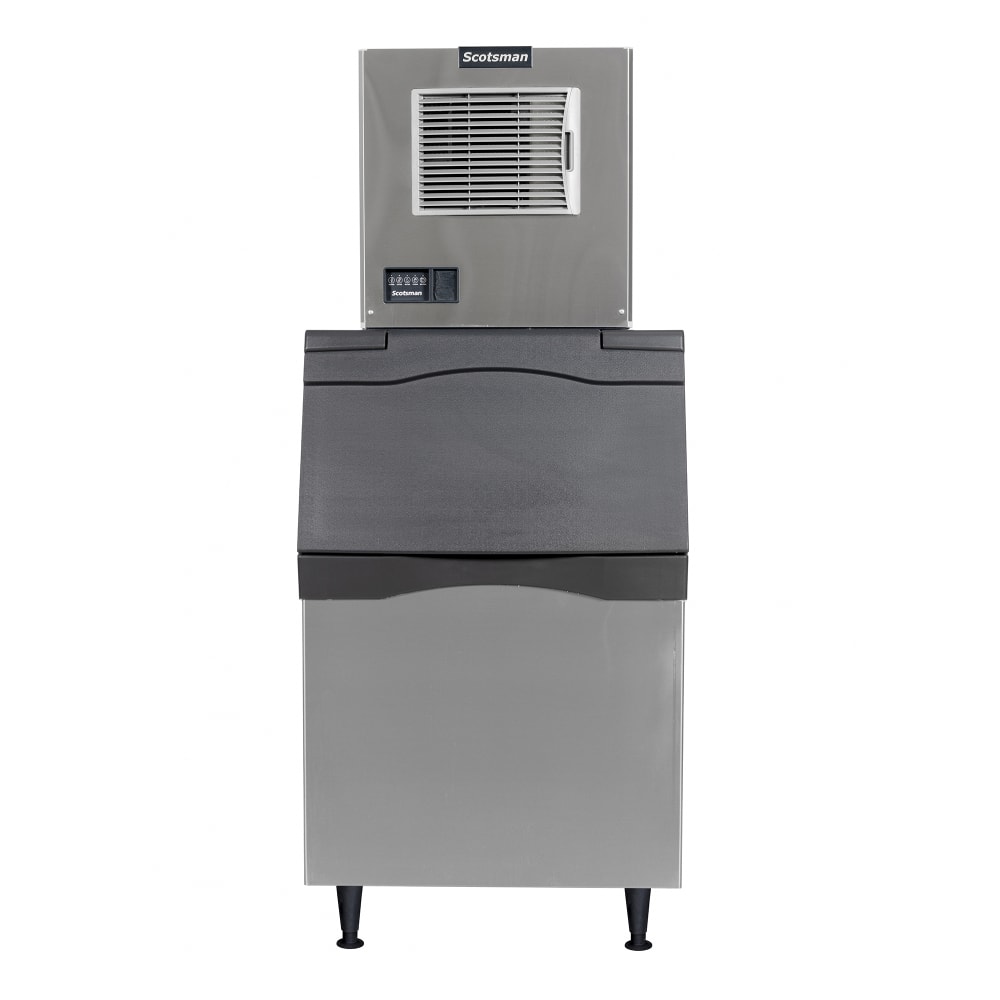

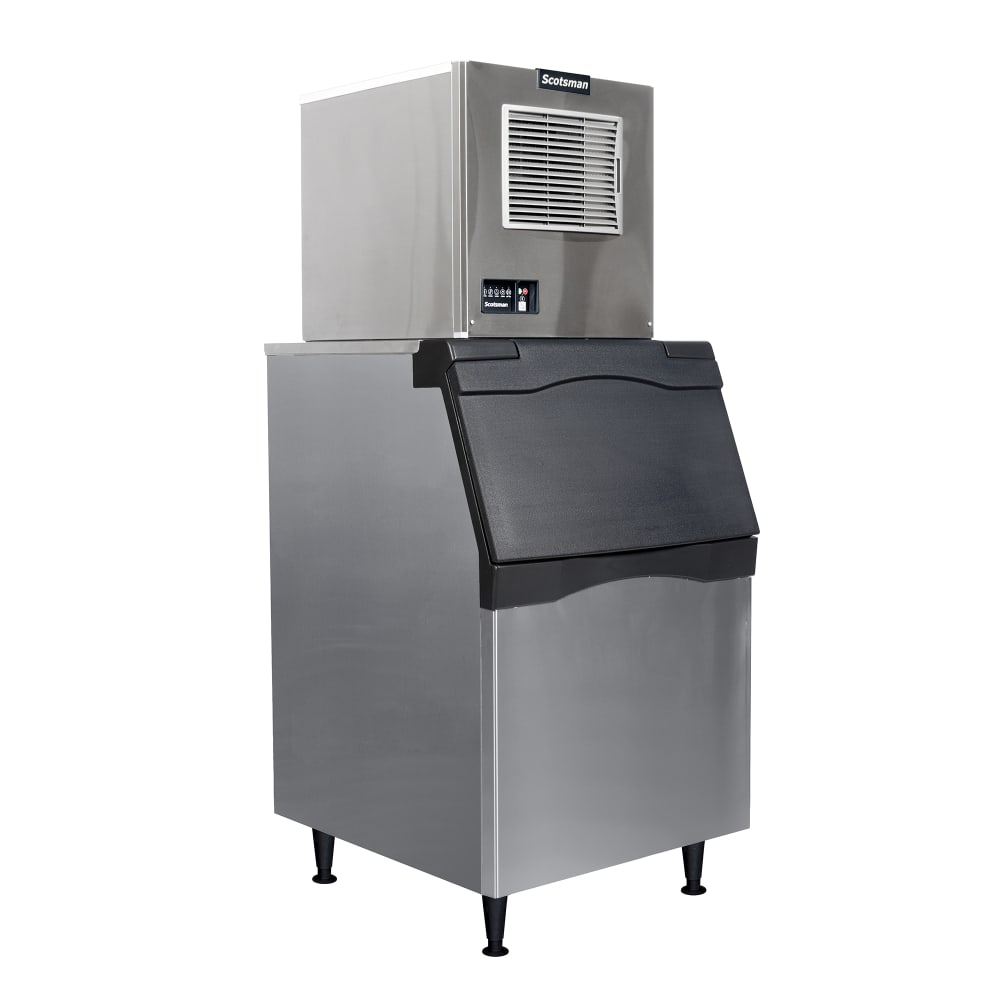

Scotsman MC0522MAX-1/B530S/KBT27 464 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin & Filter - 536 lb Storage, Air Cooled, 115v

KaTom #: 044-C0522MA1B530S • MPN: MC0522MAX-1/B530S/KBT27/AP1-P
  • 044-C0522MA1B530S Primary Thumbnail Image
  • 044-C0522MA1B530S Multiple Thumbnail Image #1
  • 044-C0522MA1B530S Multiple Thumbnail Image #2
  • 044-C0522MA1B530S Multiple Thumbnail Image #3
  • 044-C0522MA1B530S Multiple Thumbnail Image #4
  • 044-C0522MA1B530S Multiple Thumbnail Image #5
  • 044-C0522MA1B530S Multiple Thumbnail Image #6
  • 044-C0522MA1B530S Multiple Thumbnail Image #7
  • 044-C0522MA1B530S Multiple Thumbnail Image #8

Typically ships in 2 - 3 weeks

Free Shipping Item

Retail Price: $14,429.00

$5,688.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Compressor Type: Air Cooled

Water CooledWater Cooled

Selected Ice Type: Full Cube

Half CubeHalf Cube
Seth Brooks User Image
Ask a Foodservice Equipment Specialist

Scotsman MC0522MAX-1/B530S/KBT27 Description

In 24 hours, the Scotsman MC0522MAX-1/B530S/KBT27/AP1-P ice maker and bin can produce 464 pounds of medium-size ice cubes that melt slower than small cubes. This unit is part of the Prodigy ELITE® series. To further slow ice melting, the ice bin is insulated, and it can hold 536 pounds of ice at once. A spring-loaded top opens quickly and smoothly, and users can simply store the scoop in the built-in holder to keep the frequently touched handle out of the ice, so it stays clean. This ice machine comes with the AP1-P water filter.

This Scotsman MC0522MAX-1/B530S/KBT27/AP1-P ice machine and bin is designed for user-friendly maintenance and cleaning. Important components are accessible through the front panel for repair, and during service calls, technicians can quickly find the machine’s service history with the unit-specific QR code. Operators can use Scotsman’s ICELINQ® mobile app to connect to the machine’s dashboard, access and update controls, and initiate the step-by-step cleaning process. Parts in the ice machine have built-in antimicrobial protection to slow bacterial and mold growth, while the WaterSense control system adjusts operation based on water quality to slow sediment buildup. At the push of a button, the machine cleans itself, and its LED lights indicate when thorough sanitation or descaling is required.

Daily Ice Output
Makes up to 464 lb. of ice per 24 hours at 70°F air and 50°F water
Onboard Reserve
Includes 536 lb. of ice storage
Cooling System
Air cooled self-contained condenser
Connected Access
ICELINQ® app with Bluetooth® connectivity
Operational Controls
Preservation mode and external bin full indicator
Status Updates
AutoAlert™ indicating lights

  • Part of the Prodigy ELITE series
  • 464-lb. maximum daily ice production
  • Creates medium cubes
  • Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.

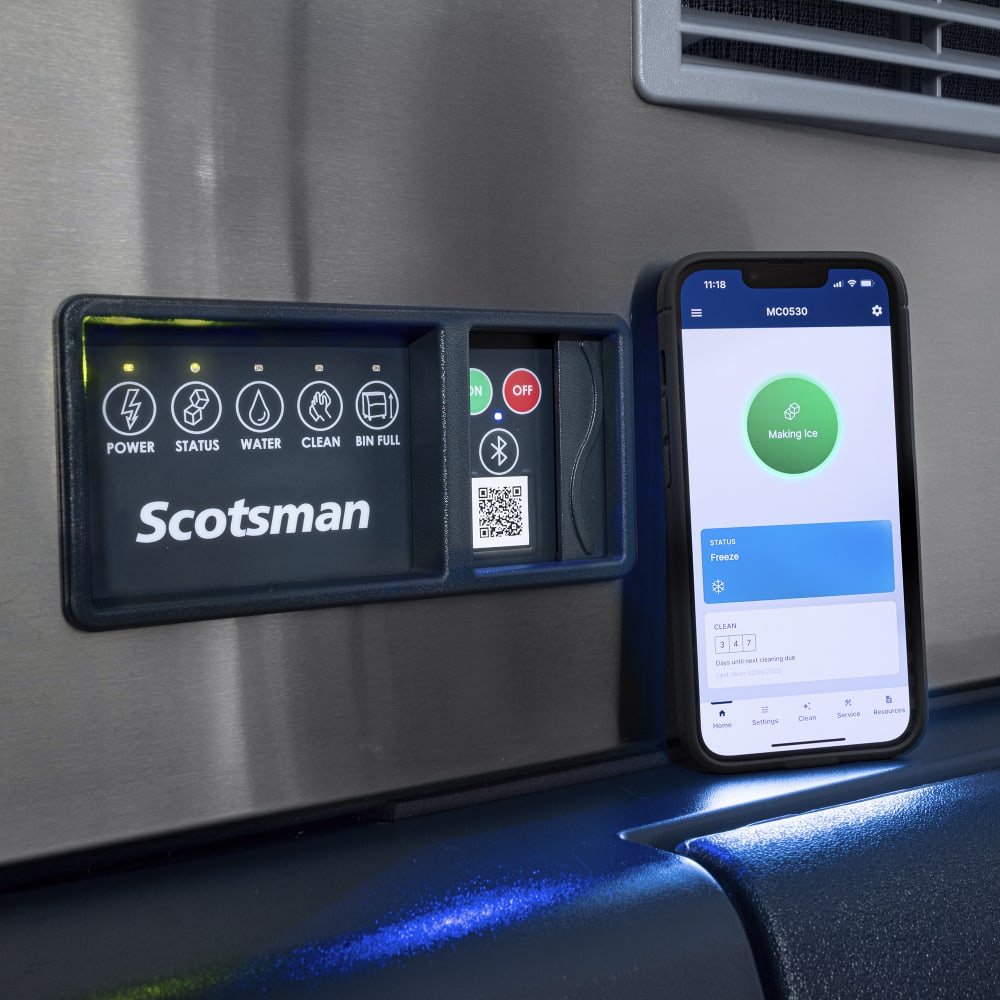

  • Connects to mobile app via bluetooth for diagnostics reports, guided cleaning, and settings adjustments
  • ICELINQ mobile app compatible
  • Harvest Assist probe pushes cubes out the evaporator grid
  • Antimicrobial protection reduces bacteria spread
  • WaterSense control adjusts settings to minimize limescale buildup
  • AutoAlert™ LED lights indicate the need to descale or sanitize
  • Clean cycle reduces employee labor
  • Front panel is removable for internal component maintenance
  • QR code stores the unit's warranty info and service history
  • Operates with R290 refrigerant
  • 7,900 BTU of heat transfer capacity
  • AP1-P water filter included

  • 536-lb. storage capacity
  • Metallic-finished exterior
  • Insulated construction has durable metallic finish
  • Spring-loaded door closes and opens with ease
  • Polyethylene interior facilitates cleaning
  • Baffle is removable for thorough cleanup
  • Scoop holder helps keep contaminants out of ice
  • Includes a scoop

  • Surrounding air temperature: 50-100 degrees F
  • Incoming water temperature: 40-100 degrees F
  • Incoming water pressure: 20-80 PSI

  • Ice machine: 22 in. W x 24 in. D x 23 in. H
  • Ice bin: 30 1⁄2 in. W x 34 in. D x 50 in. H
  • 13.5 A, 5.94 kW
  • 115 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Scotsman MC0522MAX-1/B530S/KBT27 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

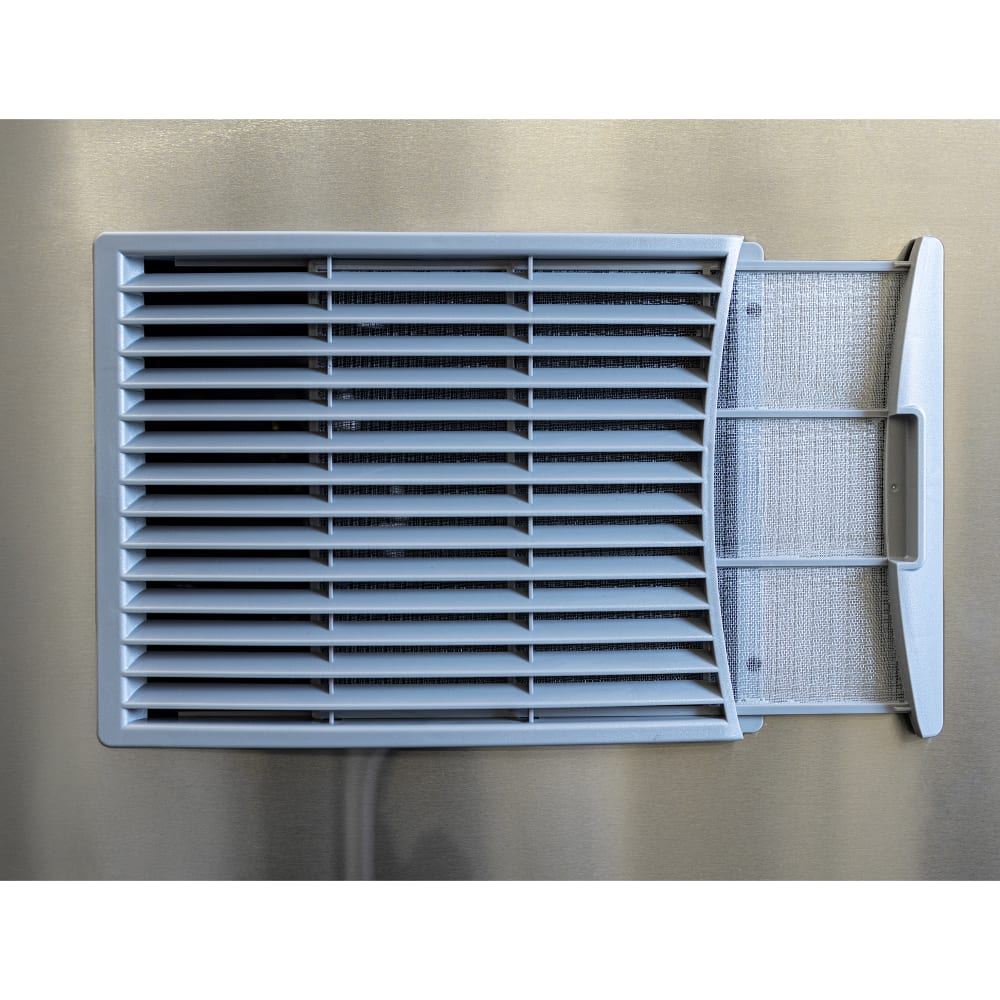

Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 464 lb/24 hours at 70°/50° (342 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 13.5 amps, cULus, NSF

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF

AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF

Warranty Icon
Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
