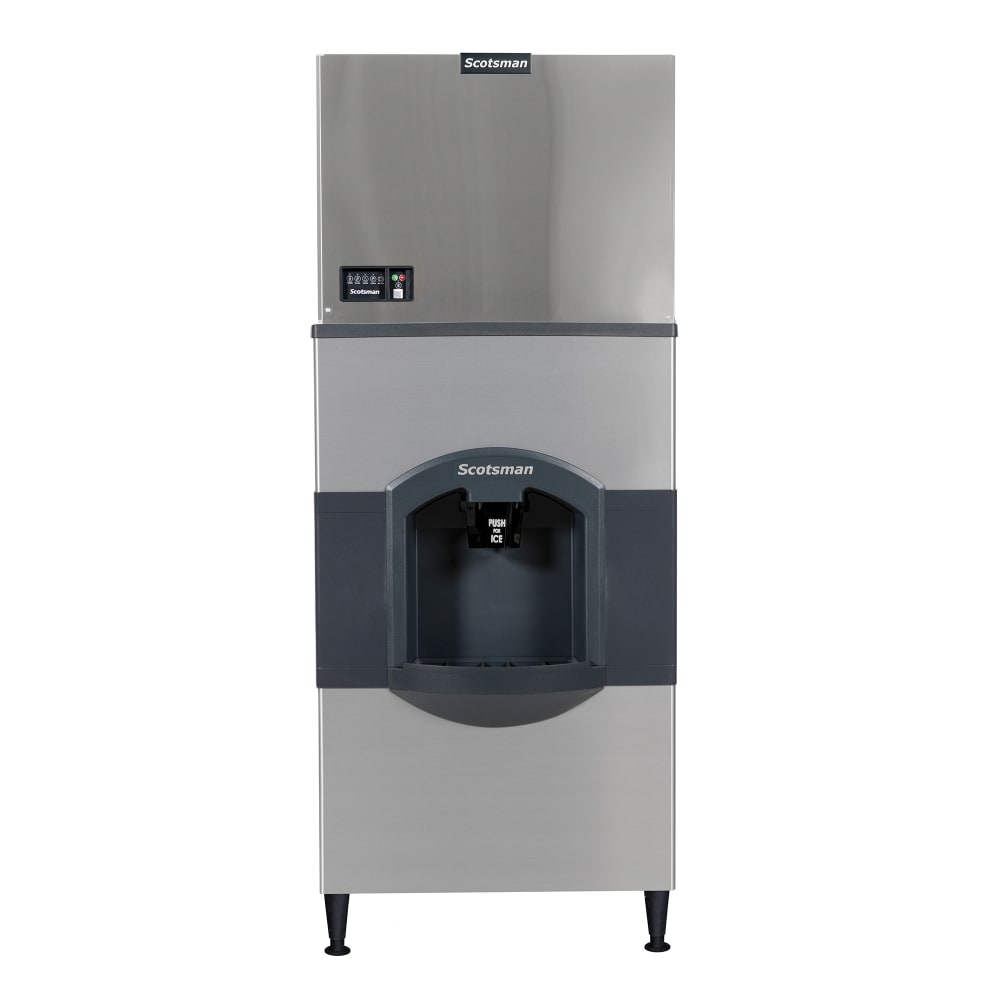

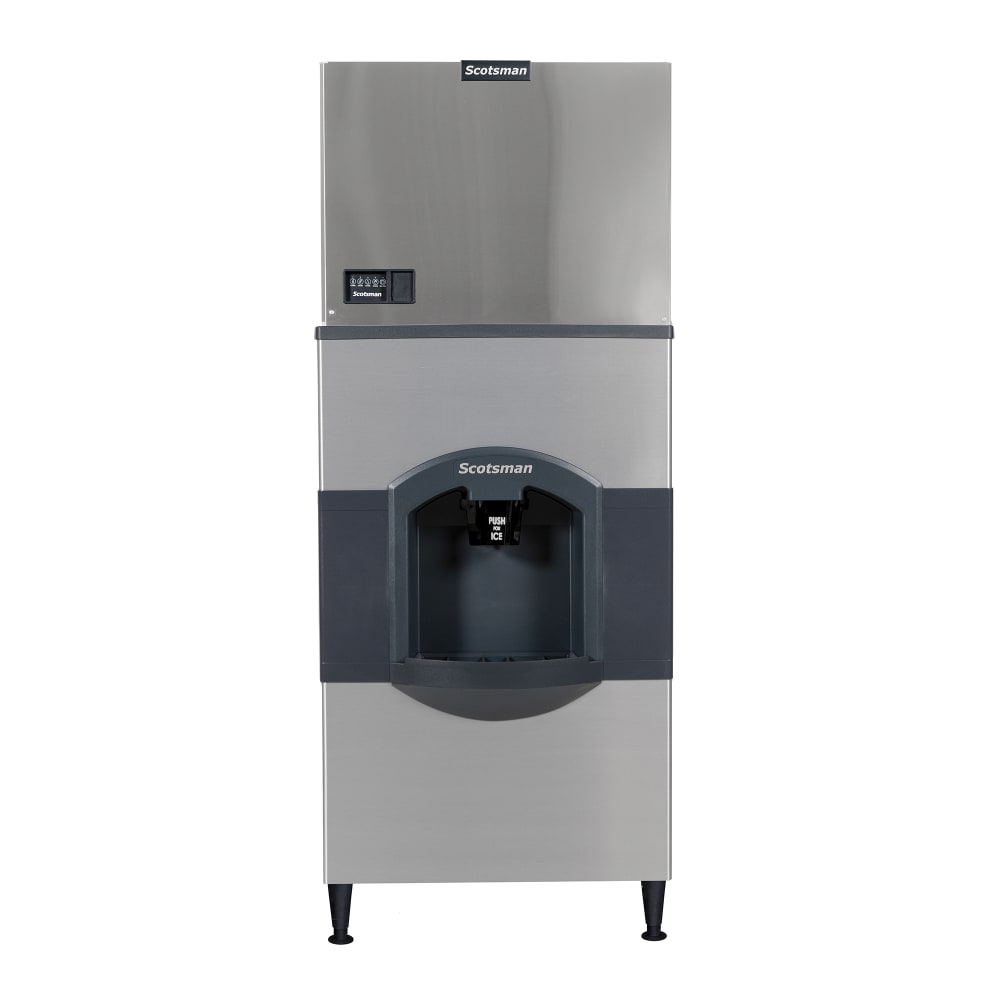

Scotsman MC0330MW-1/HD30B-1 420 lb Prodigy ELITE® Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

The Scotsman MC0330MW-1/HD30B-1 ice machine with dispenser has a self-aligning front panel that is removable to access internal components and is part of the Prodigy ELITE® series. When the bin needs to be cleaned, the top panel removes for access without removing the ice machine head. Ice moves from the maker to the dispenser with the Harvest Assist feature, which uses a probe and hot gas. An antimicrobial agent and a WaterSense purge control reduce the growth of bacteria between cleanings.

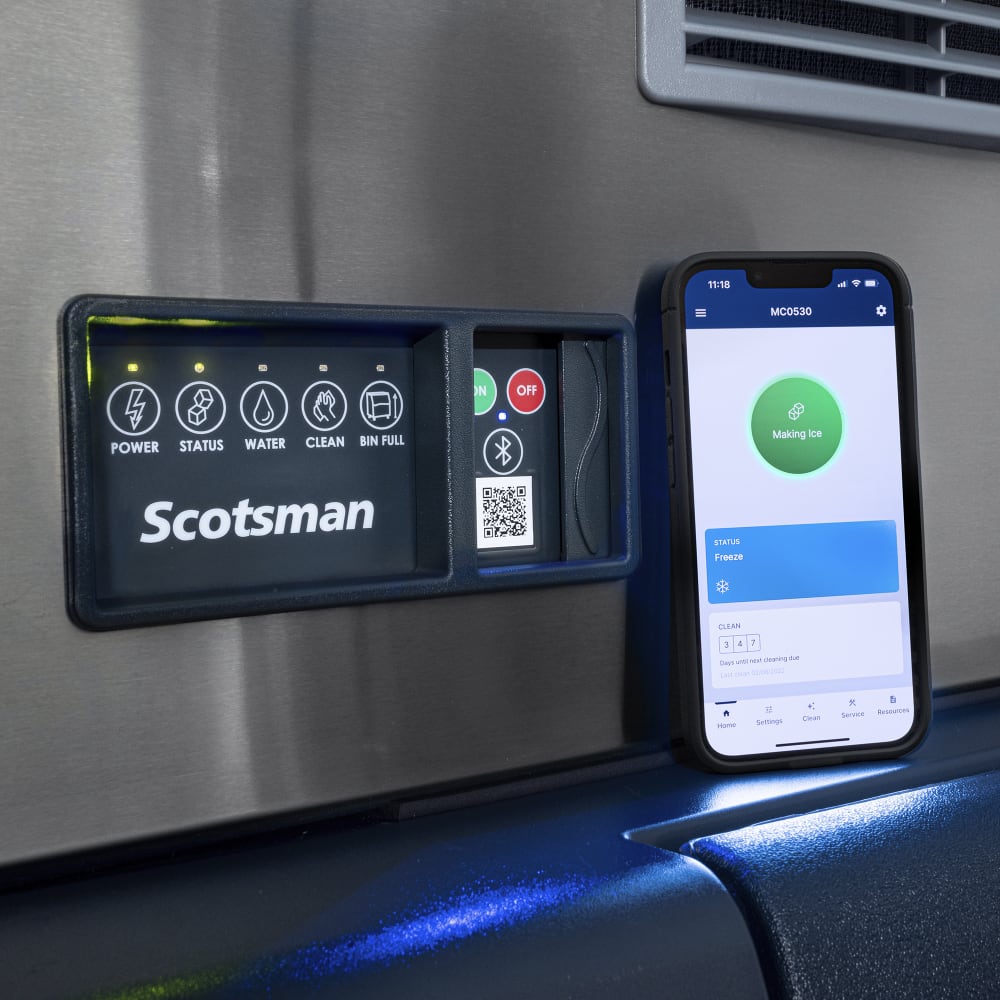

A QR code on the unit provides access to service information and warranty history. AutoAlert™ lights turn on to inform the operator of issues and the operating status. Compatible with Scotsman’s ICELINQ® mobile app, operators can easily access its machine dashboard and control options as well as a step-by-step intuitive cleaning guide. Ice is dispensed using a push chute, and the dispenser is insulated with foam polyurethane to prevent ice from melting quickly. The Scotsman MC0330MW-1/HD30B-1 ice machine with dispenser can produce 420 pounds of ice every 24 hours and store 180 pounds.

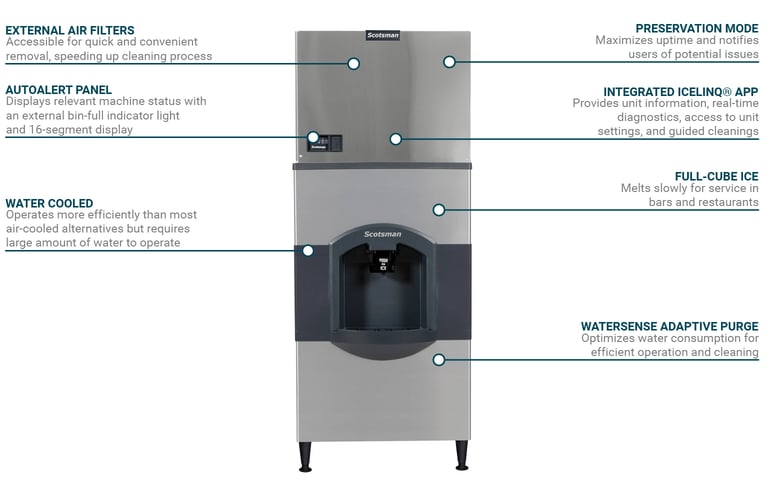

Product Details

• Part of the Prodigy ELITE series
• 420-lb. ice production capacity
• 326-lb. AHRI-certified ice production capacity
• AutoAlert lights inform the operator if issues arise
• QR code connects the operator with warranty history and service information
• One-touch cleaning
• Air filter is located on the front
• Front panel is self-aligning
• Connects to mobile app via bluetooth
• ICELINQ mobile app available
• Mobile app provides diagnositcs report and enables settings adjustments and guided cleaning
• WaterSense purge control slows bacteria growth between cleanings
• Harvest Assist helps move ice to the bin
• Antimicrobial agent protects surfaces from scale
• Uses R404A refrigerant
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG
• 5,200 BTU
• 13.5 A, 4.97 kW
• 115 V/60 Hz/1 ph
• Ice dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Overall dimensions: 30 in. W x 33¹/₂ in. D x 76¹³/₅₀ in. H

Dispenser Features

• 180-lb. storage capacity
• Push chute is easy to activate for dispersal of ice
• Metallic cabinet is corrosion resistant
• Top panel is removable for accessibility
• Polyurethane foam insulation retains cold air to prevent ice from melting quickly
• 115 V/60 Hz/1 ph, 11-ft. power cord

Product Features

*Free shipping on Scotsman MC0330MW-1/HD30B-1 within the 48 contiguous states.

From The Manufacturer

MC0330MW-1 Ice Maker: Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (326 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA; HD30B-1 Ice Dispenser: iceValet® Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, includes 11’ power cord with NEMA 5-15P plug, 115v/60/1-ph, 2.1 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC0330MW-1/HD30B-1 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog
