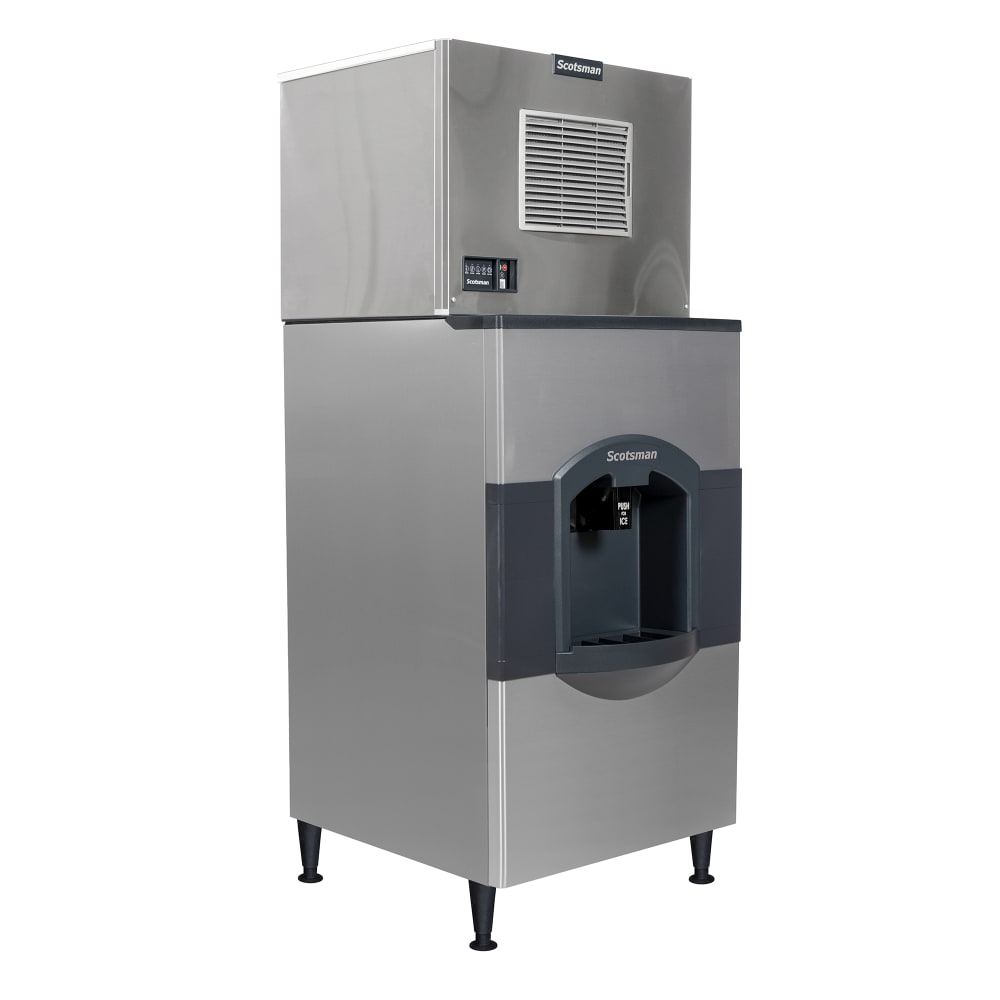

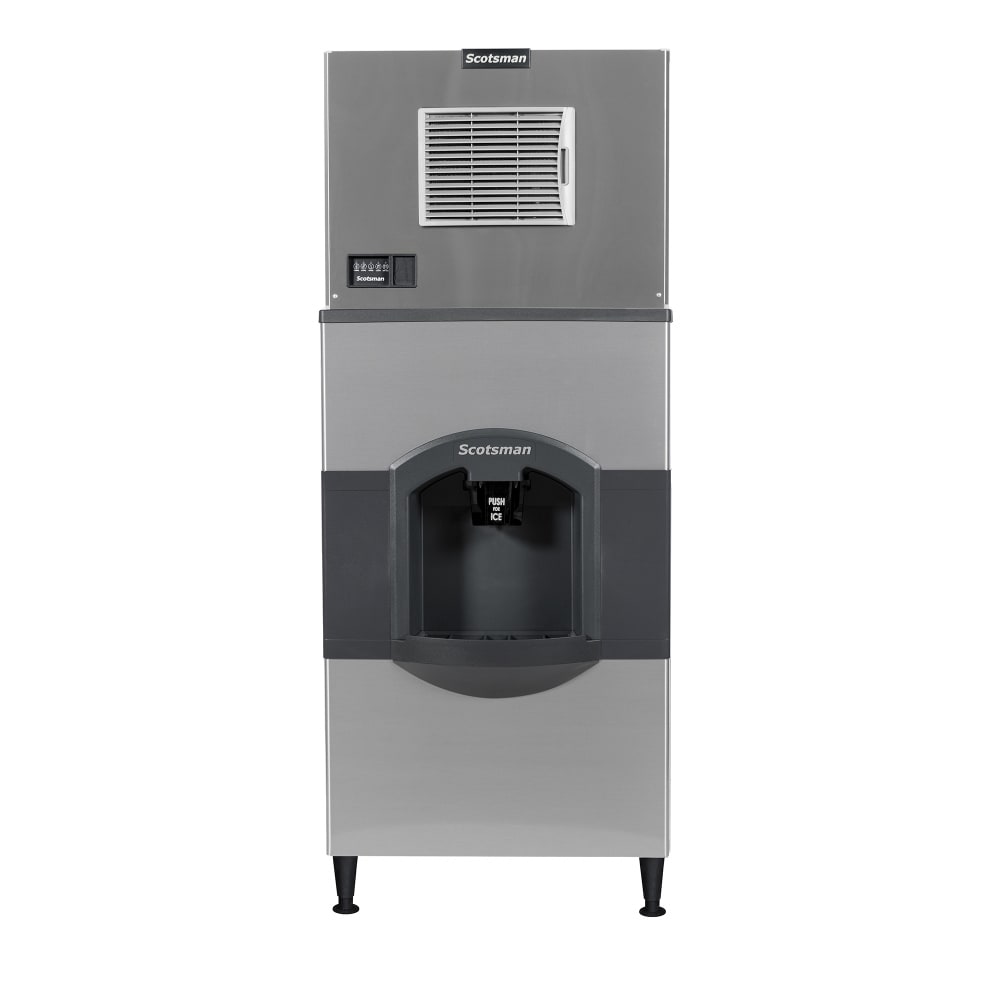

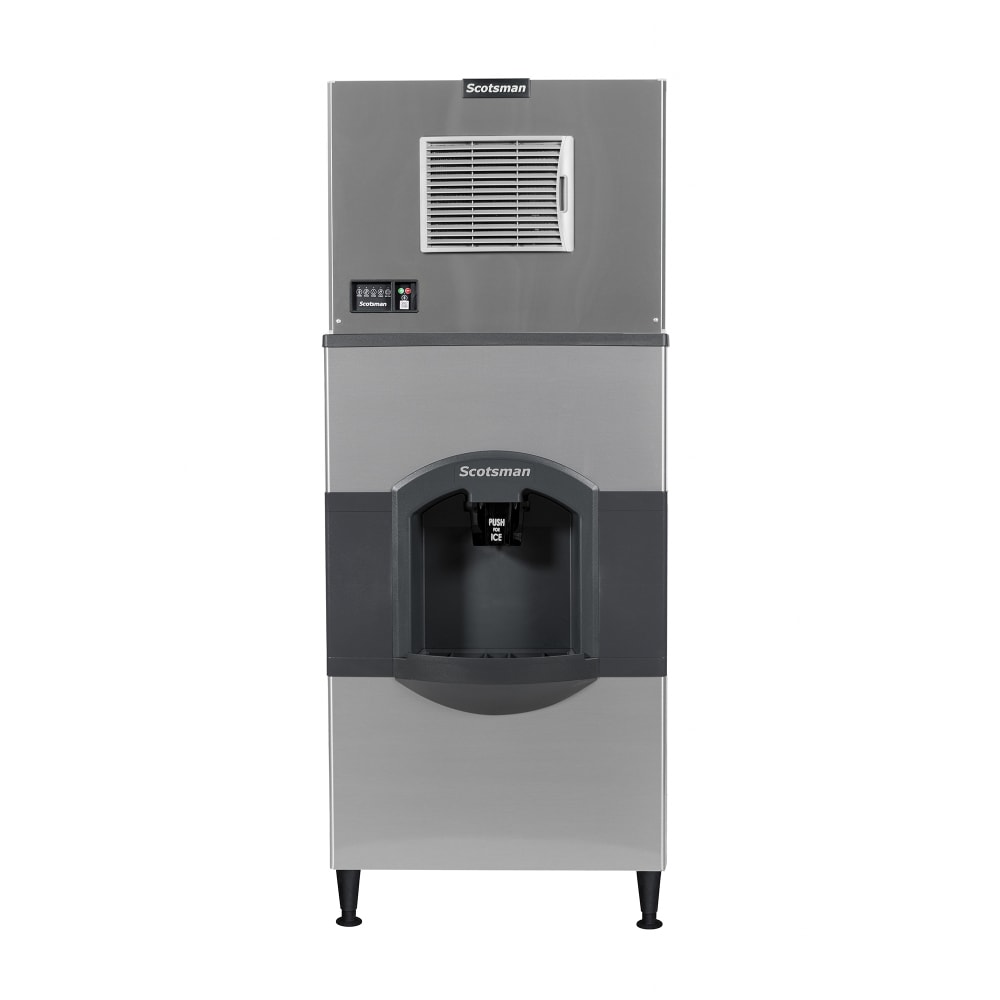

Scotsman MC0330MA-1/HD30B-1 400 lb Prodigy ELITE® Full Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

The Scotsman MC0330MA-1/HD30B-1 Prodigy ELITE® ice machine and iceValet® dispenser has a corrosion-resistant metallic cabinet. The ice machine has a self-contained, air-cooled refrigeration system with a filter on the front of the unit, providing better air circulation than a filter located on the side or back. It can make 400 pounds of ice daily and its front panel can be removed to access internal components. One-touch cleaning minimizes the need for constant service and monitoring, and a built-in antimicrobial keeps the unit free of scale between cleanings.

The Harvest Assist feature guides ice into the bin using gas and a probe, ensuring a constant supply of ice. The WaterSense feature reduces scale buildup by correcting the water quality. To keep the user informed, the AutoAlert™ indicator lights notify staff when the unit needs descaling, cleaning, and other maintenance needs. The QR code on the front of the unit provides instant access to service and warranty information. Designed to ease ice maker operation, cleaning, and servicing, Scotsman has a mobile app available for download. With this ICELINQ® app, operators can access dashboard information, update unit settings, and go through a step-by-step cleaning process.

The Scotsman MC0330MA-1/HD30B-1 ice dispenser has a 180-pound storage capacity and a polyurethane insulation foamed between the walls and liner to preserve ice for long periods. It has a push chute that efficiently dispenses ice and a wide dispensing area to accommodate almost any size hotel ice bucket. The top panel can be removed to clean the bin without removing the ice head.

Product Details

• Part of the Prodigy ELITE series
• Self-contained, air-cooled refrigeration system
• Air filter is located on the front of the unit and provides better air circulation than a filter located on the side or rear
• 400-lb. daily ice production
• 288-lb. AHRI-certified daily ice production
• Bluetooth compatible
• Compatible with ICELINQ mobile application
• Connects to mobile app for diagnostics reports, settings adjustments, and guided cleaning

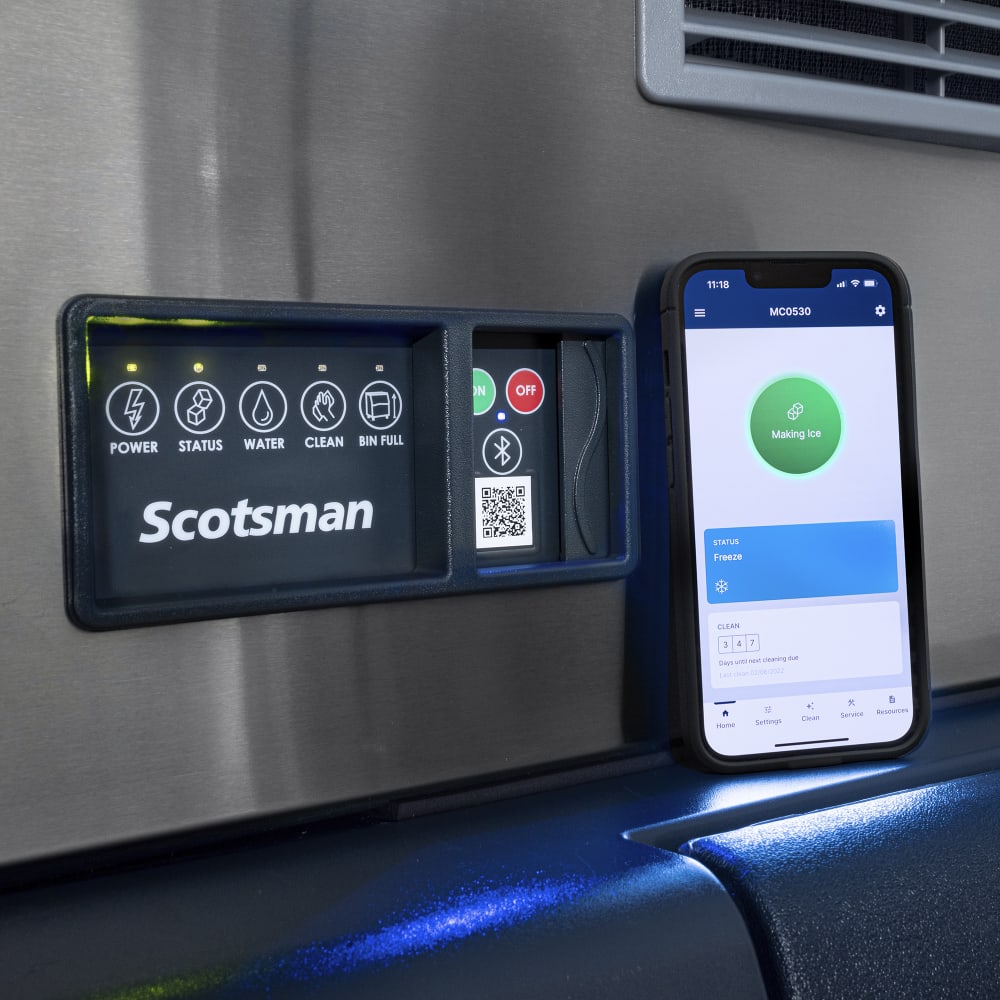

• AutoAlert lights notify staff when the unit needs descaling, cleaning, and other maintenance needs
• QR code provides instant access to technical service and warranty information
• 1-touch cleaning minimizes the need for constant service and monitoring
• Built-in antimicrobial keeps unit sanitary between cleanings
• Harvest Assist provides a constant supply of ice by pushing it into the bin using a probe and gas
• Front panel is self-aligning and removable to access internal components
• WaterSense reduces scale buildup by correcting the water quality
• Uses R404A refrigerant
• Required ambient air temperature: 50-100 degrees F
• Required ambient water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSI
• 5,200 BTU
• 15 A
• 115 V/60 Hz/1 ph
• Ice cube dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Ice head dimensions: 30 in. W x 24 in. D x 23 in. H

Ice Dispenser Details

• Part of the iceValet series
• 180-lb. storage capacity
• Polyurethane insulation is foamed between liner and walls to preserve ice for long periods
• Push chute efficiently dispenses ice
• Corrosion-resistant metallic cabinet
• Top panel can be removed to clean the bin without removing the ice head
• Wide dispensing area accommodates almost any size hotel ice bucket
• Required incoming water pressure: 20-80 PSI
• Required ambient water temperature: 40-100 degrees F
• Required ambient air temperature: 50-100 degrees F
• 15 A
• 115 V/60 Hz/1 ph, 11-ft. cord
• Dispenser dimensions: 30 in. W x 33¹/₂ in. D x 53¹/₄ in. H

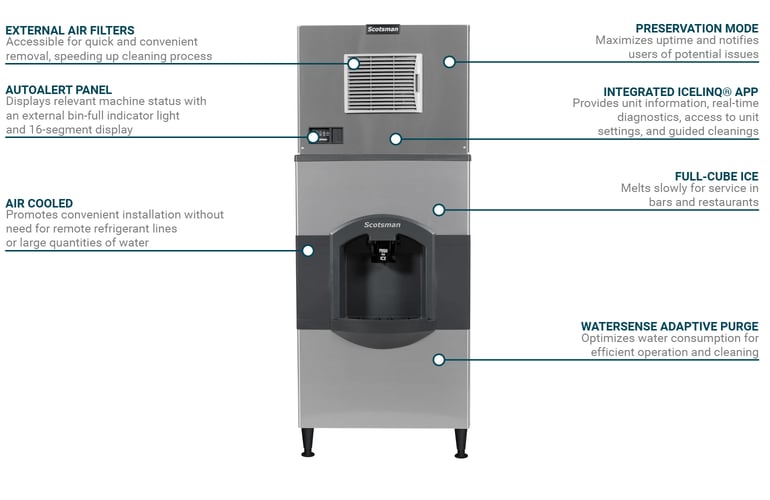

Product Features

From The Manufacturer

MC0330MA-1 Ice Maker: Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 400 lb/24 hours at 70°/50° (288 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 14.3 amps, cULus, NSF, engineered and assembled in USA; HD30B-1 Ice Dispenser: iceValet® Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, includes 11’ power cord with NEMA 5-15P plug, 115v/60/1-ph, 2.1 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

BPA Free

Contains no chemical Bisphenol A (BPA)

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC0330MA-1/HD30B-1 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog

Certifications
