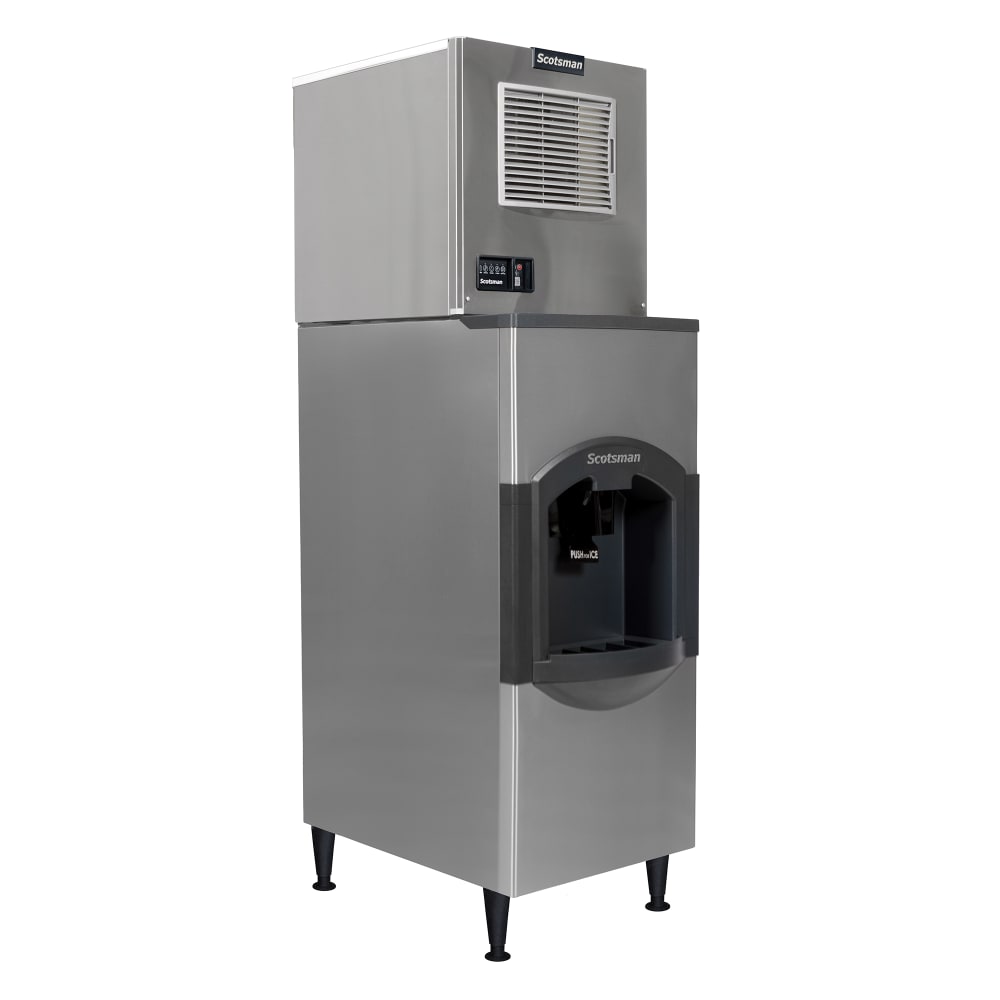

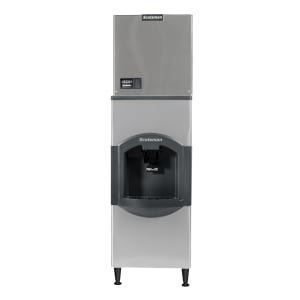

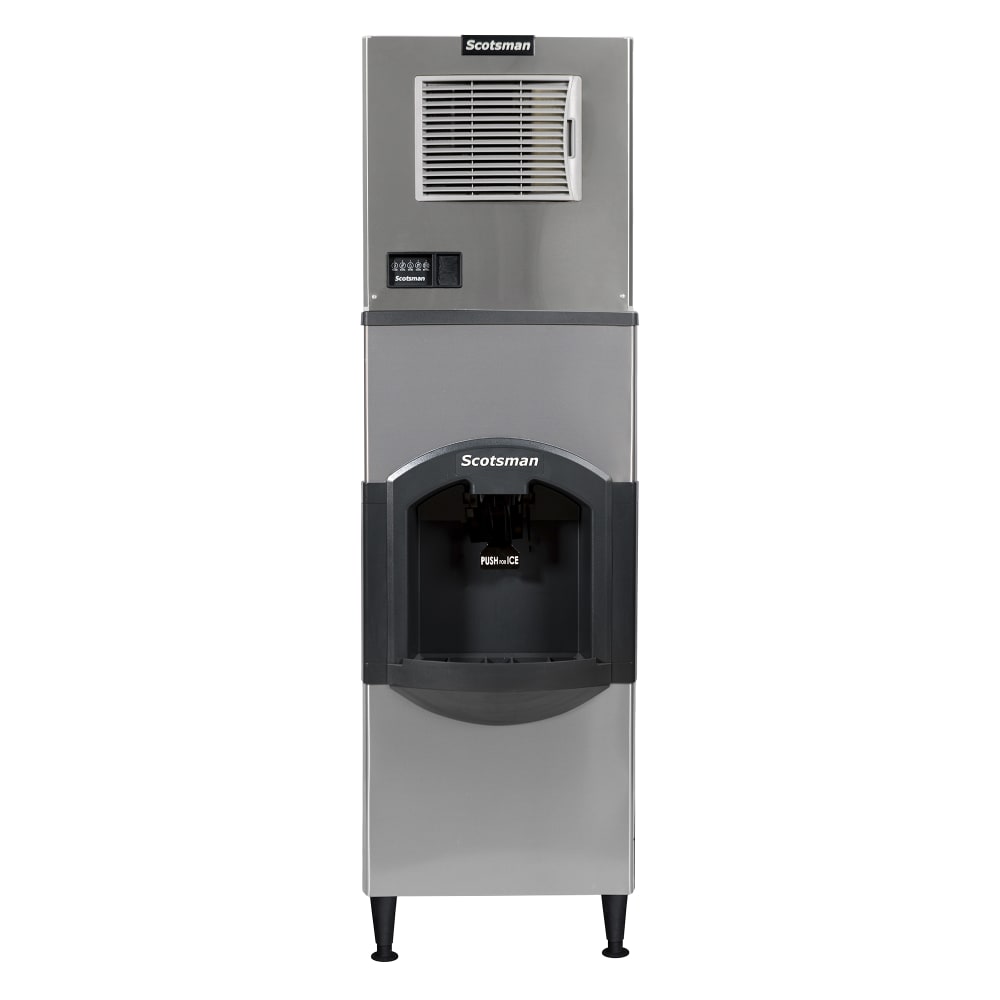

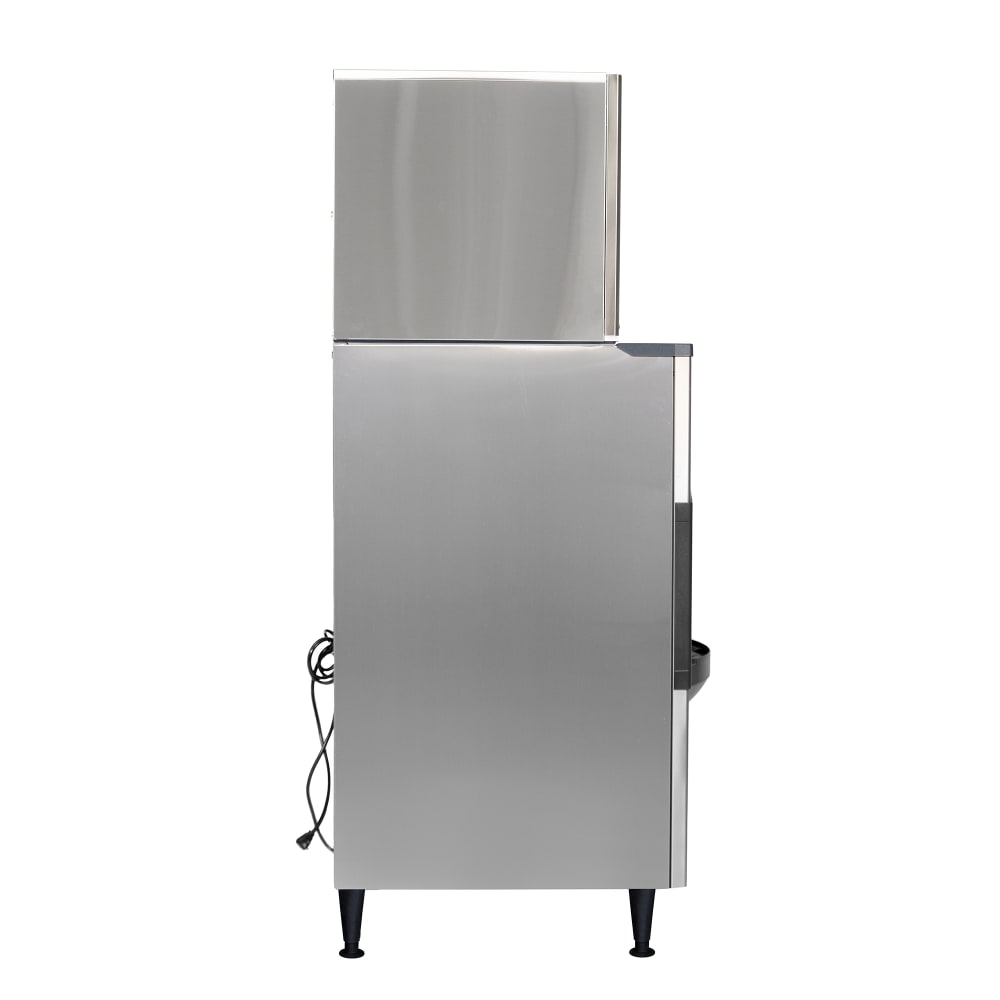

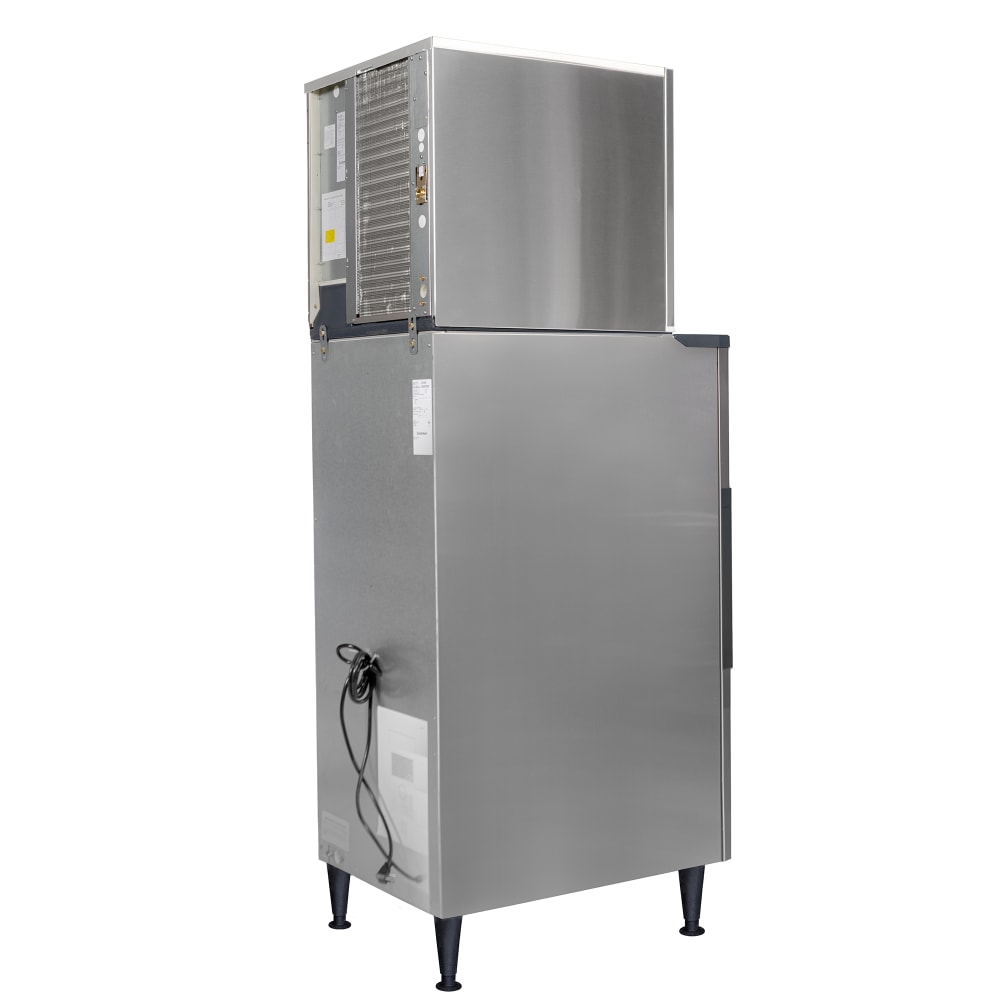

Scotsman C0322MA-1/HD22B-1 356 lb Full Cube Ice Maker w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 044-C0322MA1HD22B1 • MPN: C0322MA-1/HD22B-1
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $11,985.00
$4,794.00 / Each

Image may not depict product color, inclusions or accessories.

Scotsman C0322MA-1/HD22B-1 Description

Scotsman

The Scotsman C0322MA-1/HD22B-1 Prodigy Plus® ice cube machine and iceValet® dispenser have metallic stainless steel exteriors that resist corrosion and scratches. It can store 120-pounds of ice and has foamed-in-place polyurethane insulation for structure and preserving ice. A push chute dispenses ice and a wide dispensing area can fit virtually any size hotel ice bucket. To access the bin for cleaning without taking off the whole ice machine head, the top panel is removable

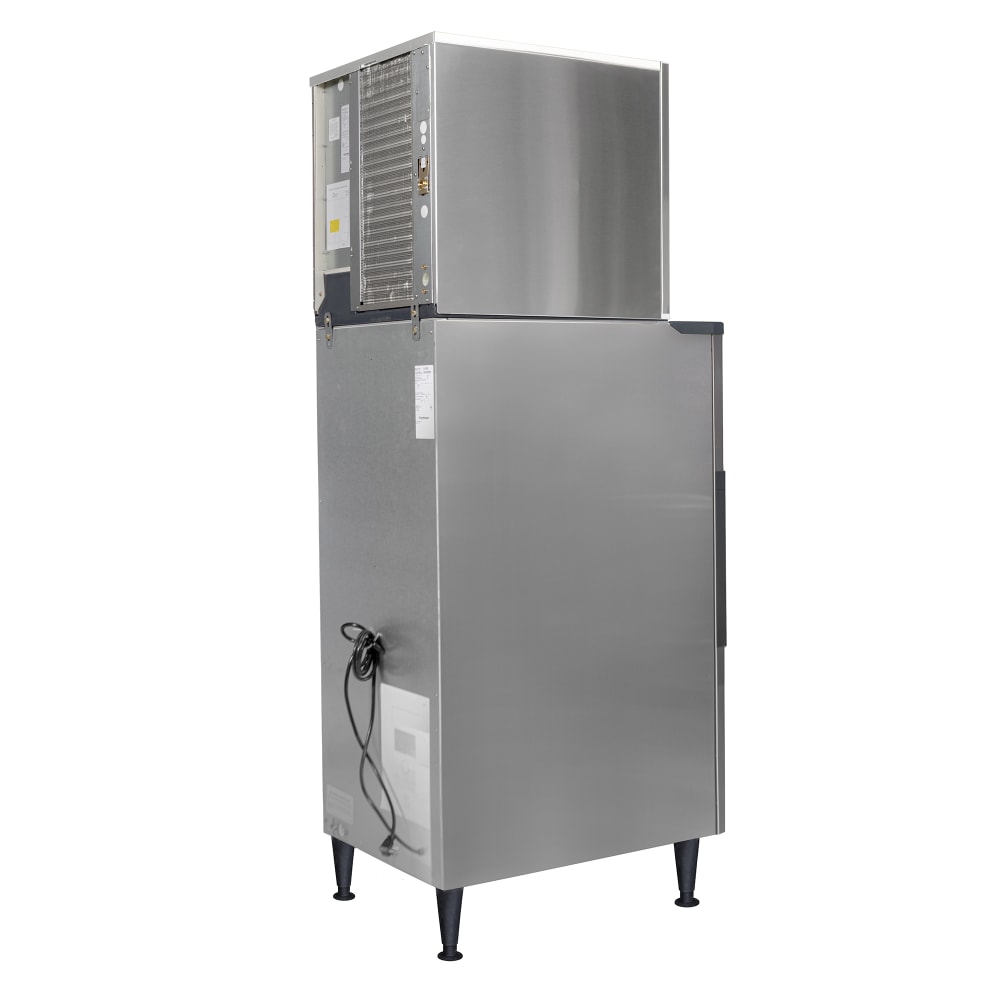

The Scotsman C0322MA-1/HD22B-1 ice cube machine has an air-cooled, self-contained refrigeration system with a front-located air filter. It can make 356-pounds of ice every day, and a Harvest Assist feature guides ice into the bin using a small amount of hot gas and a probe. Users are informed of the unit's operating status with the AutoAlert™ LED lights, and the QR code on the front provides access to warranty and technical service information. The WaterSense purge control feature adjusts the quality of the incoming water to minimize scale buildup.

Product Details

  • Part of the Prodigy Plus series
  • 356-lb. daily ice production
  • 232-lb. daily AHRI-certified ice production

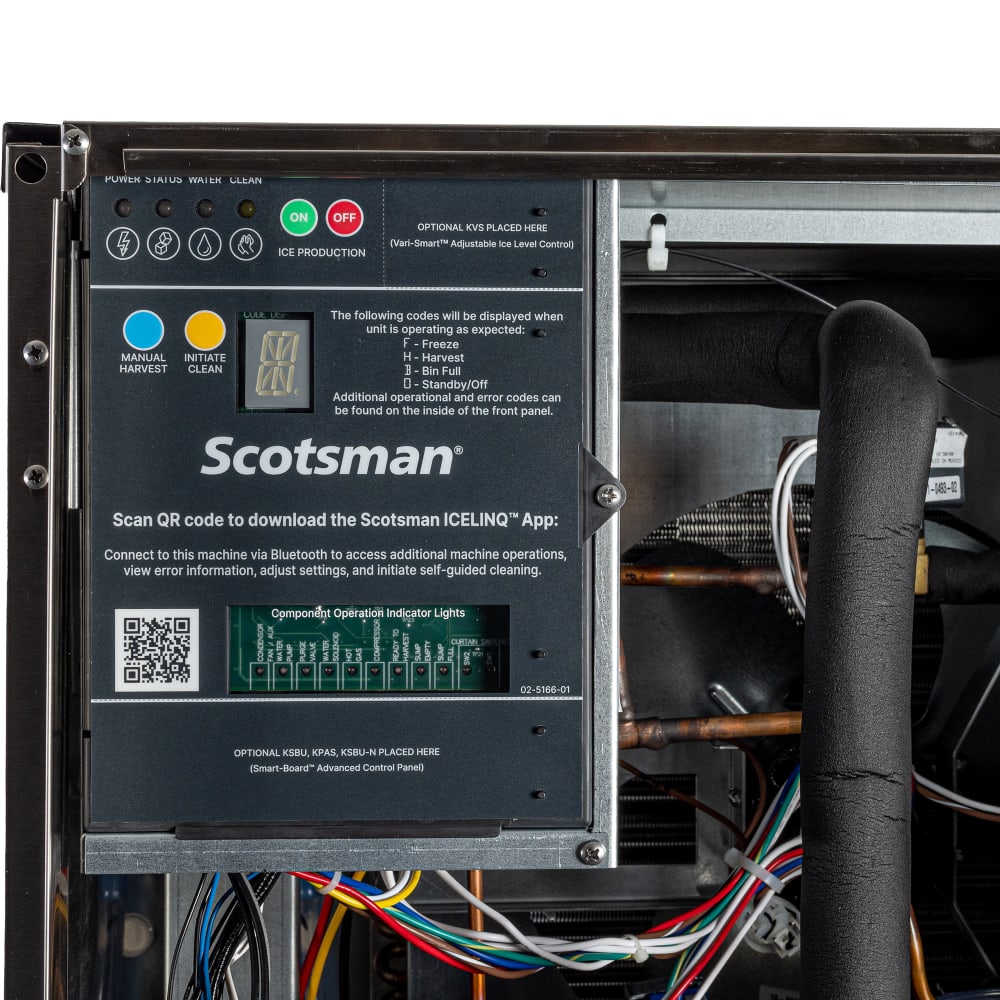

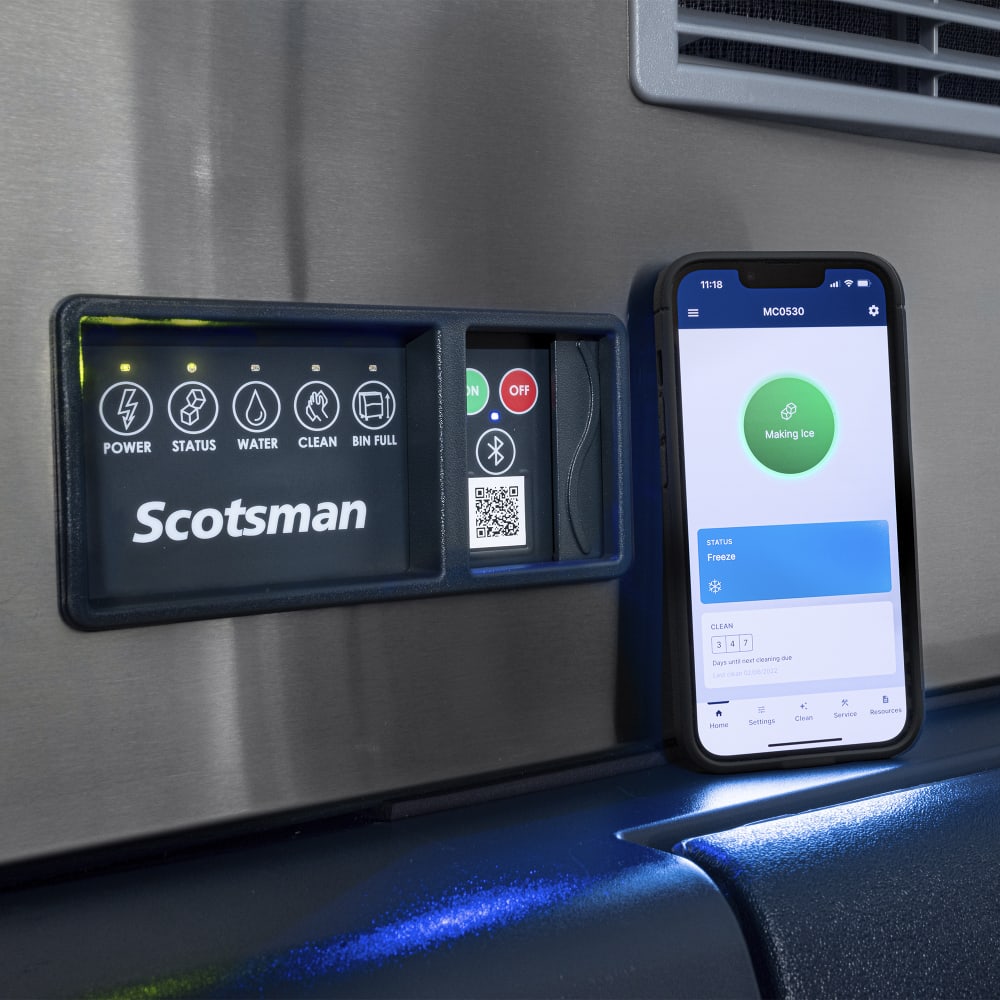

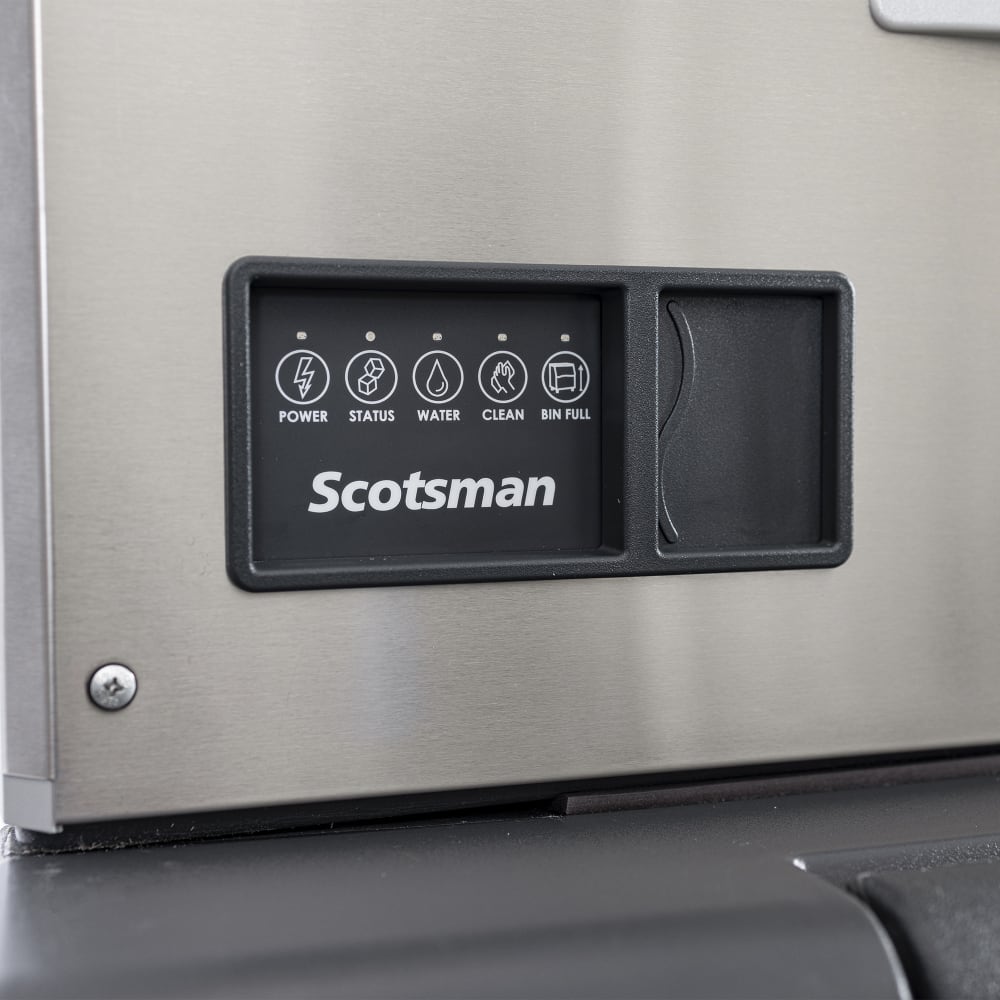

  • AutoAlert LED lights alerts users of operating status

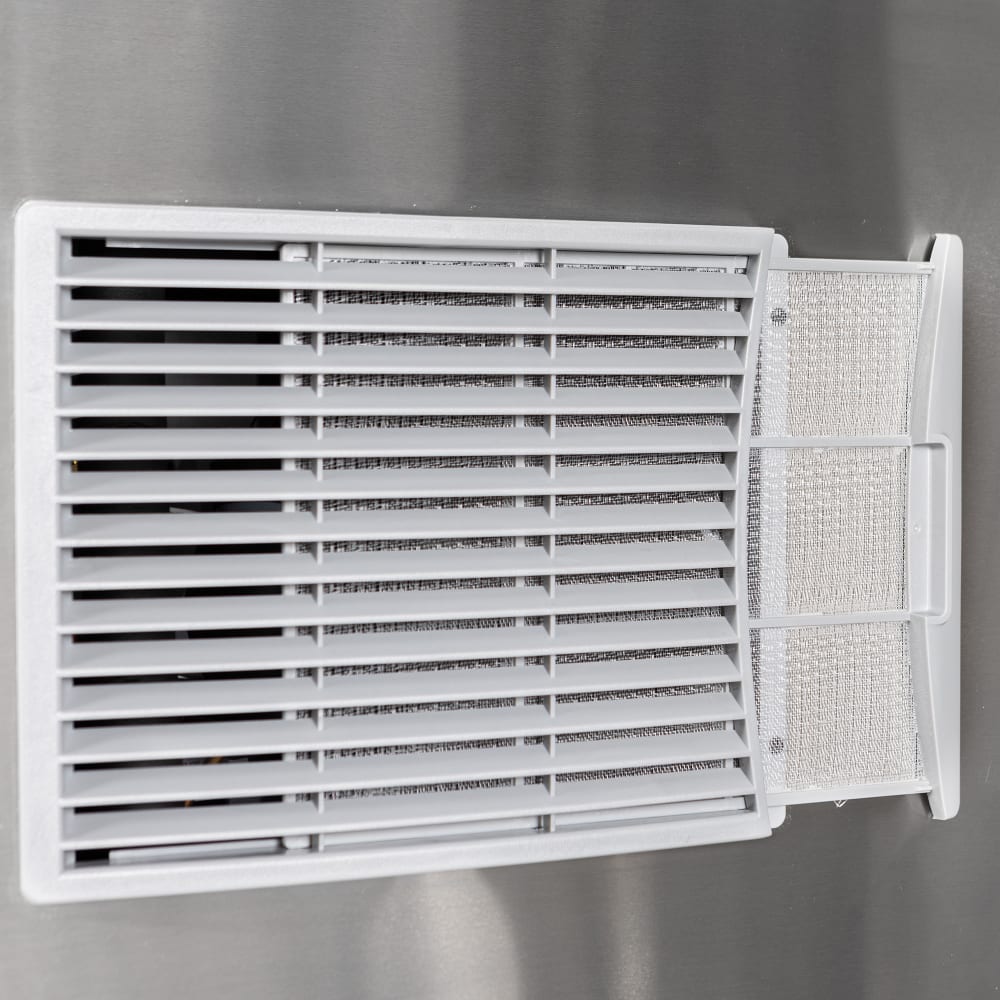

  • Front-located air filter has better air flow and circulation than a rear- or side-located filter

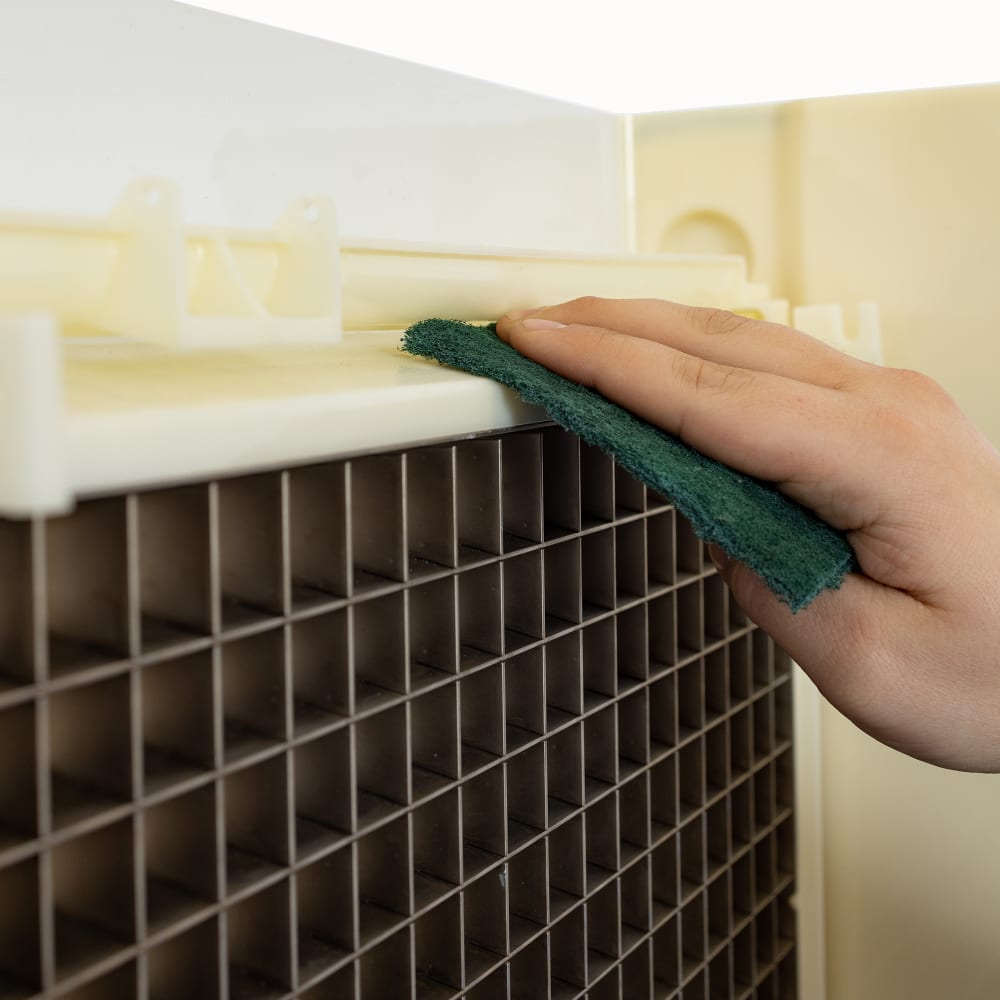

  • One-touch cleaning removes servicing and constant monitoring needs

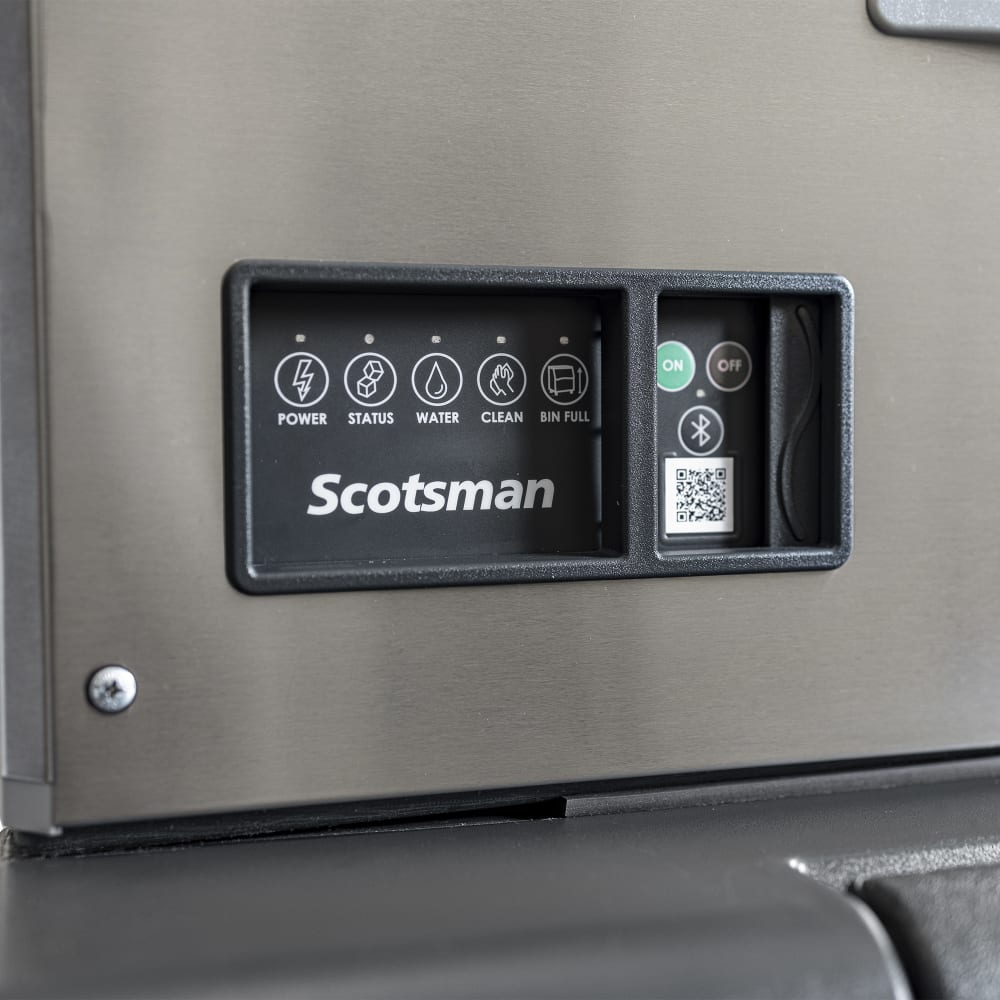

  • QR code gives access to technical service and warranty information
  • WaterSense purge control adjusts incoming water quality to minimize scale buildup

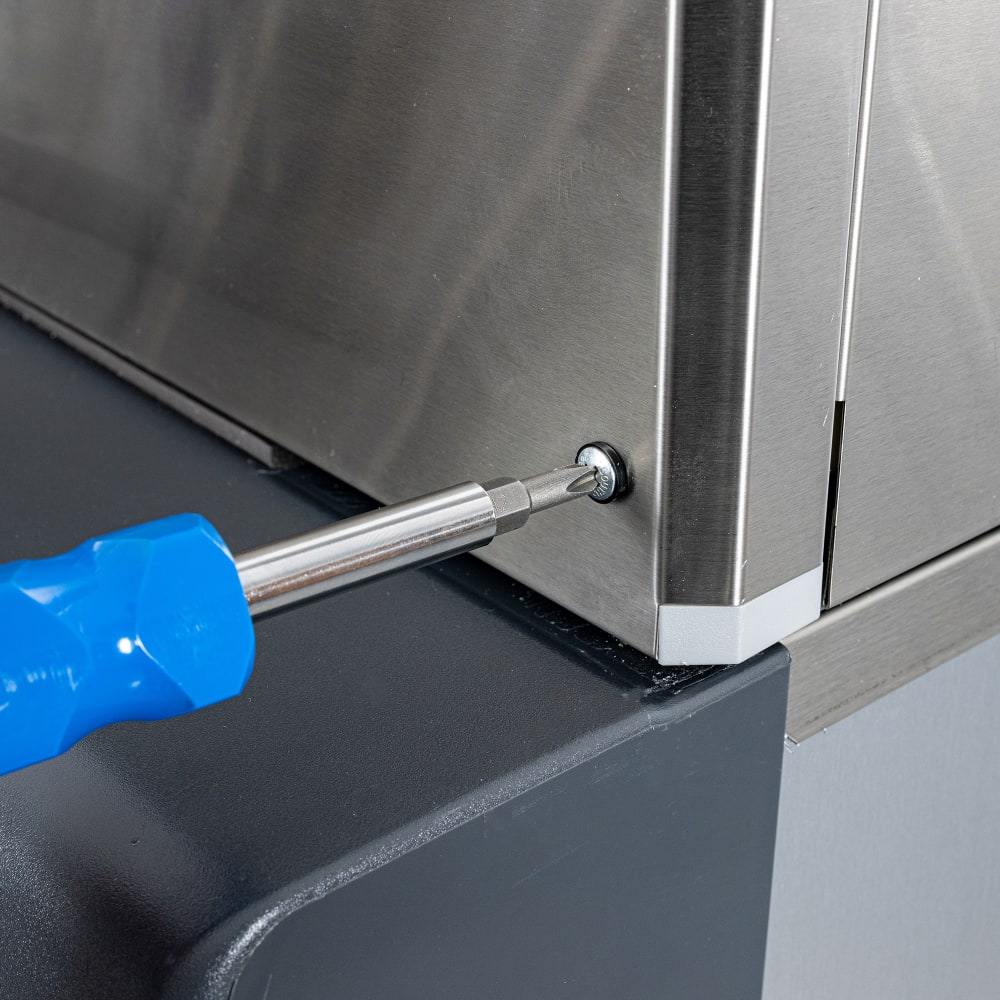

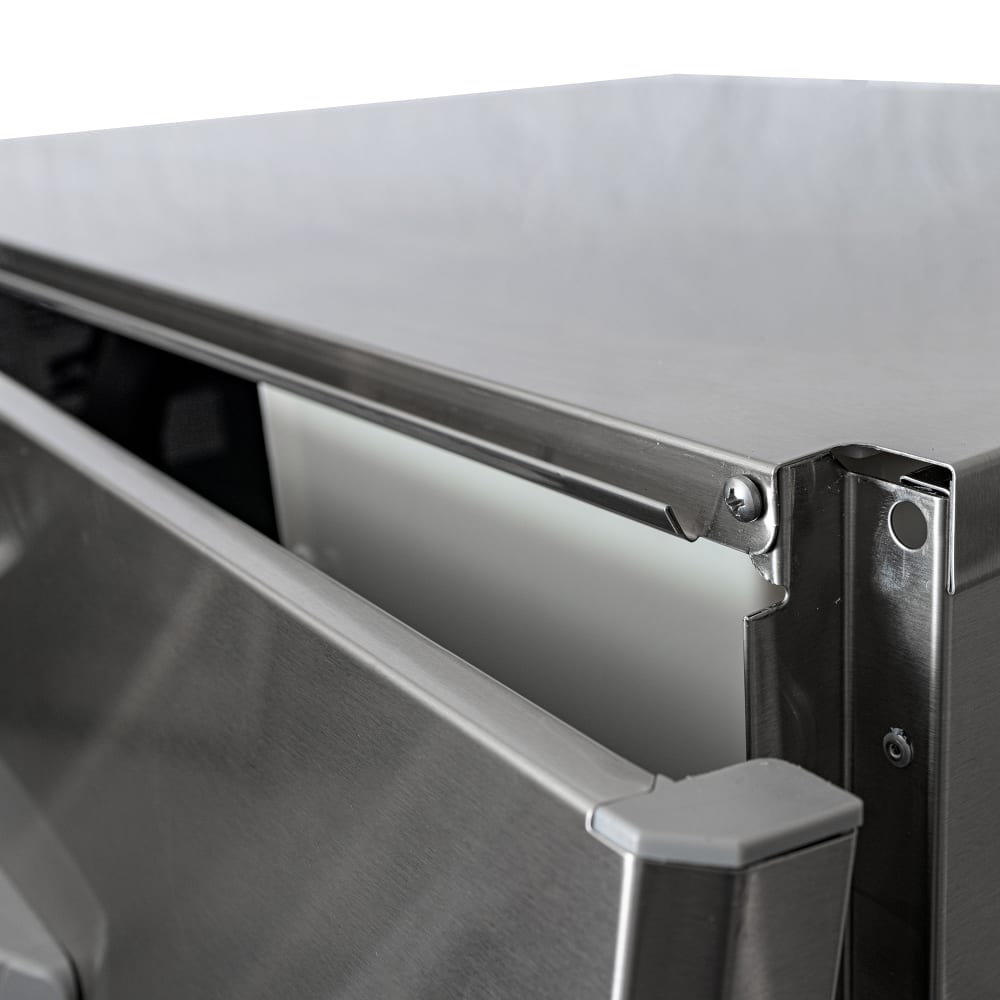

  • Self-aligning front panel is removable for internal component access
  • Antimicrobial is built into the machine for protection between cleanings

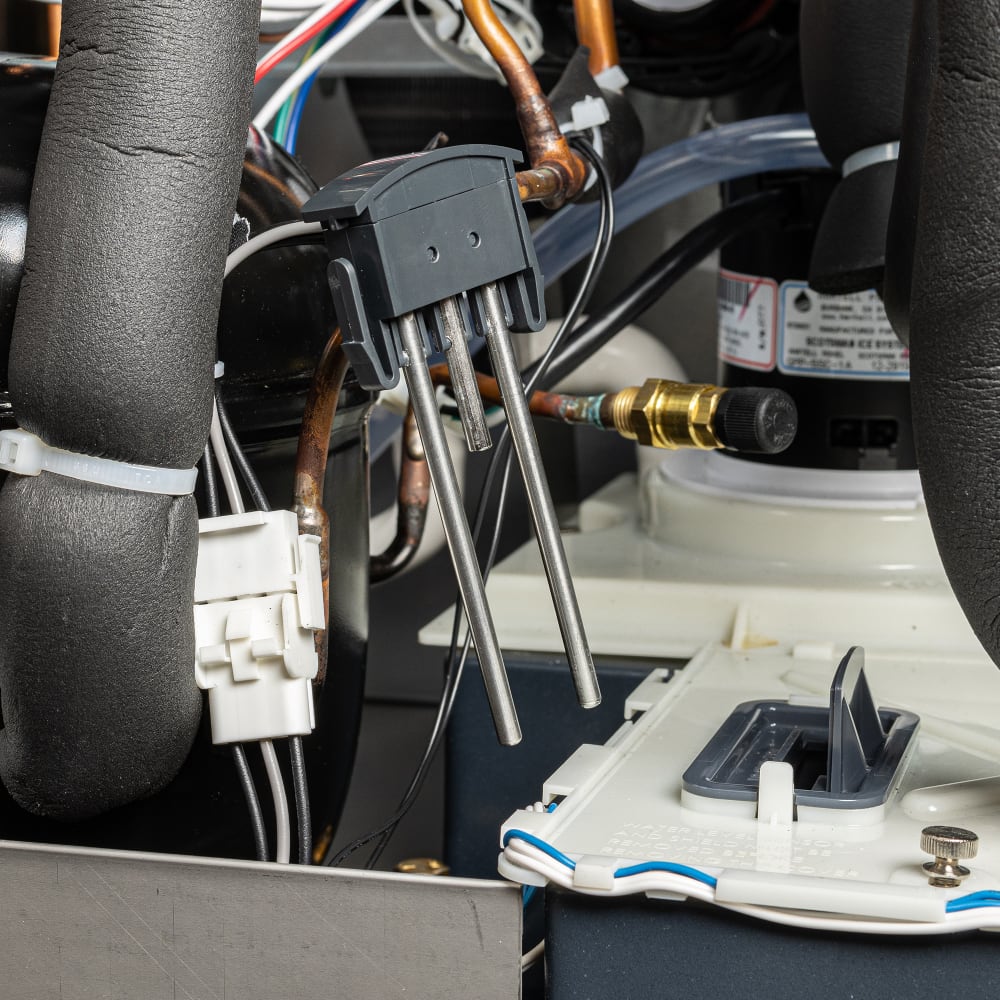

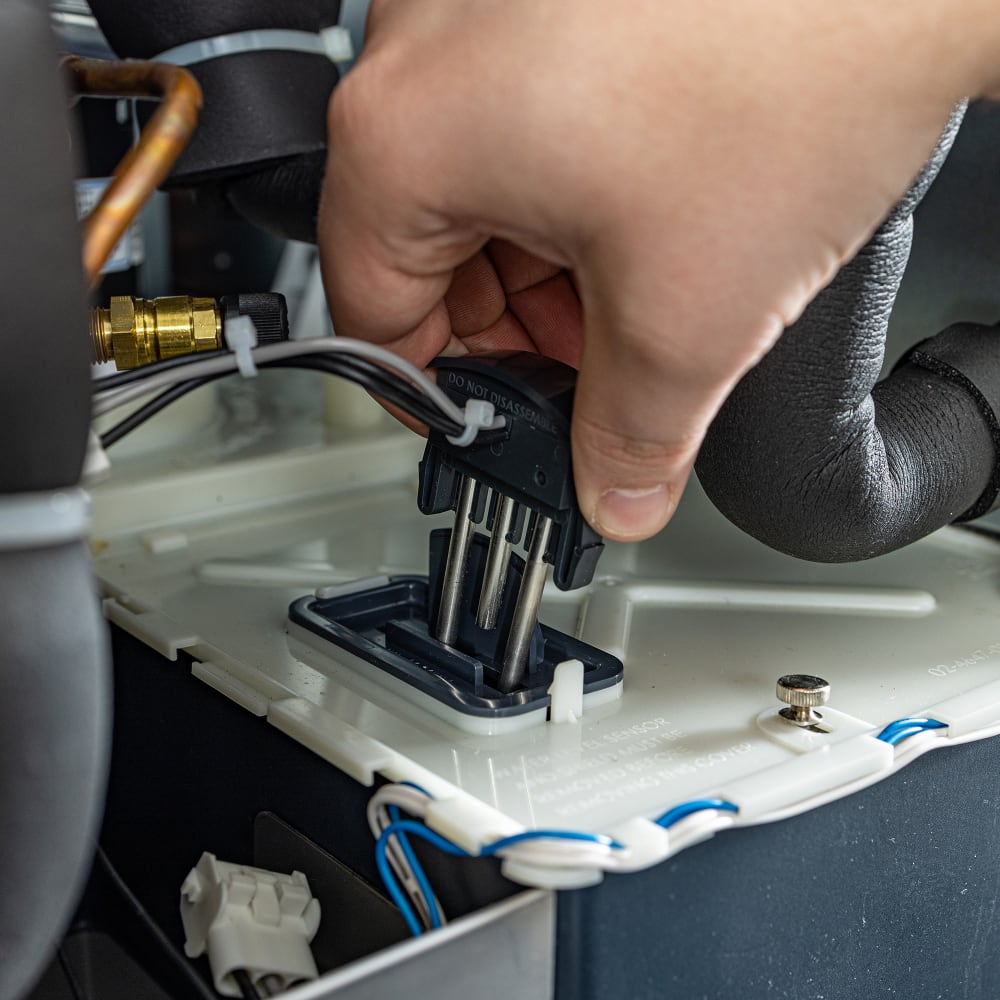

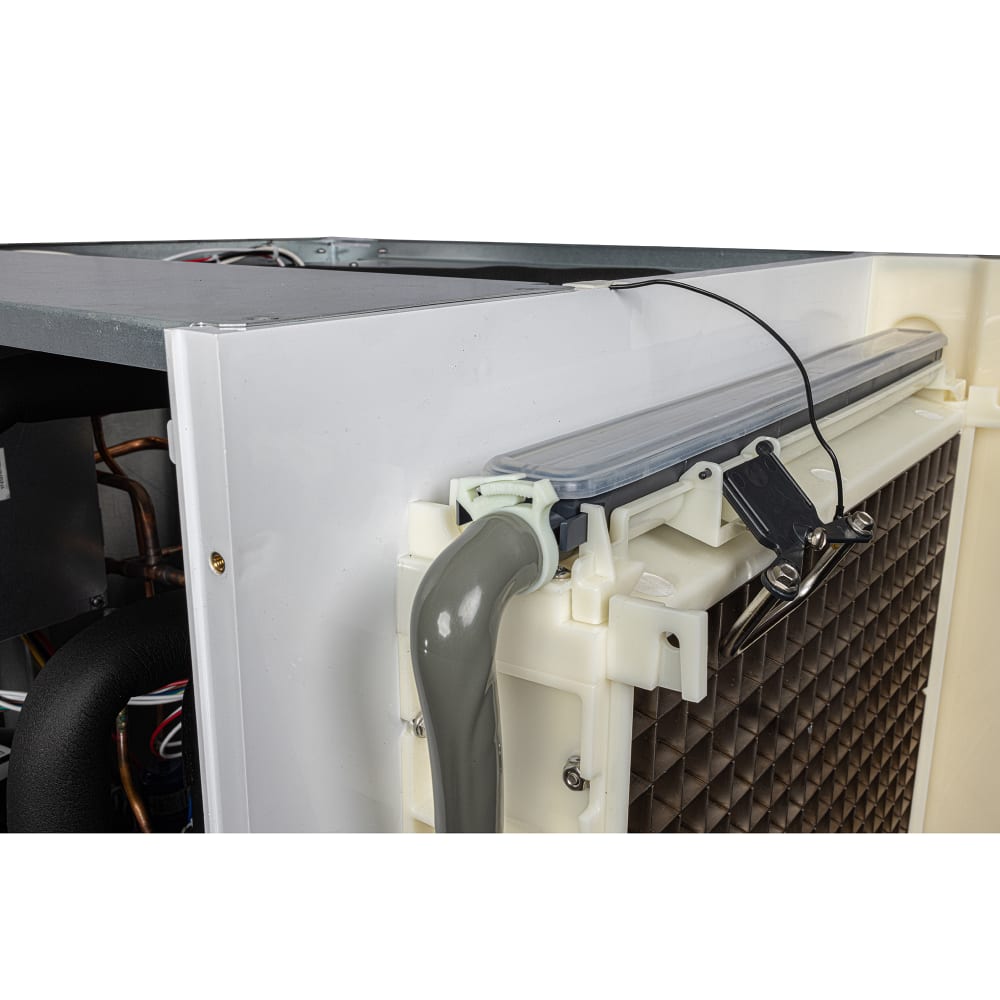

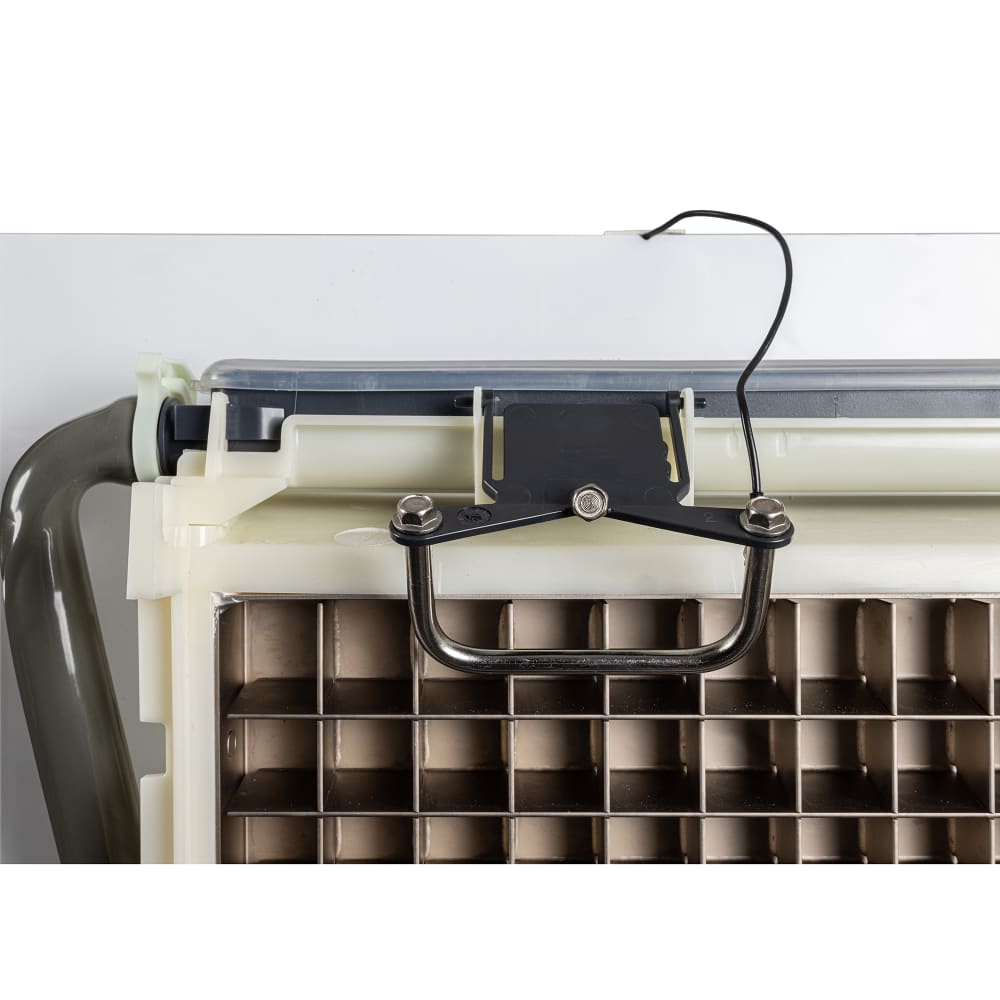

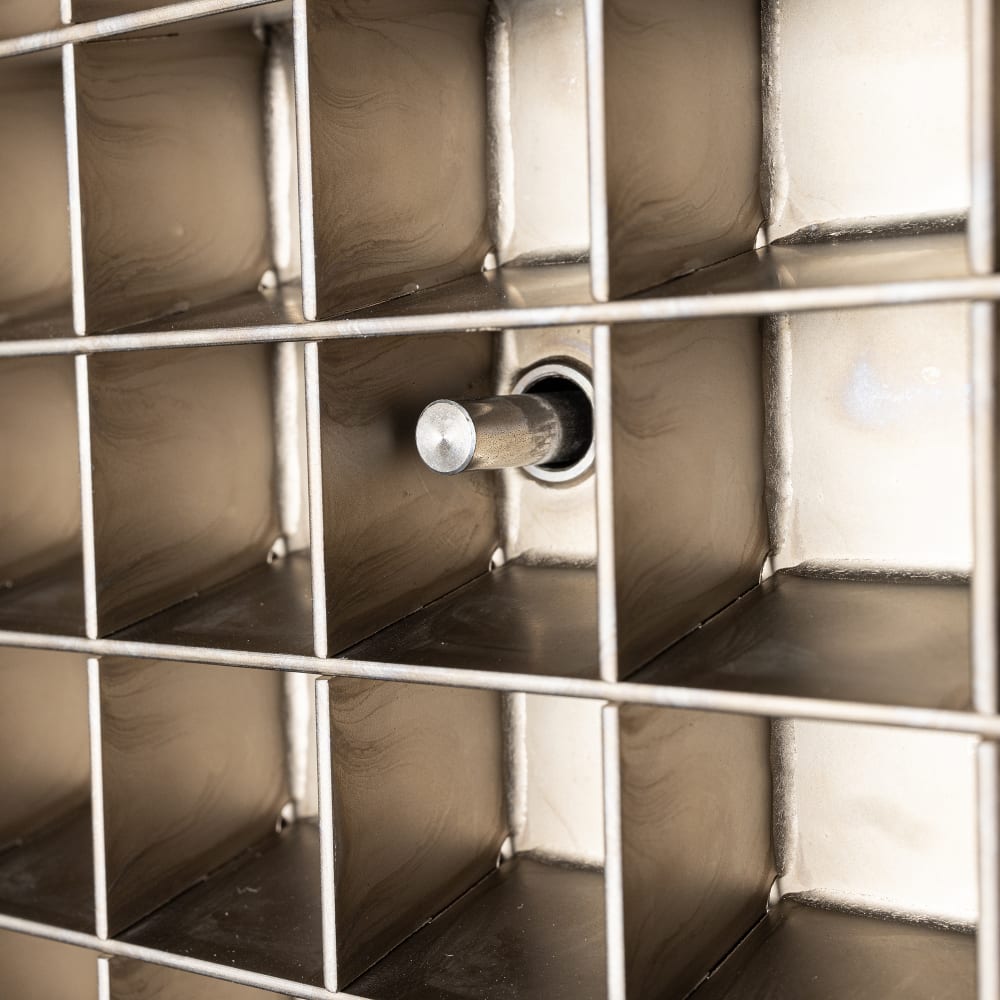

  • To guide ice into the bin, the Harvest Assist feature uses a slight amount of hot gas and a probe
  • Air-cooled, self-contained refrigeration system
  • R404A refrigerant
  • Ambient air temperature: 50-100 degrees F
  • Incoming water temperature: 40-100 degrees F
  • Incoming water pressure: 20-80 PSI
  • 5,200 BTU
  • 12.7 A, 6.95 kW
  • 115 V/60 Hz/1 ph
  • Ice cube dimensions: 0.875 in. x 0.875 in. x 0.875 in.
  • Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
  • CE approved; cULus listed; NSF, AHRI, and ISO 9001:2015 certified

Ice Dispenser Features

  • Part of the iceValet series
  • 120-lb. storage capacity
  • Polyurethane insulation is foamed between the liner and wall for structure and to prevent ice from melting quickly
  • Corrosion-resistant metallic cabinet
  • Push chute eases ice dispensing
  • Wide dispensing area accommodates most hotel ice bucket sizes
  • Removable top front panel provides bin access for cleaning without removing the ice machine head
  • Requires 6-in. clearance on left, right, and back side for ventilation and utility connections
  • Ambient air temperature: 50-100 degrees F
  • Incoming water temperature: 40-100 degrees F
  • Incoming water pressure: 20-80 PSI
  • 115 V/60 Hz/1 ph, 11-ft. cord
  • Dispenser dimensions: 22 in. W x 33.5 in. D x 53.25 in. H
  • cULus listed; NSF, AHRI, and ISO 9001:2015 certified

To learn more about these units, check out our ice machine explainer article.

C0322MA-1 Ice Maker: Prodigy Plus® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 356 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 12.7 amps, cULus, NSF, CE; HD22B-1 Ice Dispenser: iceValet® Hotel/Motel Ice Dispenser, floor model, push dispensing,120 lb application capacity, designed for 22" wide top mount cube-type ice makers, stainless front & sides, includes 6" legs, 115v/60/1-ph, 2.1 amps, NSF, cULus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Scotsman C0322MA-1/HD22B-1 Specifications

PDF Spec Sheet
Manufacturer Scotsman
Bin Capacity (lb) 120
Compressor Type Air Cooled
Depth (in) 33.5
Height (in) 76.25
Hertz 60
Ice Type Full Cube
Operation Self Contained
Phase 1
Product Ice Maker with Dispenser
Series Prodigy Plus®
Serving Vessel Bucket
Voltage 115
Width (in) 22
Warranty 3-year Parts & Labor; 5-year Evaporator, Compressor, & Condenser
Product Type Ice Makers & Bins
24 Hr. Production (lbs) 356
Made in USA Yes
Series iceValet®
Dispenser Type Push Button
Installation Type Freestanding
Dispenses Ice Only
Bin Capacity Range (lbs) 100 - 199
Weight 356.00
Scotsman C0322MA-1/HD22B-1 Certifications
  • UL
  • NSF
