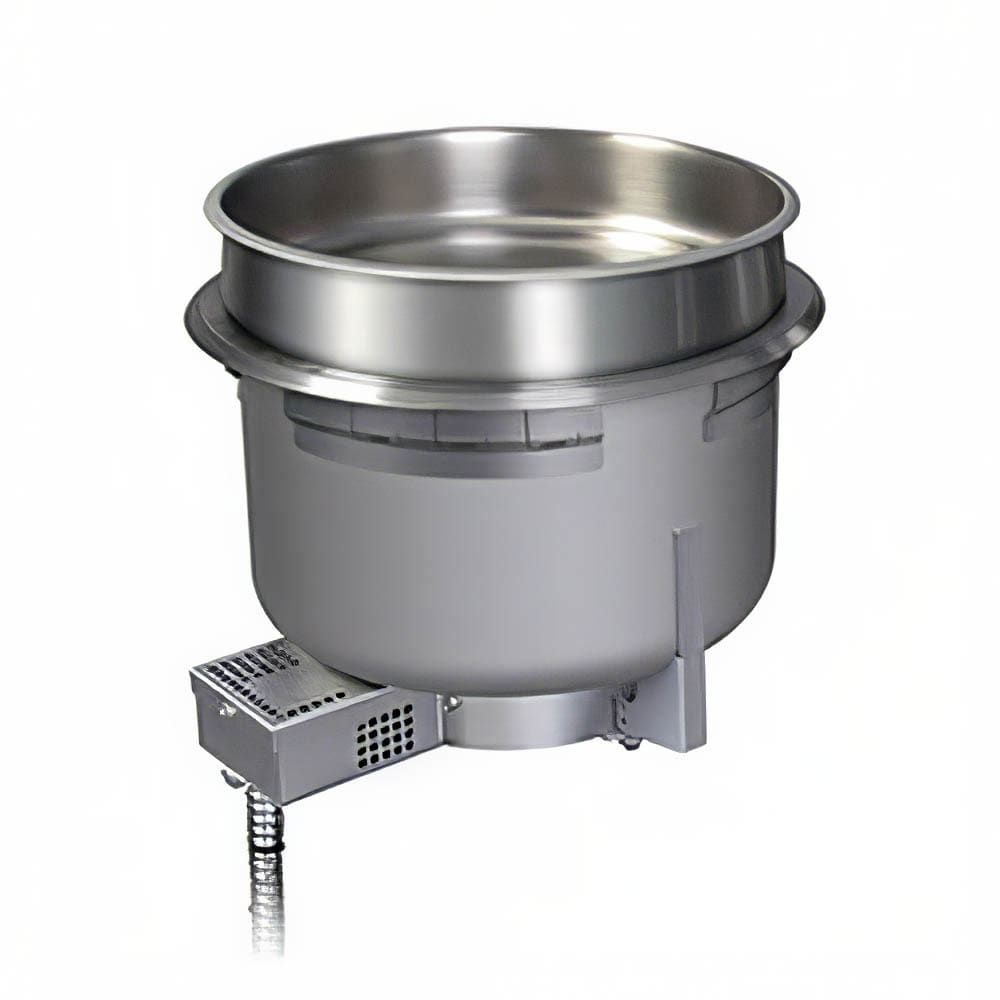

Hatco HWBHRN-11QTD 11 qt Drop In Soup Warmer w/ Infinite Controls, 208v/1ph
Retail Price: $857.00
$471.35 /Each
Selected Voltage: 208V, 1 Phase
| 120V, 1 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Hatco HWBHRN-11QTD Description

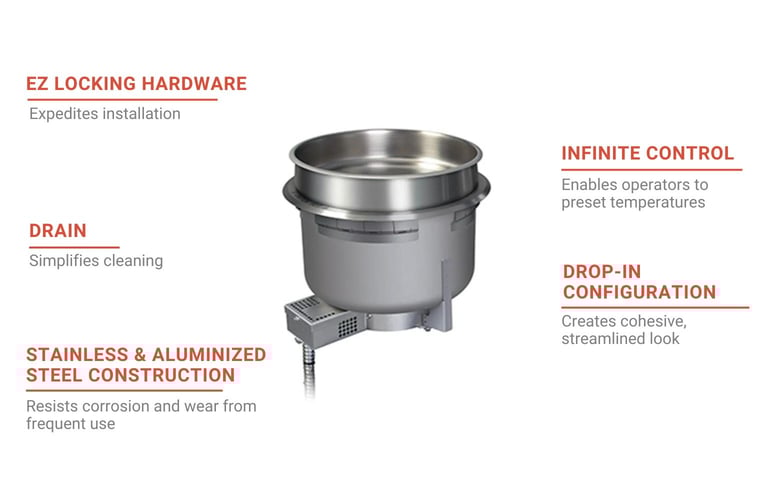

For holding 11 quarts of chili, stew, curry, soup, or thick sauces until serving, the Hatco HWBHRN-11QTD drop-in heated well includes an infinite switch control that maintains preset temperatures once the pilot light is ignited. This system is attached to 36-inch lead cords that enable installation at a distance from the unit. Because it doesn't include a conduit or control box enclosure, users can simply access key components for maintenance.
This Hatco HWBHRN-11QTD heated well measures 125/16 inches in diameter by 959/100 inches high and can be installed into a non-combustible countertop cutout between 111/8 and 119/16 inches in diameter. The included EZ locking hardware simplifies top-mount installation. To withstand rigorous use, this unit's stainless and aluminized steel housing resists corrosion and wear from daily applications. Because it includes a 3⁄4-inch NPT drain, residual contents can be expelled to expedite end-of-day cleaning.
Product Details
- 11-qt. capacity
- Fabricator component only
- Top-mount, drop-in unit
- Can be installed in an 111/8- to 119/16-in.-diameter, non-combustible countertop cutout
- Fits into combustible countertop cutout measuring from 13 in. x 13 in. to 131/4 in. x 131/4 in.
- EZ locking hardware included for quick installation
- High-wattage configuration
- Metal-sheathed heating element
- No conduit or control box enclosure for simple access
- Remote control panel with infinite controls and pilot light
- 36-in. lead cords
- Resilient stainless and aluminized steel housing
- Uninsulated
- Drain
- Cutout dimensions for control box: 21/8 in. W x 33/8 in. H
Dimensions & Utilities
- Infinite control: 23/4 in. W x 4 in. H
- Overall: 125/16 in. dia. x 959/100 in. H
- 3.4 A, 715 W
- 208 V/60 Hz/1 ph
- 3⁄4-in. NPT
Product Features
*Free shipping on Hatco HWBHRN-11QTD within the 48 contiguous states.
From The Manufacturer
(Fabricator component only) Drop-In Heated Well, with drain, round, non-insulated, top mounted, 11 quart, Infinite switch control, pilot light & leads, stainless steel construction (high watt), cURus, 208v/60/1ph
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Hatco HWBHRN-11QTD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Capacity (qt) | 11 |
| Controls | Infinite |
| Diameter (in) | 12.31 |
| Height (in) | 9.59 |
| Hertz | 60 |
| Installation Type | Drop In |
| Lid Type | None |
| Number of Insets | 1 |
| Operation | Wet |
| Phase | 1 |
| Product | Soup Warmers |
| Product Type | Food Bars & Buffets |
| Special Features | Wet or Dry |
| Special Features | With Drain |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Weight | 11.00 |
