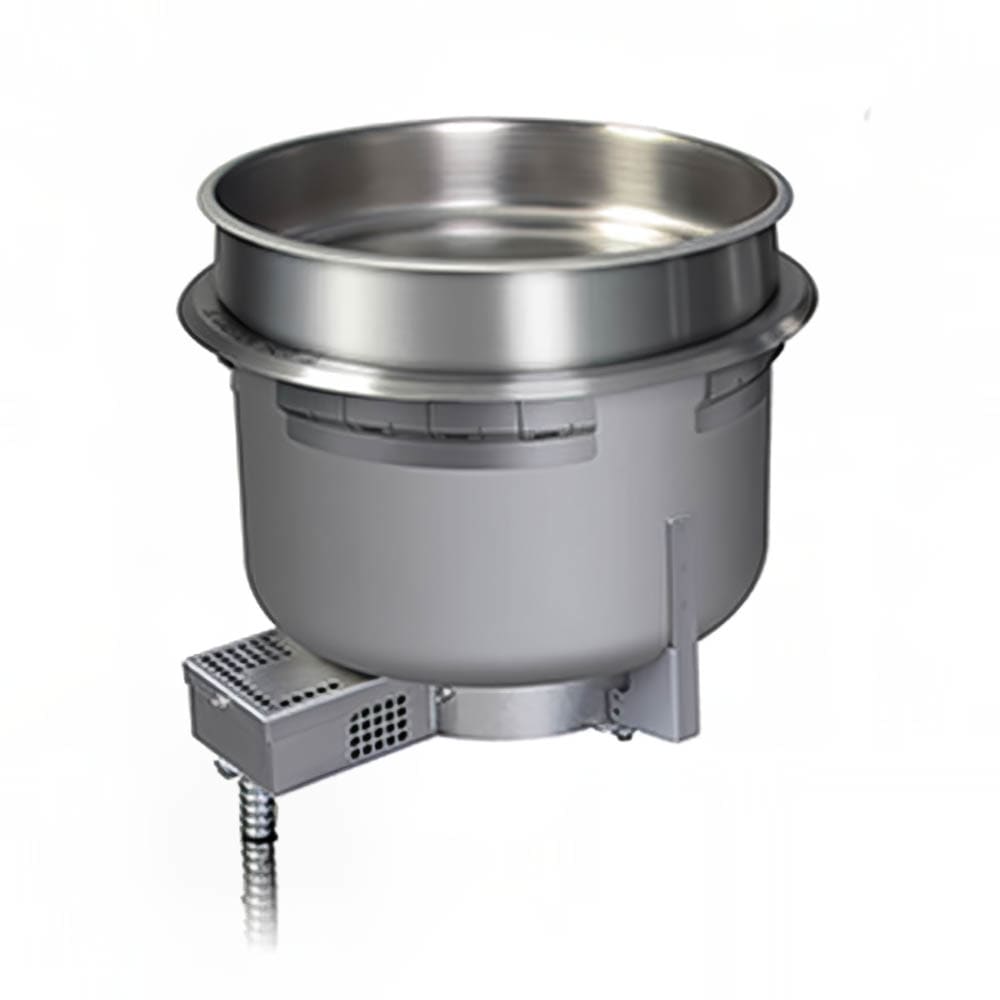

Hatco HWBH-11QTD 11 qt Drop In Soup Warmer w/ Thermostatic Controls, 120v
Retail Price: $1,028.00
$565.40 /Each
Selected Voltage: 120V, 1 Phase
| 120V, 1 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
Hatco HWBH-11QTD Description
To maximize heating, this Hatco HWBH-11QTD drop-in heated well is an 800-watt model, meaning it consumes more power than Hatco's standard-watt well. This 11-quart unit features a remote thermostat to adjust the metal-sheathed heating element to accommodate various holding needs for soup, chili, and stew. Operators can preset temperatures, and this system will self-adjust the heat as needed, eliminating the need for constant management. For simple startup, a power rocker switch turns the unit on and off, and it illuminates when it's in use.
This aluminized and stainless steel Hatco HWBH-11QTD heated well can be used with wet and dry applications, and it resists rust, corrosion, and daily wear to preserve its original look. For a streamlined appearance that's compatible with back-of-house and front-of-house settings, this 12 5⁄16-inch-diameter by 9 59⁄100-inch-high system can be installed into a circular or square countertop cutout, and included EZ locking hardware secures it in place. Its large, flat-screen drain simplifies cleaning residue from the well while ensuring the pans remain level.
- High-watt, drop-in model
- 11-qt. capacity
- Compatible with wet and dry operations
- Circular
- Remote thermostatic controls with self-adjusting thermostat
- Temperature dial
- Power rocker switch
- Rust- and corrosion-resistant stainless and aluminized steel housing
- Large drain with flat screen
- EZ locking hardware included for installation
- Can be installed into an 11 1⁄8-in.-diameter cutout (minimum) or 11 9⁄16-in.-diameter cutout (maximum) on noncombustible countertops
- Minimum cutout dimensions for combustible countertops: 13 in. W x 13 in. D
- Maximum cutout dimensions for combustible countertops: 13 1⁄4 in. W x 13 1⁄4 in. D
- Accessory mounting kit required when installing into combustible countertops (sold separately)
- 12 5⁄16 in. dia. x 9 59⁄100 in. H
- 6.7 A, 800 W
- 120 V/60 Hz/1 ph, must be hardwired
- 3⁄4-in. NPT drain
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco HWBH-11QTD within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hatco HWBH-11QTD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Capacity (qt) | 11 |
| Controls | Thermostatic |
| Diameter (in) | 12.31 |
| Height (in) | 9.59 |
| Hertz | 60 |
| Installation Type | Drop In |
| Lid Type | None |
| NEMA | 5-15P |
| Number of Insets | 1 |
| Operation | Convertible |
| Phase | 1 |
| Product | Soup Warmers |
| Product Type | Food Bars & Buffets |
| Special Features | Wet or Dry |
| Special Features | With Drain |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Weight | 14.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It requires a 120-V electrical connection, draws 6.7 A, and uses a NEMA 5-15P plug.
An 11-qt. round food pan is supported.
It has a 12 5⁄16-in.-dia. opening and measures 9 19⁄32 in. high.
Yes. It supports both wet and dry operation.
Yes. A 3⁄4-in. NPT drain is included.
A thermostatic control with an on/off rocker switch regulates the holding temperature.
Compatible food pans and lids are available but are sold separately.
Yes. The design provides access to the heating element and thermostat for service.
