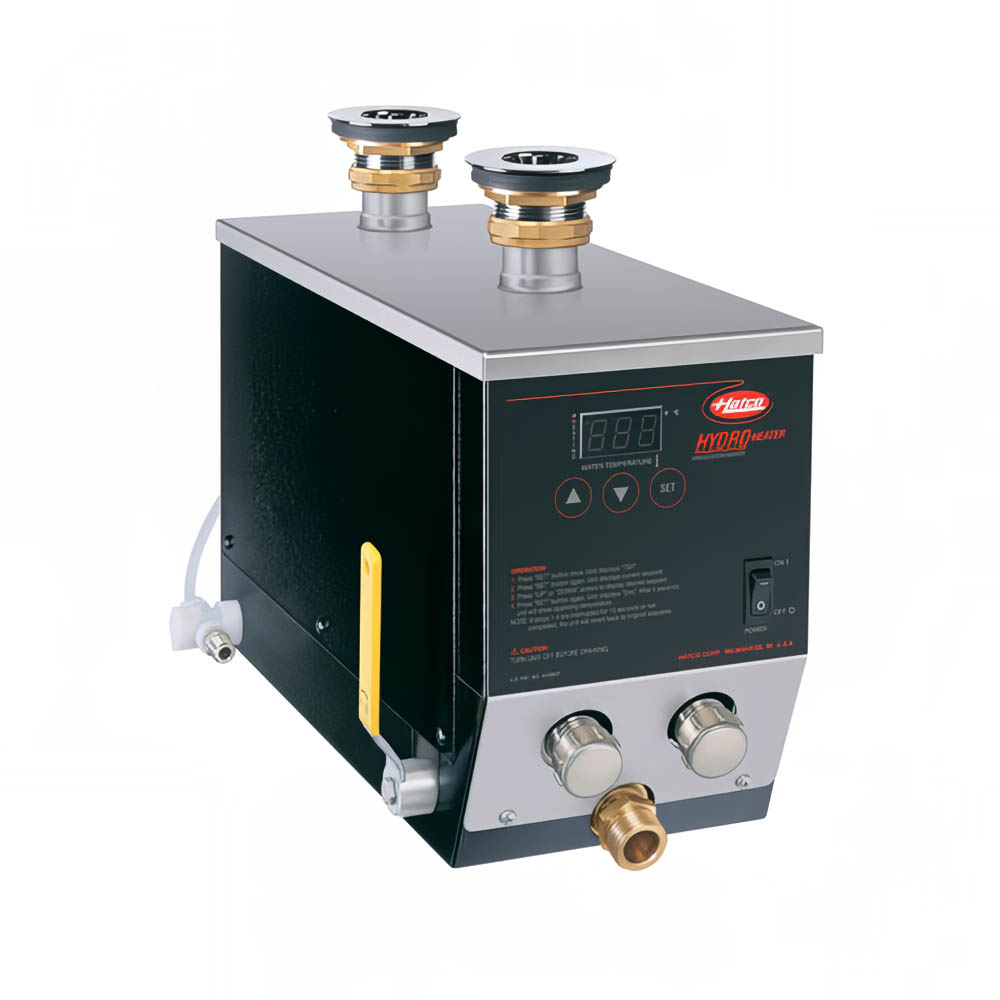

Hatco 3CS2-3 Hydro-Heater Sink Heater, 3 kW, 208v/1ph

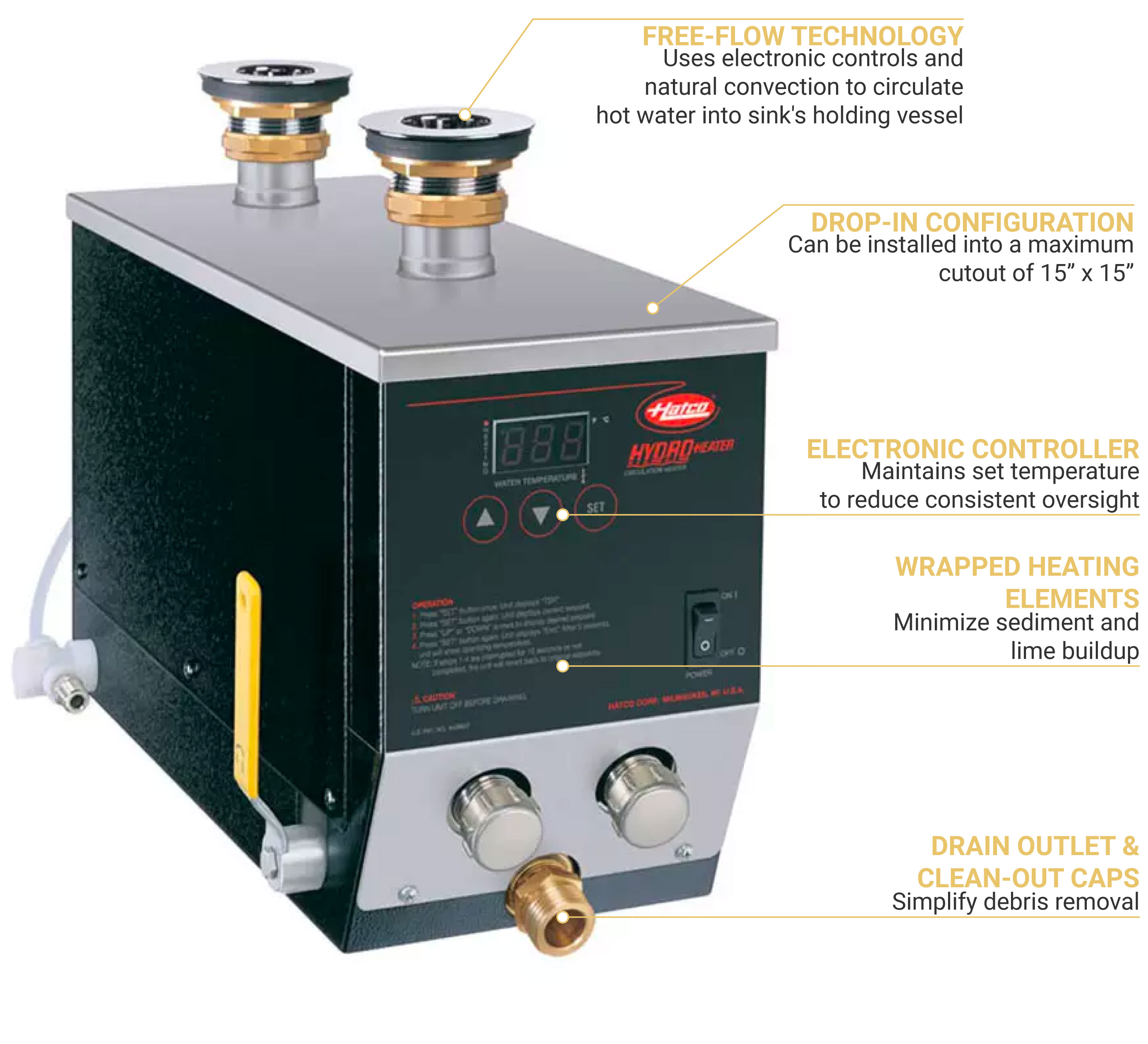

To ensure dishes can be sanitized manually, this Hatco 3CS2-3 Hydro-Heater sanitizing sink heater uses free-flow technology to circulate rinse water between 180 and 190 degrees Fahrenheit into a sink's holding vessel. The flow tube's external heating elements help reduce sediment and lime buildup, maintaining efficiency over time. To streamline operation, an electronic controller maintains at least 180-degree-Fahrenheit water temperature, and a digital temperature display provides a large readout so operators can ensure rinse water temperature falls within safety standards. When water levels drop, a low-water cut-off system prevents the unit from operating, reducing the risk of heater damage.

This Hatco 3CS2-3 sanitizing sink heater measures 7.75 inches wide by 17¹/₁₆ inches deep by 12⁹/₂₅ inches high and can be installed into a sink area measuring 15 inches wide by 15 inches deep at most. This unit includes the necessary internal plumbing and wiring for external installation to the base of a three- or four-compartment sink, a pot and pan sink, or a bar sink. For lasting rigidity, its body is powder coated, and its stainless steel front resists rust and corrosion. A convenient drain with clean-out caps eliminates debris effectively to maintain a clean reservoir. For efficient heating, this heater should be used with incoming water with no more than 3 grains of hardness per gallon.

Product Details

• Undersink model
• For use with 3- or 4-compartment sink configurations
• Fits into 15-in.-wide x 15-in.-deep sink area (maximum)
• Ensures rinse water is between 180 and 190 degrees F
• Free-flow technology
• Heating elements wrapped around flow tube's exterior
• Electronic controller with programmed setpoint
• Digital temperature display
• 30-minute preheat period
• Low-water cut-off
• On/off switch
• Stainless steel front
• Black powder-coated body
• Drain outlet
• Clean-out caps
• Requires incoming water with a hardness less than 3 GPG
• Required supply water temperature: 140 degrees F

Dimensions & Utilities

• 7³/₄ in. W x 17¹/₁₆ in. D x 12⁹/₂₅ in. H
• 14.4 A, 3 kW
• 208 V/50-60 Hz/1 ph

Product Features

*Free shipping on Hatco 3CS2-3 within the 48 contiguous states.

From The Manufacturer

Hydro-Heater Sanitizing Sink Heater, electric, undersink design, stainless steel front, powder coated body, low water cut-off, electronic temperature monitor, for 15" square sink area or less, 3.0 kW, cULus, UL EPH Classified, ANSI/NSF 4, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Tank Parts

Hatco 3CS2-3 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
