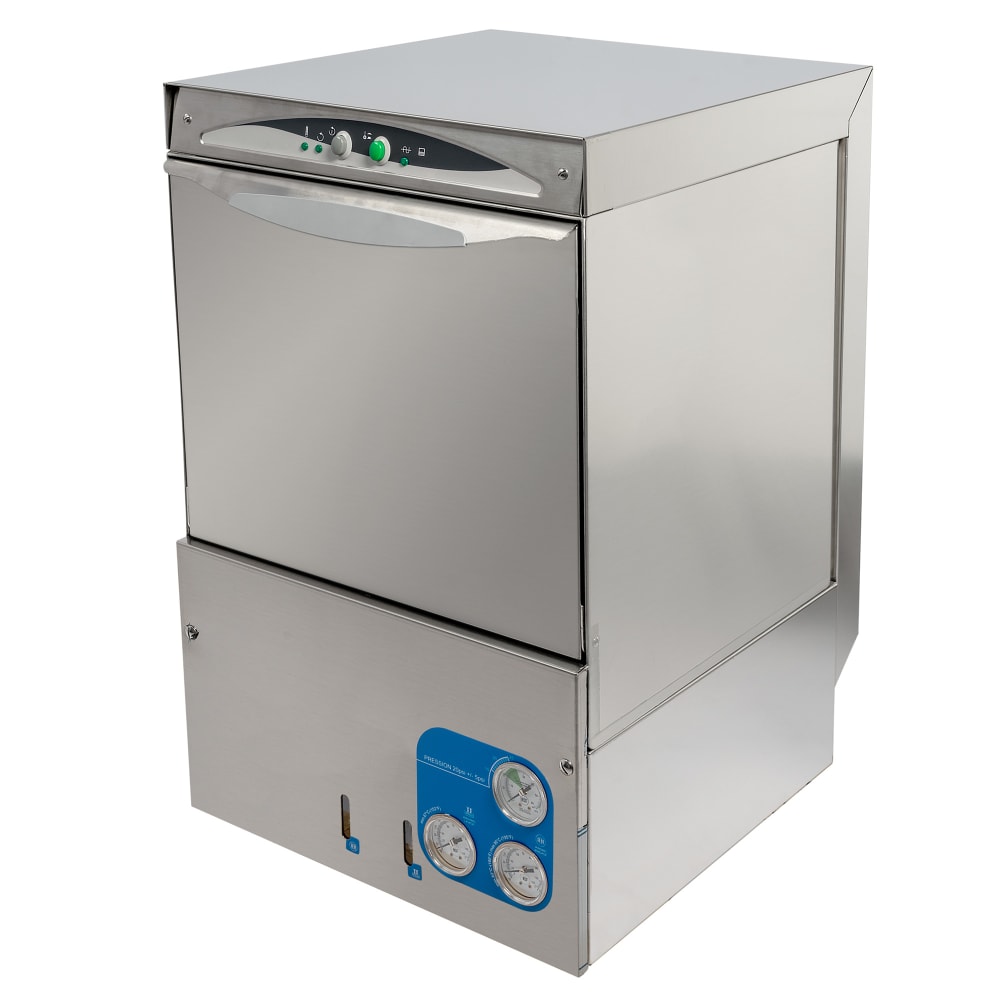

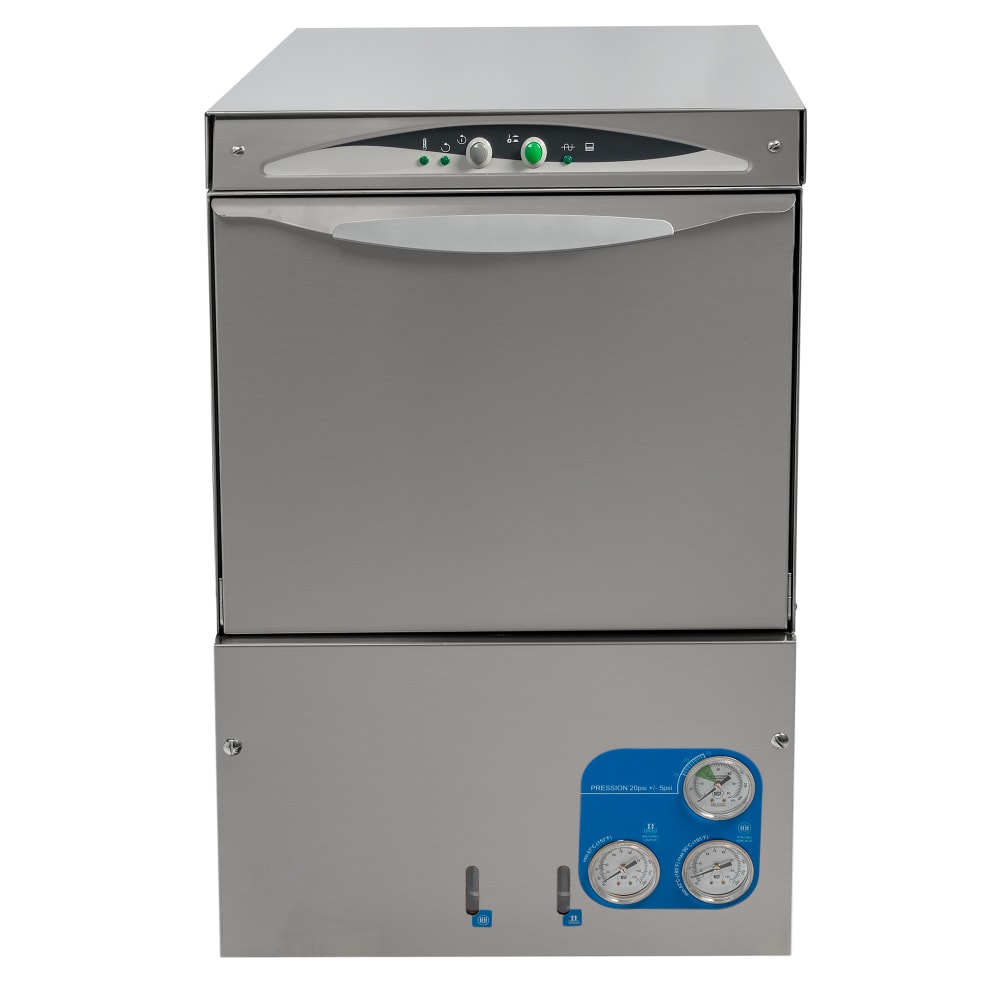

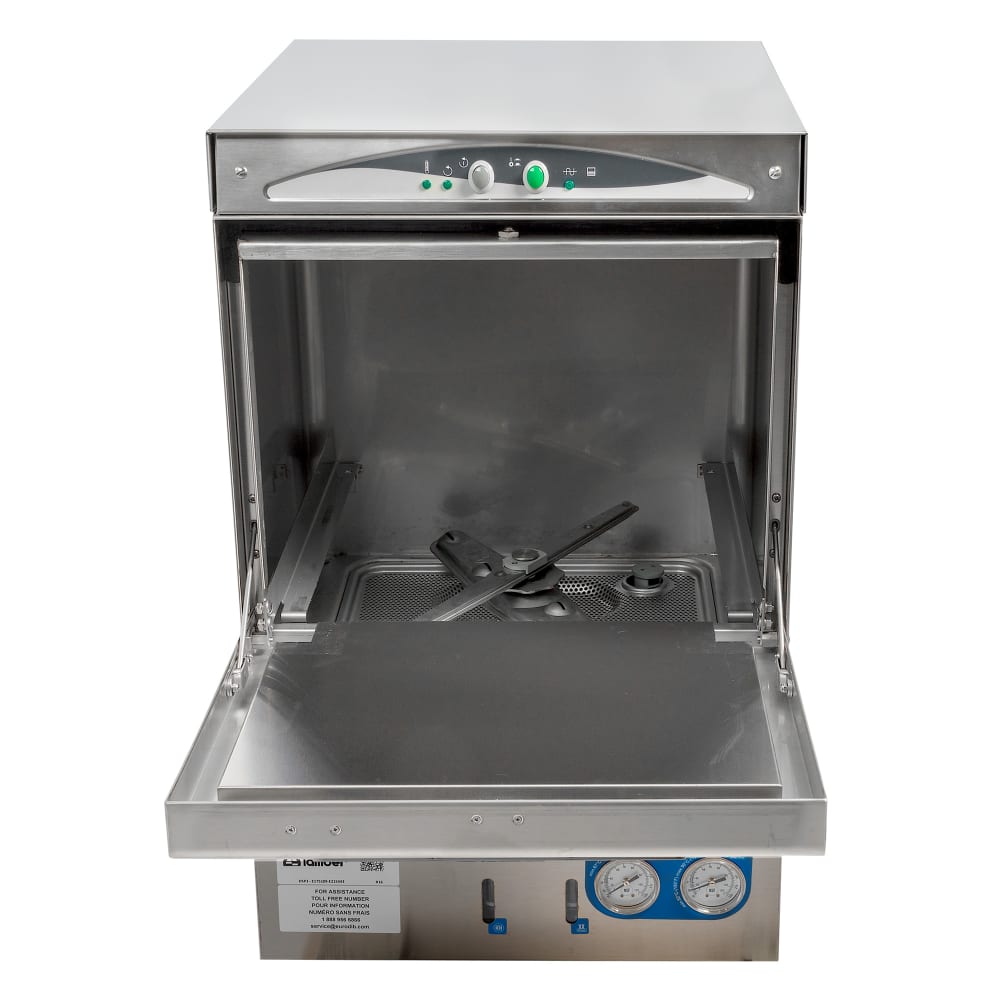

MoTak MGW-HT30 High Temp Rack Undercounter Glass Washer w/ (30) Racks/hr Capacity, 208-240v/1ph

Constructed of stainless steel, the MoTak MGW-HT30 high-temperature glasswasher is corrosion resistant and can support high-volume applications. This unit comes with two glass racks, two flatware containers, and one saucer insert to keep items organized and in place during the wash cycle. Ideal for stemware, it can accommodate glass as tall as 11¹³/₁₆ inches.

Monitored by built-in thermometers, the rinse water temperature ranges from 179 to 194 degrees Fahrenheit, and the Thermocontrol feature ensures sanitary temperatures are reached each time. This MoTak MGW-HT30 high-temperature glasswasher can wash 30 racks in an hour with two-minute cycles. Since this unit has a gravity drain instead of a drain pump, it should be elevated on a table or stand to avoid flooding.

Product Details

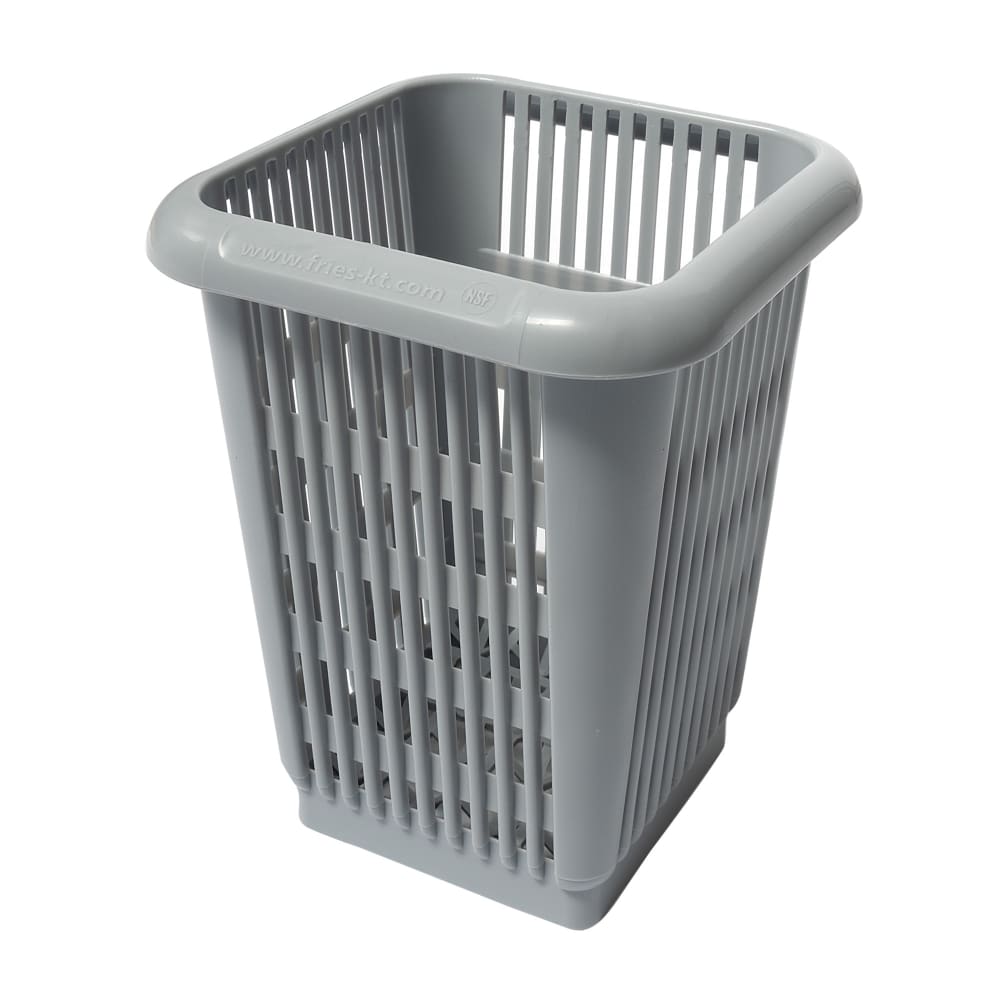

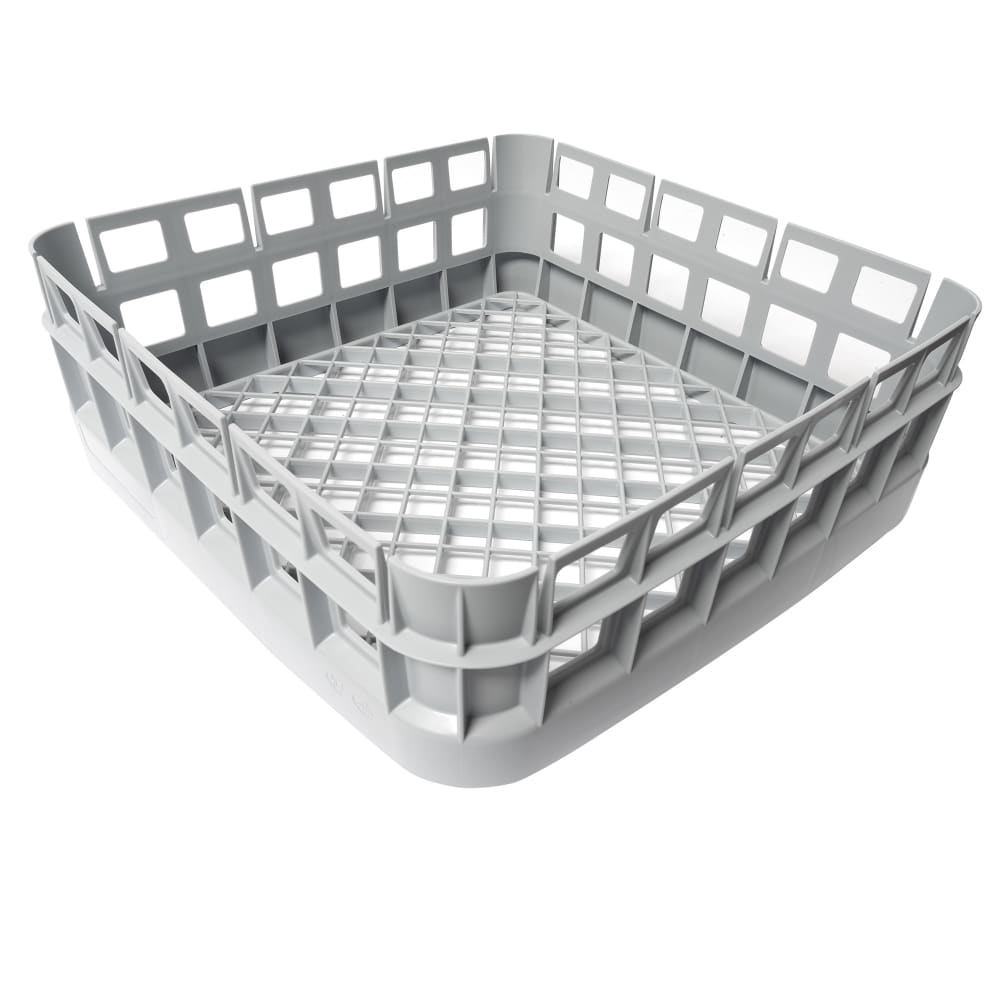

• Includes 2 glass racks, 2 flatware holders, and 1 saucer insert
• Can wash 30 racks per hr.
• 2-min. wash cycle
• 11¹³/₁₆-in. glass clearance
• Rinse water temperature range: 179-194 degrees F

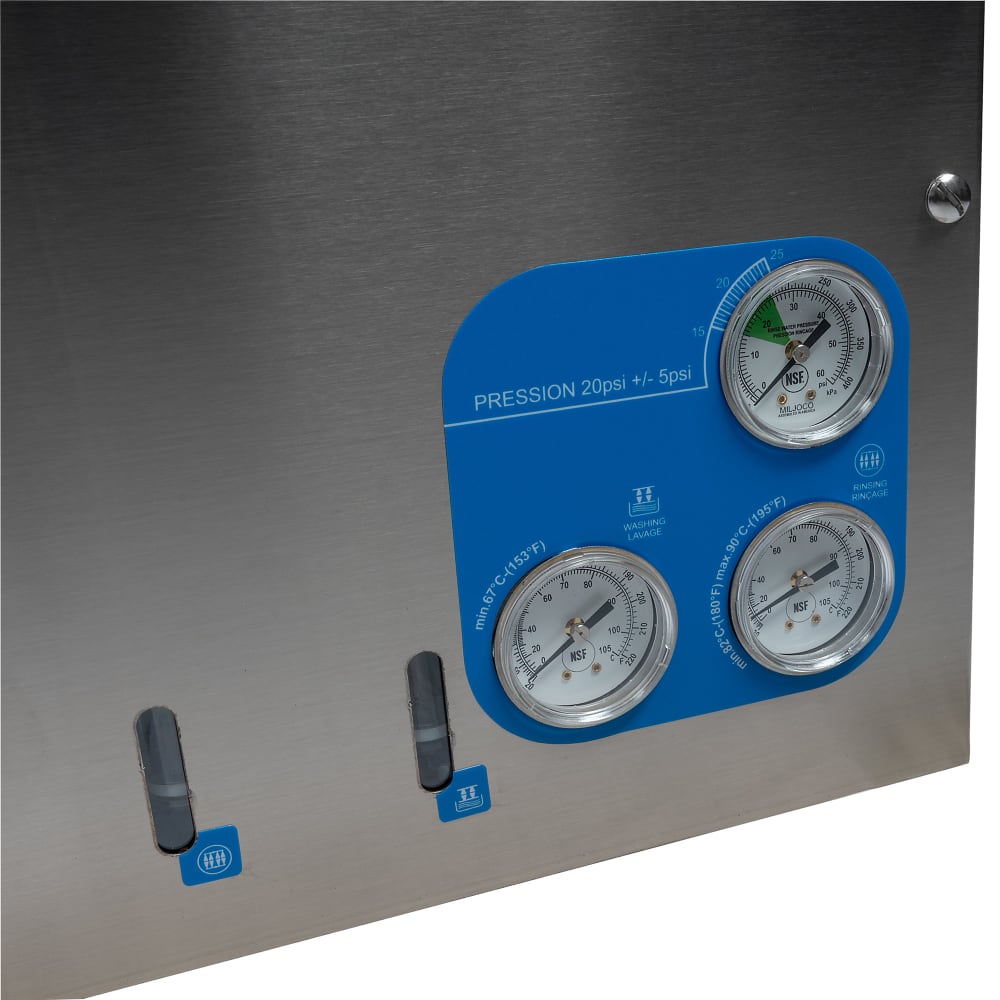

• Wash and rinse thermometers use Thermocontrol to ensure each cycle reaches proper temperatures
• Includes a security thermostat to prevent accidental temperature changes

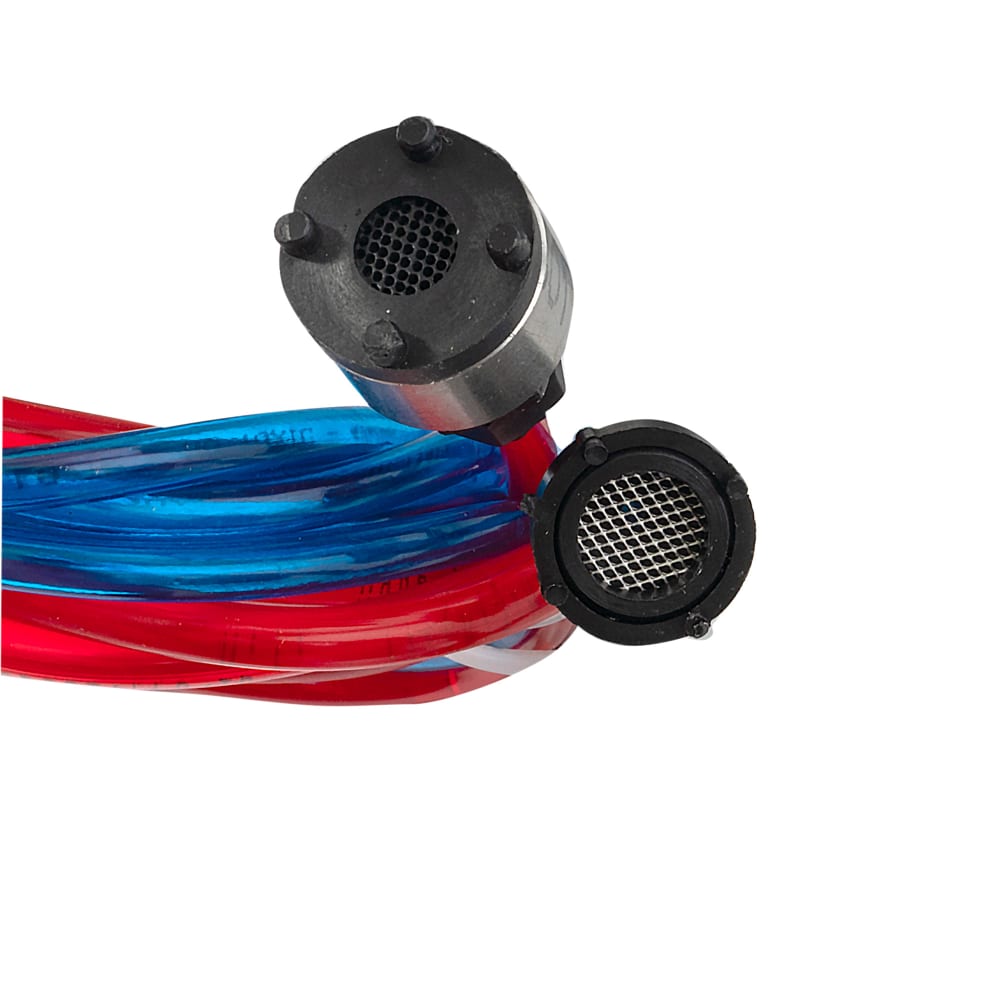

• Detergent pump and rinse aid dispenser included
• Automatic tank loading

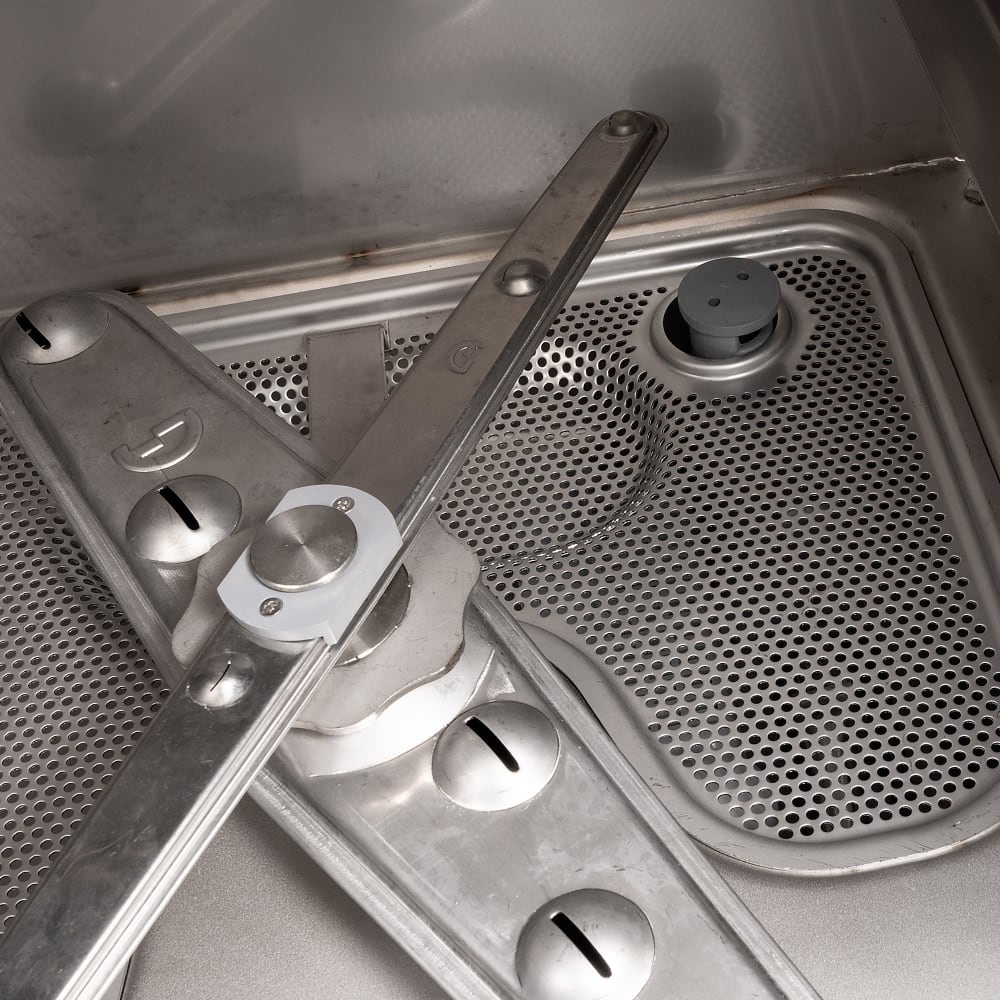

• Lower arms rotate to reach all glasses while the upper arms are fixed in place

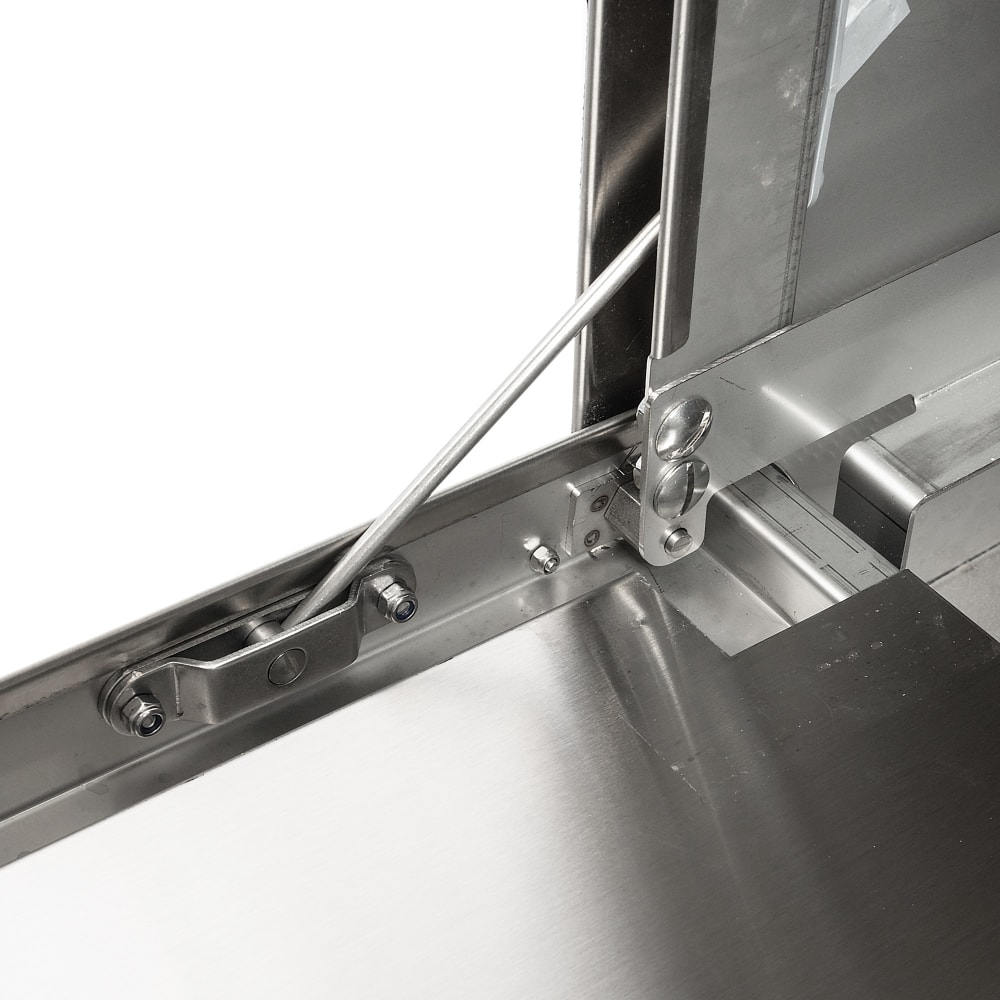

• Door opening safety device protects staff from hot water
• Rust-resistant stainless steel construction endures heavy use

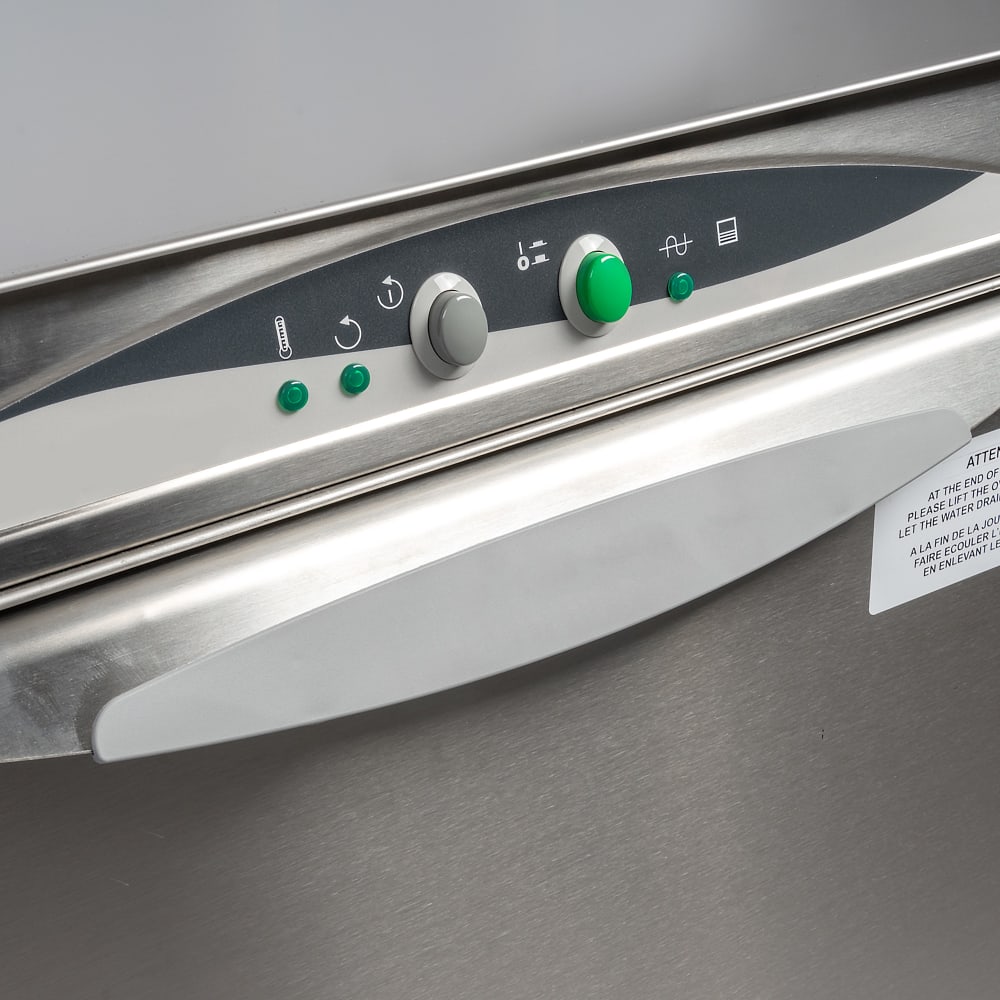

• Removable control panel provides access for maintenance
• Uses a gravity drain to remove water
• 5-gal. tank capacity
• ⁴/₅-gal. boiler capacity

Product Features

Dimensions & Utilities

• 18¹¹/₁₀₀ in. W x 19²³/₂₅ in. D x 30⁷/₁₀ in. H
• 16 A, 3200 W, 3.65 kW
• 208-240 V/60 Hz/1 ph

From The Manufacturer

MoTak Glasswasher, 16" x 16" square basket, 2 minute wash cycle/30 baskets per hour capacity, wash and rinse temperature thermometers, removable control panel, rinse aid dispenser, gravity drain, automatic tank loading, door opening safety device, thermocontrol, security thermostat, includes (2) baskets for glasses, (1) saucers insert and (2) cutlery containers, 18/10 AISI 304 stainless steel construction, 208-240v/60/1-ph, 16.0 amps, 3.2 kW, NEMA 6-20P (This unit requires a floor drain; no drain pump is included. This unit drains by gravity only.)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

MoTak MGW-HT30 Specifications

A KaTom house brand, MoTak offers an economy line of commercial appliances including refrigeration, cooking equipment, and ice machines. MoTak—sold exclusively by KaTom—offers products designed for budget-conscious operations and sourced from factories used by well-known equipment manufacturers.
