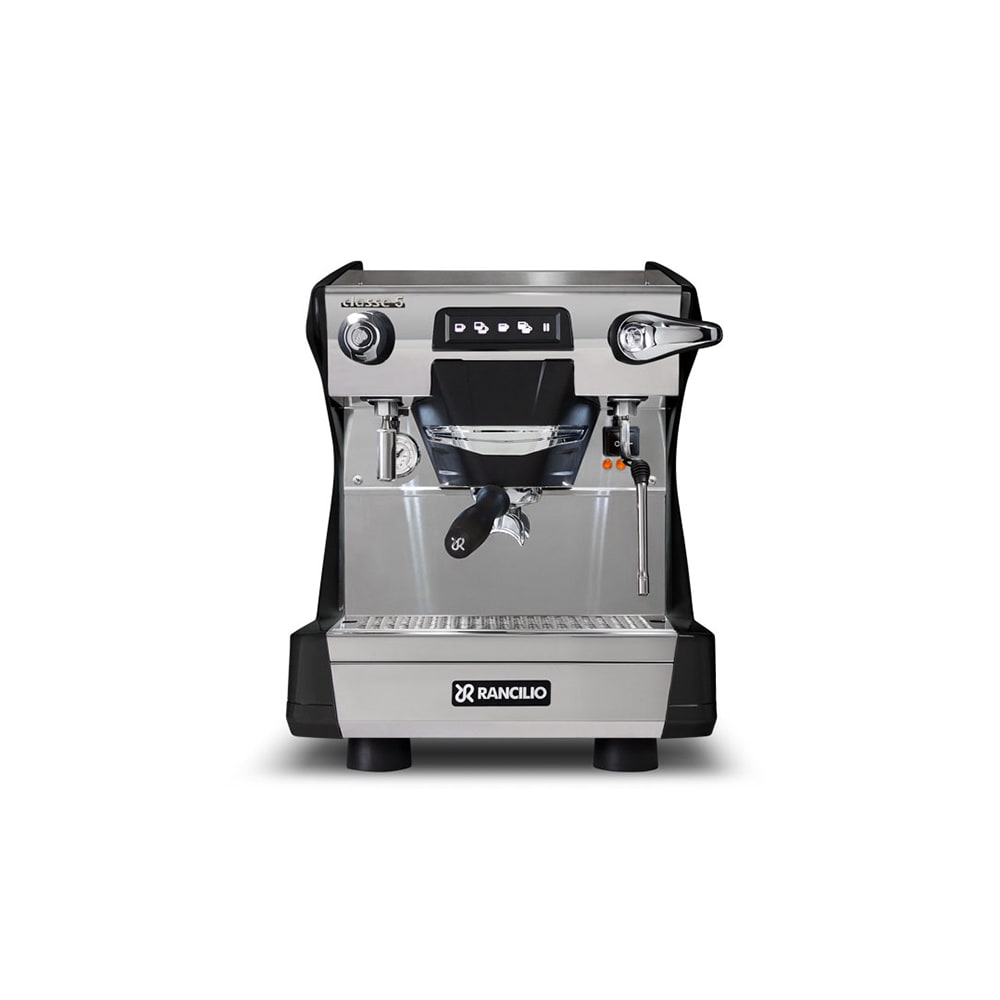

Rancilio CLASSE 5 USB 1GR Classe 5 Automatic Espresso Machine w/ (1) Group & (1) Steam Wand - 110v/1ph
$6,098.74 /Each
Rancilio CLASSE 5 USB 1GR Description
The Rancilio CLASSE 5 USB 1GR automatic espresso machine pairs intuitive operation with enduring craftsmanship. Its scratchproof grid system drain tray supports efficient workflow, while USB parameter control enables easy programming and updates. The soft-touch keypad layout and LED work area lighting enhance precision and visibility during peak service hours.
Balanced performance defines the Rancilio CLASSE 5 USB 1GR automatic espresso machine, which delivers up to 160 cups per hour through consistent boiler and pump pressure. Independent heat exchangers maintain temperature stability, and an electrical heating system ensures reliable recovery between drinks. Together, these features create a steady rhythm that keeps pace with high customer demand.
- Classe 5 series
- Traditional automatic espresso machine
- 1 group configuration
- 4-liter boiler capacity
- 160-cup output per hour
- Soft-touch keypads with 4 programmable drink doses
- Built-in volumetric pump
- Boiler and pump pressure control gauges
- 1 manual steam wand with C-lever steam control
- Hot water dispenser with manual valve knob control
- Independent heat exchangers
- Electrical heating system
- USB port for easy parameter management
- LED work area lighting
- Brushed stainless steel body with ABS and nylon side panels
- Scratchproof grid system drain tray
- Adjustable feet
- Anthracite Black finish
- 1 double portafilter, rubber blind disks for cleaning, user manual, and foot extensions included
- Overall dimensions: 16 in. W x 22 in. D x 21 in. H
- 20 A, 1.6 kW
- 110 V/50-60 Hz/1 ph, cord with NEMA 5-20P plug connection
- Female 3⁄8-in. NPT dedicated cold water line with manual shut-off valve within 4 ft of the unit
- Minimum 2-in. I.D. open gravity drain within 4 ft of the machine
- 30-70 psi supply pressure
- 2-3 GPG (17.1 ppm per grain) water hardness
*Image may not depict product color, inclusions or accessories.
*Free shipping on Rancilio CLASSE 5 USB 1GR within the 48 contiguous states.
From The Manufacturer
Classe 5 USB Espresso Machine, traditional automatic, 1 group, 4 liter boiler, soft-touch keypads with 4 programmable drink doses, built-in volumetric pump, pressure control gauges, (1) manual steam wand with C-lever steam control, manual valve knob control, hot water dispenser, brushed stainless steel body, ABS & nylon panels, LED work area lights, scratchproof grid system drain tray, CE, cETLus, ETL-Sanitation
Rancilio CLASSE 5 USB 1GR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Rancilio |
| Boilers | Single |
| Depth (in) | 22 |
| Height (in) | 21 |
| Hertz | 50/60 |
| NEMA | 5-20P |
| Number of Bean Hoppers | None |
| Number of Groups | 1 |
| Number of Steam Wands | 1 |
| Output | 160 |
| Phase | 1 |
| Product | Espresso Machines |
| Product Type | Coffee & Tea Service |
| Rating | Best |
| Series | Classe 5 |
| Special Features | Programmable |
| Style | Automatic |
| Tank Capacity | 4 Liter |
| Voltage | 110 |
| Warranty | 1-year Parts & Labor |
| Water Connection | Automatic |
| Watts | 1600 |
| Width (in) | 16 |
| Weight | 115.00 |
