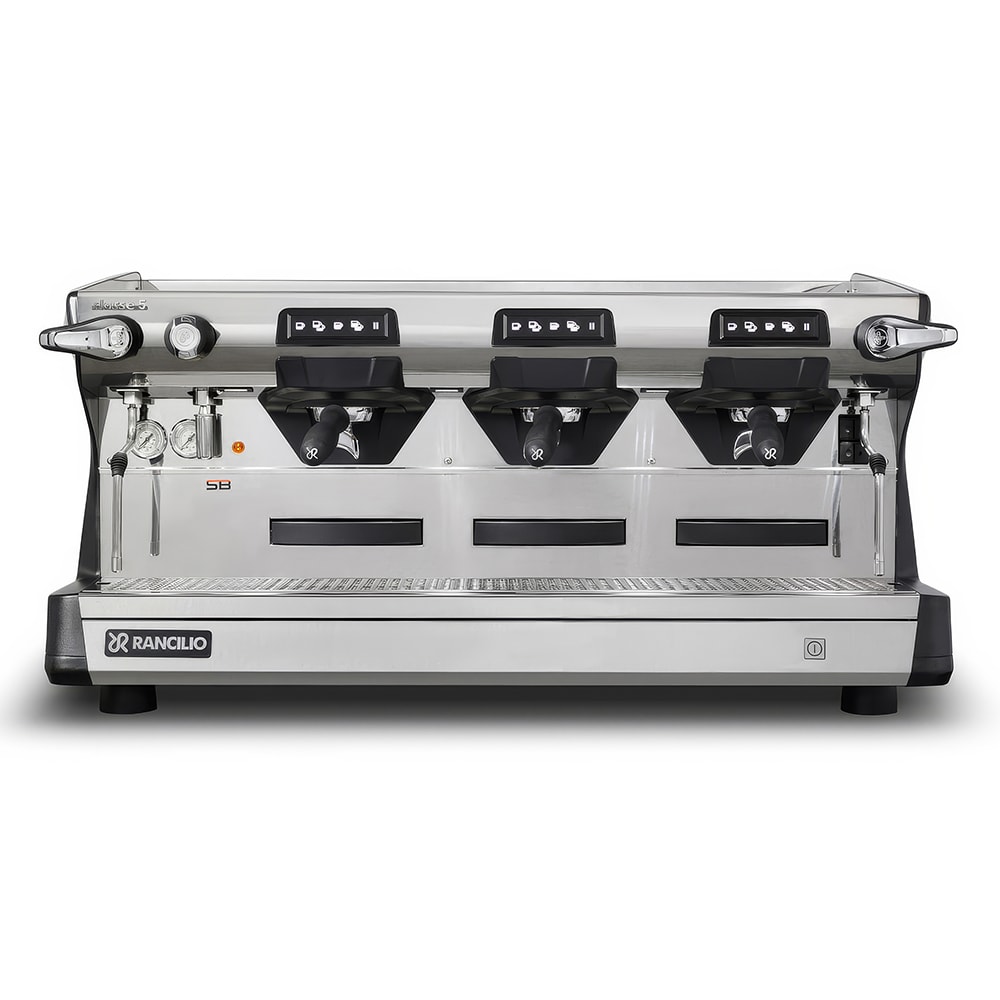

Rancilio CLASSE 5 USB 3GR TALL Classe 5 Automatic Espresso Machine w/ (3) Groups & (2) Steam Wands - 220v/1ph
$12,705.71 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Rancilio CLASSE 5 USB 3GR TALL Description
The tall configuration of the Rancilio CLASSE 5 USB 3GR TALL automatic espresso machine in Anthracite Black brings a bold, refined look to professional beverage bars. Designed for efficiency, it accommodates cups up to 5.7 inches in height, while dual steam wands and the Steady Brew heat exchange system deliver consistent performance through every high-demand brewing cycle.
With the Rancilio CLASSE 5 USB 3GR TALL automatic espresso machine, a brushed stainless steel body reinforced with ABS and nylon side panels enhances durability and visual appeal. LED lighting brightens the workspace, programmable brew settings simplify operation, and adjustable feet provide stable installation across varied counter surfaces, supporting reliable performance in busy beverage environments.
- Classe 5 series
- Traditional automatic espresso machine
- 3 group tall configuration
- Accommodates cups up to 5.7 in. in height
- 16-liter boiler capacity
- 480-cup output per hour
- Soft-touch keypads with 4 programmable drink doses per group
- Built-in volumetric pump
- Boiler and pump pressure control gauges
- 2 manual steam wands with C-lever steam control
- Hot water dispenser with manual valve knob control
- Highly efficient heat exchange boiler with Steady Brew technology
- Electrical heating system
- USB port for saving drink parameters and software updates
- LED work area lighting
- Brushed stainless steel body with ABS and nylon side panels
- Retractable espresso trays for smaller cups
- Scratchproof grid system drain tray
- Adjustable feet
- Anthracite Black finish
- 3 double portafilters, rubber blind disks for cleaning, user manual, and foot extensions included
- Overall dimensions: 40 in. W x 22 in. D x 21 in. H
- 30 A, 6 kW
- 220 V/50-60 Hz/1 ph, cord with NEMA L6-30P plug connection
- Female 3⁄8-in. NPT dedicated cold water line with manual shut-off valve within 4 ft of the unit
- Minimum 2-in. I.D. open gravity drain within 4 ft of the machine
- 30-70 psi supply pressure
- 2-3 GPG (17.1 ppm per grain) water hardness
*Image may not depict product color, inclusions or accessories.
*Free shipping on Rancilio CLASSE 5 USB 3GR TALL within the 48 contiguous states.
From The Manufacturer
Classe 5 USB Espresso Machine, traditional automatic, 3 group tall, accommodates to-go cups, 16 liter boiler, soft-touch keypads with 4 programmable drink doses, built-in volumetric pump, boiler & pump pressure control gauges, (2) manual steam wand with C-lever steam control, manual valve knob control, hot water dispenser, brushed stainless steel body, LED work area lights, scratchproof grid system drain tray, CE, cETLus, ETL-Sanitation
Rancilio CLASSE 5 USB 3GR TALL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Rancilio |
| Boilers | Single |
| Depth (in) | 22 |
| Height (in) | 21 |
| Hertz | 50/60 |
| NEMA | L6-30P |
| Number of Bean Hoppers | None |
| Number of Groups | 3 |
| Number of Steam Wands | 2 |
| Output | 480 |
| Phase | 1 |
| Product | Espresso Machines |
| Product Type | Coffee & Tea Service |
| Rating | Best |
| Series | Classe 5 |
| Special Features | Programmable |
| Style | Automatic |
| Tank Capacity | 16 Liter |
| Voltage | 220 |
| Warranty | 1-year Parts & Labor |
| Water Connection | Automatic |
| Watts | 6000 |
| Width (in) | 40 |
| Weight | 222.00 |
