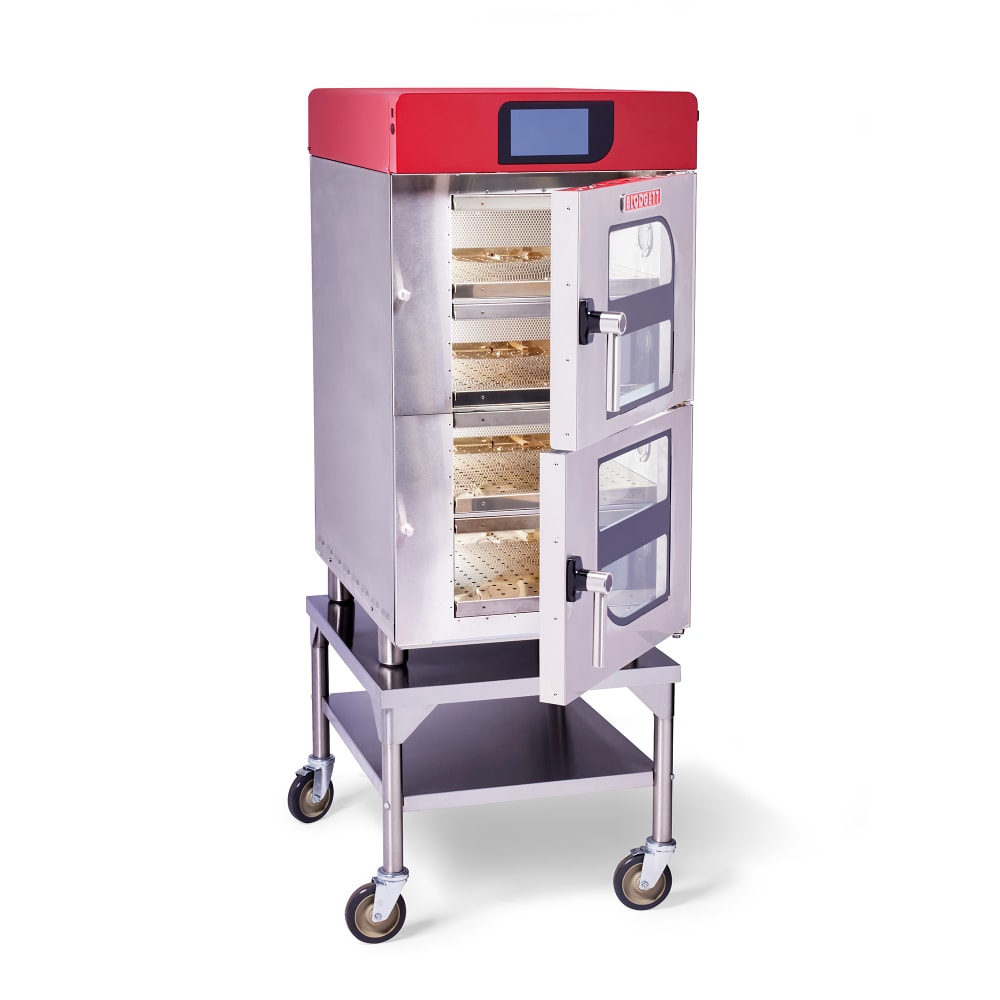

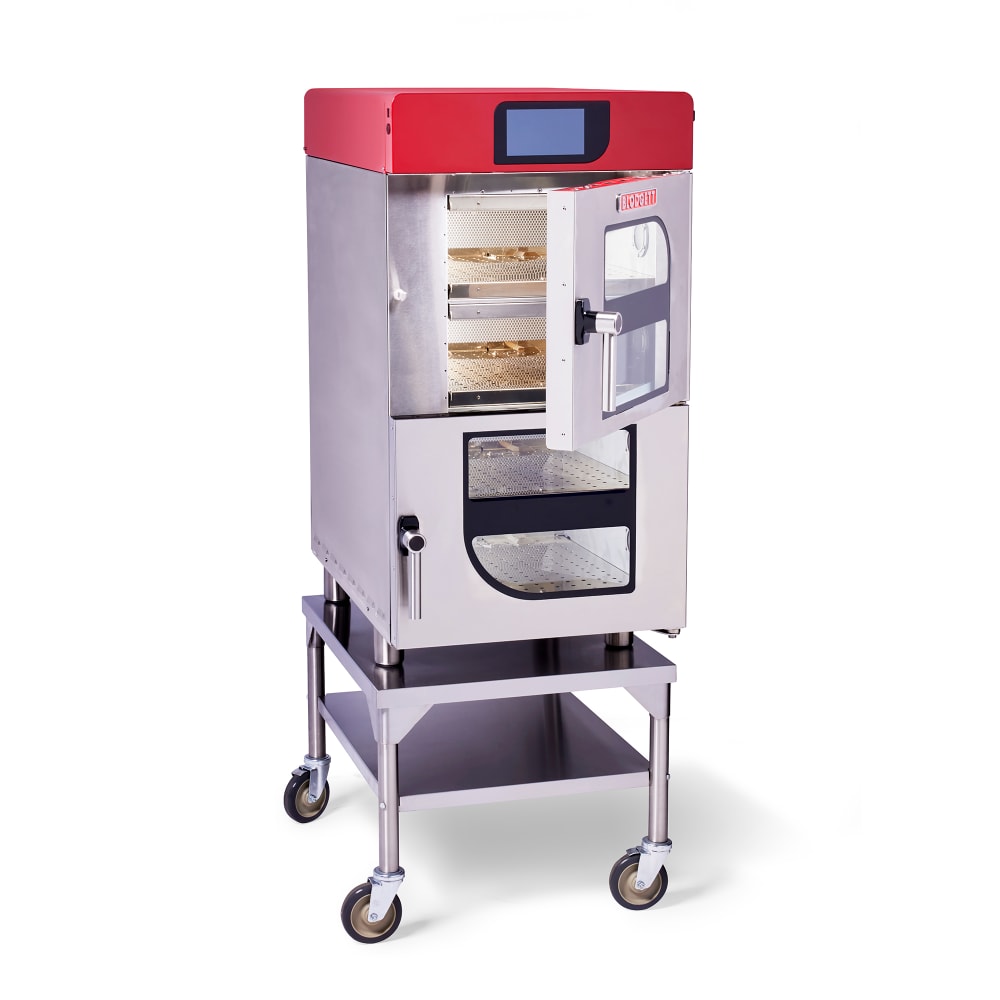

Blodgett IMV-4E Double ImVection High Speed Convection/Impingement Oven - 208v/3ph
$21,736.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Blodgett IMV-4E Description

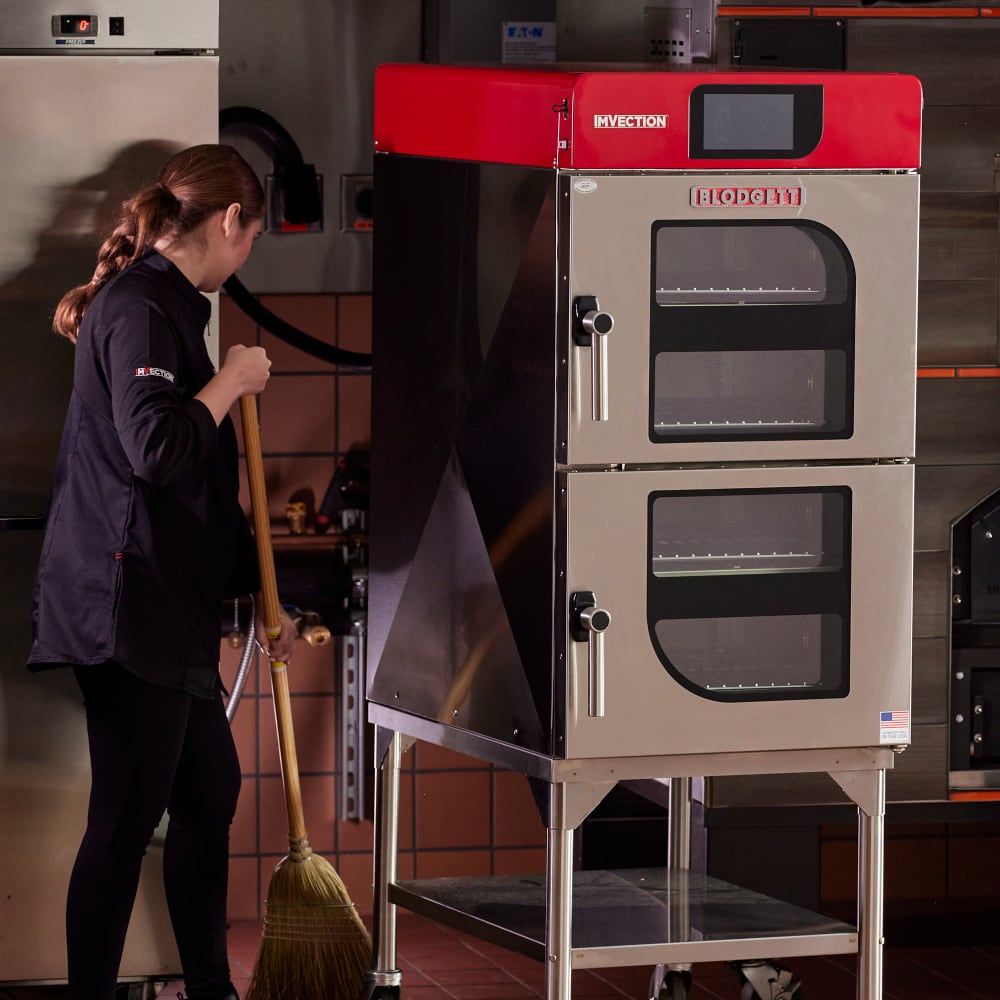

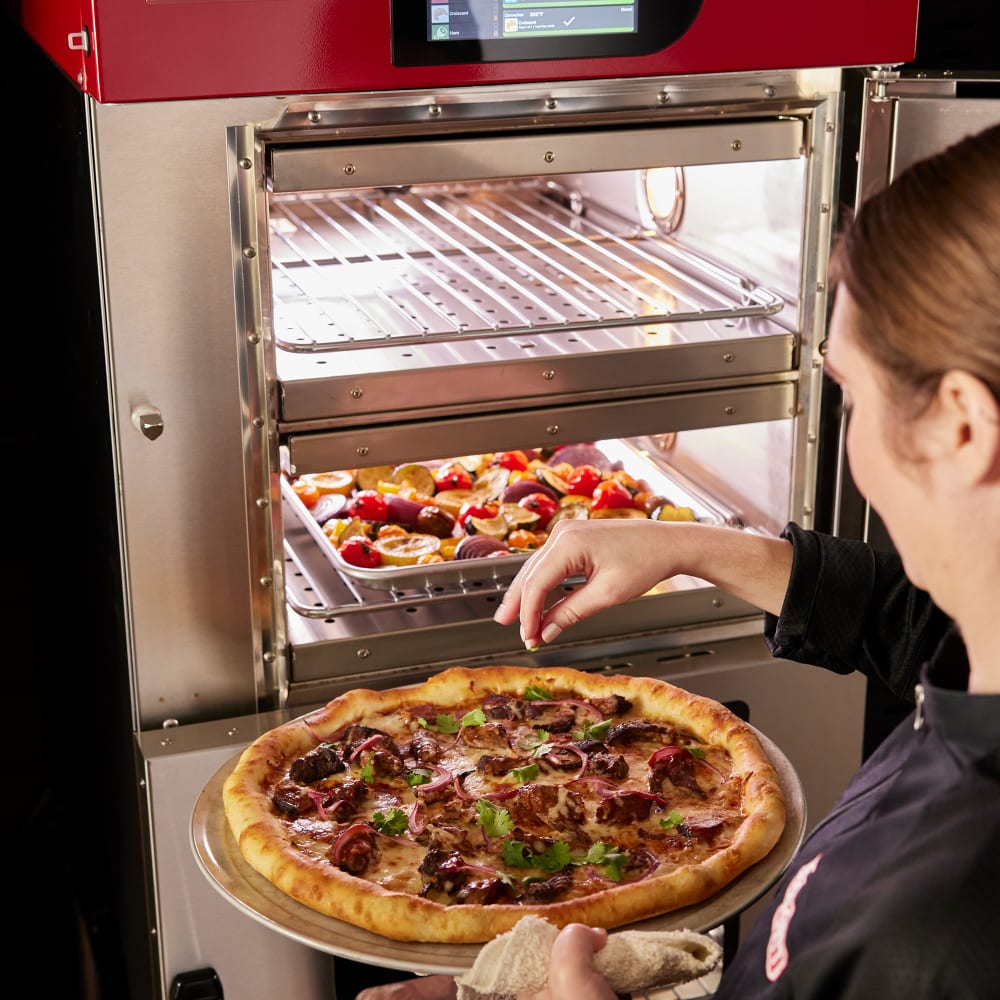

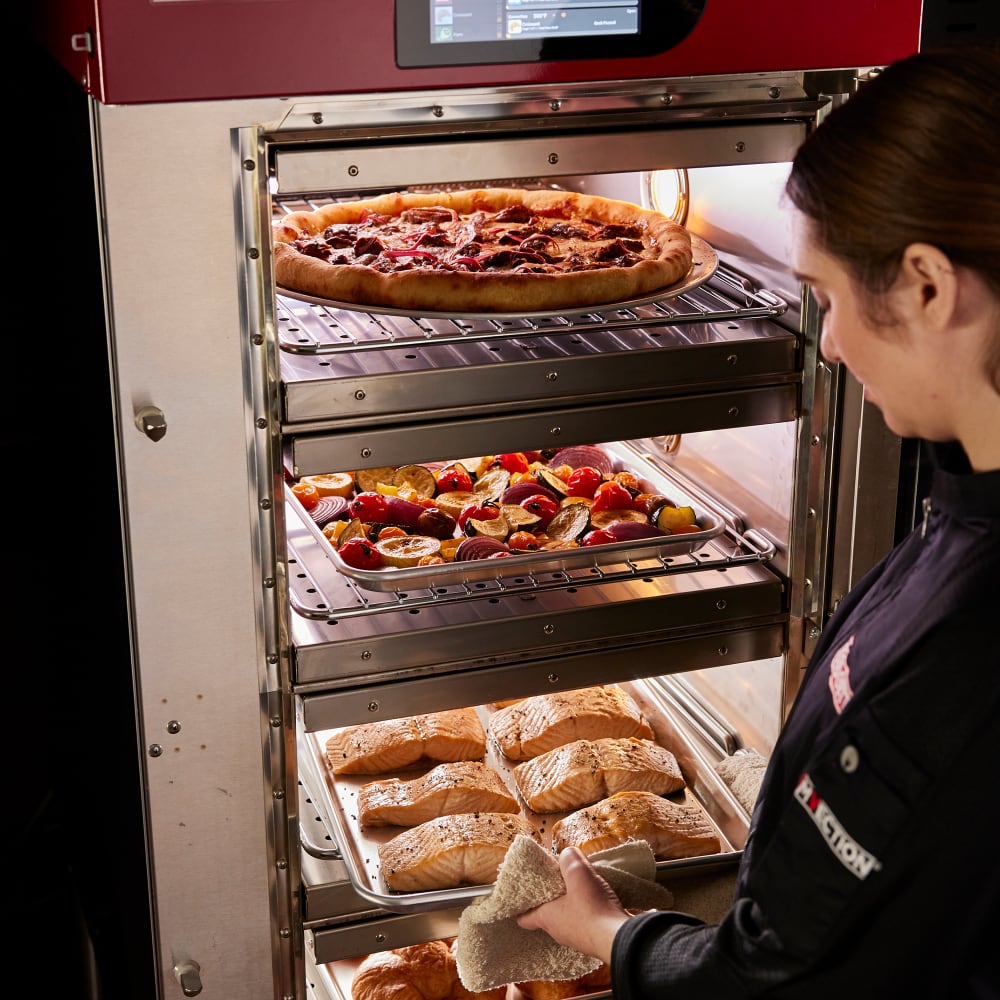

Built with four independently controlled cooking chambers, the Blodgett IMV-4E ImVection oven enables operators to cook multiple menu items simultaneously. Each chamber has its own catalytic converter and automatically switches between impingement and convection cooking based on the selected temperature. The unit accommodates standard half-size baking pans in a front-to-back position, 16-inch round pizza pans, or full-size 12 x 20 hotel pans. Its programmable control system can store more than 100 multi-stage recipes, and the temperature range spans from 300 to 525 degrees Fahrenheit.

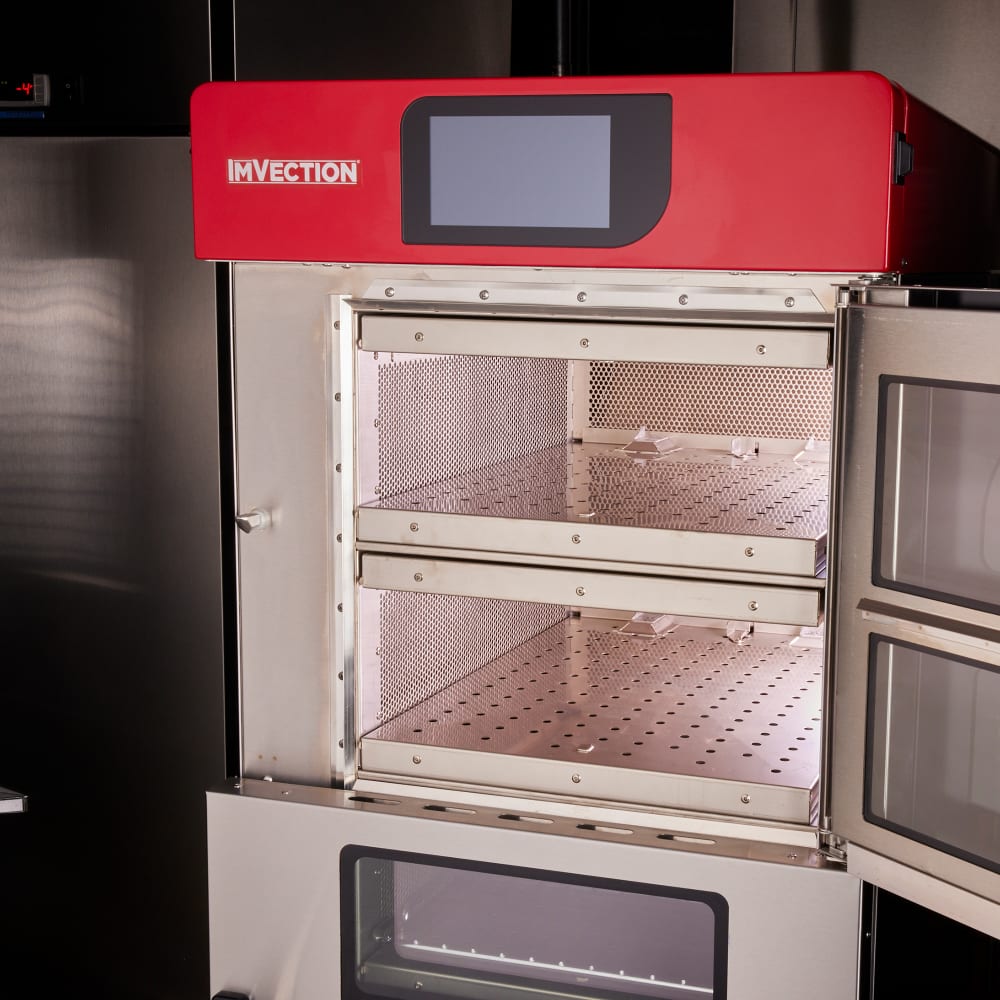

The Blodgett IMV-4E oven is constructed with a stainless steel front, top, and sides for durability, while its 304 stainless steel chamber interior resists corrosion and simplifies cleaning. It includes two independent hinged doors with removable inner glass and a low-emissivity coating to improve heat retention. Each chamber has a wire rack, two jet plates, and a hidden temperature thermocouple. The oven features a meat probe cooking function, dual independent heating elements, and four variable-speed blowers to maintain consistent airflow. For added flexibility, this model is ventless and designed for open kitchen environments.
- ImVection Series
- Double-deck, high-speed convection/impingement configuration

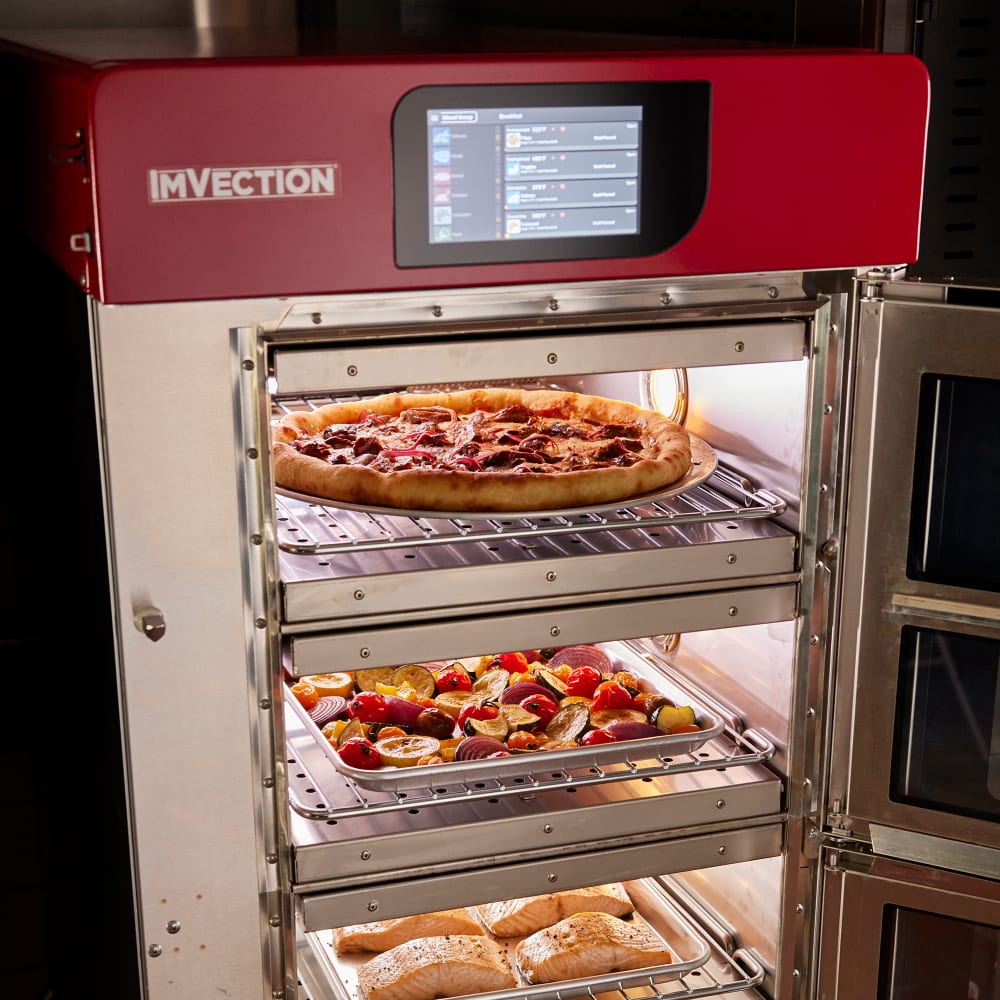

- Four independently controlled cooking chambers
- Automatically switches between impingement and convection modes
- Internal catalytic converter per chamber
- Stainless steel front, top, and sides
- 304 stainless steel chamber interior
- Aluminized rear panels
- Powder-coated control panel and top cover

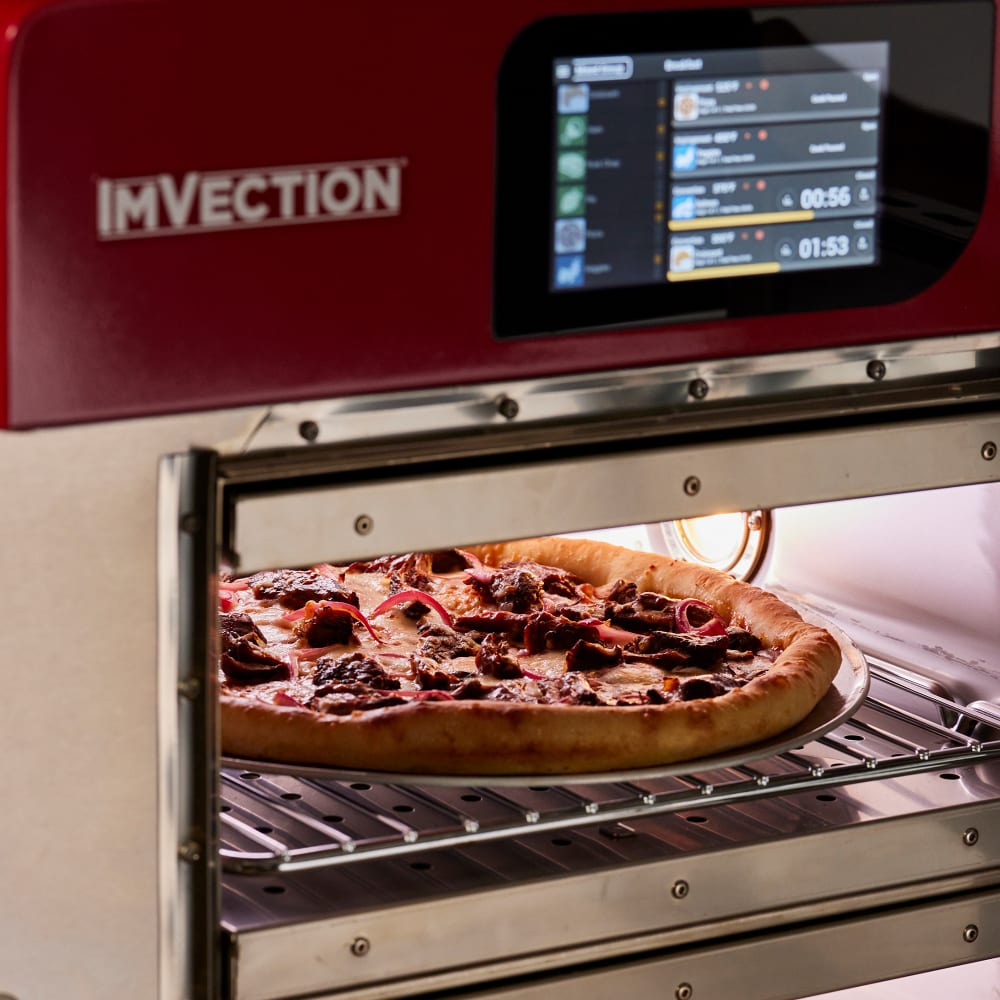

- Accommodates half-size baking pans (front-to-back), 16-in. pizza pans, or full-size 12 x 20 hotel pans
- Temperature range: 300-525 degrees F

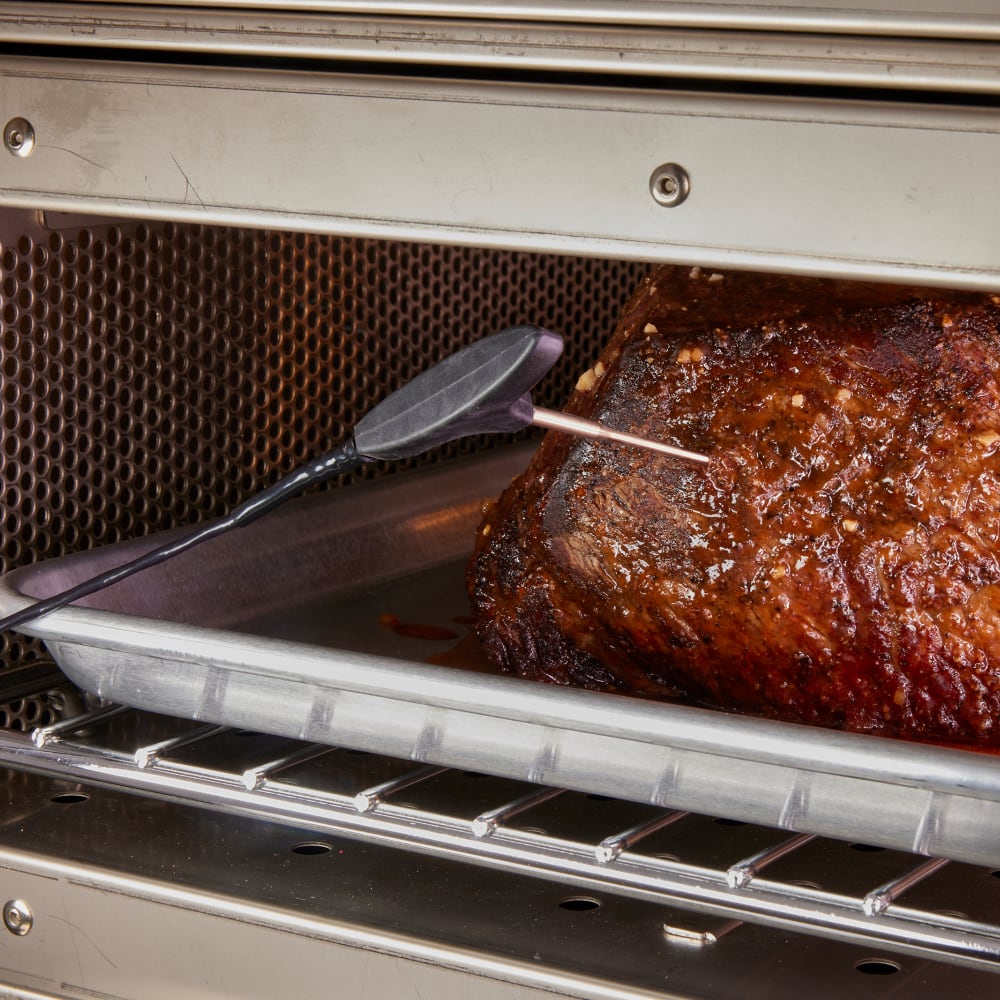

- Meat probe cooking function
- Dual independent heating elements
- Hidden temperature thermocouple per chamber

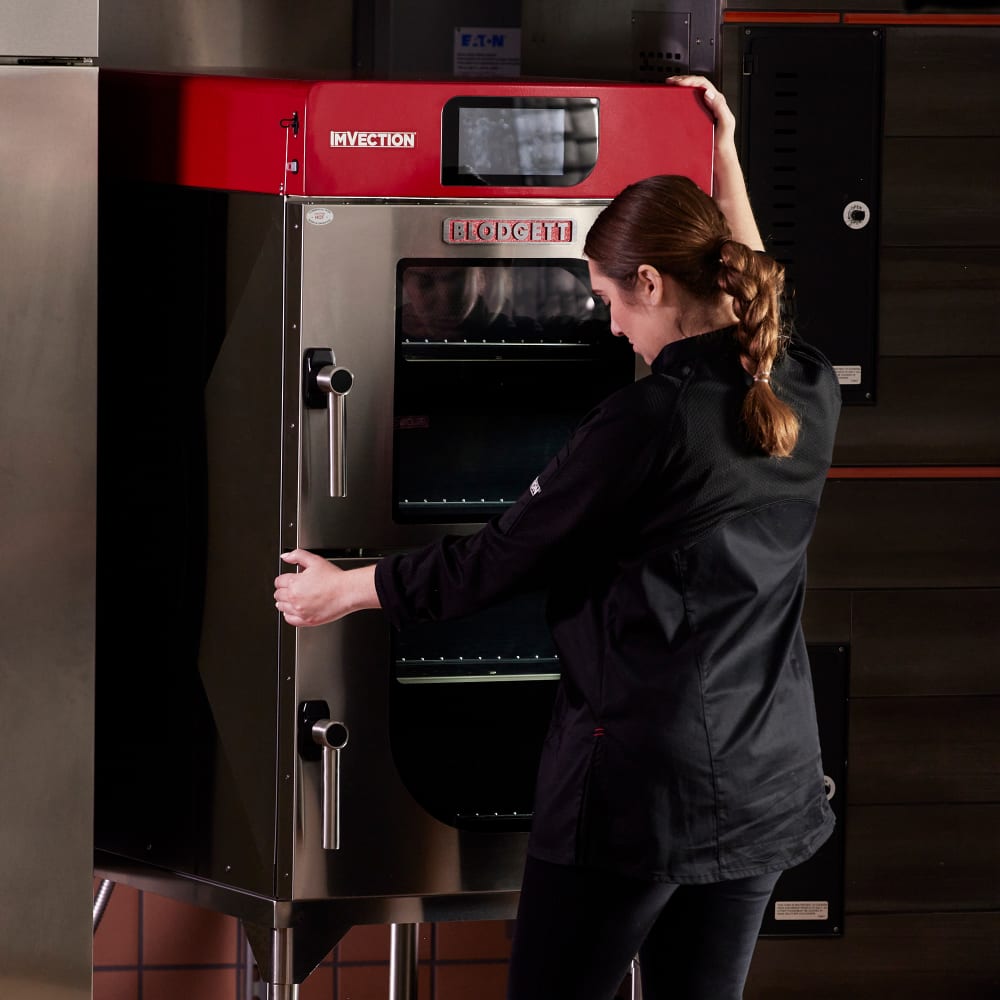

- Two independent hinged doors with removable inner glass
- Low-emissivity glass coating for heat retention
- Four variable-speed blowers

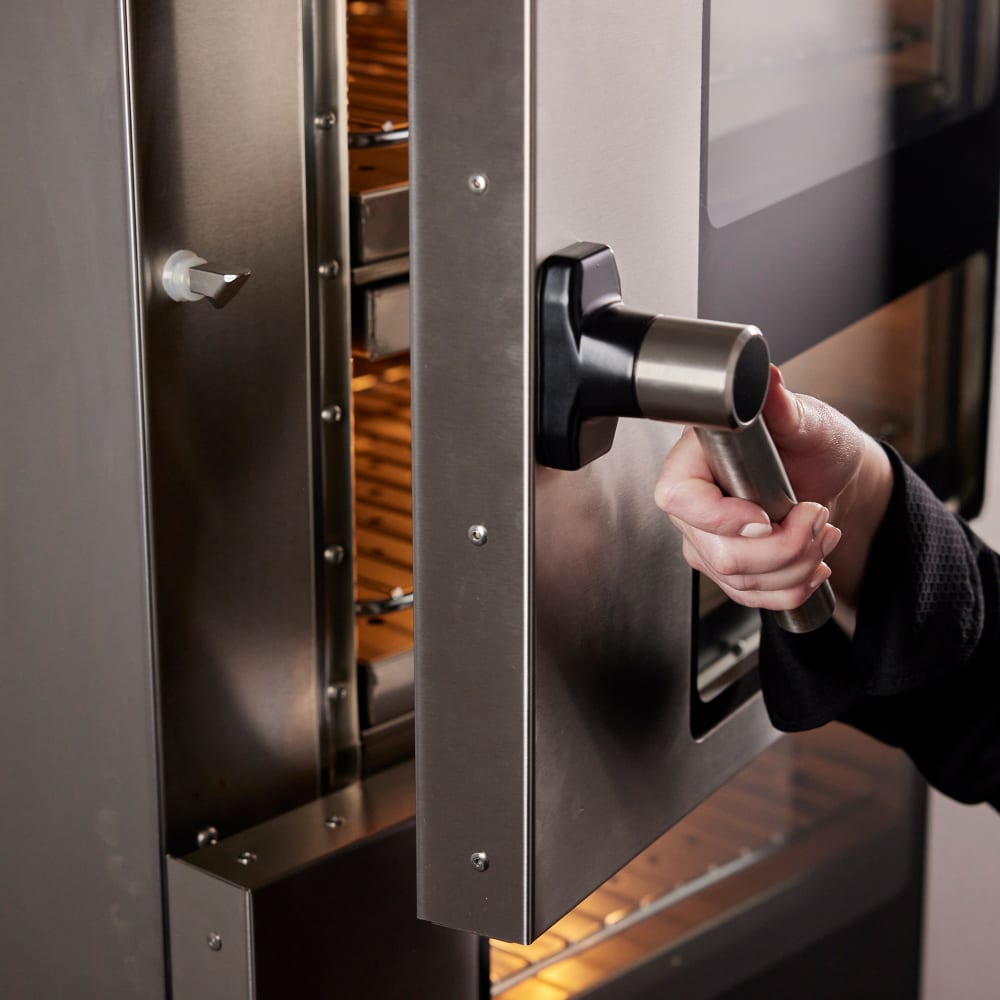

- Pendulum door latch for secure closure
- Ventless operation for flexible placement
- Adjustable legs for stability

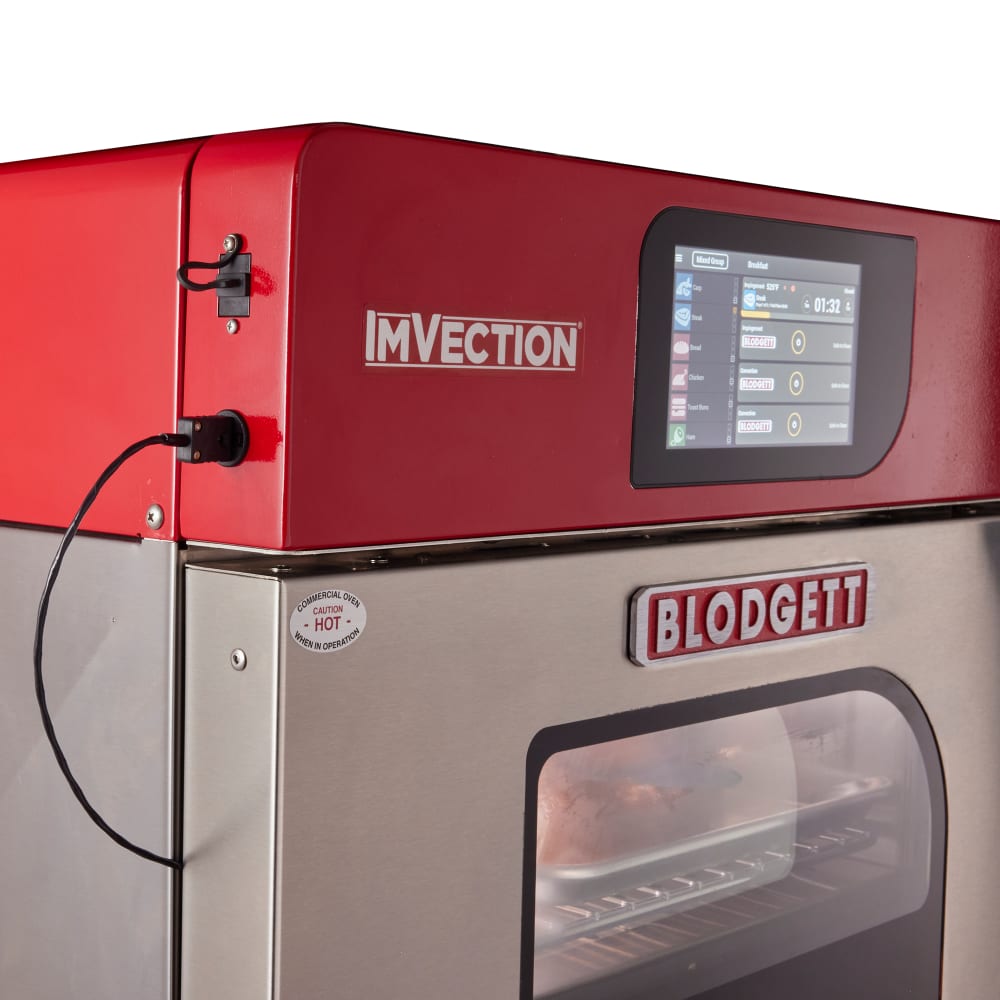

- USB port for recipe storage and updates

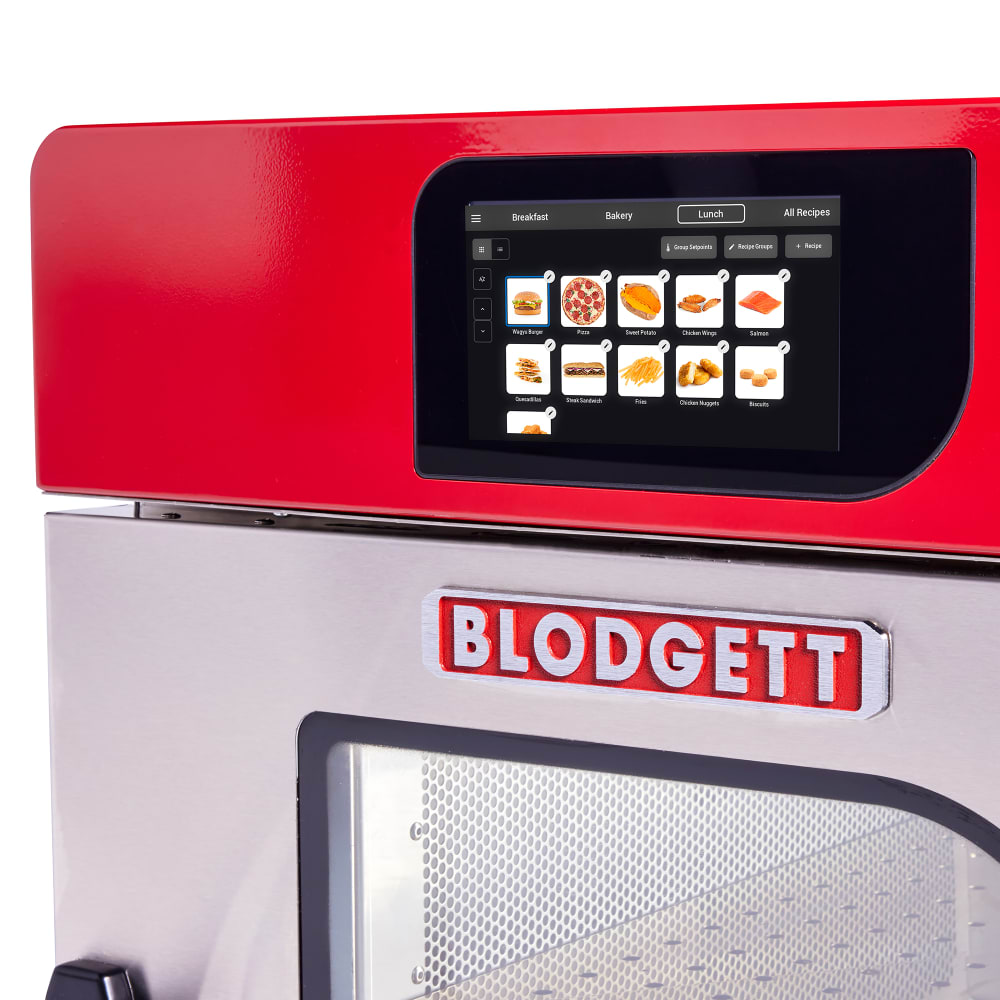

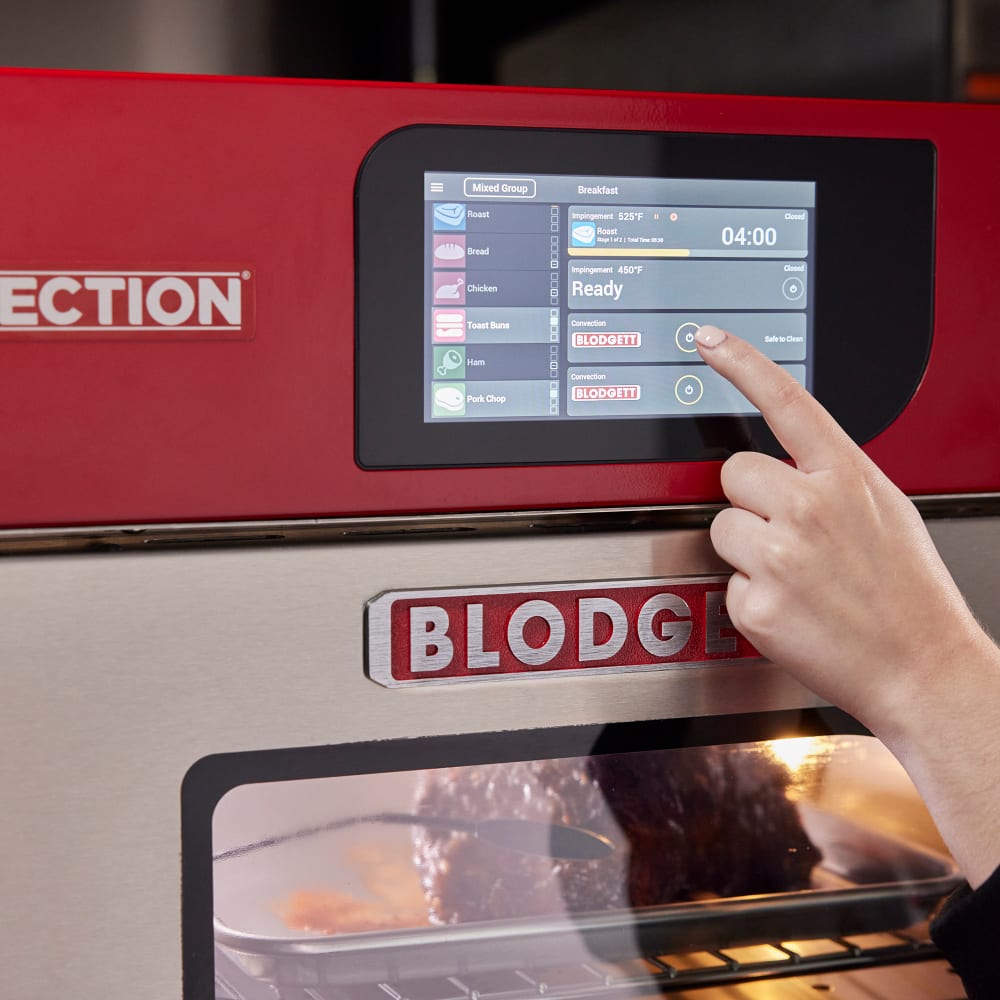

- 7-in. capacitive touchscreen control panel (landscape format)
- Stores 100+ programmable multi-stage recipes
- Top-mounted controls
- Digital temperature adjustment
- Open Kitchen ready
- Overall dimensions: 23 3⁄4 in. W x 37 in. D x 48 3⁄4 in. H
- Interior dimensions: 16 3⁄4 in. W x 21 3⁄4 in. D
- 17.6 kW
- 208V/60Hz/3ph, 6-ft. cord with NEMA 15-50P plug
*Image may not depict product color, inclusions or accessories.
*Blodgett IMV-4E is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
ImVection Oven, electric, standard half-size baking pans in front-to-back-position, 16" round pizza pans, or full size 12 x 20 hotel pan, with (4) independently controlled cooking chambers, each with its own internal catalytic converter, two distinct cook modes: Impingement and Convection, automatically assigned according to selected temperature, temperature range of 300°F - 525°F, (2) independent hinged doors with removeable inner glass, interior light, wire rack, 2 jet plates per chamber, programmable control capable of storing 100+ multi-stage recipes and Open Kitchen ready, stainless steel front, top and sides, 17.6 kW, USB port, HACCP
Watch a video about this product
Blodgett IMV-4E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | Legs |
| Color | Silver |
| Controls | Touch Screen |
| Depth (in) | 37 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 48.75 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Interior Depth (in) | 21.75 |
| Interior Width (in) | 16.75 |
| Kitchen Innovations Awards | 2024 |
| kW | 17.6 |
| NEMA | 15-50P |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 4 |
| Phase | 3 |
| Product | High Speed Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | ImVection |
| Size | Full Size |
| Special Features | Adjustable Legs |
| Special Features | Double-Wall Glass Door |
| Special Features | Probe |
| Special Features | Programmable |
| Special Features | Ventless |
| Type | Convection/Impingement |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 23.75 |
| Weight | 650.00 |
