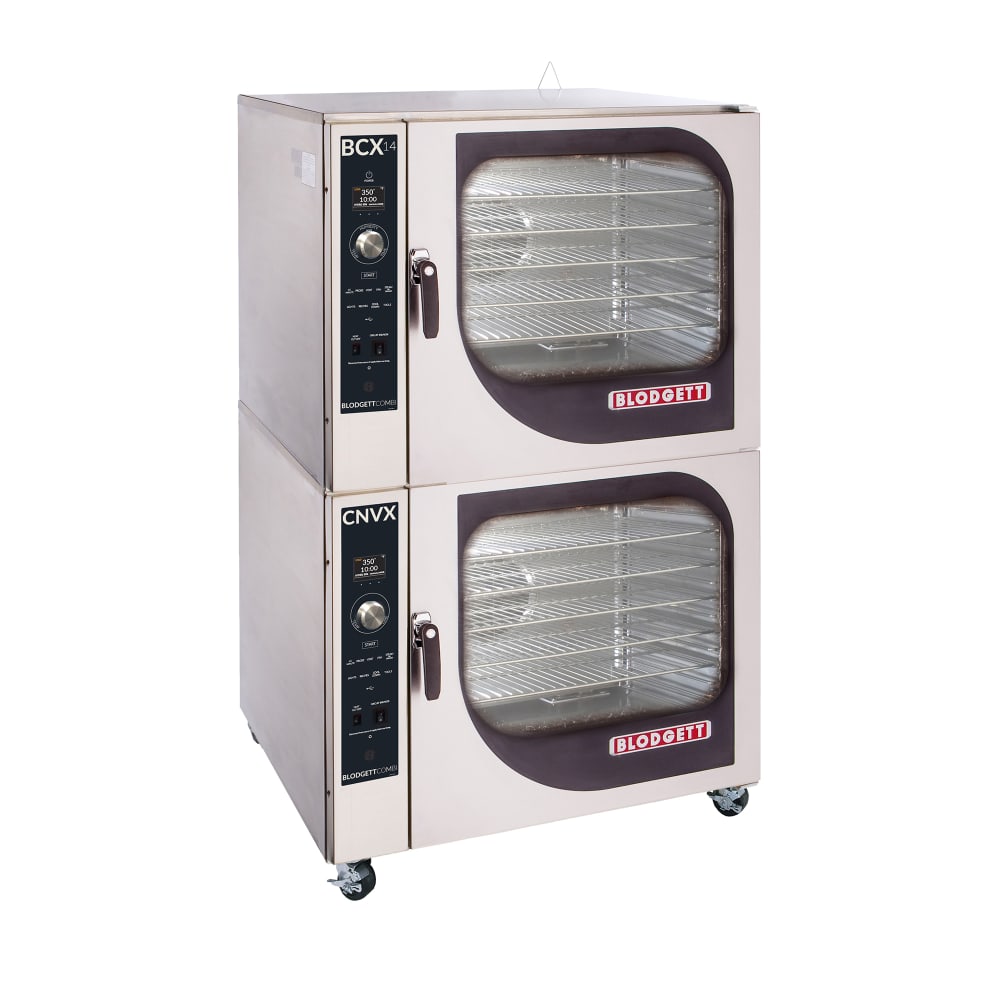

Blodgett BX-14E Double Full-Size Combi-Oven, Boilerless, 208v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 015-BX14EDOUBL2083 • MPN: BX-14EDBL 2083
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Retail Price: $34,388.75

Image may not depict product color, inclusions or accessories.

Blodgett BX-14E Description


The Blodgett BX-14EDBL double full-size combi oven has a manual control system with a thermostat that adjusts as high as 500 degrees Fahrenheit. A multiple speed, reversing fan control ensures heated air is evenly circulated throughout the compartments. The controls have modes for hot air, humidity, and cool down with an additional function for steam on demand. With a core probe cook and hold function, a 4-inch temperature probe is used to ensure the temperatures are accurate. When there is too much steam in the compartments, the cavity vent control lets the user release steam at the flip of a switch.

Each compartment comes with five stainless steel racks, but they can accommodate up to seven full-size sheet pans or 14 full-size hotel pans. Halogen lights brighten the cavities so staff can view the cooking product, and glass windows in the doors create visibility from the exterior. Even though the windows are double paned, they are easy to clean since the inner pane is hinged. This Blodgett BX-14EDBL double full-size combi oven is fully insulated, so heat stays inside.

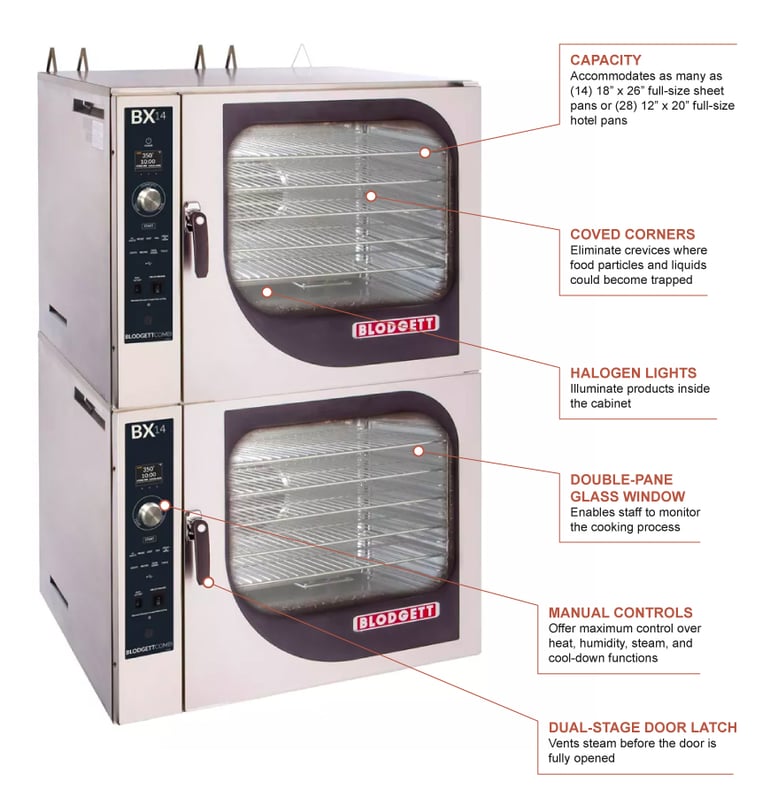

Product Details

  • Includes 10 heavy-duty, corrosion-resistant stainless steel racks
  • Removable stainless steel side rails can accommodate (14) 18-in. x 26-in. sheet pans or (28) 12-in. x 20-in. hotel pans with 3.25 in. of spacing
  • Halogen lighting increases visibility in the compartments for monitoring the cooking cycle
  • Stainless steel interior liners eliminate crevices with coved corners, preventing liquids and food particles from getting trapped
  • Fully insulated compartments help keep heat inside while creating structure
  • Fixed drain in the bottom keeps water contained for simple cleaning
  • Stainless steel top, back, front, and sides resist corrosion, scratches, and dents
  • Welded stainless steel frame adds structural stability
  • User interface panel pivots out to provide convenient access for maintenance
  • Includes a pressure spray bottle for interior cleaning
  • Includes a floor stand with rack supports
  • Casters can be mounted for simple movement
  • Blodgett provides a start-up inspection by a factory-authorized service agent
  • Requires a 2-in. clearance for the sides and 3-in. clearance for the rear
  • 208 V/60 Hz/3 ph, 38 kW, (2) 12 HP
  • Overall dimensions: 40.16 in. W x 43.3 in. D x 68.98 in. H
  • cETLus listed; NSF certified

Manual Control System

  • Includes hot air, humidity, and cool down functions
  • Steam on-demand feature adds steam to any cook cycle
  • Thermostat controls adjust as high as 500 degrees F
  • 4-in. core probe is great for seeing internal temperatures of product and plugs into the control panel
  • Digital display shows the probe temperature for simple monitoring
  • Multiple speed, reversing fan control ensures baking is even throughout the compartments
  • Dual stage door latch lets steam vent before the door is opened fully
  • Cavity vent control lets the user release steam with the flip of a switch
  • 100 recipes can be uploaded through the USB port for consistent cooking of popular items

Heavy-duty Door Construction

  • Double-pane glass windows make it easy for staff to monitor the cycle
  • Inner glass has hinges for quick, thorough cleaning
  • Door-mounted condensate trough catches excess moisture
  • Top- and bottom-mounted door hinges adjust easily

Combi Oven Steamer, electric, boilerless, stacked, (14) 12" x 20" full size hotel pan or (7) 18" x 26" full size sheet pan capacity per compartment, Steam-on-Demand & Vario Steam, 4-speed fan, core temperature probe, glass door, 13-position rack glides, (5) wire shelves, retractable hose reel, hardware & 4" low profile casters, 38.0 kW total, (2) 1/2 HP, NSF, cETLus, 208v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Blodgett BX-14E Specifications

PDF Spec Sheet
Manufacturer Blodgett
Compartments Double
Heat Electric
Pan Capacity 14
Size Full Size
Steam Generator Boilerless
Steam Source Spritzer
Warranty 1 years parts, 1 year labor, No additional year door warranty
Phase 3
Voltage 208
Hertz 60
Product Type Ovens
Product Combi Oven
Weight 1220.00
Blodgett BX-14E Certifications
  • NSF
  • ETL
