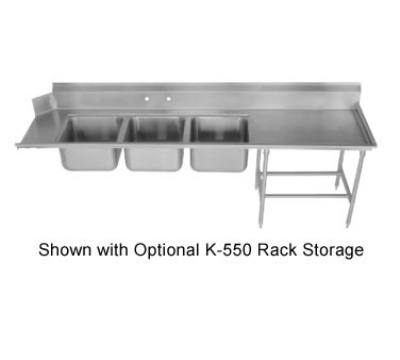

Advance Tabco DTC-3-1620-84R Dish Table - (3) 16x20x12" Bowls, 15" Right Drainboard, 16 ga 304 Stainless

Image may not depict product color, inclusions or accessories.

KaTom #: 009-DTC3162084R • MPN: DTC-3-1620-84R-X

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $4,854.00
$2,319.00 / Each

Image may not depict product color, inclusions or accessories.

Advance Tabco DTC-3-1620-84R Description

Advance Tabco

In order to optimize space, the Advance Tabco DTC-3-1620-84R dish table has three deep drawn sink compartments for washing, rinsing, and sanitizing dirty dishes. These sinks have 3-inch radius corners and are located 12 inches away from the dishmachine when installed. Since the table is all TIG welded, it has a polished, sleek finish and is a high quality product because of the slow welding process. The areas that have been welded on the DTC-3-1620-84R dish table have also been blended to a satin finish in order to match the adjoining surfaces. Legs, cross bracing, channels, and bullet feet are made of stainless steel.

Product Details

  • 1 12 IPS waste drains
  • Faucet holes punched on 8-in. centers in splash (faucets NOT included)
  • Sinks are located 12-in. from machine when installed
  • 3 compartment, deep drawn, 3-in. large liberal radius, seamless sinks
  • Tile edge for easy installation
  • All TIG welded for uniformity and durability
  • 16 gauge stainless steel
  • Stainless steel legs, cross bracing, and bullet feet
  • Gussets are welded to channels of stainless steel
  • Welded areas blended to match adjoining surfaces and to satin finish
  • Overall Dimensions: 83 in. L x 30 in. W x 44 12 in. H

Dishtable with 3-compartment, Sink, (3) 16" x 20" x 12" bowls, 16 gauge 304 series stainless steel top, stainless steel legs & f-b crossrails, stainless steel bullet feet, 15" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Advance Tabco DTC-3-1620-84R Specifications

PDF Spec Sheet
Manufacturer Advance Tabco
Construction Best - 14 ga SS Top, 16 ga. SS Legs
Direction Right to Left
Length (in) 83
Size 7 ft
Style Straight
Product Dish Table
Product Type Commercial Work Tables & Stations
Special Features 3 Compartment Sink
Weight 200.00
