Producing quality stainless steel fixtures since 1929, Advance Tabco specializes in tables, sinks, shelving, and more. It offers more than 6,000 stock products and specializes in customizable products to fit the size and style of any operation.

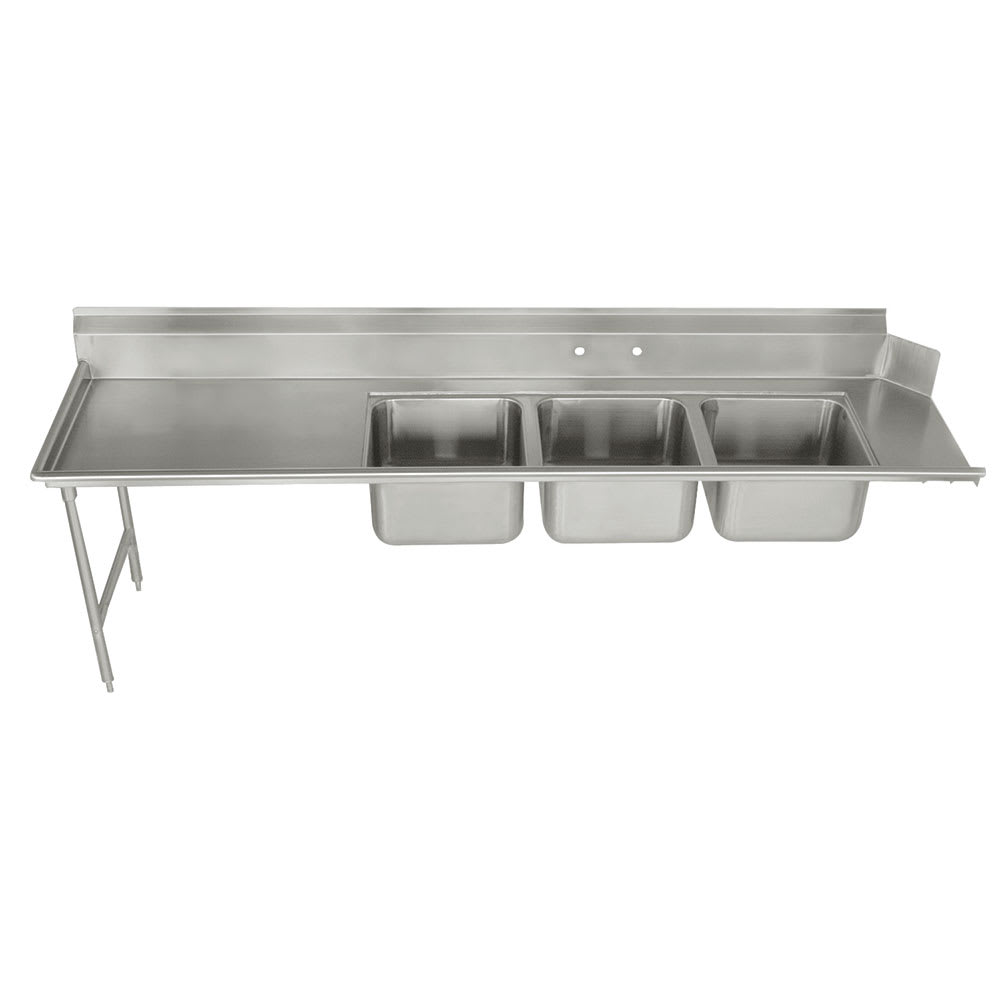

Advance Tabco DTC-3-1620-84L Dish Table - (3) 16x20x12" Bowls, 15" Left Drainboard, 16 ga 304 Stainless
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $4,400.00
$2,293.72 /Each
White Glove Delivery
Contact your sales rep for availability
Advance Tabco DTC-3-1620-84L Description
The Advance Tabco DTC-3-1620-84L dish table features three compartment sinks positioned to maximize the available work surface area. Positioned 12 inches away from the dishwasher when the unit is installed, the Deep Drawn sink bowls are constructed of one piece with a 3-inch large liberal radius corners. There is a tile edge on the unit for the ease of installation and components are TIG welded for a sleek, polished look. The welded areas are blended to a satin finish and to match the neighboring surfaces on the DTC-3-1620-84L dish table Faucets are not included, but the faucet holes in the splash are punched on 8 inch centers.
Product Details
- 11⁄2 in. IPS waste drains
- Faucet holes in splash are punched on 8-in. centers (faucet NOT included)
- 3 compartment sinks
- 1-piece, deep-drawn sink bowls with 3-in. large liberal radius corners
- Tile edge for easy installation
- All TIG welded for uniformity and durability
- Welded areas blended to satin finish to match neighboring surfaces
- Gussets welded to channels are made of stainless steel
- 16 gauge stainless steel
- Stainless steel bullet feet
- Stainless steel leg and cross bracing
- 10-in. extra-large back splash with 2-in. return
- Sink bowls located 12 in. from dishwasher when installed
- Seamless construction of sinks
- Overall dimensions: 83 in. L x 30 in. W x 44 1⁄2in. H
From The Manufacturer
Dishtable with 3-compartment, Sink, (3) 16" x 20" x 12" bowls, 16 gauge 304 series stainless steel top, stainless steel legs & f-b crossrails, stainless steel bullet feet, 15" left drainboard, bowls are located 12" from machine, NSF , NSF (must verify machine to make sure the control box does not interfere)
*Image may not depict product color, inclusions or accessories.
90-day Parts
Advance Tabco DTC-3-1620-84L Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 10.5 |
| Base | Open |
| Construction | Best - 14 ga SS Top, 16 ga. SS Legs |
| Direction | Left to Right |
| Height (in) | 44.5 |
| Includes | Backsplash |
| Length (in) | 30 |
| Material | Stainless Steel |
| Product | Dish Tables |
| Product Type | Commercial Work Tables & Stations |
| Series | DTC Series |
| Size | 7 ft |
| Style | Straight |
| Type | Dishtable |
| Warranty | 90-day Parts |
| Width (in) | 83 |
| Weight | 200.00 |
