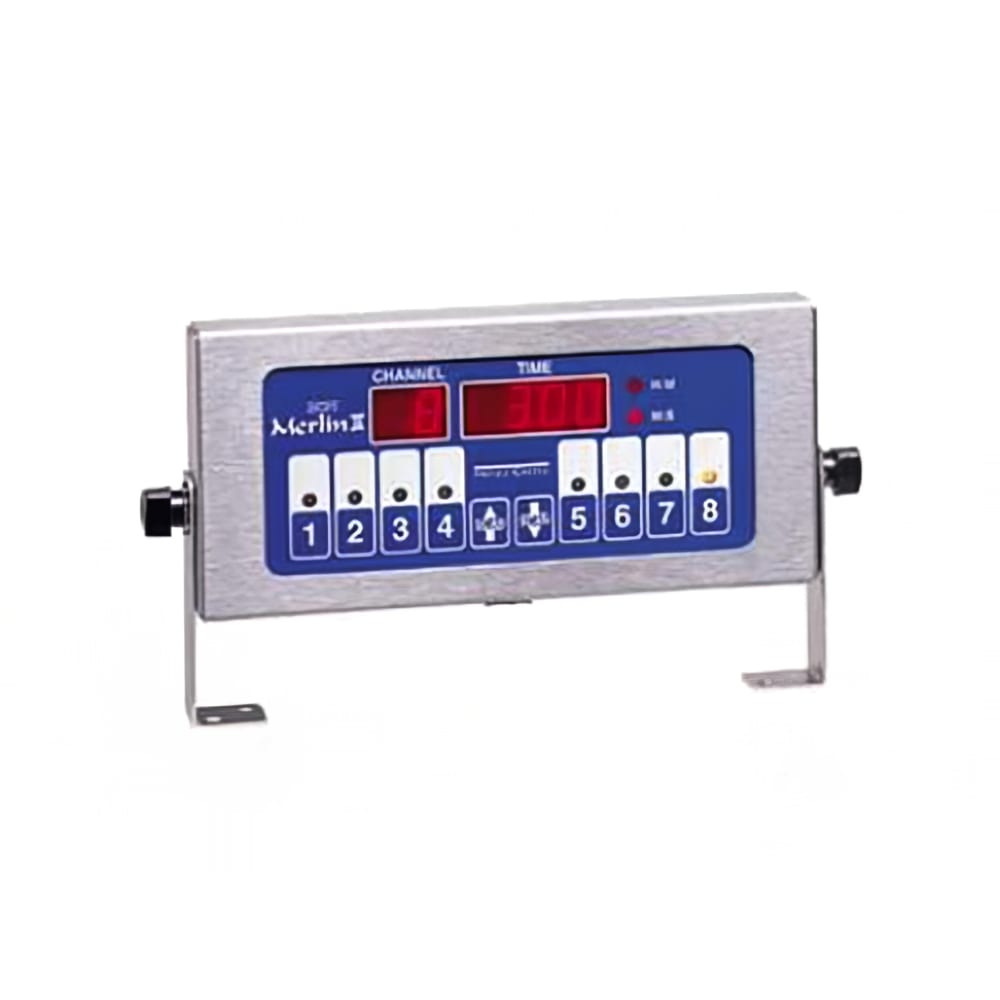

Prince Castle 740-T8 8 Channel Single Function Electric Timer, Bold LCD Readout, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 005-740T8 • MPN: 740-T8

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $842.35
$492.78 / Each

Image may not depict product color, inclusions or accessories.

Prince Castle 740-T8 Description

Prince Castle

This Prince Castle 740-T8 timer provides your kitchen staff with eight individually-programmable timers that can be activated simultaneously to monitor up to eight different tasks at once, from cooking and holding processes to handwashing and other kitchen procedures. These timers are designed to be easily programmable, with push buttons for selecting a channel and inputting the desired time, which can be formatted in hours and minutes or minutes and seconds. To keep kitchen staff informed about which channel is assigned to which item or task, this timer ships with removable labels that are meant to be changed with no hassle.

To make sure the end of a countdown does not go unnoticed, the Prince Castle 740-T8 timer issues audio and visual indicators. The audible beep is a dual tone alarm, while the visual signal is a flashing channel light. The channel indicator lights also show different colors to reflect how much time is left on the countdown, changing from green to yellow and then to red to warn operators that time is close to expiring. The digital display shows the time remaining on the selected channel. This Prince Castle timer comes standard with 312-inch mounting brackets, a 10-foot cord, and NEMA 5-15P plug for use with 120 volts.

Product Details

  • Electric timer with 8 channels
  • Channels can be used simultaneously for timing multiple tasks
  • Push button functionality selects channels and programs them
  • Programmable to count down in hr.-min. and min.-sec. combinations
  • Digital display shows the chosen channel and remaining time
  • Audio and visual alarm indicates the end of the selected time cycle
  • Identify channels with removable labels to reflect current items or tasks
  • Comes standard with 312-inch mounting brackets
  • 120 V/60 Hz/1 ph, NEMA 5-15P plug and 10-ft. cord included
  • Overall Dimensions: 10.43 in. W x 1.09 in. D x 4 in. H
  • cULus Listed

Channel Indicator Lights

  • Channel lights give advance warning when time cycle nears its end
  • Green indicates the first 70 percent of a time cycle
  • Yellow indicates the next 20 percent of a time cycle
  • Red indicates the last 10 percent of a time cycle

Merlin II Single Function Timer, electronic, 8-channel, single display, independently functioning programmable channels, multi colored LED channel indicators, digital channel display, dual tone alarm, includes 3-1/2" mounting brackets & menu labels, 10 ft. cord, "fat plug" transformer, 120v/60/1-ph, .083 amps, NEMA 5-15P cUL, UL

Warning Small Important Prop 65 information for California residents.

Prince Castle 740-T8 Specifications

PDF Spec Sheet
Manufacturer Prince Castle
Phase 1
Voltage 120
Hertz 60
Weight 4.20
Prince Castle 740-T8 Certifications
  • UL
