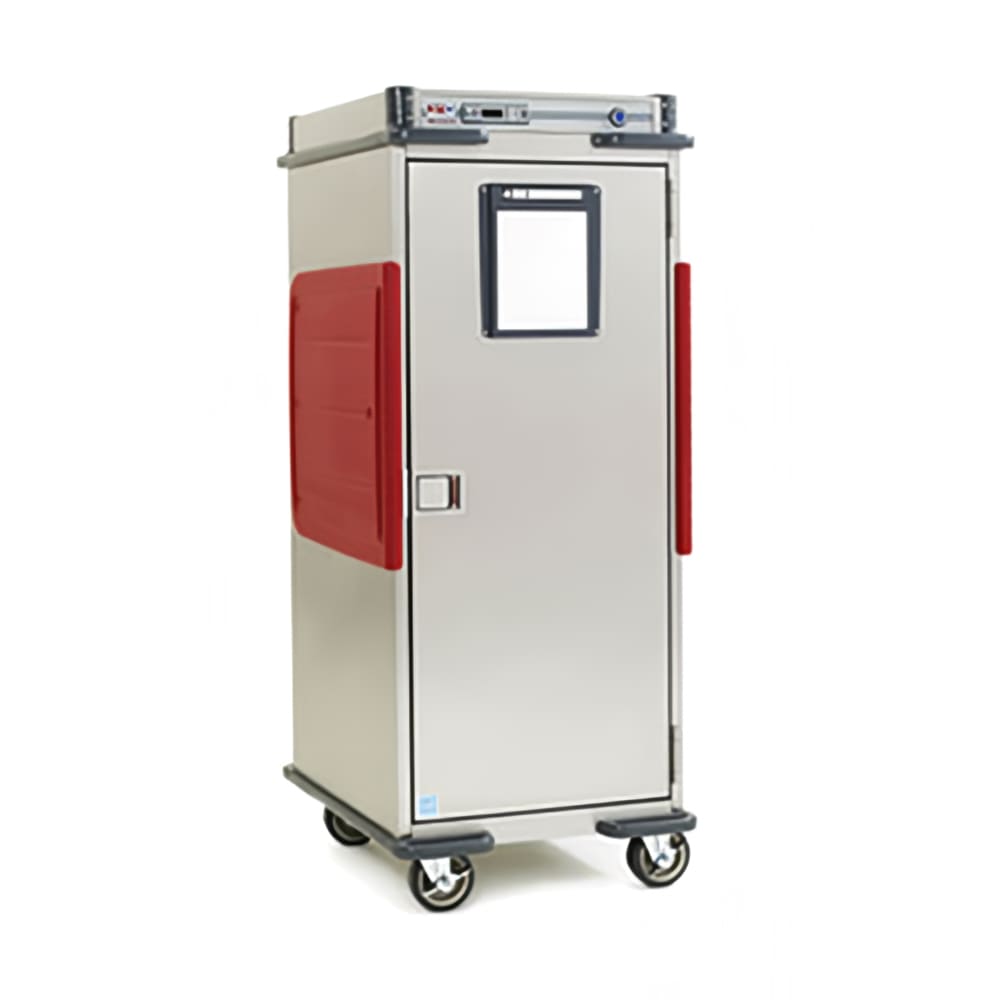

Metro C5T9-DSL Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v

This Metro C5T9-DSL C5™ T-Series heavy-duty mobile heated cabinet is made of durable, corrosion-resistant stainless steel to withstand high-volume, long-term use. Because this unit can be moved, it's built with Transport Armour™ protective features, which shield the exterior from colliding with walls, furniture, or other pieces of equipment that could create dents, scratches, and scuffs. Its polymer handles are steel reinforced and act as bumpers to reduce impact, while its polymer side panels protect the unit from door handles and panic bars. To streamline access to the cavity, it features a reach-in layout and a solid, welded, 20-gauge stainless steel door. For quick identification, the door is equipped with a three-function information panel, which includes a clipboard, whiteboard, and cabinet ID. Overall, this unit measures 30 inches wide by 39¹/₄ inches deep by 73⁷/₈ inches high and is mounted on 6-inch casters.

To ensure precooked foods are stored in a safe environment, the Metro C5T9-DSL heated cabinet's ducted convection heating system produces and maintains temperatures as high as 200 degrees Fahrenheit. Operators can adjust cavity temperatures with the solid-state digital controller, while the mobile power option provides a battery-powered source so the control panel is operable when the unit is unplugged or in transit. Other digital controls include a digital display, recall and memory button, low- and high-temperature alarms, and diagnostic troubleshooting. Designed to accommodate large-volume warming applications, the adjustable lip-load slides can hold 32 steam pans or 16 sheet pans.

Product Details

• Reach-in, full-height layout with 1 cavity
• Top-mounted, solid-state digital controls: digital temperature display, mobile power, diagnostic troubleshooting, low- and high-temperature alarms, and recall and memory button
• Convection ducted heating system
• Foamed-in-place polyurethane insulation built into cabinet and door
• Maximum cabinet holding temperature: 200 degrees F
• Pan capacity: (32) 12-in. x 20-in. x 2¹/₂-in. steam pans or (16) 18-in. x 26-in. sheet pans
• Type 304 stainless steel construction
• Full-length, solid door with clipboard, whiteboard, and cabinet ID
• Transport Armour with steel-reinforced polymer handles and polymer panels
• 6-in. swivel casters (2 with brakes)
• Clearance requirement: 18 in. from cooking equipment
• Minimum clearances for sides, back, and top: 1¹/₂ in.

Product Features

Dimensions & Utilities

• 30 in. W x 39¹/₄ in. D x 73⁷/₈ in. H
• 12 A, 1,400 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

*Free shipping on Metro C5T9-DSL within the 48 contiguous states.

From The Manufacturer

C5™ T-Series Transport Armour™ heavy-duty insulated mobile heated cabinet, full height, adjustable lip load slides 3-2/5" OC, top mount solid state digital controls with mobile power (16) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 304 stainless steel, foamed-in-place polyurethane insulation, maximum temperature 200°F, 6" casters, 120V/60/1, 1400 watts, 12 amps, NEMA 5-15P, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects

Metro C5T9-DSL Specifications
