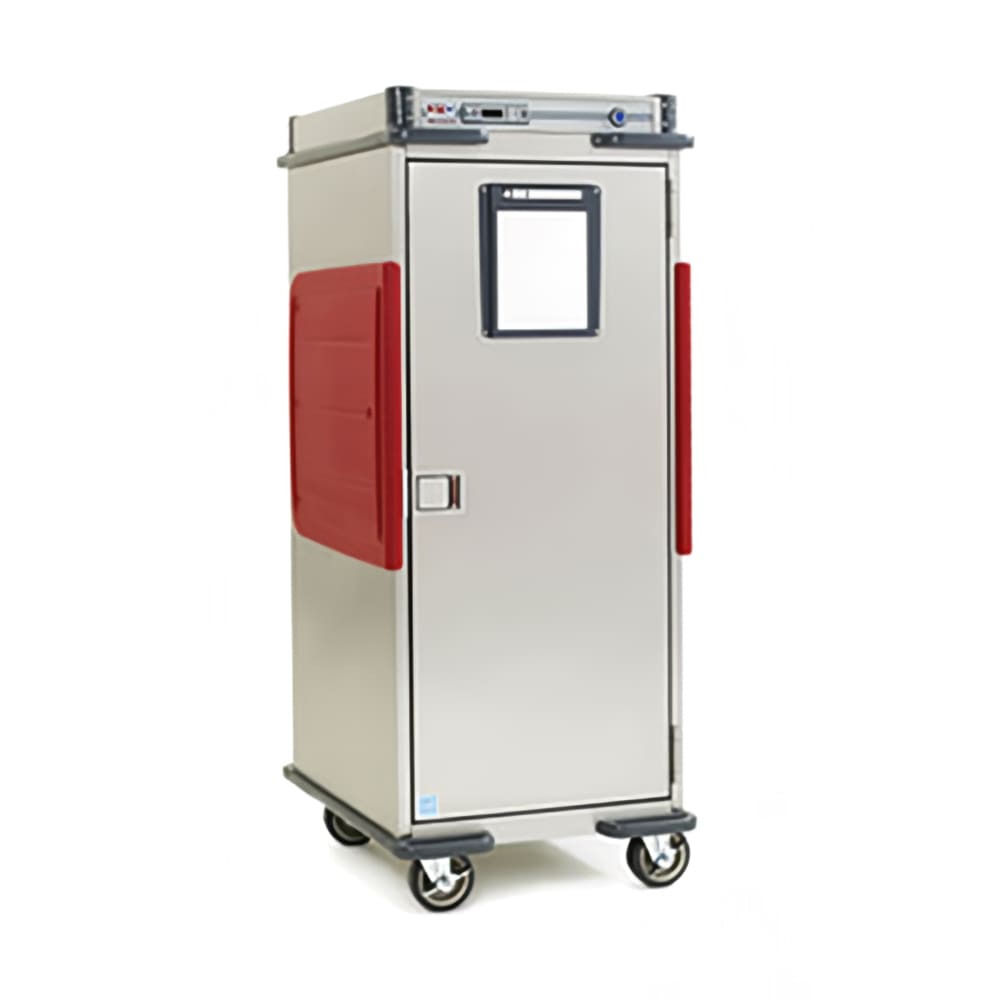

Metro C5T9-DSB Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v

For thorough temperature control, operators can use the solid-state digital controls to manipulate the Metro C5T9-DSB heated cabinet cavity temperatures. These top-mounted controls include a digital temperature readout, recall and memory button, low- and high-temperature alarms, diagnostic troubleshooting, and mobile power, which enables the control panel to operate when the unit is unplugged. This unit's maximum holding temperature is 200 degrees Fahrenheit to accommodate a range of warming settings, and its ducted convection heating system circulates temperatures evenly. To minimize temperature changes, the sides, top, base, and rear wall are insulated with foamed-in-place polyurethane.

When the unit is moved, the Metro C5T9-DSB heated cabinet's polymer handles are steel-reinforced to protect against impact damage, and the polymer side panels shield the exterior from panic bars and door handles that can create unsightly scuffs and scrapes. This unit is made of durable, type 304 stainless steel—a strong metal that resists rust and corrosion to endure long-term use—and it features a full-length door that grants direct access to the cavity for pan retrieval and loading. Inside this 30-inch-wide by 39¹/₄-inch-deep by 73⁷/₈-inch-high cabinet, adjustable bottom-load slides accommodate 32 steam pans or 16 sheet pans.

Product Details

• Part of the C5™ T-Series
• 1 cavity
• Reach-in, full-height configuration
• Top-mounted, solid-state digital controls
• Type 304 stainless steel construction
• Battery-powered mobile power feature for control panel adjustment when unit is in transit
• Convection ducted heating
• Maximum cabinet holding temperature: 200 degrees F
• Foamed-in-place polyurethane insulation
• Adjustable bottom-load slides
• Pan capacity: (16) 18-in. x 26-in. sheet pans or (32) 12-in. x 20-in. x 2¹/₂-in. steam pans
• Transport Armour™ features
• Full-length, solid door with 3-function information panel (clipboard, whiteboard, and cabinet ID)
• 6-in. swivel casters (2 with brakes)
• Clearance requirement: 18 in. from cooking equipment
• Minimum clearances for sides, back, and top: 1¹/₂ in.

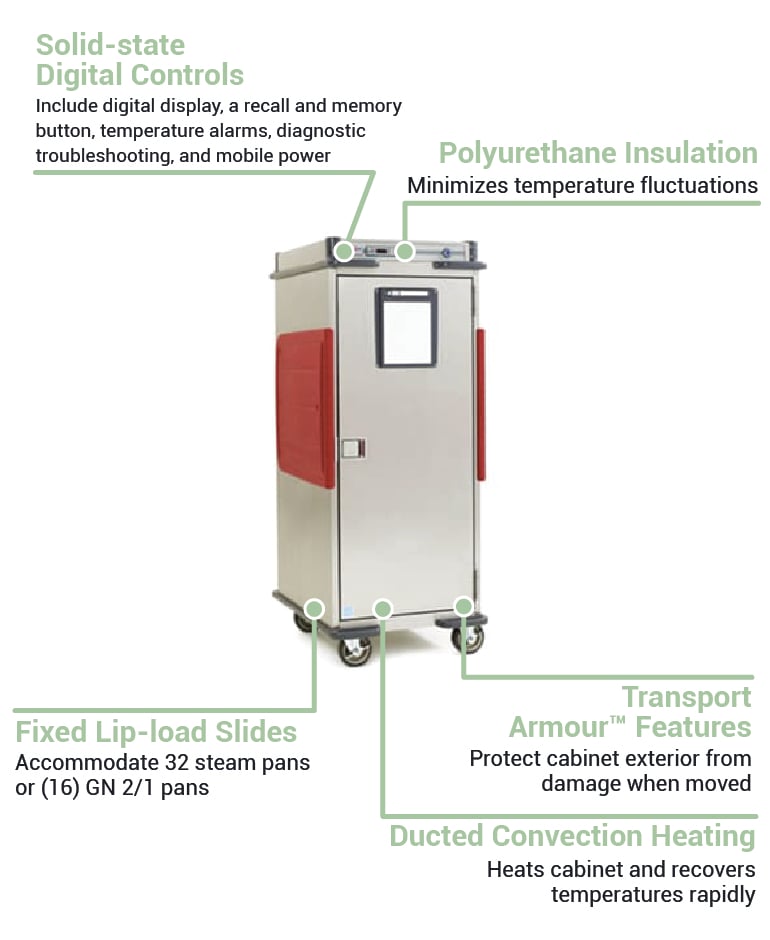

Product Features

Dimensions & Utilities

• 30 in. W x 39¹/₄ in. D x 73⁷/₈ in. H
• 12 A, 1,400 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

*Free shipping on Metro C5T9-DSB within the 48 contiguous states.

From The Manufacturer

C5™ T-Series Transport Armour™ heavy-duty insulated mobile heated cabinet, full height, adjustable bottom load slides 3-2/5" OC, top mount solid state digital controls with mobile power (16) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 304 stainless steel, foamed-in-place polyurethane insulation, maximum temperature 200°F, 6" casters, 120V/60/1, 1400 watts, 12 amps, NEMA 5-15P, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects

Metro C5T9-DSB Specifications
