Metro C5T9D-ASF Full Height Insulated Mobile Heated Cabinet w/ (32) Pan Capacity, 120v

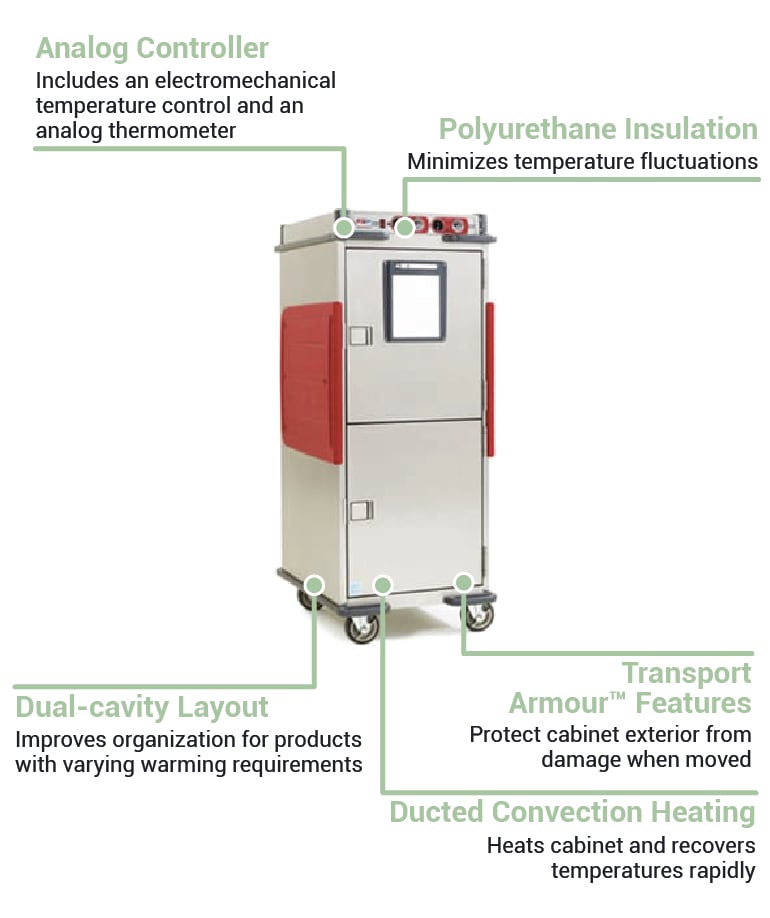

This Metro C5T9D-ASF C5™ T-Series Transport Armour™ heavy-duty mobile cabinet features a dual-cavity configuration that can improve organization for precooked foods with varying warming requirements. Operators can adjust each cabinet's temperature independently with the top-mounted, electromechanical thermostat, while its analog thermometer provides a constant temperature readout for the cavities, even when the unit isn't in use. Its ducted convection heating system warms the cavity and rapidly recovers temperature changes to ensure product is warm for serving. It circulates temperatures as high as 200 degrees Fahrenheit, and the cabinet's sides, top, base, and rear wall are insulated with polyurethane to minimize temperature fluctuations.

A solid stainless steel Dutch door correlates with each Metro C5T9D-ASF heated cabinet cavity, so operators can access a specific section, which can help retain temperatures. Fixed lip-load slides line the cavities' interiors, accommodating (32) 12-inch by 20-inch by 2¹/₂-inch steam pans or (16) GN 2/1 pans. To preserve the unit's original appearance, polymer panels built into the cabinet's sides protect it from door handles and panic bars that could create unsightly dents and scuffs. Its steel-reinforced polymer handles double as bumpers to protect the unit from damage if it smashes into a wall or furniture. Overall, this type 304 stainless steel unit measures 30 inches wide by 39¹/₄ inches deep by 73⁷/₈ inches high and is furnished with 6-inch swivel casters.

Product Details

• 2-cavity, reach-in, full-height layout
• Maximum cabinet holding temperature: 200 degrees F
• Independent electromechanical thermostat controls for each cavity
• Top-mounted analog thermometer
• Ducted convection heating system
• Sides, top, base, and rear wall insulated with foamed-in-place polyurethane
• Type 304 stainless steel construction
• 2 welded, 20-ga. stainless steel Dutch doors with cabinet ID, whiteboard, and clipboard
• Fixed lip-load slides hold (32) 12-in. x 20-in. x 2¹/₂-in. steam pans or (16) GN 2/1 pans
• Transport Armour features steel-reinforced polymer handles and polymer panels
• (2) 6-in. swivel casters and (2) 6-in. swivel casters with brakes
• Clearance requirement: 18 in. from cooking equipment
• Minimum clearances for sides, back, and top: 1¹/₂ in.

Product Features

Dimensions & Utilities

• 30 in. W x 39¹/₄ in. D x 73⁷/₈ in. H
• 12 A, 1,400 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

*Free shipping on Metro C5T9D-ASF within the 48 contiguous states.

From The Manufacturer

C5™ T-Series Transport Armour™ heavy-duty insulated mobile heated cabinet, full height dual cavity with independent cavity temperature control, fixed lip load slides 1-7/10" spacing, top mount analog thermometer & electro-mechanical thermostat (32) 12" x 20" x 2-1/2" / GN 1/1 (65mm) pan capacity, 304 stainless steel, foamed-in-place polyurethane insulation, maximum temperature 200°F, 6" casters, 120V/60/1, 1400 watts, 12 amps, NEMA 5-15P, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects

Metro C5T9D-ASF Specifications
