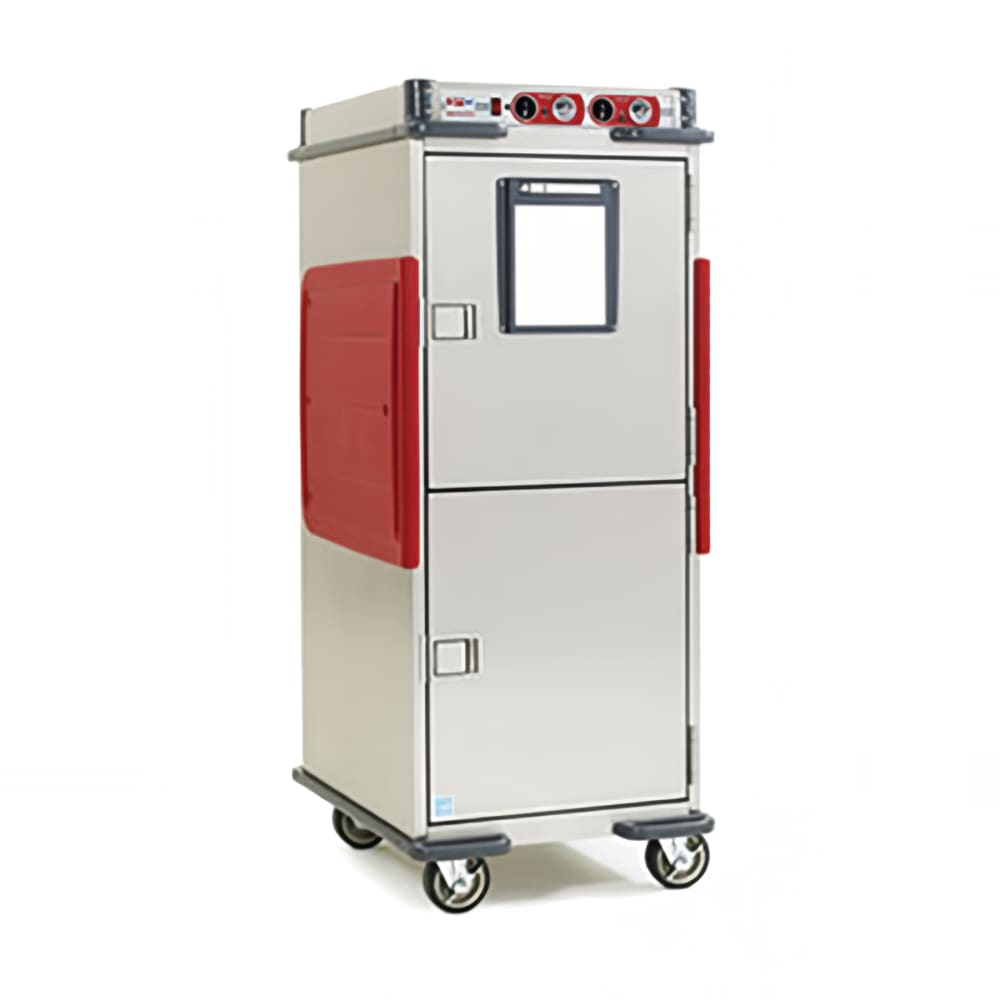

Metro C5T9D-ASB Full Height Insulated Mobile Heated Cabinet w/ (14) Pan Capacity, 120v

To improve product organization, the Metro C5T9D-ASB C5™ T-Series Transport Armour™ heated cabinet features a reach-in, dual-cavity layout. Its bottom-load slides accommodate (14) 18-inch by 26-inch sheet pans or (32) 12-inch by 20-inch by 2¹/₂-inch steam pans and can be adjusted by 1¹⁷/₂₅ inches. A solid Dutch door correlates with each section so operators can access a specific cavity without exposing both sections to ambient temperatures. Each door is made of welded, 20-gauge stainless steel with foamed-in-place polyurethane insulation, and for identification, the doors include a cabinet ID, whiteboard, and clipboard.

The Metro C5T9D-ASB heated cabinet's ducted heating system generates and circulates temperatures as high as 200 degrees Fahrenheit in each cavity, while the cabinet's sides, top, base, and rear wall are insulated with foamed-in-place polyurethane to minimize temperature fluctuations. Operators can adjust individual cavity temperatures with the top-mounted, analog electromechanical thermostat. Each section's analog thermometer displays a constant temperature readout, even if the unit is turned off or unplugged. Because this unit can be moved for cleaning, maintenance, or catering applications, the exterior features polymer panels that protect the sides from facility hazards that could create dents or scratches. Furthermore, its polymer handles act like bumpers, shielding the unit from damage if it collides with walls or pieces of equipment. Overall, this cabinet measures 30 inches wide by 39¹/₄ inches deep by 73⁷/₈ inches high.

Product Details

• 2 cavities
• Full-height, reach-in configuration
• Pan capacity: (32) 12-in. x 20-in. x 2¹/₂-in. steam pans or (14) 18-in. x 26-in. sheet pans
• Bottom-load slides adjustable by 1¹⁷/₂₅ in.
• 304 stainless steel construction
• Sides, top, and base insulated with 2-in.-thick polyurethane
• 3¹/₂-in.-thick, foamed-in-place polyurethane insulation on rear wall
• (2) 20-ga. stainless steel welded Dutch doors with cabinet ID, whiteboard, and clipboard
• Steel-reinforced polymer handles
• Polymer Armour panels
• Electromechanical control manages ducted convection heating system
• Maximum cabinet temperature: 200 degrees F
• Always-on analog thermometer
• Individual cavity temperature adjustment
• (2) 6-in. swivel casters and (2) 6-in. swivel casters with brakes
• Clearance requirement: 18 in. from cooking equipment
• Minimum clearances for sides, back, and top: 1¹/₂ in.

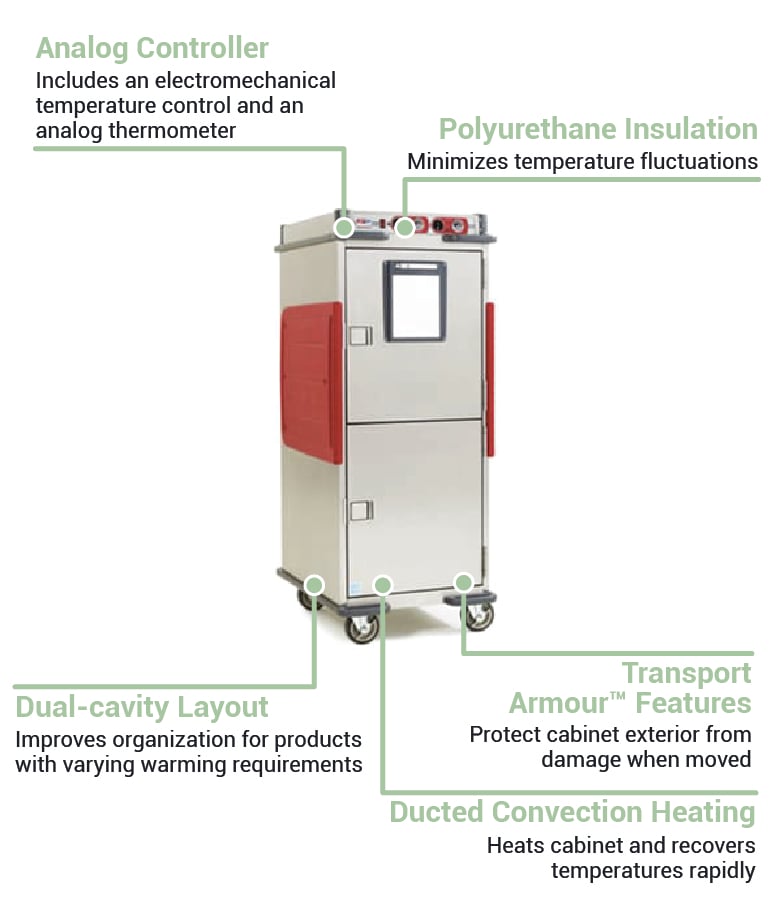

Product Features

Dimensions & Utilities

• 30 in. W x 39¹/₄ in. D x 73⁷/₈ in. H
• 12 A, 1,400 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-15P plug

*Free shipping on Metro C5T9D-ASB within the 48 contiguous states.

From The Manufacturer

C5™ T-Series Transport Armour™ heavy-duty insulated mobile heated cabinet, full height dual cavity with independent cavity temperature control, adjustable bottom load slides 3-2/5" OC, top mount analog thermometer & electro-mechanical thermostat (14) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 304 stainless steel, foamed-in-place polyurethane insulation, maximum temperature 200°F, 6" casters, 120V/60/1, 1400 watts, 12 amps, NEMA 5-15P, cULus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
