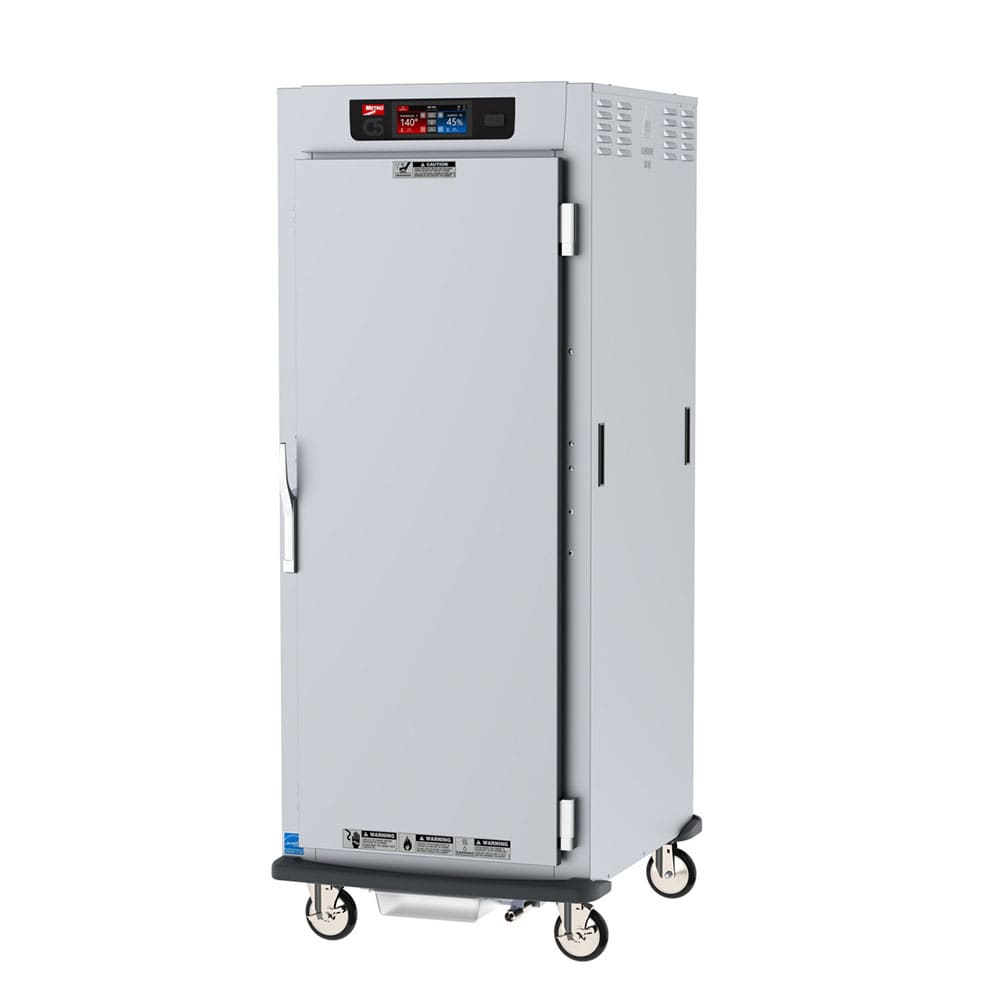

Metro C599-SFS-UPFC Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

With its adjustable heat and humidity controls, the Metro C599-SFS-UPFC C5® 9 series insulated heated mobile cabinet holds a wide range of prepared dishes at serving temperatures without affecting their original textures and flavors. Users can modify temperatures between 90 and 200 degrees Fahrenheit, while humidity can be set to correlate with cabinet heat. Both systems use tubular heating elements and ducted airflow to produce gentle, natural convective air that maintains temperatures and humidity levels. Operators can use its 6.8-inch top-mounted touchscreen control panel to program timers, preset menus, log HACCP data, and enable auto-start to simplify start-up tasks.

Because the Metro C599-SFS-UPFC heated holding and proofing cabinet includes 18 universal wire slides, it accommodates (18) 18-inch by 26-inch sheet pans or (34) 12-inch by 20-inch by 2¹/₂-inch steam pans—ideal for restaurants with changing menus. The slides can remain on their 3-inch centers or be adjusted in 1.5-inch increments. As a pass-thru model, it has doors on both sides for operators to load pans into one side and retrieve them from the other. On one side, a solid insulated door helps reduce temperature changes, while the tempered glass door on the other side grants a full view of pans. When necessary, this 30-inch-wide by 36³/₈-inch-deep by 74³/₄-inch-high cabinet can be transported because it's fitted with 5-inch casters. Its built-in polymer handles simplify steering, while its stainless steel exterior and polymer bumper withstand impact. To avoid temperature fluctuations during transport, its full perimeter is insulated with 2¹/₂-inch high-density fiberglass.

Product Details

• Full-height model with pass-thru design
• Universal wire slides positioned on 3-in. centers (adjustable by 1¹/₂ in.)
• Supports (18) 18-in. x 26-in. sheet pans or (34) 12-in. x 20-in. x 2¹/₂-in. steam pans
• Gentle and natural convective airflow
• Individual heat and humidity settings
• Temperature range: 90-200 degrees F
• 4-gal. water reservoir with drain
• Top-mounted 6⁴/₅-in. intuitive touchscreen control (includes menu presets, programmable timers, auto-start feature, low-water and low-temperature alarms, USB port with built-in HACCP data logging, and control-lock feature)
• Rust- and corrosion-resistant stainless steel construction
• Full perimeter insulated with 2.5-in. high-density fiberglass insulation
• 4 polymer steering handles
• Nonmarking polymer bumper and drip trough combination
• 1 full-length insulated solid door and 1 full-clear double-pane tempered glass door
• High-temperature, cabinet-mounted Santoprene gaskets
• Chrome-plated magnetic pull latches with lever-action release
• (4) 5-in. casters (2 with brakes)
• Minimum side and back clearances: 1.5 in.
• Minimum top clearance: 6 in.

Dimensions & Utilities

• 30 in. W x 36³/₈ in. D x 74³/₄ in. H
• 16⁷/₁₀ A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-20P plug

Product Features

From The Manufacturer

C5™ 9 Series Controlled Humidity Heated Holding and Proofing Cabinet with 6.8" touch-screen controls, mobile, full height, pass thru, (1) solid & (1) glass doors, universal wire slides, capacity (18) 18" x 26" or (36) 12" x 20" x 2-1/2" pans, 3" O.C. (adjustable on 1-1/2" increments), stainless steel, 5" casters, polymer bumper & drip trough combination, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C599-SFS-UPFC Specifications
