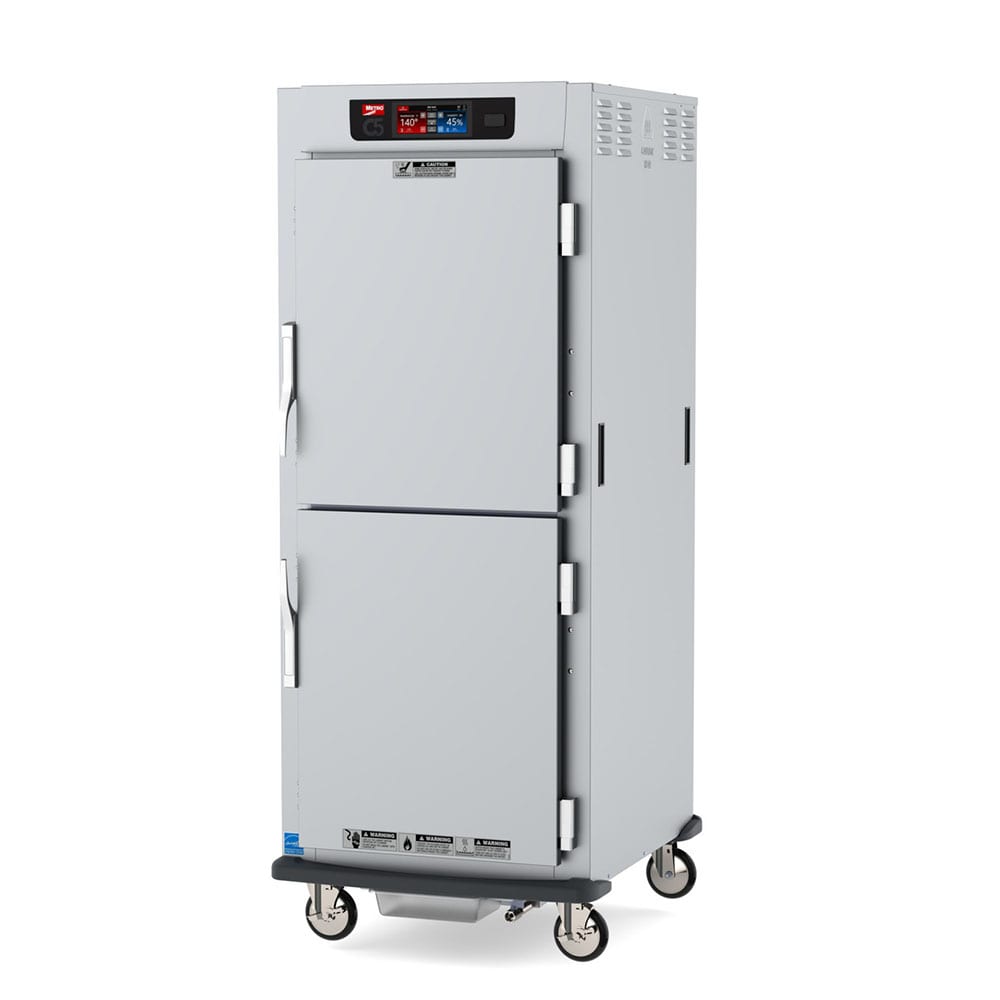

Metro C599-SDS-UPDS Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v
$8,675.00 /Each
Contact us for details!
Non Returnable Item
Metro C599-SDS-UPDS Description
So food maintains a freshly cooked taste throughout long-term holding, the Metro C599-SDS-UPDS C5® 9 Series heated holding and proofing cabinet generates heat and humidity. This unit uses a controlled tubular heating element with a ducted air system, a low-water sensor, and a 4-gallon water reservoir to produce relative humidity that suits cabinet temperatures. As inventory changes, operators can adjust temperatures from 90 to 200 degrees Fahrenheit with the 6 4⁄5-inch touchscreen display, and its digital thermometer provides an accurate readout so users can monitor holding. Its natural, convective airflow system helps maintain consistent temperatures and humidity levels by surrounding food with warm air and eliminating cold spots. To accommodate an expansive menu, its intuitive controls include menu presets, programmable timers, an auto-start feature, low-temperature and low-water alarms, a control-lock feature, and a USB port with a built-in HACCP data-logging system.
As a full-height unit, this Metro C599-SDS-UPDS insulated mobile heated cabinet accommodates (32) 12-inch by 20-inch by 2 1⁄2-inch-high steam pans or (17) 18-inch by 26-inch sheet pans on its 18 universal wire slide pairs. Each slide is spaced 3 inches apart and can be adjusted in 1 1⁄2-inch increments. Users can access a specific cabinet section by opening the correlating door. Four solid Dutch doors built onto the front and rear create a pass-thru system that streamlines pan loading and retrieval, and their insulated designs minimize temperature fluctuations. Although this cabinet measures 30 inches wide by 36 3⁄8 inches deep by 74 3⁄4 inches high, it's simple to transport because it's furnished with 5-inch casters and four built-in polymer steering handles. To protect walls and other pieces of equipment from damage, a nonmarking polymer bumper encases its base, while its stainless steel construction is rigid enough to withstand wear. The cabinet's full perimeter is insulated with 2.5-inch-thick high-density fiberglass to preserve original temperatures during transport.
- Full-height model with pass-thru design
- Capacity: (17) 18-in. x 26-in. sheet pans or (32) 12-in. x 20-in. x 2 1⁄2-in. steam pans
- 18 universal wire slides adjustable in 1 1⁄2-in. increments
- Produces heat and humidity
- Natural convective airflow design
- Heat generation system: thermostatically controlled tubular heating elements, ball-bearing blower motor, and ducted air system
- Humidity generation system: tubular heating element with ducted air system, low-water alarm, and 4-gal. water reservoir with drain
- Temperature range: 90-200 degrees F
- Humidity adjustable at various temperatures
- 6 4⁄5-in. touchscreen display with separate heat and humidity controls, menu presets, programmable timers, auto-start feature, alarms for low temperature and low water, USB port with built-in HACCP data logging, and control-lock feature
- Rigid stainless steel cabinet and exterior
- 4 built-in polymer steering handles
- Nonmarking polymer bumper and drip trough combination
- Full-perimeter 2 1⁄2-in. high-density fiberglass insulation
- 4 solid, insulated Dutch doors (2 front, 2 rear)
- Cabinet-mounted Santoprene gaskets
- Chrome-plated magnetic pull latches with lever-action release
- (4) 5-in. casters (2 with brakes)
- Minimum side and back clearances: 1 1⁄2 in.
- Minimum top clearance: 6 in.
- 30 in. W x 36 3⁄8 in. D x 74 3⁄4 in. H
- 16.7 A, 2000 W
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C599-SDS-UPDS within the 48 contiguous states.
From The Manufacturer
C5™ 9 Series Controlled Humidity Heated Holding and Proofing Cabinet with 6.8" touch-screen controls, mobile, full height, pass thru, (2) solid dutch doors, universal wire slides, capacity (17) 18" x 26" or (34) 12" x 20" x 2-1/2" pans, 3" O.C. (adjustable on 1-1/2" increments), stainless steel, 5" casters, polymer bumper & drip trough combination, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF, Made in USA
Metro C599-SDS-UPDS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 36.38 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Includes | Bumpers |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Pan Capacity | 17 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 9 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 30 |
| Weight | 410.00 |
