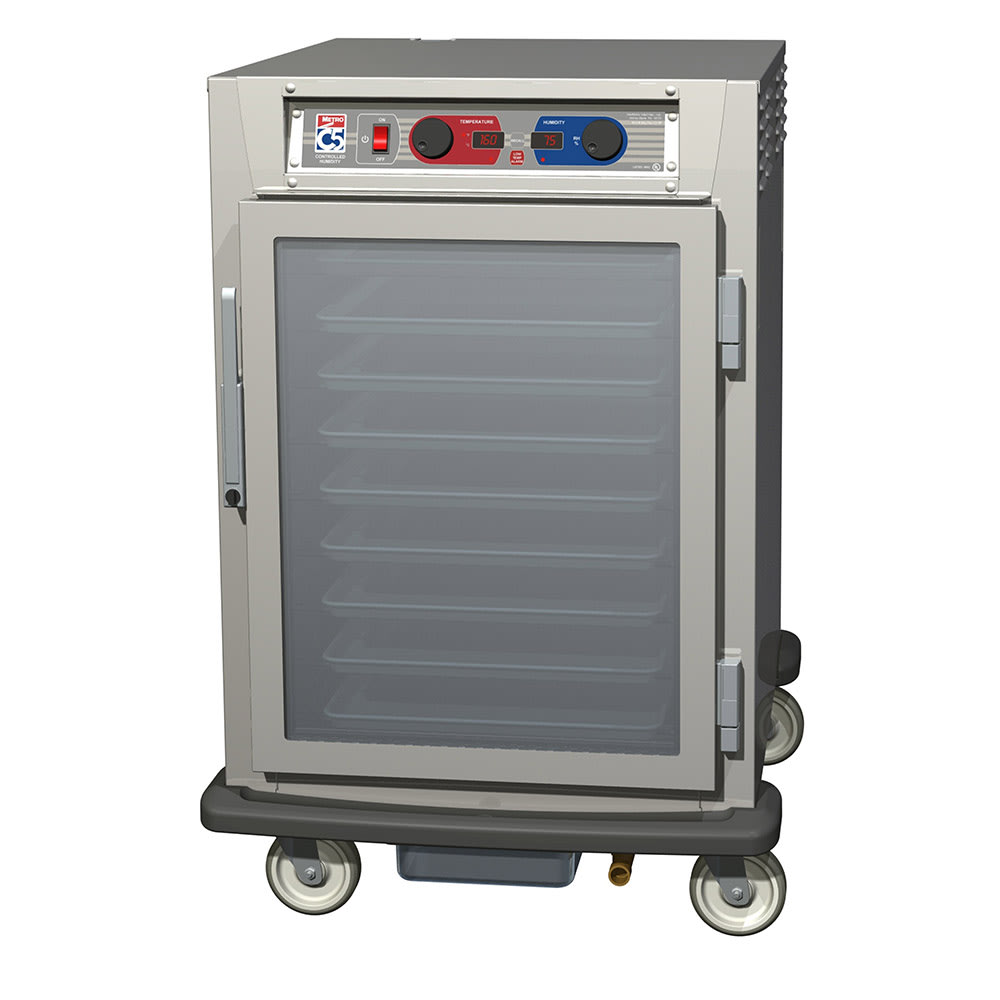

Metro C595-SFC-LPFS 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

By generating consistent heat and humidity levels, the Metro C595-SFC-LPFS C5™ 9 series controlled heating and proofing cabinet can preserve foods' textures and flavors while holding them at safe serving temperatures for hours. Its heat generation system uses tubular heating elements, a ball-bearing blower motor, and a ducted air system to produce and circulate temperatures from 90 to 200 degrees Fahrenheit, while its humidity generation system operates with a tubular heating element, ducted air system, and 4-gallon water reservoir. When the water reservoir is full, this technology can produce and maintain as much as 95 percent relative humidity at 90 degrees Fahrenheit. For simple operation, its top-mounted 6⁴/₅-inch touchscreen control panel includes individual controls for heat and humidity, menu presets, programmable timers, an auto-start feature, alarms for low temperature and water, a USB port with built-in HACCP data logging, and a control-lock feature.

For low- and medium-volume holding and proofing applications, this Metro C595-SFC-LPFS heated mobile cabinet's lip-load slides accommodate (17) 18-inch by 26-inch sheet pans. This half-height unit measures 30 inches wide by 36³/₈ inches deep by 44³/₄ inches high, and its pass-thru design features a front and rear door to streamline pan insertion and retrieval. One door's clear double-panel glass construction provides a full view of stored pans, while the other door is solid and insulated with 1-inch-thick fiberglass. This rust- and corrosion-resistant stainless steel cabinet is mounted on 5-inch casters for smooth maneuverability between the kitchen and serving area and features a nonmarking polymer base bumper to protect walls from damage.

Product Details

• Half-height, pass-thru model
• Capacity: (17) 18-in. x 26-in. sheet pans
• Lip-load slides on stainless steel uprights
• Heat and humidity generation systems
• Tubular heating elements and ducted air systems
• 4-gal. water reservoir with drain
• Temperature range: 90-200 degrees F
• Humidity adjustable at various temperatures
• 6⁴/₅-in. touchscreen display: menu presets, programmable timers, auto-start features, low-temperature and water alarms, USB port with built-in HACCP data logging, and control-lock feature
• Individual heat and humidity controls
• Rigid stainless steel cabinet and exterior
• 4 built-in polymer handles
• Nonmarking polymer bumper and drip trough combination
• Full-perimeter, 2¹/₂-in.-thick high-density fiberglass
• 1 clear glass door and 1 insulated solid door
• High-temperature, cabinet-mounted Santoprene gaskets
• Chrome-plated magnetic pull latches with lever-action release
• (4) 5-in. casters (2 with brakes)
• Must be 18 in. away from cooking equipment
• Minimum side and back clearances: 1¹/₂ in.
• Minimum top clearance: 6 in.

Dimensions & Utilities

• 30 in. W x 36³/₈ in. D x 44³/₄ in. H
• 16⁷/₁₀ A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-20P plug

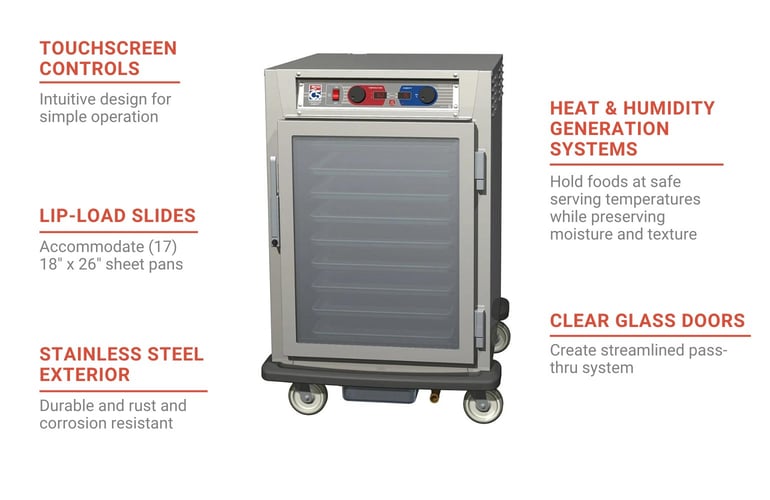

Product Features

*Free shipping on Metro C595-SFC-LPFS within the 48 contiguous states.

From The Manufacturer

C5™ 9 Series Controlled Humidity Heated Holding and Proofing Cabinet with 6.8" touch-screen controls, mobile, 1/2 height, pass thru, (1) glass & (1) solid doors, lip load slides, capacity (8) 18" x 26" pans, 3" O.C., stainless steel, 5" casters, polymer bumper & drip trough combination, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
