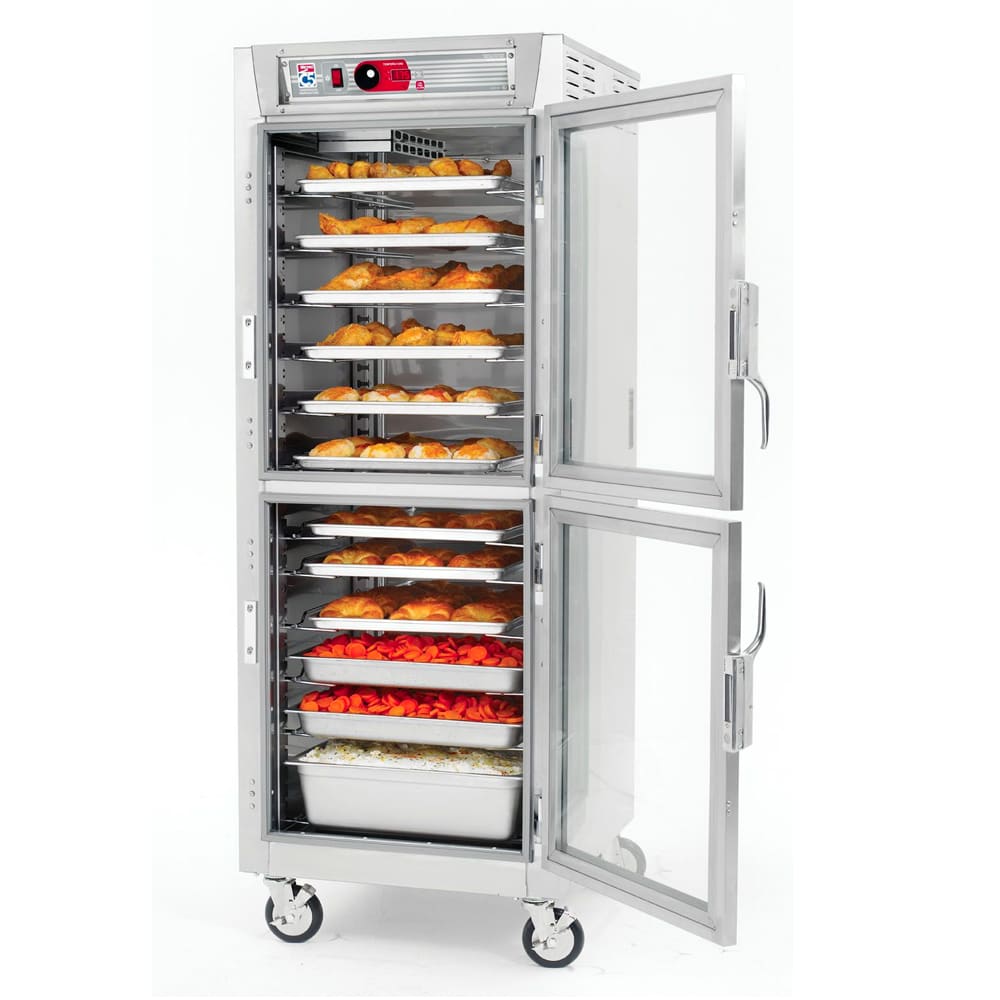

Metro C589-SDC-LPDC Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v

To accommodate high-volume holding, the Metro C589-SDC-LPDC C5™ 8 series controlled-temperature holding cabinet's lip-load slides support as many as (34) 18-inch by 26-inch sheet pans. The slides are secured on stainless steel uprights, and because this unit features a pass-thru configuration, operators can access the pans from the front or back of the unit. Dutch double-pane tempered glass doors are built into the unit's front and back, providing a clear view into the cabinet, which can help retain temperatures since users don't have to open the doors to check inventory. For durability, the cabinet's interior is made of 22-gauge stainless steel while the exterior has a polished, 20-gauge stainless steel construction. Overall, this unit measures 29¹/₈ inches wide by 34⁵/₈ inches deep by 74³/₄ inches high and is mounted on 5-inch casters.

A digital temperature display, low-temperature alarm, and recall and memory button are mounted at the top of the Metro C589-SDC-LPDC holding cabinet for accessibility while preventing accidental adjustment. This unit uses a solid-state controller with a continuous, closed-loop monitoring system for an accurate temperature reading. Its ducted heating system circulates temperatures between 70 and 200 degrees Fahrenheit through the cabinet uniformly to eliminate cold spots. High-density fiberglass insulates the unit's full perimeter, retaining temperatures even when the unit is stored in cool ambient environments. For foods that tend to dry out when exposed to warm temperatures, users can incorporate the integral water pan system, which adds passive humidity to the unit.

Product Details

• Pass-thru cabinet
• Pan capacity: (34) 18-in. x 26-in. sheet pans
• Lip-load slides secured on stainless steel uprights
• Durable, corrosion-resistant stainless steel
• Cabinet holding temperature range: 70-200 degrees F
• Digitally controlled ducted heating system
• Solid-state controller
• Continuous, closed-loop monitoring
• Top-mounted controls: digital temperature readout, low-temperature alarm, and memory button
• High-density fiberglass insulation built into cabinet perimeter
• Passive humidity
• 4 double-pane tempered glass Dutch doors
• 5-in. casters

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 74³/₄ in. H
• 16 A, 2000 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-20P plug

From The Manufacturer

C5™ 8 Series Controlled Temperature Holding Cabinet, mobile, full height, pass thru, insulated, lip load (34) 18" x 26" pan capacity, Dutch double pane tempered glass doors, top mount digital control, low temp alarm & memory recall, ducted heating system, thermostat 70° to 200°F temp, 1-1/2" wire slides, 5" casters, 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C589-SDC-LPDC Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Product Info

Brochure

Certifications
