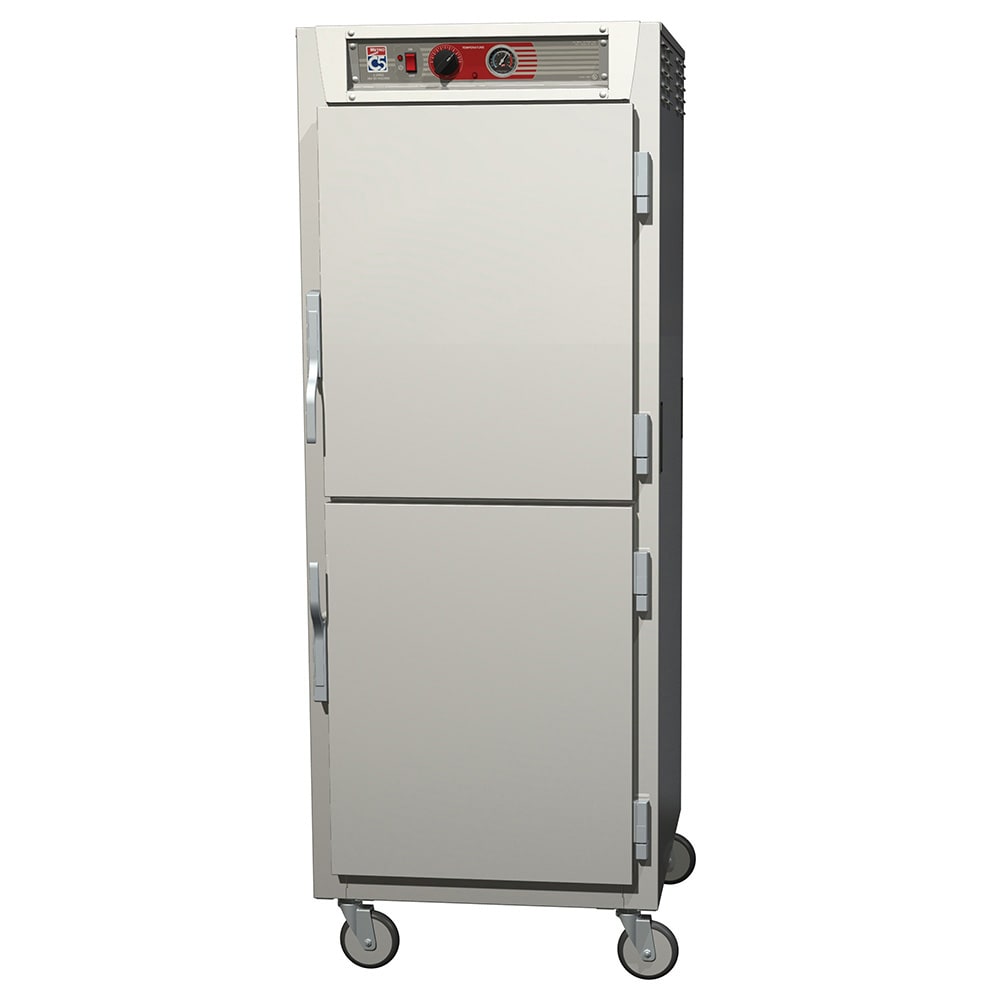

Metro C569-SDS-UPDS Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v

To withstand high-volume applications, the Metro C569-SDS-UPDS C5™ 6 series heated holding cabinet's exterior is made of polished, 20-gauge stainless steel, while the interior is made of 22-gauge stainless steel. Four solid Dutch doors built into the front and back of this pass-thru unit enable operators to access the top or bottom to minimize temperature fluctuations. Universal wire slides inside the cabinet accommodate (32) 12-inch by 20-inch by 2¹/₂-inch steam pans or (17) 18-inch by 26-inch sheet pans and can be raised or lowered by 1¹/₂ inches. Great for catering applications, this full-height cabinet is furnished with casters for smooth maneuvering.

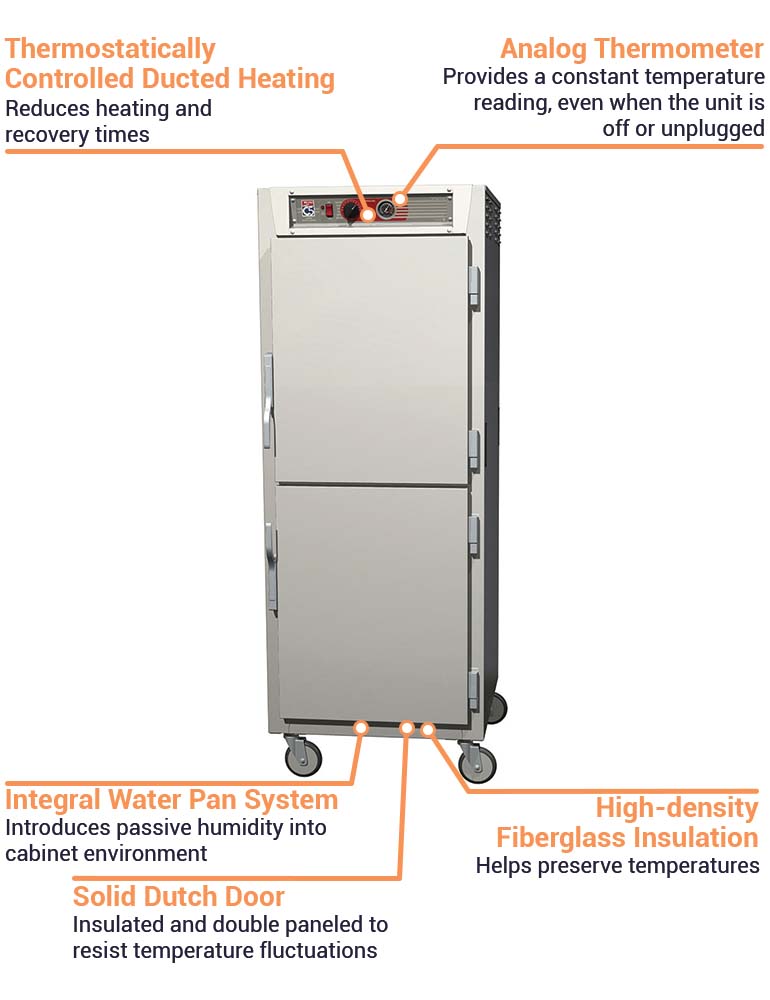

The Metro C569-SDS-UPDS heating holding cabinet's ducted system heats the cabinet interior and recovers lost temperatures rapidly to accommodate consecutive holding applications. Operators can use the top-mounted temperature controls to adjust temperatures between 70 and 200 degrees Fahrenheit, and its analog thermometer provides a constant temperature reading, even when the unit is unplugged. High-density fiberglass insulation lines the unit's perimeter to preserve temperatures when doors are opened for short periods of time or when the unit is stored in cool ambient environments. To retain the original food's texture, its integral water pan system introduces passive humidity.

Product Details

• Pass-thru, full-height layout
• 22-ga. stainless steel interior and polished, 20-ga. stainless steel exterior
• Accommodate (32) 12-in. x 20-in. x 2¹/₂-in. steam pans or (17) 18-in. x 26-in. sheet pans
• Cabinet holding temperature range: 70-200 degrees F
• 2¹/₂-in.-thick, high-density fiberglass insulation
• Universal wire slides adjustable in 1¹/₂-in. increments
• Top-mounted temperature controls with an analog thermometer
• Rapid heating and recovery with ducted heating system
• Passive humidity
• 4 solid Dutch doors (2 front and 2 back)
• (4) 5-in. casters (2 with brakes)

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 74³/₄ in. H
• 16 A, 2 kW
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with a NEMA 5-20P plug

*Free shipping on Metro C569-SDS-UPDS within the 48 contiguous states.

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, solid Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire (17) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 1-1/2" adjustable wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Against Manufacturing Defects
