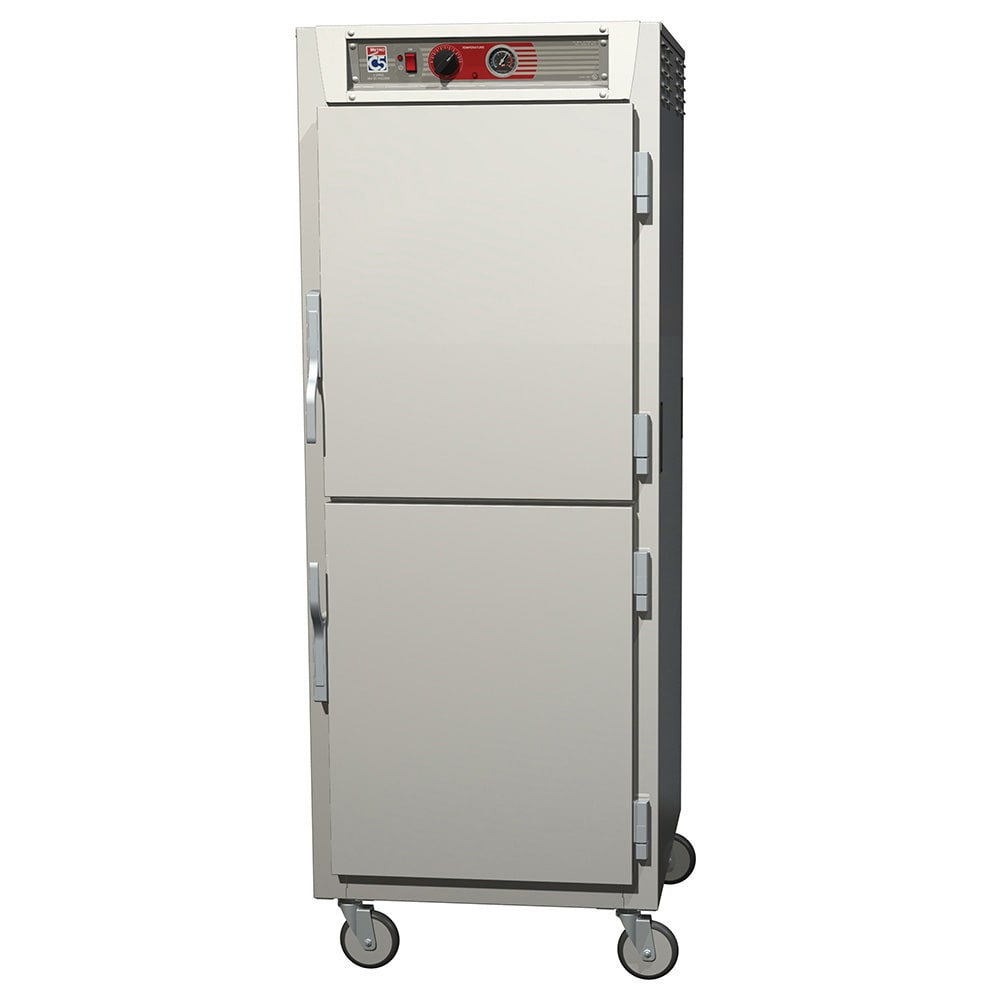

Metro C569-SDS-LPDC Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v
$7,680.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below
Metro C569-SDS-LPDC Description
To provide long-lasting durability in commercial settings, the Metro C569-SDS-LPDC C5™ 6 series heating holding cabinet is made of stainless steel that resists scratching, rusting, and corroding. Its operating temperature range is 70 to 200 degrees Fahrenheit and, to preserve warmth in the cabinet, it's built with high-density fiberglass insulation. Because it's furnished with casters, users can transport it throughout a dining hall or event venue. Overall, this unit measures 291/8 inches wide by 345/8 inches deep by 743/4 inches high.
The Metro C569-SDS-LPDC heated holding cabinet's ducted heating system optimizes performance, shortens recovery times, and heats the unit quickly. To accommodate various holding needs, its lip-load slides can hold (34) 18-inch by 26-inch pans. This unit also features an integral water pan, which delivers passive humidity to the cabinet, preventing foods from drying. Enabling users to monitor the temperature, it's equipped with an analog thermometer.

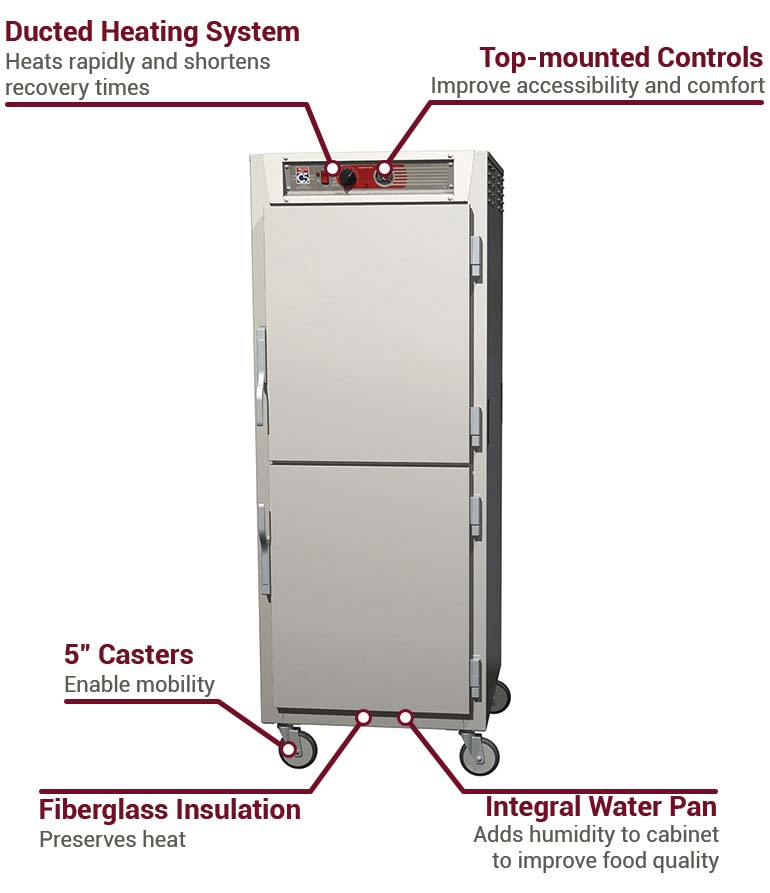

Product Details
- Part of the Metro C5 6 series
- Full-height model with pass-thru configuration
- 1 set of solid Dutch doors and 1 set of double-pane tempered glass Dutch doors
- Lip-load slides support (34) 18-in. x 26-in. pans
- Operates with ducted heating system
- Insulated with high-density fiberglass to retain heat
- Top-mounted controls
- Reliable analog thermometer
- Temperature range: 70-200 degrees F
- Corrosion-resistant stainless steel construction
- Integral water pan system
- Mounted on (4) 5-in. donut casters (2 with brakes)
Product Features
Dimensions & Utilities
- 291/8 in. W x 345/8 in. D x 743/4 in. H
- 16 A, 2000 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-20P plug
*Free shipping on Metro C569-SDS-LPDC within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) solid Dutch & (1) double pane tempered glass Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 3" OC, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C569-SDS-LPDC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 32.63 |
| Door Design | Dutch |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Pan Capacity | 34 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 380.00 |
