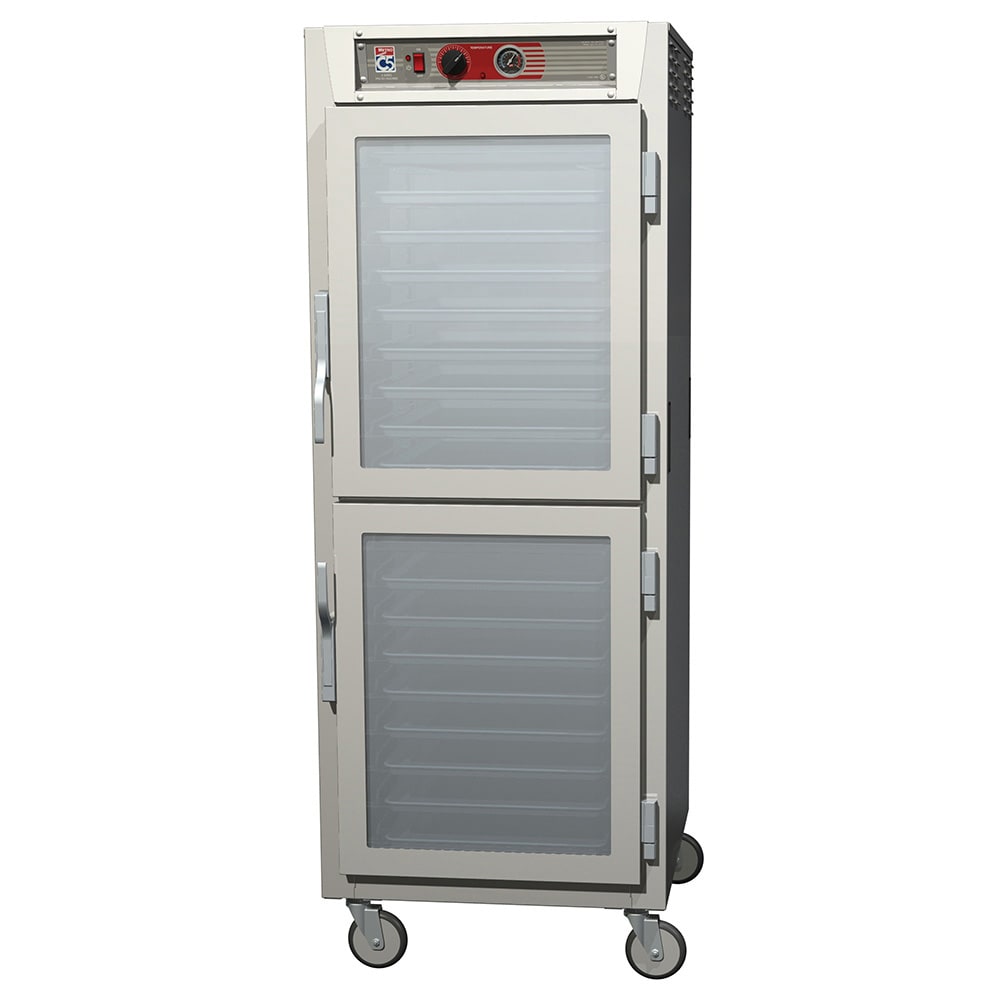

Metro C569-SDC-LPDC Full Height Insulated Mobile Heated Cabinet w/ (34) Pan Capacity, 120v
$8,006.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Need an Energy Star® Heated Cabinet?
See our selection of Metro Energy Star® certified Heated Cabinet products below
Metro C569-SDC-LPDC Description
To optimize performance and food quality, the Metro C569-SDC-LPDC C5™ 6 series heated cabinet operates with ducted heating and integral water pan systems; the latter adds passive humidity to the air. Its lip-load slides can accommodate (34) 18-inch by 26-inch pans. Using top-mounted controls, operators can adjust the temperature between 70 and 200 degrees Fahrenheit to accommodate different needs. Overall, this unit measures 291/8 inches wide by 345/8 inches deep by 743/4 inches high.
To defend against corrosion and streamline cleaning, the Metro C569-SDC-LPDC heated holding cabinet is made of durable stainless steel. It's mounted on casters to support mobile applications and is insulated with high-density fiberglass to reduce heat loss and improve efficiency. A constant temperature readout is provided by the unit's reliable analog thermometer. Because it's a pass-thru model, operators can access the cabinet from Dutch doors on either side of the unit.
Product Details
- Part of the Metro C5 6 series
- 4 Dutch double-pane tempered glass doors
- Pass-thru, full-height unit
- Lip-load slides support (34) 18-in. x 26-in. pans
- Resilient stainless steel construction
- Ducted heating system
- Temperature range: 70-200 degrees F
- High-density fiberglass insulation improves efficiency
- Integral water pan adds passive humidity to cabinet
- Top-mounted controls with analog thermometer
- Equipped with (4) 5-in. donut casters (2 braking)
Product Features
Dimensions & Utilities
- 291/8 in. W x 345/8 in. D x 743/4 in. H
- 16 A, 2000 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-20P plug
*Free shipping on Metro C569-SDC-LPDC within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, Dutch double pane tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (34) 18" x 26" pan capacity, 3" OC, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Cord Attached
This product includes a cord and plug
Metro C569-SDC-LPDC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Dutch |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| kW | 2 |
| Pan Capacity | 34 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Series | C5™ 6 Series |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 4 |
| Slide Spacing (in) | 3 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| NEMA | 5-20P |
| Hinge Configuration | Right |
| Weight | 360.00 |
