Metro C569L-SFS-UPFC Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v
$7,582.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below

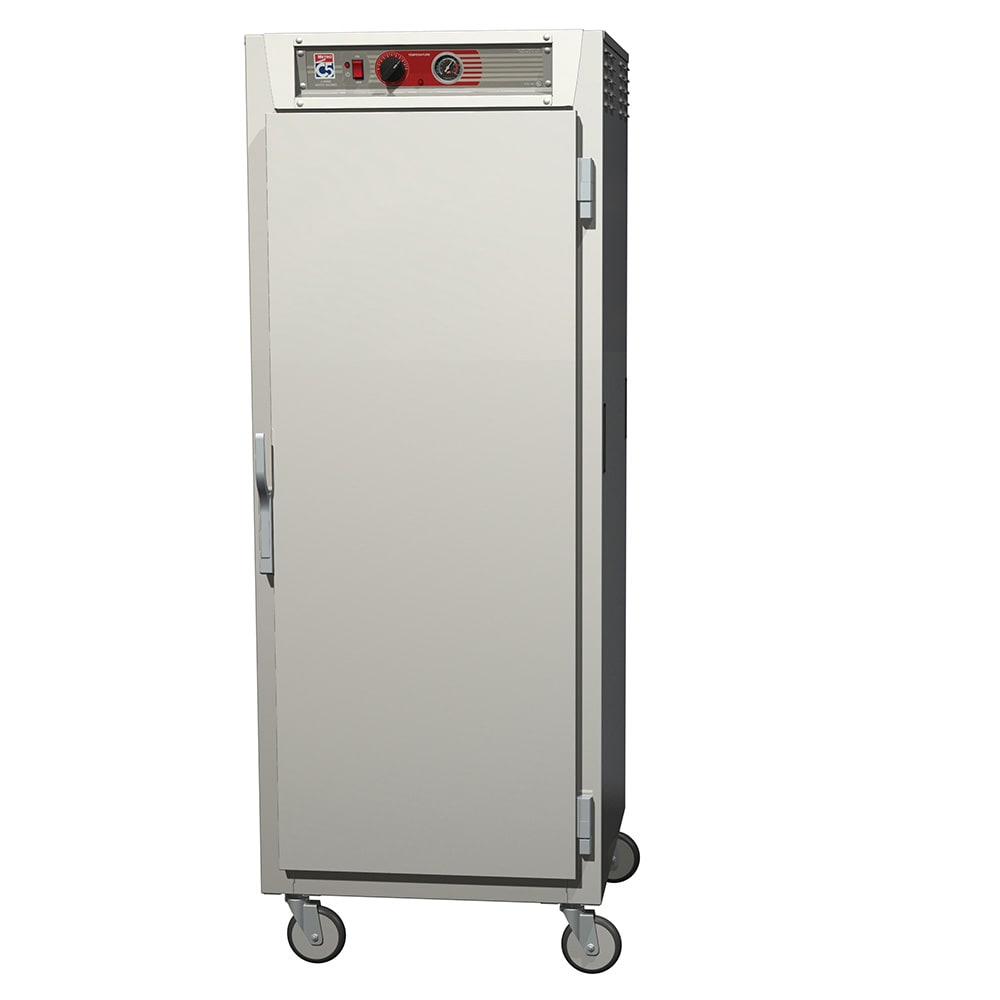

Metro C569L-SFS-UPFC Description

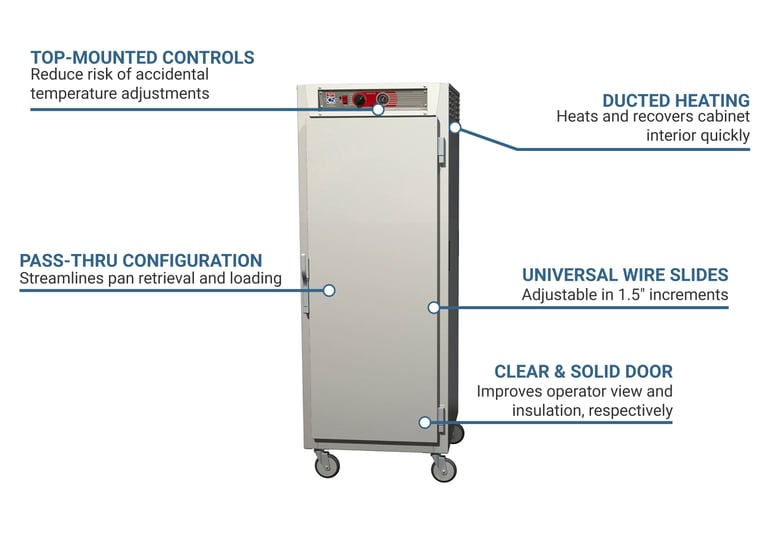

The Metro C569L-SFS-UPFC C5™ 6 series heated holding cabinet produces and preserves temperatures between 70 and 200 degrees Fahrenheit to ensure prepared foods are warm before serving. Its thermostatically controlled ducted heating system heats and recovers cabinet temperatures quickly by circulating warm air through the cabinet, and high-density fiberglass insulation built into the cabinet's interior prevents temperatures fluctuations when the doors are opened for short periods. Operators can adjust temperatures with the top-mounted controls, and an analog thermostat provides a constant temperature readout, even if the unit isn't in use.
To streamline product loading, retrieval, and inventory checks, the Metro C569L-SFS-UPFC heated holding cabinet features a pass-thru design with a solid, fully insulated door on one side and a transparent, tempered glass door on the other. Inside the cabinet, universal wire slides are adjustable in 11/2-inch increments and can accommodate (18) 18-inch by 26-inch pans or (34) 12-inch by 20-inch by 21/2-inch steam pans. This 291/8-inch-wide by 345/8-inch-deep by 743/4-inch-high unit is made of stainless steel—a durable metal that resists corrosion and rust. For smooth maneuvering, it's mounted on 5-inch casters—two of which have brakes to secure it in place.
Product Details
- Pass-thru design
- Full height
- Pan capacity: (18) 18-in. x 26-in. sheet pans or (34) 12-in. x 20-in. x 21/2-in. steam pans
- Adjustable, universal wire slides
- Cabinet holding temperature range: 70-200 degrees F
- Top-mounted temperature controls with analog thermostat
- Thermostatically controlled ducted heating system
- Integral water pan system adds humidity to cabinet
- High-density fiberglass insulation is 21/2 in. thick
- Rust- and corrosion-resistant stainless steel construction
- 1 solid and 1 double-pane, tempered glass doors
- (4) 5-in. casters (2 with brakes)
Product Features
Dimensions & Utilities
- 291/8 in. W x 345/8 in. D x 743/4 in. H
- 12 A, 1440 W
- 120 V/60 Hz/1 ph, 71/2-ft. cord with NEMA 5-15P plug
*Free shipping on Metro C569L-SFS-UPFC within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) solid & (1) double pane tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 1-1/2" adjustable wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C569L-SFS-UPFC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 34.63 |
| Door Design | Full |
| Door Type | Solid/Glass |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 1.4 |
| Load Type | Pass Thru |
| NEMA | 5-15P |
| No. of Doors | 2 |
| Pan Capacity | 18 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 29.13 |
| Weight | 365.00 |
