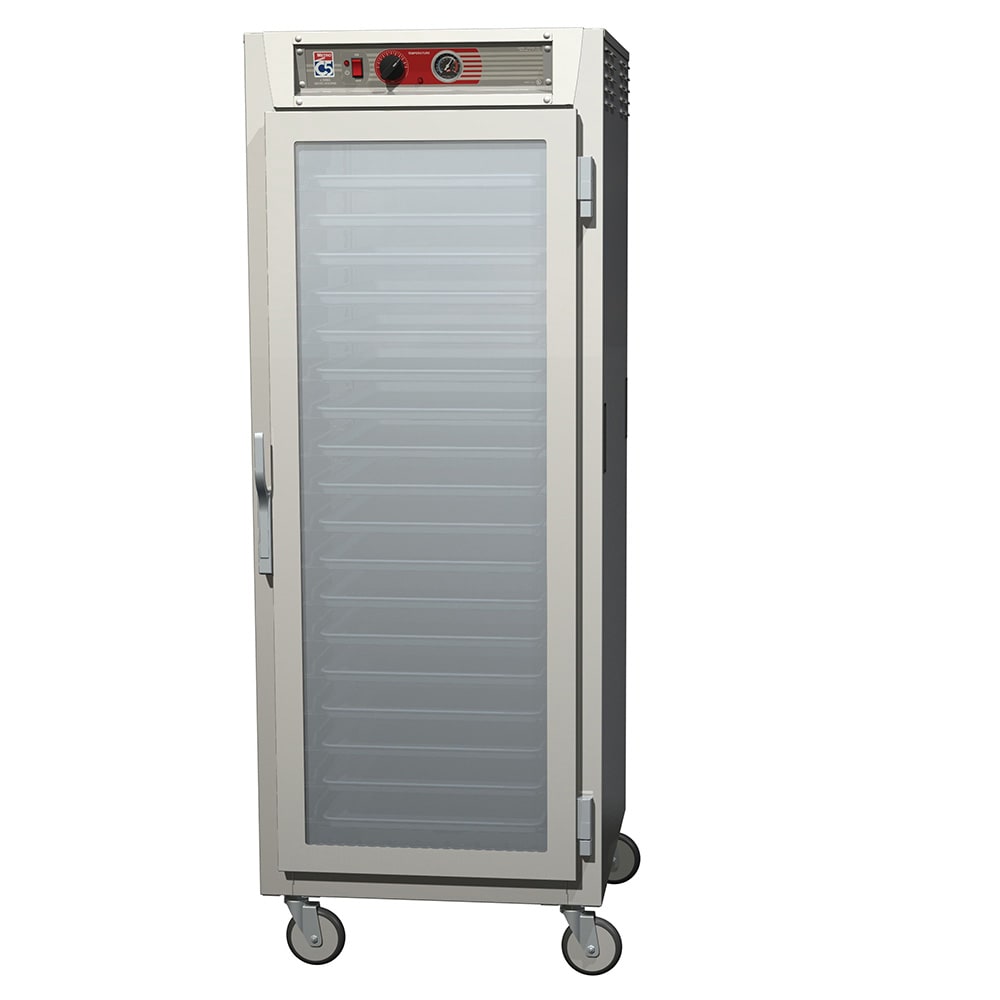

Metro C569L-SFC-UPFC Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Operators can adjust the Metro C569L-SFC-UPFC C5™ 6 series heated holding cabinet's temperatures with the top-mounted temperature control dials. To ensure product is held at the correct temperatures, an analog thermometer provides a temperature readout even if the unit is turned off or unplugged. The ducted heating system generates temperatures between 70 and 200 degrees Fahrenheit, circulating warmth evenly for swift heating and recovery. The cabinet's full perimeter is lined with 2¹/₂-inch-thick, high-density fiberglass insulation that reduces temperature fluctuations when it's stored in cool environments or its doors are opened for short periods of time. To preserve food quality, the integral water pan system introduces humidity to the cabinet's interior, which can help prevent foods from drying out.

For high-volume applications, the Metro C569L-SFC-UPFC holding cabinet's universal wire slides accommodate (18) 18-inch by 26-inch sheet pans or (34) 12-inch by 20-inch steam pans. As product loads change over time, operators can raise or lower the slides by 1¹/₂ inches. The cabinet's pass-thru layout streamlines pan loading and retrieval, while the two glass doors grant operators a clear view of product without opening the door. To withstand commercial kitchen environments, it's made of corrosion-resistant stainless steel that ensures lasting durability. Overall, this cabinet measures 29¹/₈ inches wide by 34⁵/₈ inches deep by 74³/₄ inches high and is supported with 5-inch casters.

Product Details

• Pass-thru, full-height configuration
• Accommodates (18) 18-in. x 26-in. sheet pans or (34) 12-in. x 20-in. x 2¹/₂-in. steam pans
• Adjustable, universal load slides
• Cabinet holding temperature range: 70-200 degrees F
• Top-mounted temperature controls with analog thermostat
• Ducted heating system for even, efficient heating
• Integral water pan system adds humidity
• Made of durable, corrosion-resistant stainless steel
• Cabinet interior lined with high-density fiberglass insulation
• 2 full-length, double-pane, tempered glass doors
• Smooth maneuvering with 5-in. casters

Product Features

Dimensions & Utilities

• 29¹/₈ in. W x 34⁵/₈ in. D x 74³/₄ in. H
• 12 A, 1440 W
• 120 V/60 Hz/1 ph, 7¹/₂-ft. cord with NEMA 5-15P plug

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, tempered double pane glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 1-1/2" adjustable wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects

Metro C569L-SFC-UPFC Specifications
